12JL-BT-E

Description
Board Connector, 12 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle,
CategoryThe connector    The connector
File Size161KB,3 Pages
ManufacturerJST
Download Datasheet Parametric View All

12JL-BT-E Overview

Board Connector, 12 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle,

12JL-BT-E Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresPOLARIZED
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN
Contact completed and terminatedTin (Sn)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts12
UL Flammability Code94V-0
Base Number Matches1

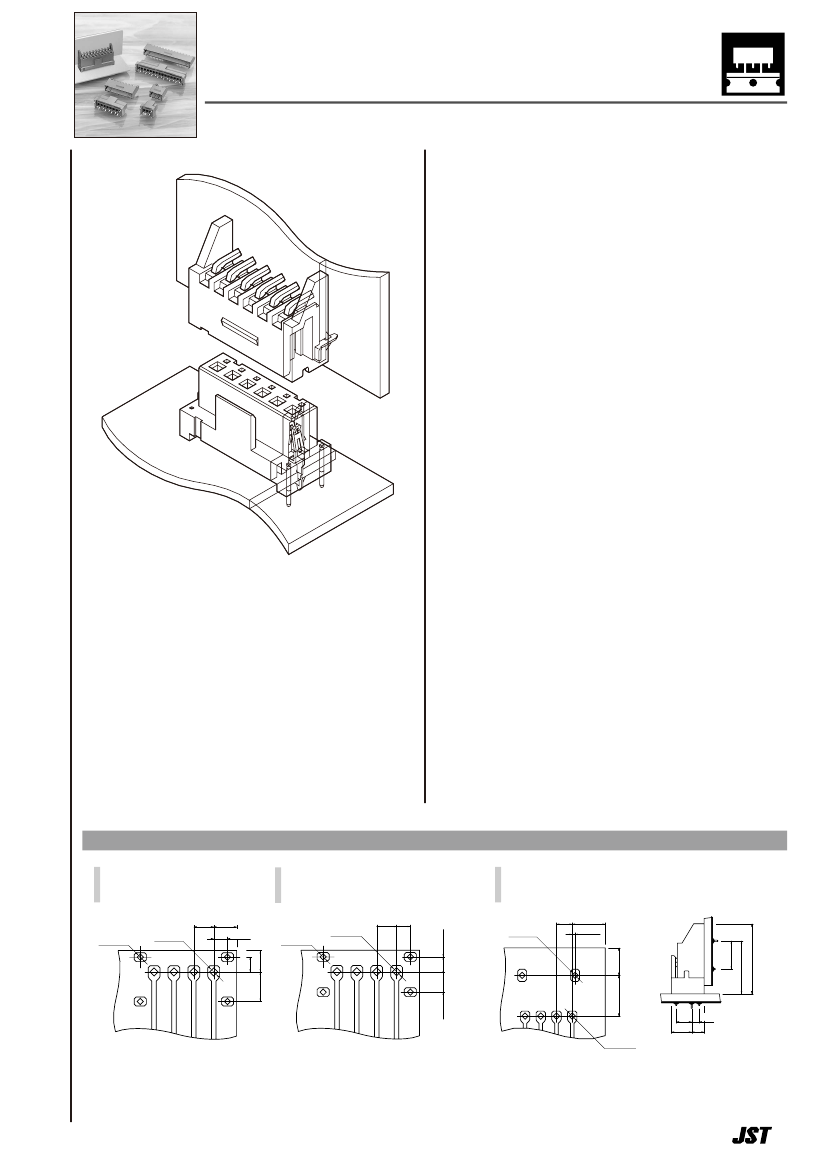

JL
CONNECTOR
Radial Tape
2.5mm pitch/Board-to-board connectors
Specifications –––––––––––––––––––
• Current rating: 3A AC, DC
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
max.
After environmental testing/20m
max.
• Insulation resistance:
1,000M
min.
• Withstanding voltage: 1,000V AC/minute
• Applicable PC board thickness: 1.6mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
The JL connector is designed for board-to-
board connection in electronic equipment
requiring high-density mounting and
unitization. This connector is highly
resistant to equipment vibration and
shock.
• High contact pressure
• Housing lock assures good connection even
after severe shock & vibration
• Reinforcing pins increase PCB mounting
durability
• Polarized, fully shrouded header aligns the
connector halves before their pins make contact
Standards ––––––––––––––––––––––
1
Certified LR20812
0
Recognized E60389
PC board layout (viewed from soldering side) and Assembly layout
Receptacle
Receptacle on radial-tape
Shrouded header
2.5
±0.05
2.7
min
φ 0.9
+0.1
 0
φ0.9
+0.1
 0
1.8
±0.05
1.8
±0.05
3.6
±0.05
2.9
min
0.1
φ 0.9
+ 
0
2.5
±0.05
1.8
±0.05
2.6
±0.05
φ1.0
±0.05
2.5
±0.05
2.5
min
φ0.9
+0.1
 0
1.0
±0.05
6.5
12.4
16.3
3.6
1.8
4.5 3.0
φ0.9
+0.1
 0
2.1
min
6.5
±0.05
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
2.8
