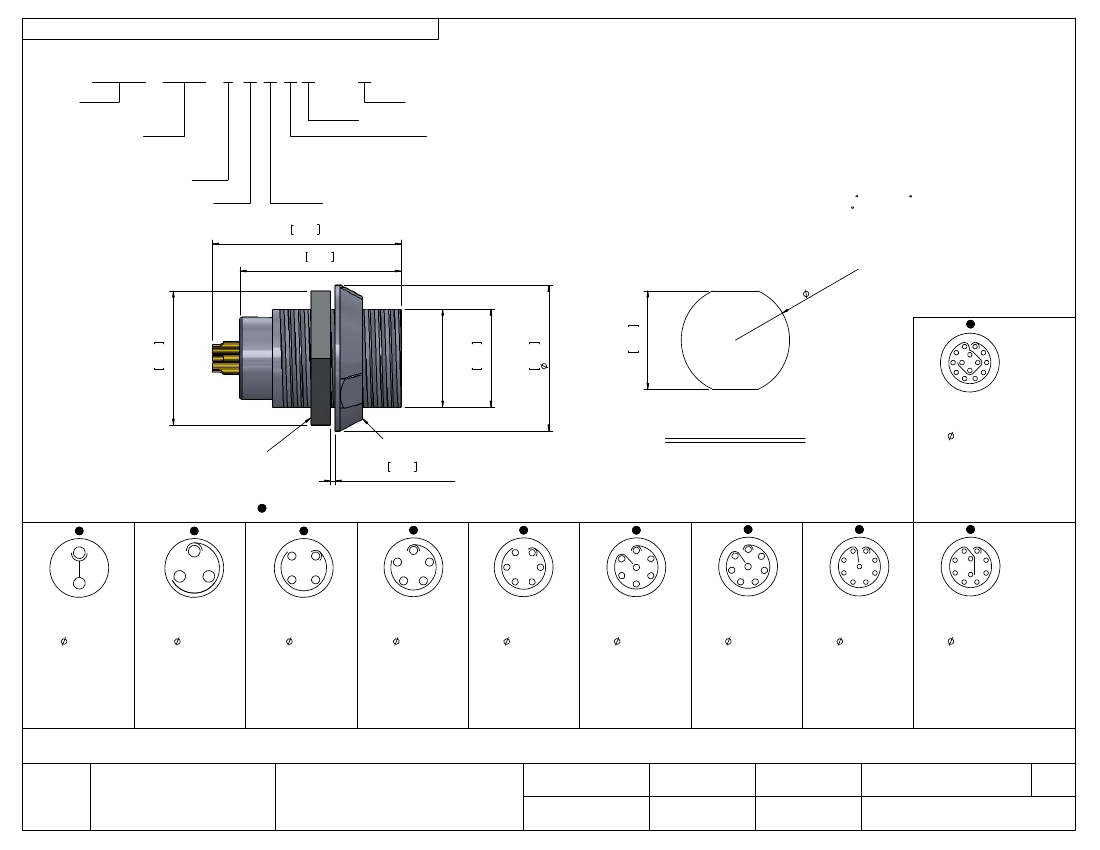

DESCRIPTION: QUIK-LOQ - FEMALE - SOLDER CUP - PANEL MOUNT - PLASTIC
UNITS = MM [INCHES]
CHARACTERISTICS
MATERIALS
HOUSING : ABS+PC
HOUSING COLOR : GREY
NUT A : BRASS
NUT A PLATING : NICKEL
CONTACTS : COPPER ALLOY
CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.
INSULATOR : PPS (HIGH TEMPERATURE)
MECHANICAL
DURABILITY: 2000 CYCLES
OPERATING TEMP. RANGE: -20 C ~ +120 C
PROCESS TEMPERATURE : 260 C FOR 5 SECONDS
MAX. TORQUE VALUE : 0.7 Nm [6.19 IN/lbs]
IP RATING: 50
1]
55
[0.
0
8P1P YYY 2 0 0 YRB 01
SERIES
14.00 [0.551]
# OF POSITIONS
(Ex. 002)
**SEE CHART A**
2 = FEMALE
SOLDER CUP (PANEL MOUNT)
0.896
22.75
0.797
20.25
1 = GOLD FLASH
RoHS COMPLIANT
NUT "B" COLOR
G = GREY
A = BLUE
J = YELLOW
N = BLACK
R = RED
V = GREEN
PLASTIC SHELL
.0
14
0.488
12.40
(ACROSS FLATS)
0.496
12.60
M14*1.0
0.728
18.50
1
0.669
17.00
NUT
A
NUT
B
0.276
7.00
(MAX. PANEL THICKNESS)
PANEL CUTOUT
TOLERANCE = +0.10, -0.0
[+0.004, -0.00]
14 POSITION
26 AWG MAX.
3 AMP MAX.
= 0.50 [0.020]
PIN
CONTACT
RESISTANCE
= 10 m
Ω
TEST VOLTAGE
= 600V
WORKING VOLTAGE
= 333V
CHART A
1
1
= KEY LOCATION
1
1
1
**VIEW FROM TERMINATION END**
1
1
1
1
2 POSITION
22 AWG MAX.
10 AMP MAX.
= 1.30 [0.051]
PIN
CONTACT
RESISTANCE
= 5 m
Ω
TEST VOLTAGE
= 1250V
WORKING VOLTAGE
= 500V
3 POSITION
22 AWG MAX.
10 AMP MAX.
PIN
= 1.30 [0.051]
CONTACT
RESISTANCE
= 5 m
Ω
TEST VOLTAGE
= 1250V
WORKING VOLTAGE
= 500V
4 POSITION
22 AWG MAX.
8 AMP MAX.
PIN
= 0.90 [0.035]
CONTACT
RESISTANCE
= 6 m
Ω
TEST VOLTAGE
= 1250V
WORKING VOLTAGE
= 500V
5 POSITION
22 AWG MAX.
8 AMP MAX.
= 0.90 [0.035]
PIN
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1100V
WORKING VOLTAGE
= 500V
6 POSITION
24 AWG MAX.
6 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 m
Ω
TEST VOLTAGE
= 1000V
WORKING VOLTAGE
= 450V
7 POSITION
24 AWG MAX.
6 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 m
Ω
TEST VOLTAGE
= 1000V
WORKING VOLTAGE
= 450V
8 POSITION
24 AWG MAX.
5 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 m
Ω
TEST VOLTAGE
= 875V
WORKING VOLTAGE
= 400V
9 POSITION
26 AWG MAX.
3 AMP MAX.
PIN
= 0.50 [0.020]
CONTACT
RESISTANCE
= 10 mΩ
TEST VOLTAGE
= 600V
WORKING VOLTAGE
= 333V
10 POSITION
26 AWG MAX.
3 AMP MAX.
PIN
= 0.50 [0.020]
CONTACT
RESISTANCE
= 10 mΩ
TEST VOLTAGE
= 600V
WORKING VOLTAGE
= 333V
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
DATE:
SCALE:
SHEET
OF
REV:
M. SIGMON
CHECKED:
DATE:
07-29-16
N.T.S.
1
DWG NO.
1
1
8P1PYYY200YRB01
