Ribbon Cable Connector
HIF4 Series

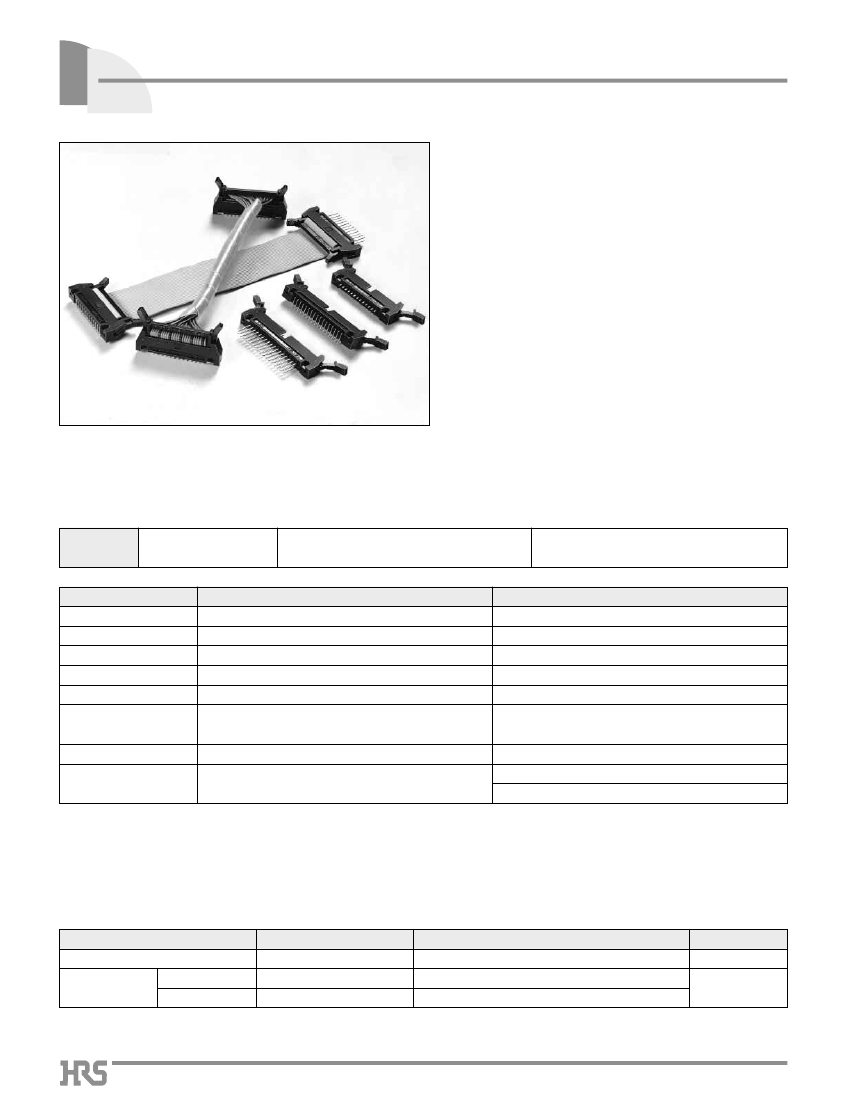

sFeatures
1. Current Capacity
The HIF4 series connector is capable of 3 A current capacity used
for wider applications, while the HIF3 series uses 1 A capacity.
2. Full Lock Mechanism
This connector is equipped with a Hirose original locking
mechanism, and guarantees excellent reliability for vibration and
shock.
3. One-touch Insertion and Extraction Mechanism
This connector is equipped with levers for automatic insertion and
extraction, as soon as lock is reset. Insertion and extraction tools
are not required.
4. Applicable Cable
The applicable cable is UL2651 AWG#24 flat cable (7
cores./0.203mm, jacket dia :1.0 to 1.2mm).
sApplications
Computers, terminal equipment, various kinds of electronic equipment, and office automation machines
sProduct
Specifications
Rating
Current rating : 3A
Operating Temperature Range :
–55
to
+85ç
(Note 1) Storage Temperature Range :
–10
to
+60ç
(Note 2)
Storage Humidity Range : 40 to 70% (Note 2)
Condition
500V DC
1000V AC/1 minute
0.1A
Voltage rating : 300V AC Operating Moisture Range : 40 to 80%
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
1000M ohms min
Specification
No flashover or insulation breakdown.
15m ohms max
No electrical discontinuity of 1µs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-65ç: 30 minutes
➝
15 to 35ç: 5 minutes max.
125ç: 30 minutes
➝
15 to 35ç: 5 minutes max.) 5 cycles
500 cycles
Solder bath:
260ç for 10 seconds
5.
Humidity (Steady state)
Insulation resistance: 1000M ohms min.
6. Temperature Cycle
7. Operating Life
No damage, cracks, or parts looseness.
Contact resistance: 15m ohms max.
8. Resistance to Soldering heat
No deformation of components affecting performance.
Manual soldering: 360ç for 5 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series.Contact us for the drawings and specifications for
a specific part number shown.
Note 4: Please note that there is a risk of deforming the lock when an excessive load is applied to the inside.
sMaterial
Part
Insulator
Contact
Socket
Pin header
Material
PBT
Beryllium copper
Phosphor bronze
Finish
Black
Gold plated over nickel underplating
Gold plated over nickel underplating
Remarks
UL94V-0
–––––––
B2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose
Connector
HIF4 SeriesqRibbon Cable
sales representative.
sOrdering
Information
qPin
Header
HIF4 -
*
P - 3.18 DS
q
w
e
: HIF4
: P : Pin header
: 3.18mm
r
t
q
Series Name
e
Contact alignment
r
Contact Pitch
t
Contact Type
DS : Right angle type
SA : Straight dip type
W : Wrapping type
w
Number of Contacts : 16, 20, 26, 34, 40
qSocket
HIF4 -
*
D - 3.18 R
q
w
e
: HIF4
: D : Double
: 3.18mm
: Ribbon cable
r
t
q
Series Name
e
Contact alignment
r
Contact Pitch
t
Connection type
w
Number of Contacts : 16, 20, 26, 34, 40
B3
