HA16PRM-3S(05) datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> HA16PRM-3S(05)

HA16PRM-3S(05): DescriptionCONN PLUG FMALE 3POS SOLDER CUP; CategoryThe connector; File Size814KB，12 Pages; ManufacturerHirose Electric; Environmental Compliance

Download Datasheet Parametric View All

HA16PRM-3S(05) Overview

CONN PLUG FMALE 3POS SOLDER CUP

HA16PRM-3S(05) Parametric

Parameter Name	Attribute value
Connector type	plug, female socket
Number of pins	3
Housing Dimensions - Plug-in	16
Housing size, MIL	-
Installation type	panel mount, flange
Termination	solder cup
Fastening type	pin lock
towards	Marked
Intrusion protection	-
Housing material, plating	Aluminum or zinc, nickel plated
Contact plating	silver
characteristic	-
Rated current	15A
Voltage - Rated	130VAC
Contact plating thickness	-
Operating temperature	-25°C ~ 70°C

Preview

Download Datasheet

View All

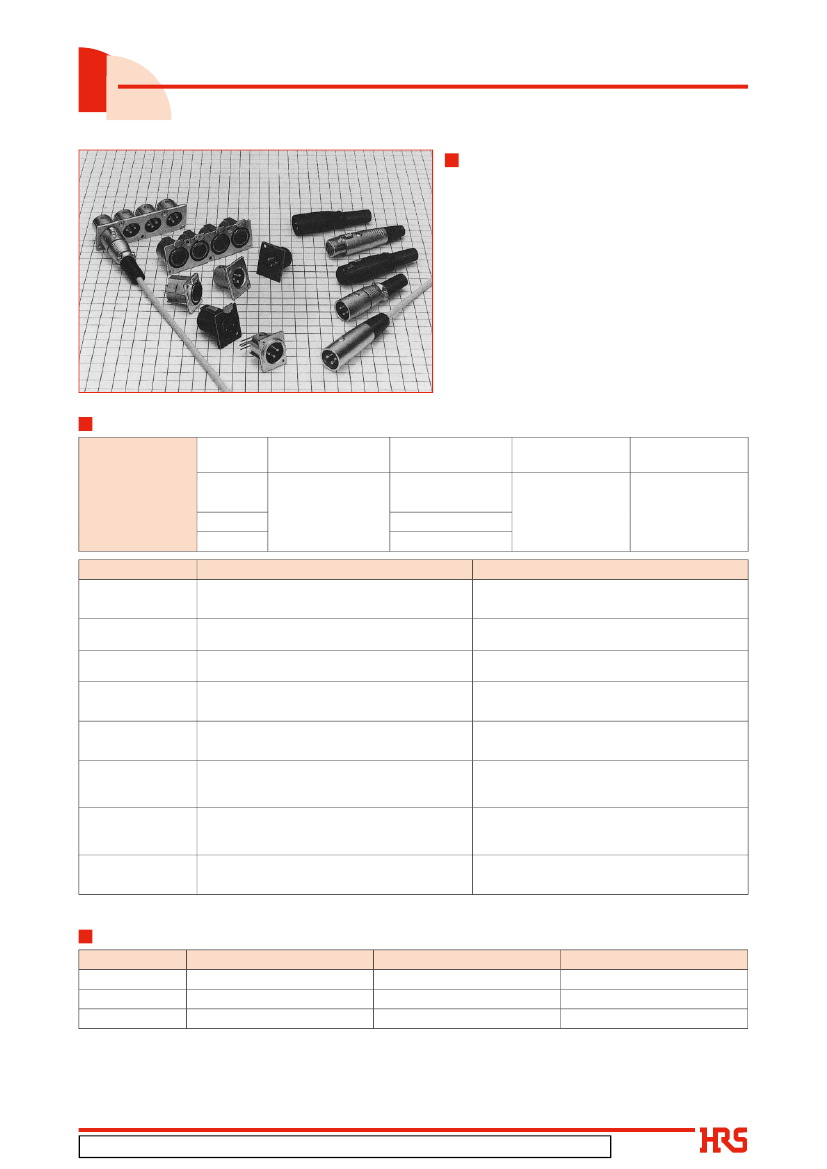

Circular Connectors for Audio Equipment

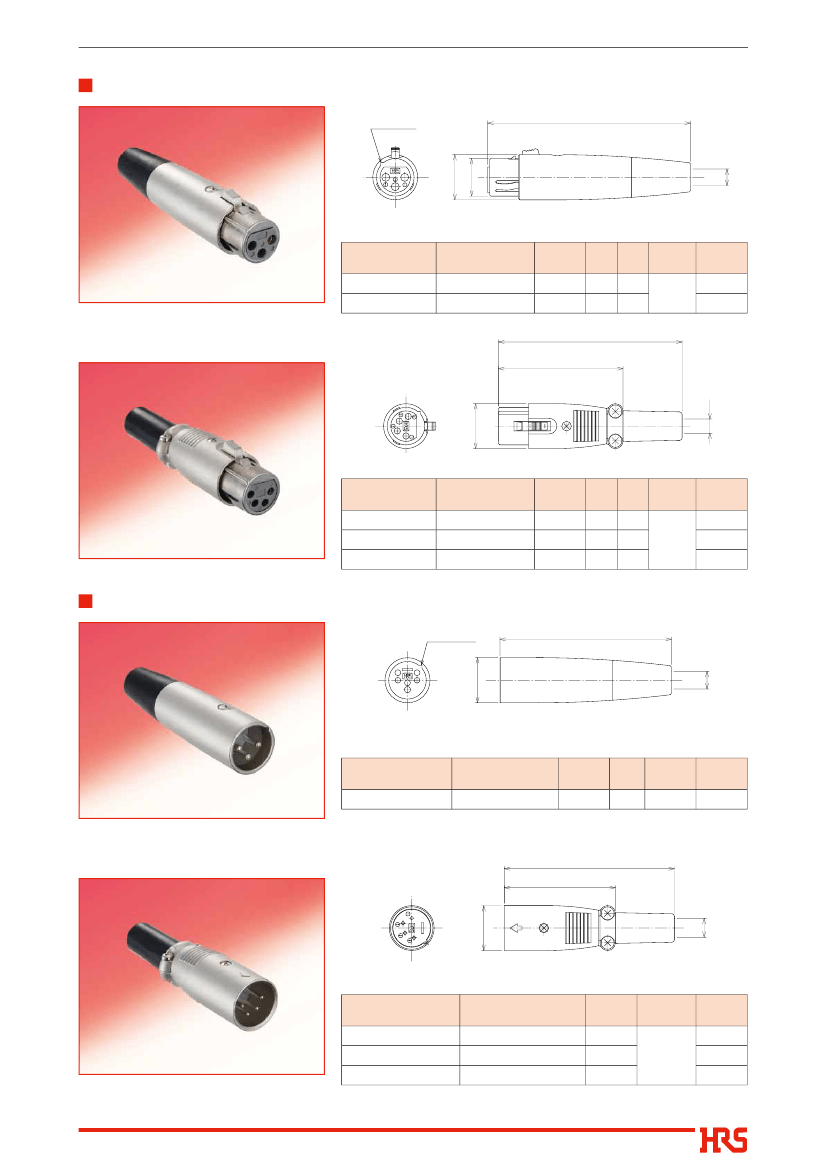

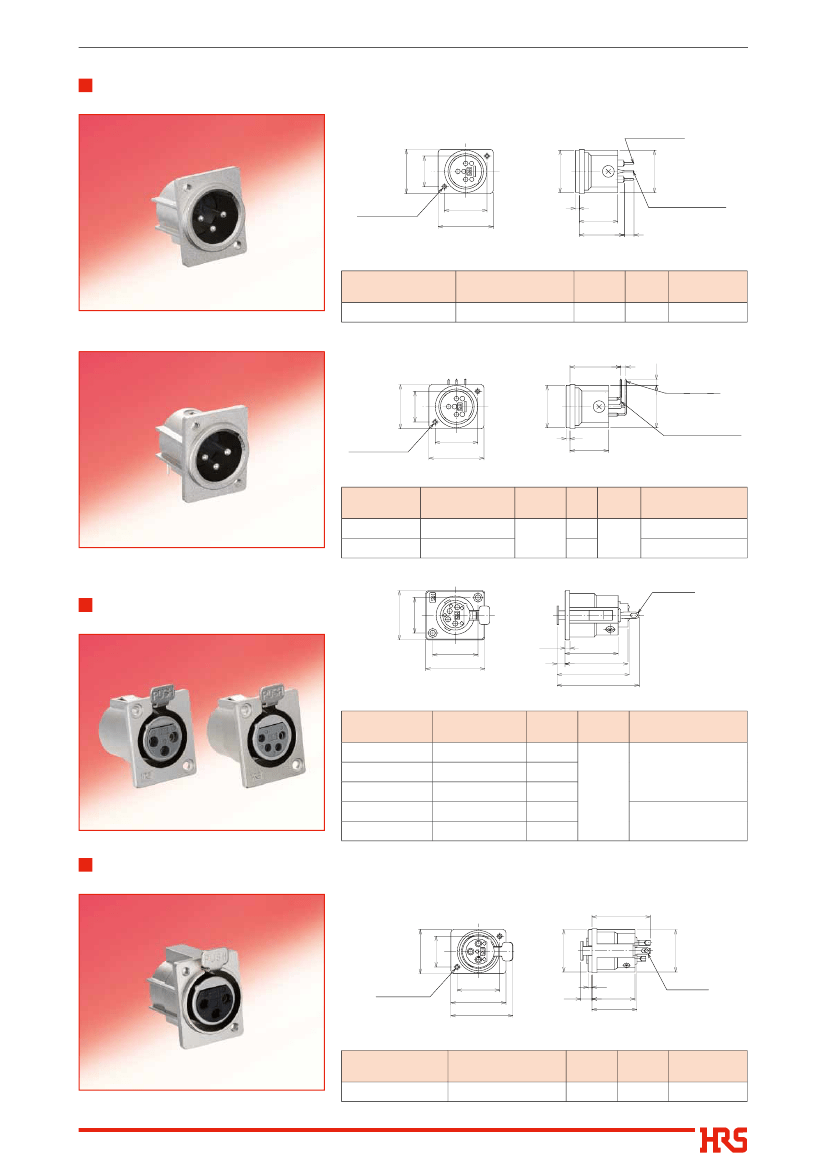

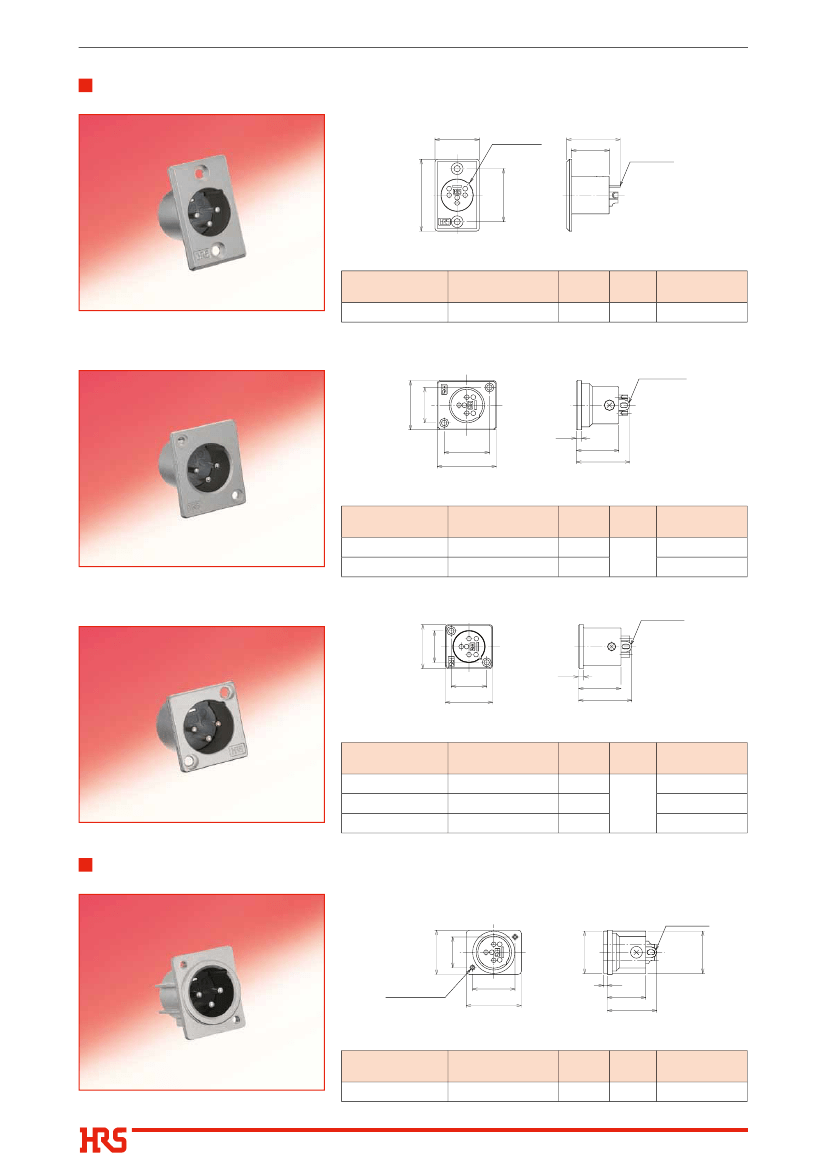

HA Series

Features

1.Circular connectors with lock

mechanism for audio equipment

Additional grounding feature prevents external

noise.

This series includes four different receptacle

s i ze s a n d t wo t y p e s o f c a bl e c l a m p i n g

mechanisms used on the plugs. Receptacle

selection will depend on your particular design

and available mounting space.

Product Speciﬁcations

No. of

contacts

Ratings

Items

1. Contact resistance

2. Insulation

resistance

3. Withstanding

voltage

4. Vibration

resistance

5.Shock resistance

Speciﬁcations

3 and 4 contacts: 5 mø max.

3 contacts (PCB dip type), 5 contacts: 10 mø min.

1,000 Mø min.

No ﬂashover or dielectric breakdown.

No electrical discontinuity for 10 µs or greater

3 and 4 contacts: a maximum of 10 mø

3 contacts (PCB dip style)

5 contacts: 20 mø max.

AC130V

DC180V

Rated voltage

Rated current

15A

3 A (PCB dip type)

Conditions

Measured at DC 1 A

Measured at DC 500 V

AC 1,400 V for one minute

10 to 55 Hz/cycle, amplitude: 0.75 mm, in 3 axis

directions, for 2 hours each direction

Acceleration: 490 m/s

, duration: 11 ms, 3 axis

directions, 3 cycles each direction

1,000 times

-55°C: 30 minutes

➝

Normal temperature: 10

to 15 minutes

➝

85°C: 30 minutes

➝

Normal

temperature: 10 to 15 minutes, left for 5 cycles

-25 to +70℃

-10 to +60℃

Operation

temperature range

Storage temperature

range

6. Mating Cycles

7. Temperature cycle Insulation resistance: 1,000 Mø max.

8. Moisture

resistance

Insulation resistance: 10 Mø (at high humidity) min. Temperature: 40°C, relative humidity: 90 to 95%,

100 Mø (when dry) min.

left for 96 hours

Materials

Parts

Shell

Insulator

Contact

Material

Aluminum alloy or zinc alloy

Polyamide resin or PBT resin

Copper alloy

Finish

Matte ﬁnished, nickel plating

――――

Silver plating

Remarks

――――

UL94V-0

――――

In cases where the application will demand a high level of reliability, such as automotive,

please contact a company representative for further information.

2014.11w
