Active module - UMK-32 RM/MR-G24/1/YCS - 2969055
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

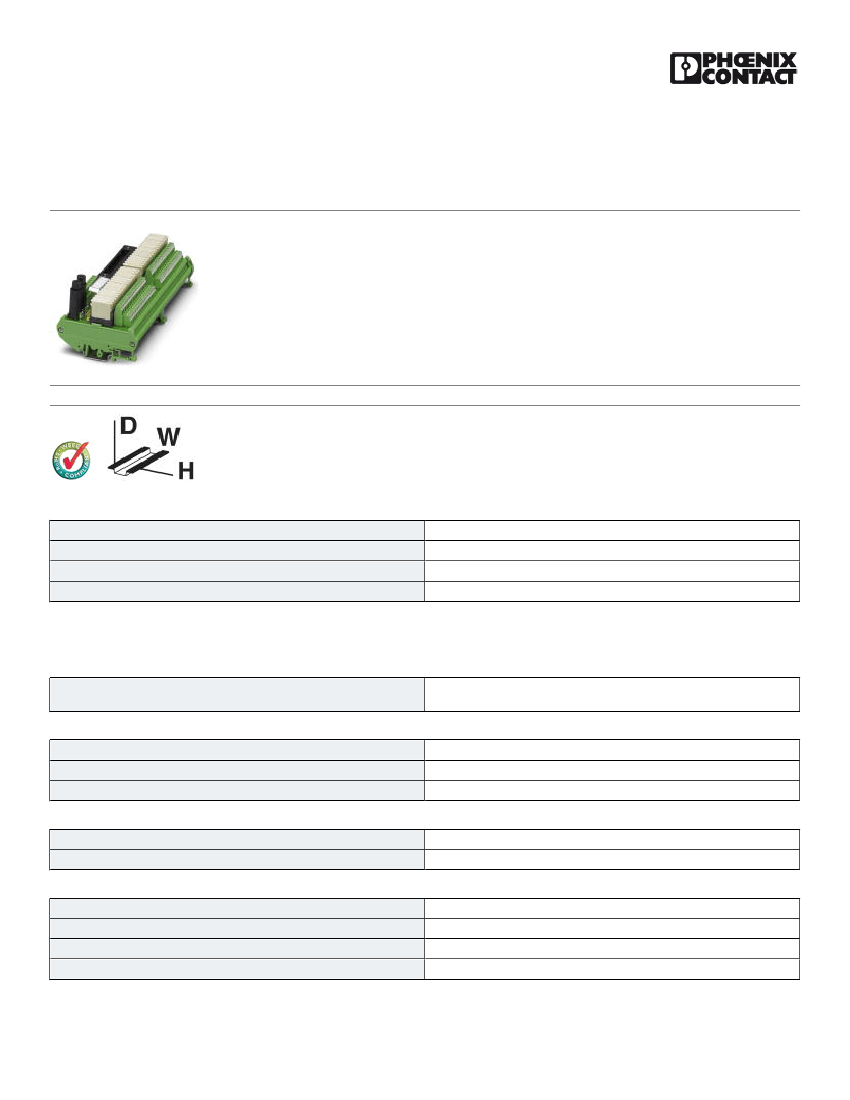

32-channel output relay module (one N/O contact, 250 V AC/3 A) with a screw connection. The module is
controlled through a 50-pos. system connector and is suitable for the Yokogawa ADV 551 and ADV 561 cards.
Packing unit
1 pc
411.8 GRM
85364190
Germany
Key commercial data
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
202 mm
90 mm
58 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 50 °C
-20 °C ... 70 °C
General
Mounting position
Assembly instructions
Standards/regulations
any
In rows with zero spacing
DIN EN 50178
IEC 62103
10/30/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/2969055
Active module - UMK-32 RM/MR-G24/1/YCS - 2969055
Technical data
General
Pollution degree
Surge voltage category
2
III
Connection data for connection 1
Connection name
Number of connections
Connection method
Number of positions
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Contact side
72
Screw connection
3
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
26
14
Connection data for connection 2
Connection name
Number of connections
Connection method
Number of positions
Coil side
1
Yokogawa KS-compatible
50
Supported controller
Controller
- suitable I/O card
Controller
- suitable I/O card
YOKOGAWA CENTUM CS3000R3
ADV551
ADV561
YOKOGAWA STARDOM
NFDV551
NFDV561
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27371102
27371102
27371001
27371001
27371001
27371001
27371001
10/30/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/2969055
Active module - UMK-32 RM/MR-G24/1/YCS - 2969055
Classifications
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001437
EC001437
EC001437
EC001437
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211916
39121515
39121515
39121515
39121515
Drawings
Circuit diagram
12
14
16 7
1 2 18 9
11
13
15 8
17 10
50
48
20
49
47
19
CBSE
1
2
16
17
18
32
P1- P1+ 1A 1B 2A 2B
16A 16B
P2- P2+17A17B18A18B 32A 32B
10/30/2014 Page 3 / 4
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
202
P1+ P1+ P1- P1- P2+ P2+ P2- P2-
https://www.phoenixcontact.com/us/products/2969055
49
50
1
2
X3
X11

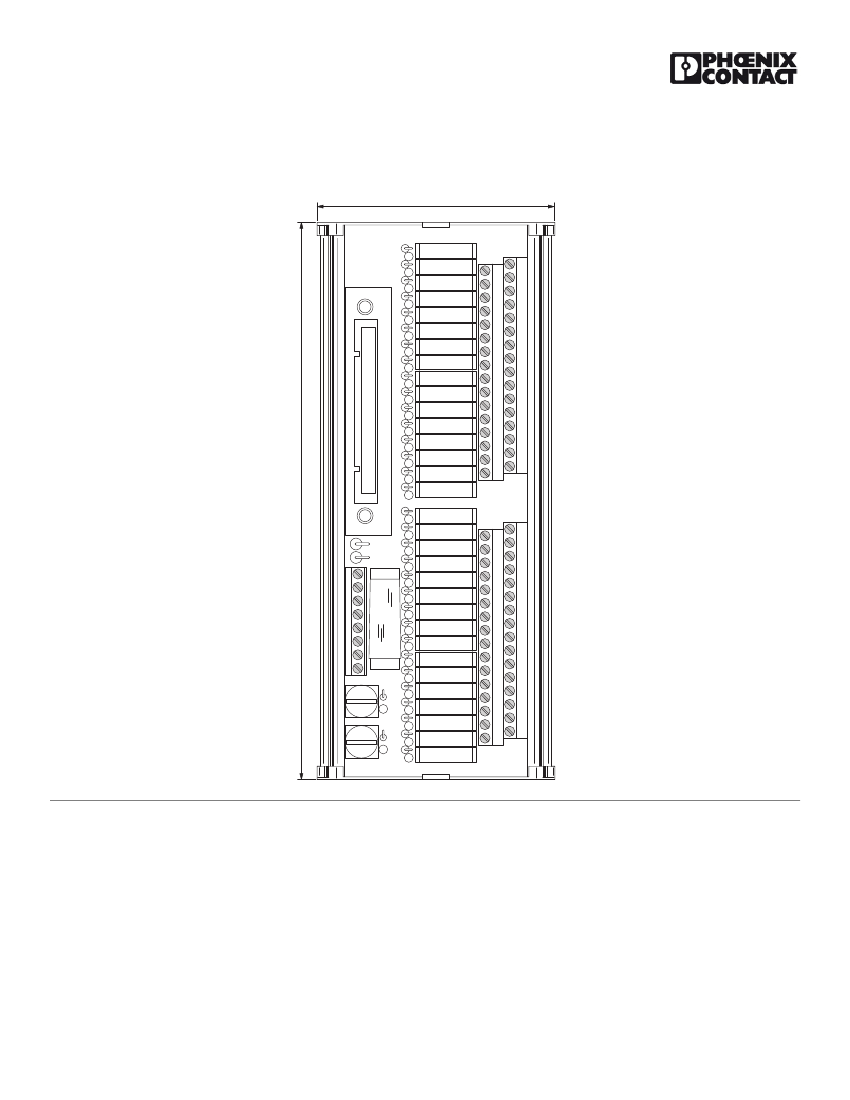

Dimensioned drawing
90
1A 2A 3A 4A 5A 6A 7A 8A 9A 10A 11A 12A 13A 14A 15A 16A
17A 18A 19A 20A 21A 22A 23A 24A 25A 26A 27A 28A 29A 30A 31A 32A
Active module - UMK-32 RM/MR-G24/1/YCS - 2969055
1B 2B 3B 4B 5B 6B 7B 8B 9B 10B 11B 12B 13B 14B 15B 16B
17B 18B 19B 20B 21B 22B 23B 24B 25B 26B 27B 28B 29B 30B 31B 32B
10/30/2014 Page 4 / 4
