Test plug - FTPR-3/16S - 3069973
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

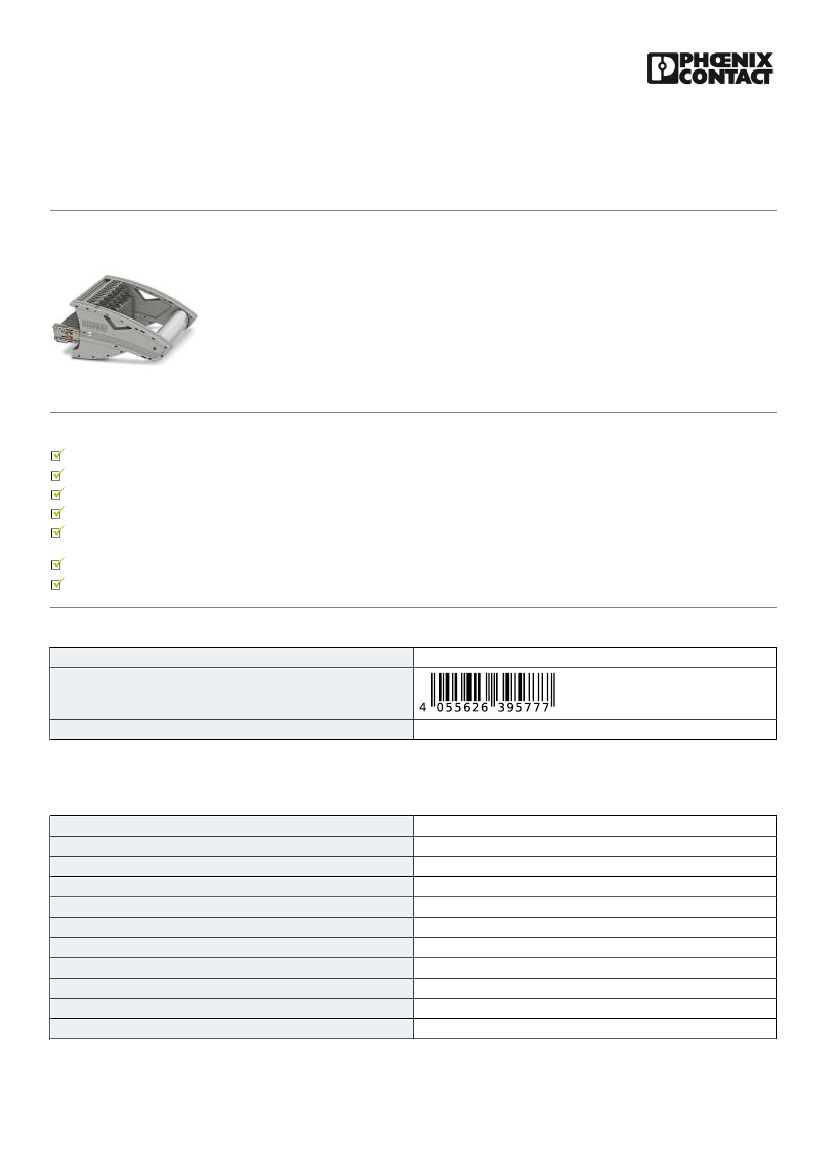

Test plug, With twist grip, number of positions: 16, width: 163 mm, color: gray
The figure shows the 14-pos.
version
Your advantages
Easy and time saving, thanks to functional grouping of switching operations
Cost-effective, thanks to the tailored, modular design and use of standardized CLIPLINE complete accessories
Space saving, thanks to offset test socket arrangement
Safe, thanks to guided operation with patented twist grip
The integrated, robust switch contact is designed for the most stringent demands, and the use of high-quality materials ensures the
transmission of signal currents, even after multiple actuations
The automatically generated transformer short circuit and the shock-proof design ensure the highest degree of safety during measurement
Maximum safety with leading and automatic transformer short circuit
Key Commercial Data
Packing unit
GTIN
GTIN
4055626395777
1 pc
Technical data
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Test surge voltage
Overvoltage category
16
1
32
16
6 mm²
gray
PA
V0
4 kV
5 kV
III
11/05/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/3069973
Test plug - FTPR-3/16S - 3069973
Technical data
General
Insulating material group
Maximum power dissipation for nominal condition
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
I
1.31 W
20 A
20 A
400 V AC/DC
No
Dimensions
Width
Length
Pitch
163 mm
86 mm
8.2 mm
Connection data
Note
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
The conductor cross section depends on the cable lug used
0.5 mm²
2.5 mm²
20
14
Mounting
Mounting type
Insertion in base strip
Standards and Regulations
Flammability rating according to UL 94
V0
Environmental Product Compliance
REACh SVHC
Lead 7439-92-1
Drawings
Circuit diagram
Dimensional drawing
207,04
53,07
Approvals
Approvals
85,38
11/05/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/3069973
Test plug - FTPR-3/16S - 3069973
Approvals
Approvals
UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approval details
UL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 60425
cUL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 60425
cULus Recognized
