USB 3.0 Spectra 3022 Extender
2-Port USB 3.0 100m Multimode Fiber Extender System
The USB 3.0 Spectra™ 3022 extends SuperSpeed USB 3.0 up to 100m (330 ft).*
™
4664 Lougheed Hwy.
Suite 221
Burnaby, BC,
V5C 5T5, Canada
icron.com
+1 604 638 3920
LEX (Local Extender)
REX (Remote Extender)
Features
Take advantage of USB 3.0's blazing 5 Gbps speeds up to 100m of distance over multimode
fiber. Machine Vision cameras, security cameras, conferencing cameras and storage drives can
be extended while providing isolation and security. Key features include:
■
USB 3.0 extension up to 100m
■
Delivers speed, isolation and security over multimode fiber
■
Supports USB 3.0 throughputs of up to 5 Gbps
■
Integrated 2-port hub suitable for industrial environments
■
Rugged locking USB and power connectors
■
Enclosures with convenient pre-drilled holes for optional bracket mounting
■
Works with AIA USB3 Vision™ compliant devices
Includes the ExtremeUSB® suite of features:
■
Transparent USB extension
■
True plug and play; no software drivers required
■
Works with all major operating systems: Windows®, OS X® and Linux®
Applications
■
■
■
Machine Vision camera extension
Post-production editing
Remote storage
USB 3.0 Cameras
■
■
Security camera extension
Conferencing camera extension
Computer & Monitor
USB 3.0 up to 100m
over multimode f iber

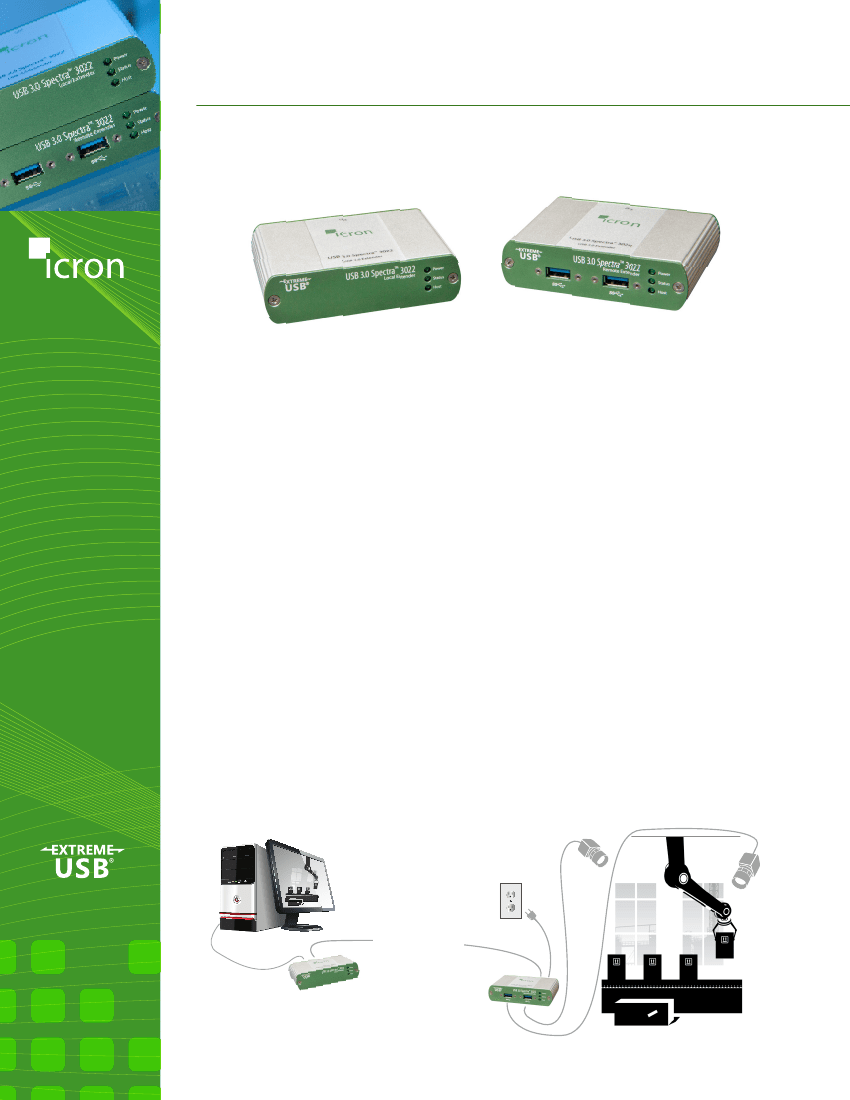

LEX
REX
Assembly Line
Specifications subject to
change without notification.
©2016
Icron Technologies Corp.
#90-01040-A10
* Up to 50m with USB 3.0 storage type devices; up to 100m or more is achievable when using USB 3.0 bulk traff ic cameras. For Microsoft Kinect applications, please
use the Spectra™ 3001-15 active extension cable.
USB 3.0 Spectra
™
3022 Specifications
™
Multimode
Fiber Class
OM2
OM3
Cameras
50m
100m
Storage
50m
50m
ExtremeLink 4500 Product Specifications
RANGE*
OM2 Multimode Fiber:
OM3 Multimode Fiber:
SPEEDS
USB 3.0:
LEX
USB Connector:
Link Connector:
Dimensions:
Enclosure Material:
REX
USB Connectors:
Link Connector:
Dimensions:
Enclosure Material:
Power Connector:
Available Current:
Power Supply:
ENVIRONMENTAL
Operating Temperature:
Storage Temperature:
Operating Humidity:
Storage Humidity:
COMPLIANCE
EMC:
Environmental:
Machine Vision:
SUPPORT
Warranty:
Up to 50m (165 ft)
Up to 100m (330 ft)
Up to 5 Gbps
(Not backward compatible with USB 2.0/1.1)
1 x USB 3.0 Type B Locking Receptacle
per AIA USB3 Vision
™
specification
1 x Duplex LC Connector
100mm x 76mm x 26mm (3.94" x 2.99" x 1.02")
Anodized Aluminum
2 x USB 3.0 Type A Locking Receptacles
per AIA USB3 Vision
™
specification
1 x Duplex LC Connector
100mm x 76mm x 26mm (3.94" x 2.99" x 1.02")
Anodized Aluminum
24V DC, 1A, Locking, 2.5 mm, center-positive
900mA for each USB Port
100-240V AC Brick, Locking
0°C to 50°C (32°F to 122°F)
-20°C to 70°C (-4°F to 158°F)
20% to 80% relative humidity, non-condensing
10% to 90% relative humidity, non-condensing
FCC (Class B), CE (Class B)
RoHS2 (CE)
Works with AIA USB3 Vision™ compliant devices
2-year
* Up to 50m with USB 3.0 storage type devices;
up to 100m or more is achievable when using
USB 3.0 bulk traffic cameras.

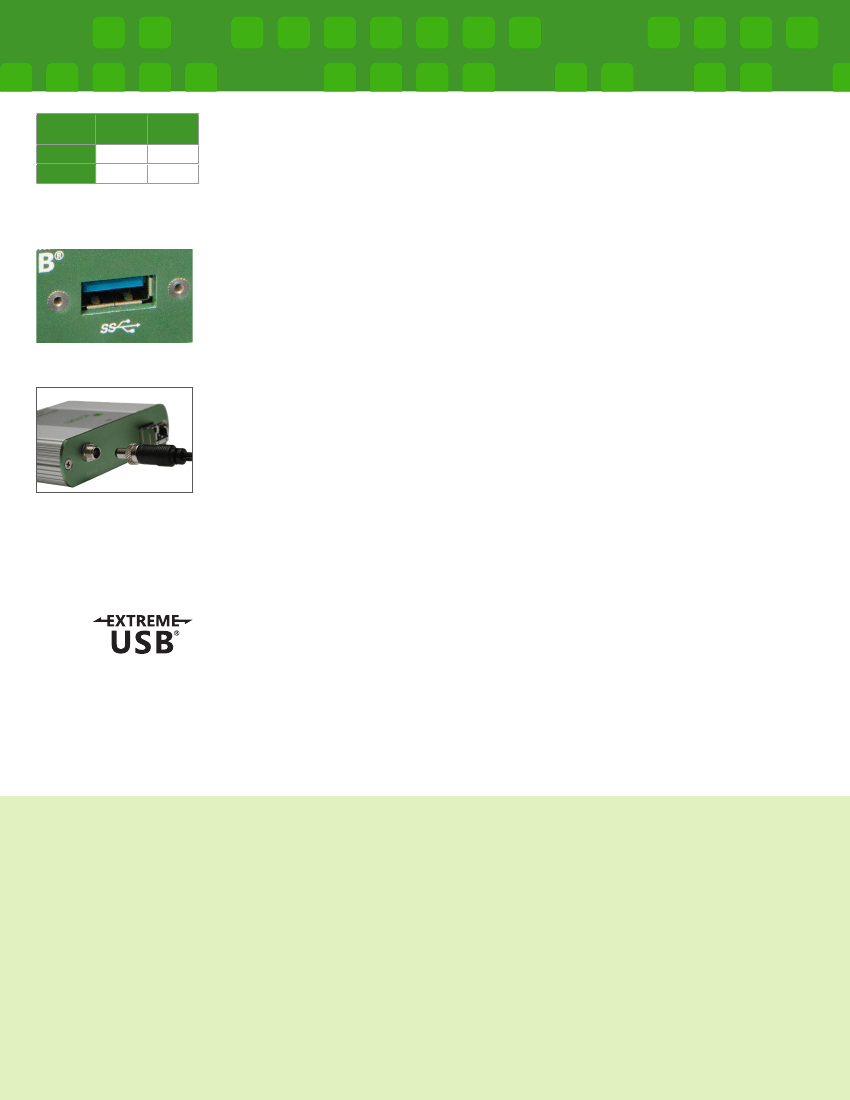

Locking USB Receptacle
Locking Power Connector
Specifications subject to change
without notification.
©2016
Icron Technologies Corp.
#90-01040-A10
Ordering Information
The USB 3.0 Spectra™ 3022 extender system includes a LEX, REX, locking power adapter, country specific power cord,
USB 3.0 cable, Quick Start Guide and two-year warranty. For more information please email
sales@icron.com,
call
+1 604 638 3920 or locate a distributor/reseller in your area by visiting
icron.com/where-to-buy.
PART #
NAME
DESCRIPTION
2-Port 100m Fiber USB 3.0 Extender System, 100-240V Power Adapter, Locking NA Power Cord
2-Port 100m Fiber USB 3.0 Extender System, 100-240V Power Adapter, Locking EU Power Cord
2-Port 100m Fiber USB 3.0 Extender System, 100-240V Power Adapter, Locking UK Power Cord
2-Port 100m Fiber USB 3.0 Extender System, 100-240V Power Adapter, Locking AU Power Cord
2-Port 100m Fiber USB 3.0 Extender System, 100-240V Power Adapter, Locking JP Power Cord
USB Extender Mounting Kit for 2201, 2204, 2212, 2224, 2244, 2304, 3022 (Silver)
Kit includes: 2 brackets, 4 locking washers and 4 (M3 x 5mm) Phillips pan head screws (Order: 1 kit per LEX or REX; 2 kits per system)
00-00327 USB 3.0 Spectra™ 3022 - NA
00-00328 USB 3.0 Spectra™ 3022 - EU
00-00329 USB 3.0 Spectra™ 3022 - UK
00-00330 USB 3.0 Spectra™ 3022 - AU
00-00371 USB 3.0 Spectra™ 3022 - JP
10-00406 USB Mounting Kit - Silver
