MS4800A-30-0600-X datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> MS4800A-30-0600-X

MS4800A-30-0600-X: DescriptionTRANSMITTER SAFETY LIGHT CURTAIN; CategoryTopical application Mechanical and electrical/engineering/automation; File Size5MB，105 Pages; ManufacturerOMRON; Websitehttps://www.omron.com; Environmental Compliance

Download Datasheet Parametric View All

MS4800A-30-0600-X Overview

TRANSMITTER SAFETY LIGHT CURTAIN

MS4800A-30-0600-X Parametric

Parameter Name	Attribute value
Protect	hand/arm
Test your ability	30mm
Protection height	600mm
Number of luminous flux	30
Beam spacing	20mm
The scope of work	0.3m ~ 20.0m
characteristic	Blanking, transmitter only
Intrusion protection	IP65 - dust and water resistant
Operating temperature	-10°C ~ 55°C

Preview

Download Datasheet

View All

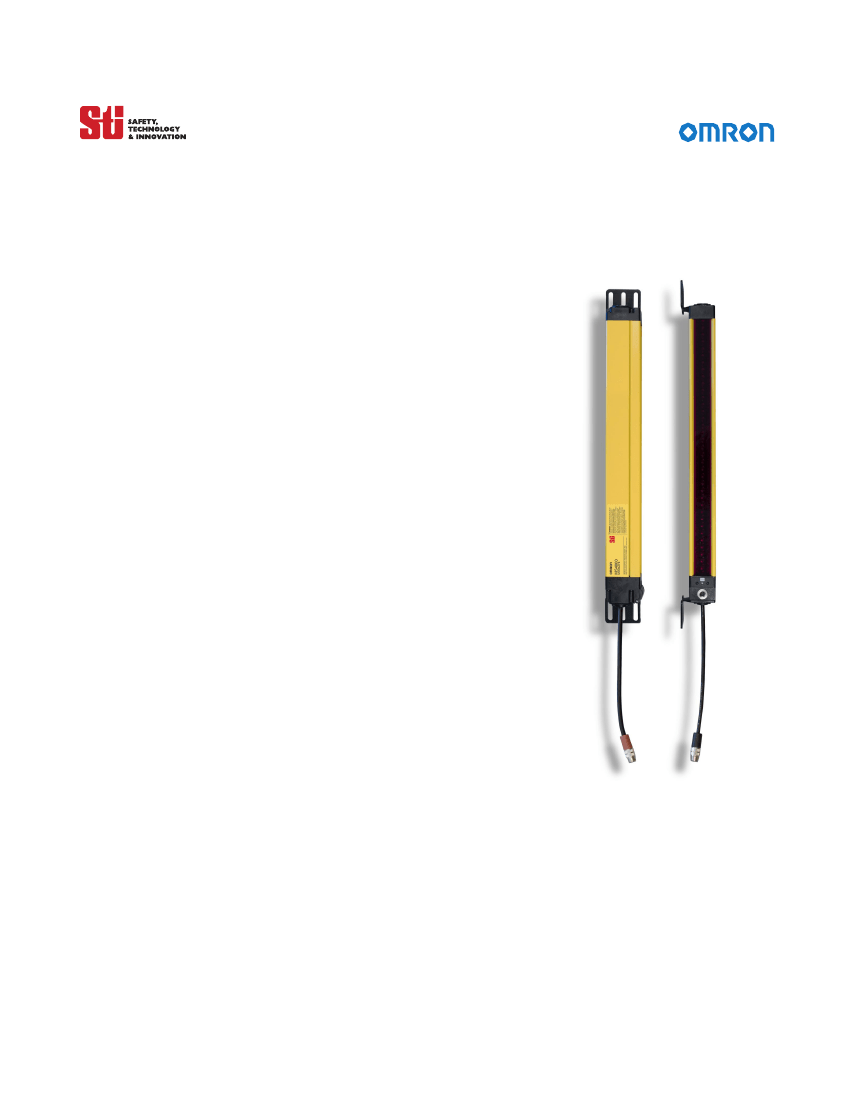

MiniSafe 4800 Series Safety Light Curtains
