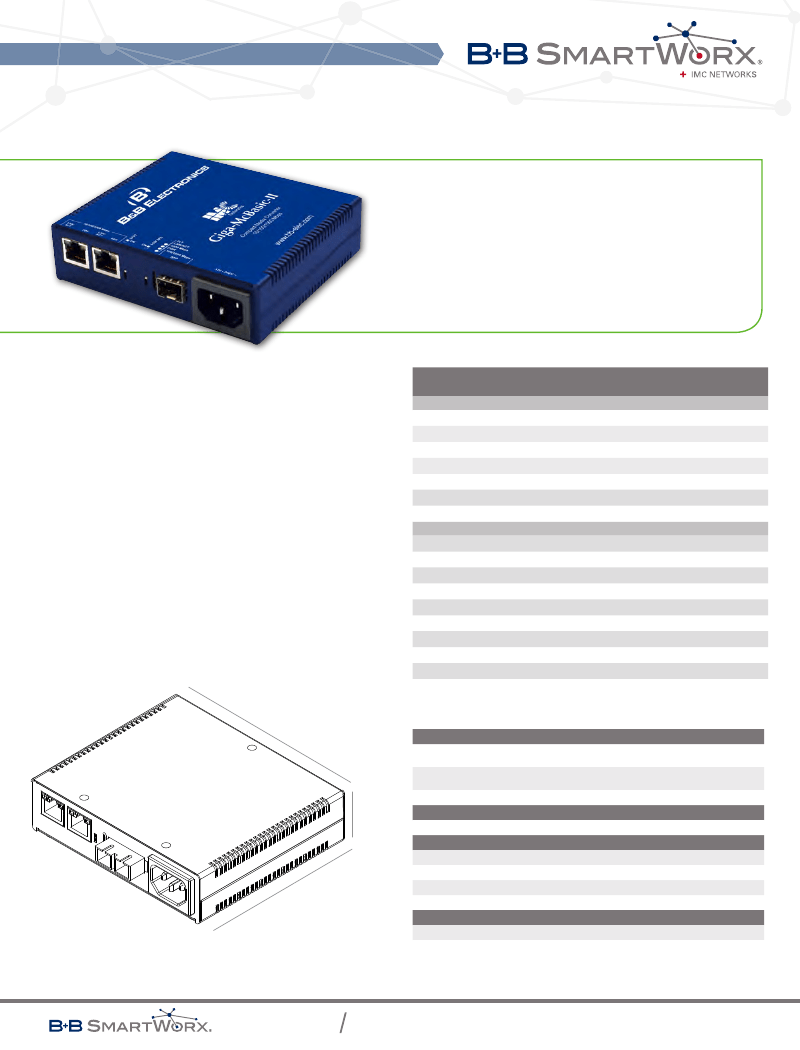

1000 Mbps, Compact,
3-port Media Converter
Giga-McBasic-II
PRODUCT FEATURES
•
•
•
•
•
•
•
Two 10/100/1000 Mbps copper ports
One SFP port or fixed fiber port (available in SM or MM)
Compact, rugged device with internal AC power supply
Easy to install, unmanaged device
Supports Link Fault Pass-Through
Industrial Ethernet
Auto-negotiation, Auto-cross
The Giga-McBasic-II is a low-cost, compact, multi-port media converter
that supports gigabit speed. Utilizing flexibility and compact size,
interior private network applications can further benefit from the ever-
expanding versatility of the McBasic product line.
Features two 10/100/1000Mbps copper UTP ports and one fiber port,
which is available in an SFP form factor, as well as for fixed fiber in
single mode, multi mode and single strand fiber. All models support
gigabit speed. A compact stand-alone device with internal AC power
supply, it is completely a PNP device; no management is available.
A troubleshooting feature, Link Fault Pass-Through (LFPT) allows
network operators to determine a fault condition on the interfaces.
LFPT can be enabled via a dip switch on the front of the unit.
MECHANICAL DIAGRAM
(dimensions in inches)
4.0 in
(10.16 cm)
ORDERING INFORMATION
MODEL
DESCRIPTION
NUMBER
Giga-McBasic-II
856-30600
TX/SFP (requires one IE-SFP/1250 Module)
856-30601
TX/SX-MM850-SC
856-30602
TX/LX-MM1300-SC
856-30603
TX/LX-SM1310-SC
TX/LX-SM1310/PLUS-SC
856-30604
856-30605
TX/LX-SM1550/LONG-SC
856-30606
TX/LX-SM1550/XLONG-SC
Single-Strand Fiber
856-30620
TX/SSLX-SM1310-SC (1310xmt/1550rcv)
856-30621
TX/SSLX-SM1550-SC (1550xmt/1310rcv)
856-30622
TX/SSBX-SM1310-SC (1310xmt/1490rcv)
856-30623
TX/SSBX-SM1490-SC (1490xmt/1310rcv)
856-30624
TX/SSFX-SM1310-SC (1310xmt/1550rcv)
856-30625
TX/SSFX-SM1550-SC (1550xmt/1310rcv)
856-30626
TX/SSFX-SM1310/PLUS-SC (1310xmt/1550rcv)
856-30627
TX/SSFX-SM1550/PLUS-SC (1550xmt/1310rcv)
856-30628
TX/SSBX-SM1310/PLUS-SC (1310xmt/1490rcv)
856-30629
TX/SSBX-SM1490/PLUS-SC (1490xmt/1310rcv)
SPECIFICATIONS
MECHANICAL
Connectors
Dimensions
RJ-45, SFP or fixed fiber
0.80H x 4.0W x 4.0D inches
(2.032H x 10.16W x 10.16D cm)
0.7 lbs (0.3 kg)
DISTANCE
Variable
220/550 m
2 km
10 km
40 km
80 km
100 km
15 km
15 km
10 km
10 km
40 km
40 km
30 km
30 km
70 km
70 km
.8 in
(2.032 cm)
4.0 in
(10.16 cm)
Shipping Weight
POWER RATING
100-240 VAC, 50/60Hz, 1.0A
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Operating Humidity
Altitude
REGULATORY APPROVALS
FCC Class A
UL/cUL, CSA, CE
+14° to +122°F (-10° to +50° C)
-31° to +167°F (-35° to +75° C)
5 to 95% (non-condensing)
0 to 10,000 ft.
Giga-McBasic-II_1615ds
