FLPR6.0-SG datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> FLPR6.0-SG

Preview

FLPR6.0-SG: DescriptionLED LIGHT PIPE GREEN FLEX RND 6"; CategoryLED optoelectronic/LED; File Size377KB，3 Pages; ManufacturerBivar; Environmental Compliance

Download Datasheet Parametric Compare View All

FLPR6.0-SG Overview

LED LIGHT PIPE GREEN FLEX RND 6"

FLPR6.0-SG Parametric

Parameter Name	Attribute value
color	green
Wavelength - Peak	568nm
Configuration	-
current	20mA
millicandela level	120mcd
perspective	20°
Lens type	transparent
Lens style/size	Round, with flat top, 3.00mm
Rated voltage	2.1V
Installation type	Through hole

Preview

Download Datasheet

View All

ITEM

1

2

Q'TY

1

PART NUMBER

FLPR-XX

LC-XX.X

PART DESCRIPTION

REV.

DESCRIPTION

DATE

APPROVED

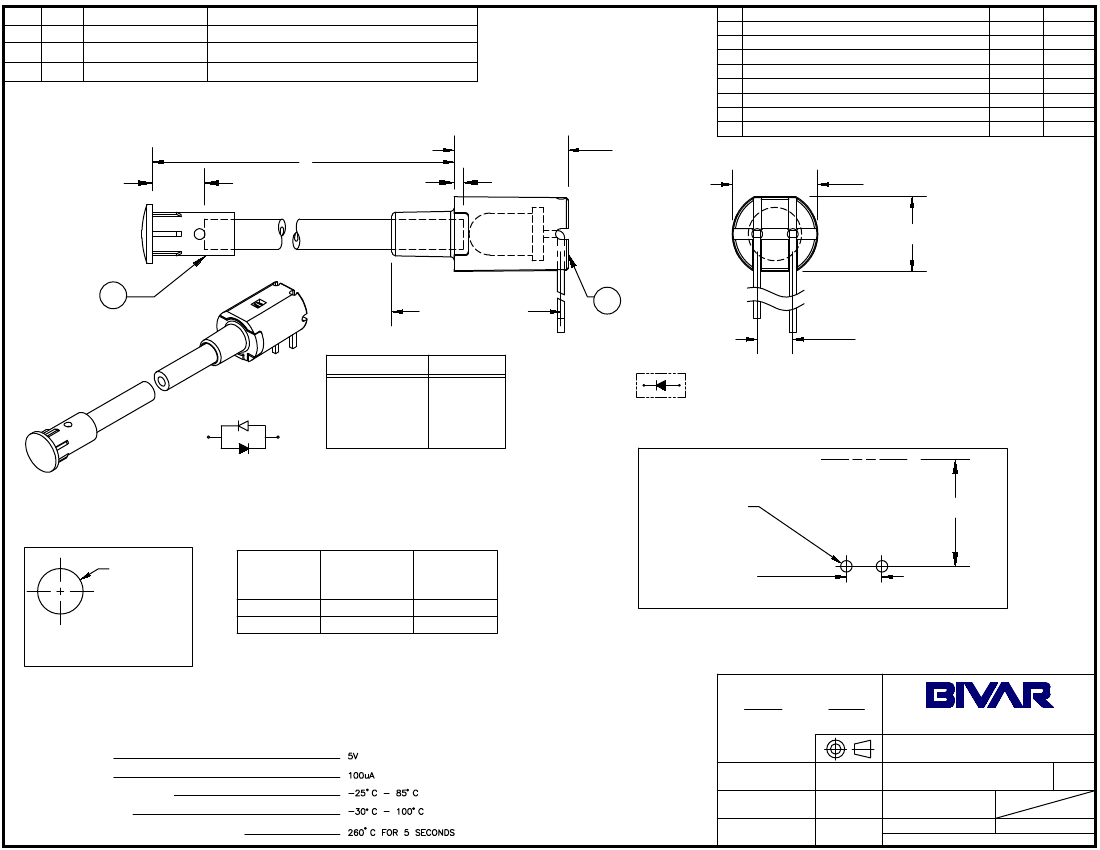

Flexible Light-Pipe Lens Cap Assembly

D

Added Shipping Note and Tolerance Table

E

Changed Length From 2.5 to 0.5 at "L" Table

F

Updated FLPC Hidden View and BOM

G

LED Data Update

H

J

K

L

RP note added

Added the 3HC-F LED to page 2

Updated Table For Length "L"

Updated LED Tables

NOTE: FLPR ADAPTER SHIPPED NON-ASSEMBLED

SEE TABLE 1

04/17/06

02/12/07

08/27/08

11/18/11

02/09/12

11/15/12

08/15/18

M. C.

T. Y.

M. C.

L

0.145 [3.7mm]

0.025 [0.6mm]

0.320 [8.1mm]

0.240 [6.1mm]

0.210 [5.3mm]

2

" L "*

0.475 [12.1mm]

TABLE 1

Tolerance

1

0.100 [2.5mm]

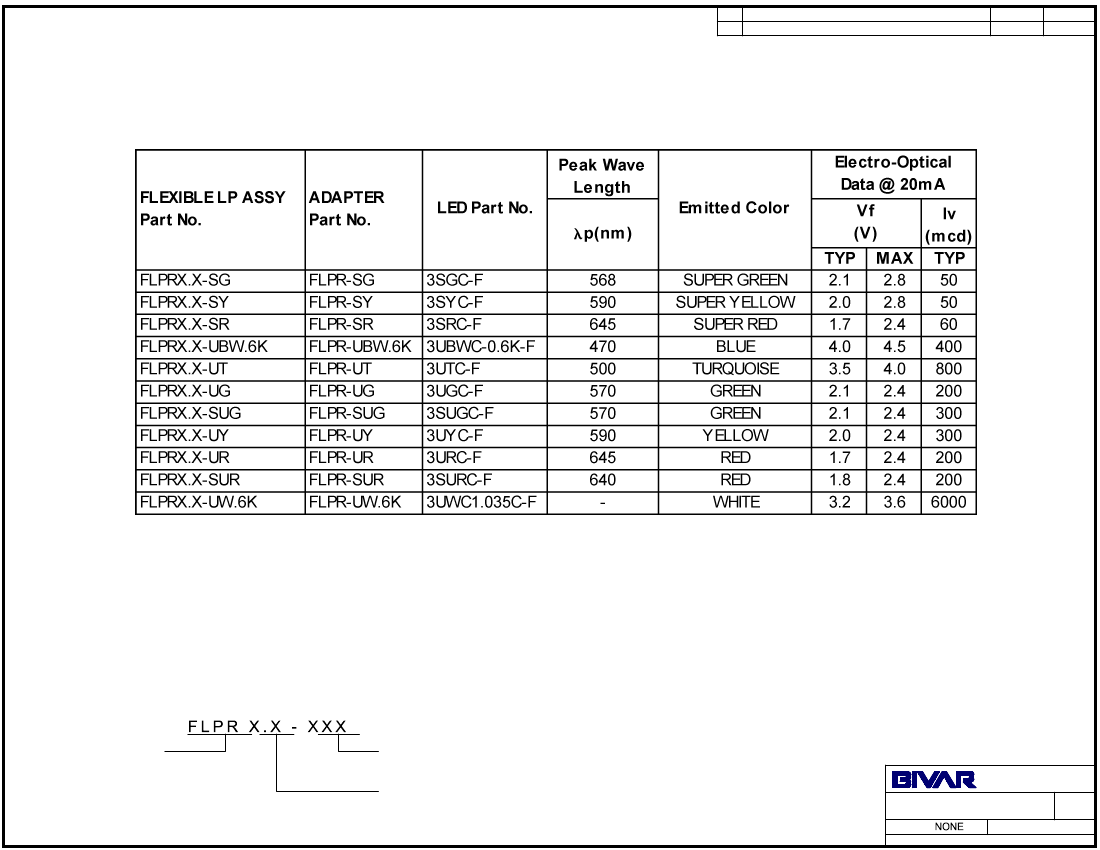

SINGLE COLOR LED

SHORT LEAD CATHODE

BI-COLOR LED'S

1.0" ~ 16.0"

16.1" ~ 40.0"

40.1" ~ 80.0"

80.1" ~ 3,940.0"

* Available in 0.1" increments only

Add -RP suffix for Reverse Polarity

SHOULDER OF HOLDER

+.003

-.002

0.300 [7.6mm]

+.003

-.002

Recommended

Mounting Holes

SHORT

LEAD

CATHODE

RED

YELLOW

LED

PART NO.

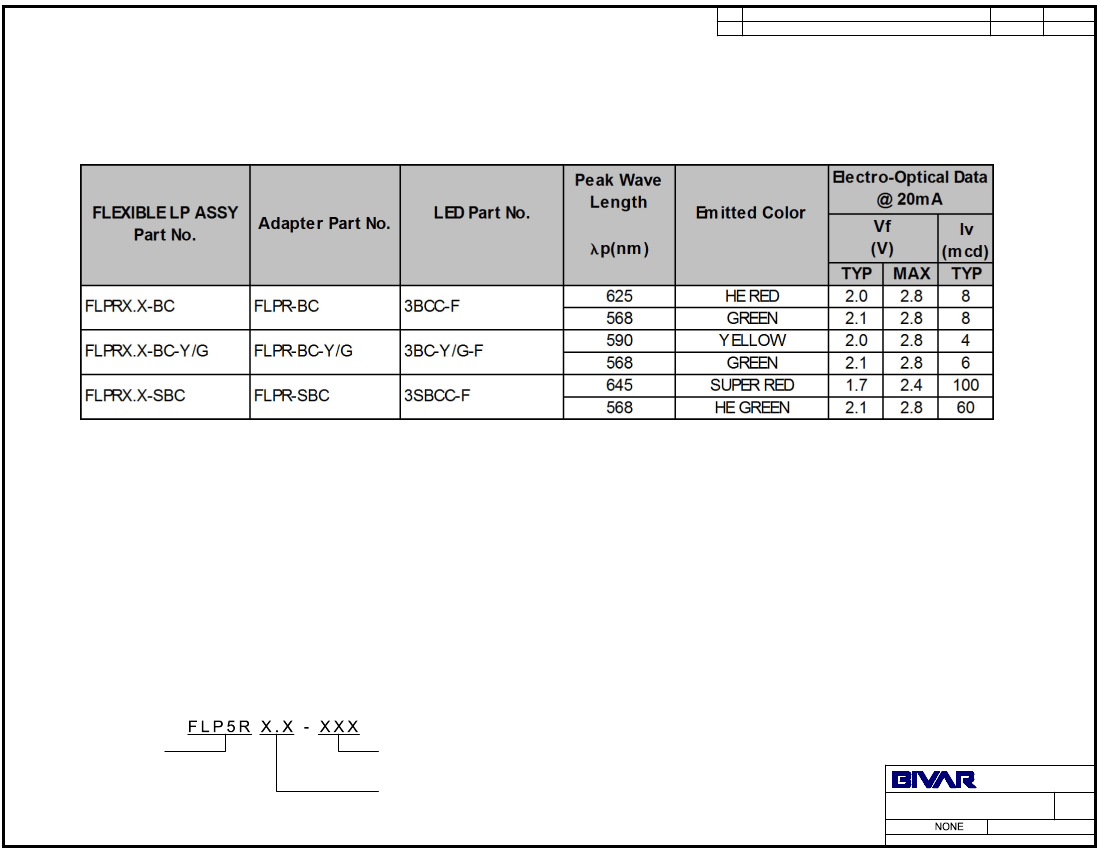

3xBCC-F

3BC-Y/G-F

LONG

LEAD

CATHODE

GREEN

0.100 [2.5mm]

RECOMMENDED FOOTPRINT

STANDARD TOLERANCE

(UNLESS OTHERWISE SPECIFIED)

DECIMALS

ANGULAR

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

REVERSE VOLTAGE

DESIGNED:

DATE:

REVERSE CURRENT

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE

LEAD SOLDERING TEMPERATURE(1/16" FROM BODY)

TITLE:

FLEXIBLE LIGHT-PIPE ASSY

RIGHT ANGLE, 3mm LENS CAP W/LED

REVISION:

PART NO:

S. IRVING

REVISED:

02/09/99

DATE:

FLPRX.X-XX

32559

NONE

L

CAGE CODE:

SCALE:

SHEET # 1 OF

3

TD. NGUYEN

CHECKED:

08/15/18

DATE:

K. BARON

08/15/18

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING

FLPR6.0-SG Related Products

	FLPR6.0-SG	FLPR3.0-SR	FLPR6.7-SBC-Y/G	FLPR1.0-SUG	FLPR1.0-SUR
Description	LED LIGHT PIPE GREEN FLEX RND 6"	LIGHT PIPE 4MM RND LENS	FLEXIBLE LIGHT PIPE	FLEXIBLE LIGHT PIPE	FLEXIBLE LIGHT PIPE
color	green	-	green,yellow	green	red
Configuration	-	-	single	single	single
Installation type	Through hole	-	Board/panel mount, press fit	Board/panel mount, press fit	Board/panel mount, press fit
type	-	-	Flexible 6.7" (170.18mm)	Flexible 1" (25.4mm)	Flexible 1" (25.4mm)
Lens style	-	-	Round with dome	Round with dome	Round with dome
Lens size	-	-	3.00mm	3.00mm	3.00mm
