DBC72-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Tools and equipment> DBC72-1

DBC72-1: DescriptionDRILL BIT CARB 1/8" SHANK .025"; CategoryTools and equipment; File Size209KB，1 Pages; ManufacturerCapital Advanced Technologies; Environmental Compliance

Download Datasheet Parametric View All

DBC72-1 Overview

DRILL BIT CARB 1/8" SHANK .025"

DBC72-1 Parametric

Parameter Name	Attribute value
type	drill
Diameter - drill bit	0.025"（0.64mm）
Diameter - Shank	0.125"（3.18mm）
Material	carbide

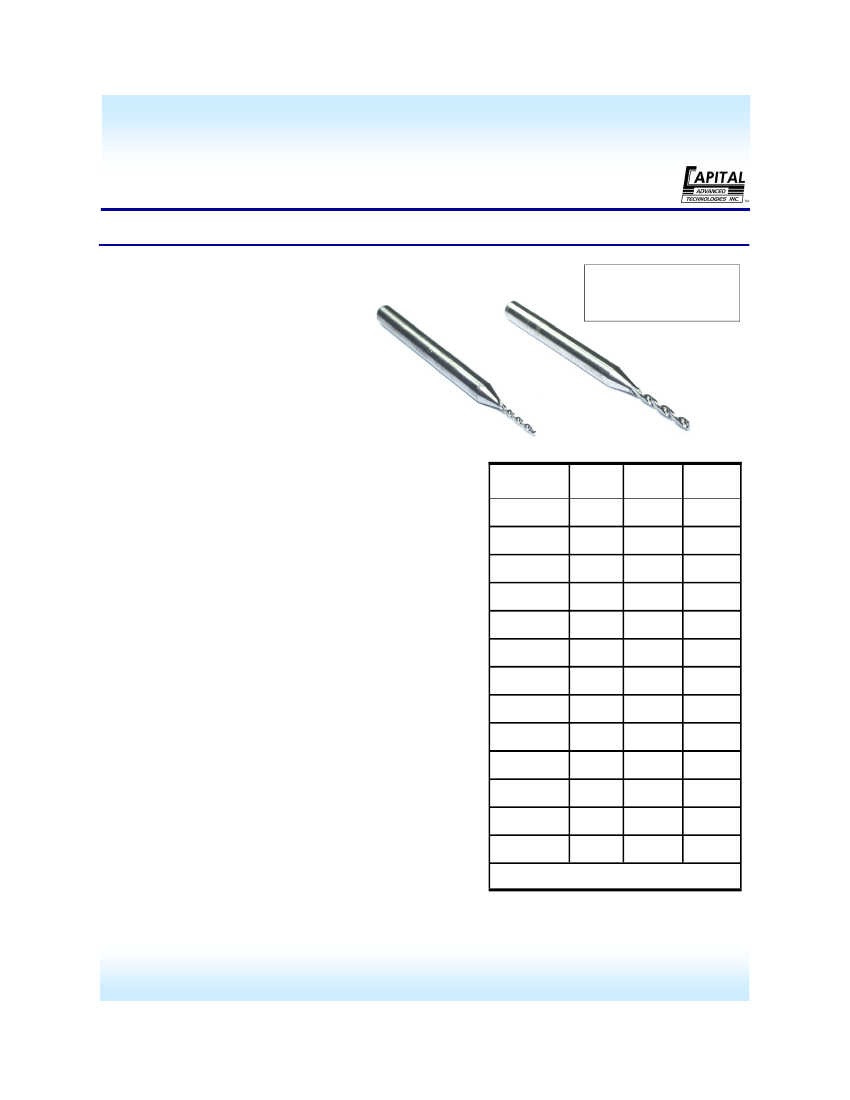

Preview

Download Datasheet

View All

ACCESSORY PRODUCTS

FOR PROTOTYPE DEVELOPMENT AND FABRICATION

SERIES C CARBIDE PRINTED CIRCUIT DRILL BITS

POPULAR SIZES

FOR A VARIETY OF

COMPONENT

LEAD SIZES

1/8 in. SHANKS

This series of drill bits designed for drilling FR-4 circuit

board materials feature common 1/8th in. shanks. The

drill element is fabricated of solid carbide and the shanks

are stainless steel. Carbide is the preferred material for

drilling glass epoxy circuit board laminates due to its

exceptional hardness. Unlike high speed steel bits which

become dull quickly, these carbide bits are capable of

several hundred or even thousands of hits before

significant degradation of sharpness*. Designed for high

speed equipment operating up to 80,000 RPM, these

drills can also be used at lower speeds by using a slower

feed rate. Due to the brittleness of carbide these drills

are recommended for drill press use or use with

precision equipment. Care must be taken not to drop or

flex them as breakage may occur. Use these bits to

make your own printed circuits or modify SURFBOARDS

surface mount breadboards or other types of boards.

While designed for printed circuit use these tools may be

used with other materials such as plastics and metals.

The user is advised to evaluate the suitability for any

given use by trial and possible adjustment of speed or

feed rate.

* The number of holes that can be drilled is dependent on a number of factors

including feed rate, speed, material characteristics, and what the user considers

acceptable hole quality.

DATA SHEET

DB-100-C

PART

NUMBER

DBC80-1

DBC75-1

DBC72-1

DBC69-1

DBC68-1

DBC66-1

DBC64-1

DBC60-1

DBC56-1

DBC55-1

DBC52-1

DBC51-1

DBC48-1

DRILL

SIZE

INCHES

.0135

.021

.025

.0292

.031

.033

.036

.040

.0465

.052

.0635

.067

.076

SIZE

.34

.53

.64

.74

.79

.84

.91

1.02

1.18

1.32

1.61

1.70

1.93

1/8 in. SHANK 1.5 in. OAL

Capital Advanced Technologies, Inc.

Specifications, availability, and price is subject to change without notice. All information given is believed to be accurate but is not guaranteed. The user of information given or products represented by such information is

responsible for determining the suitability of said information or products for a given purpose. No inducement is intended or permission granted for infringement of any patent or unauthorized use of any intellectual property of

Capital Advanced Technologies or others. Availability, Price, and specifications subject to change without notice.

CAPITAL ADVANCED TECHNOLOGIES, INC.

CAROL STREAM, ILLINOIS. USA

PHONE 630-690-1696

FAX 630-690-2498

WWW.CapitalAdvanced.Com
