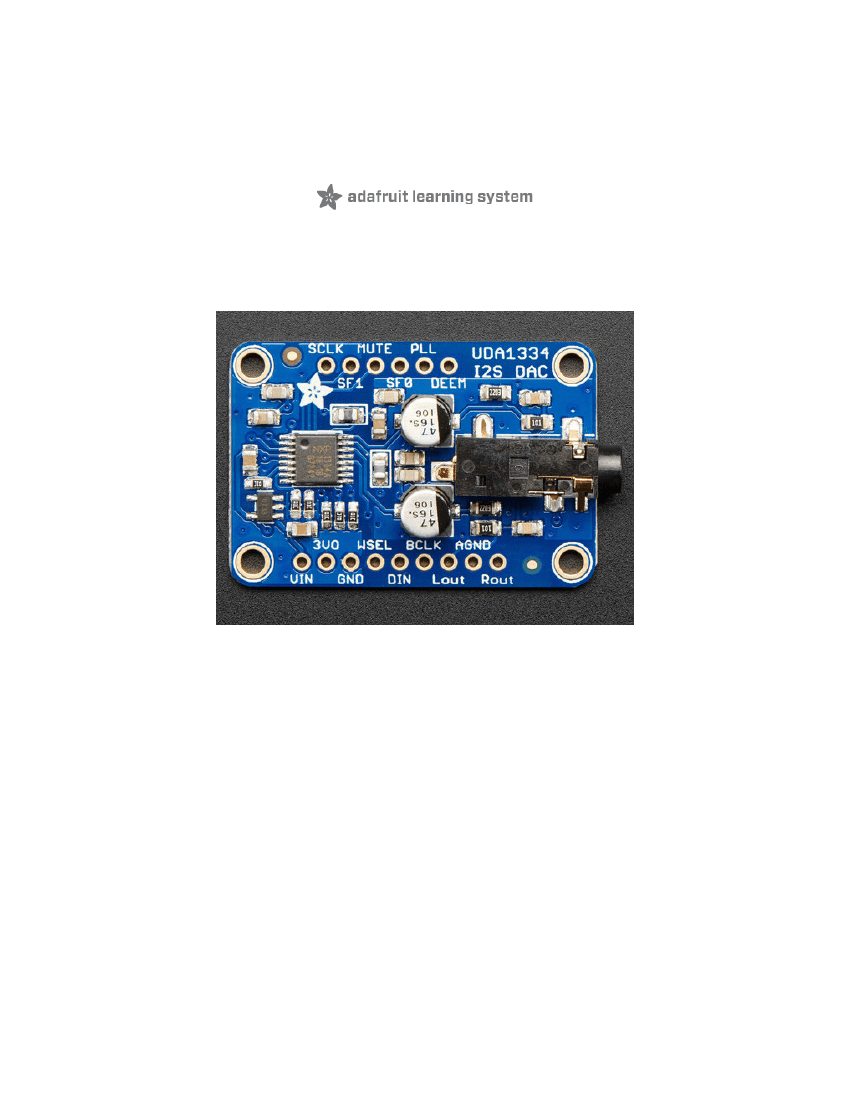

Overview

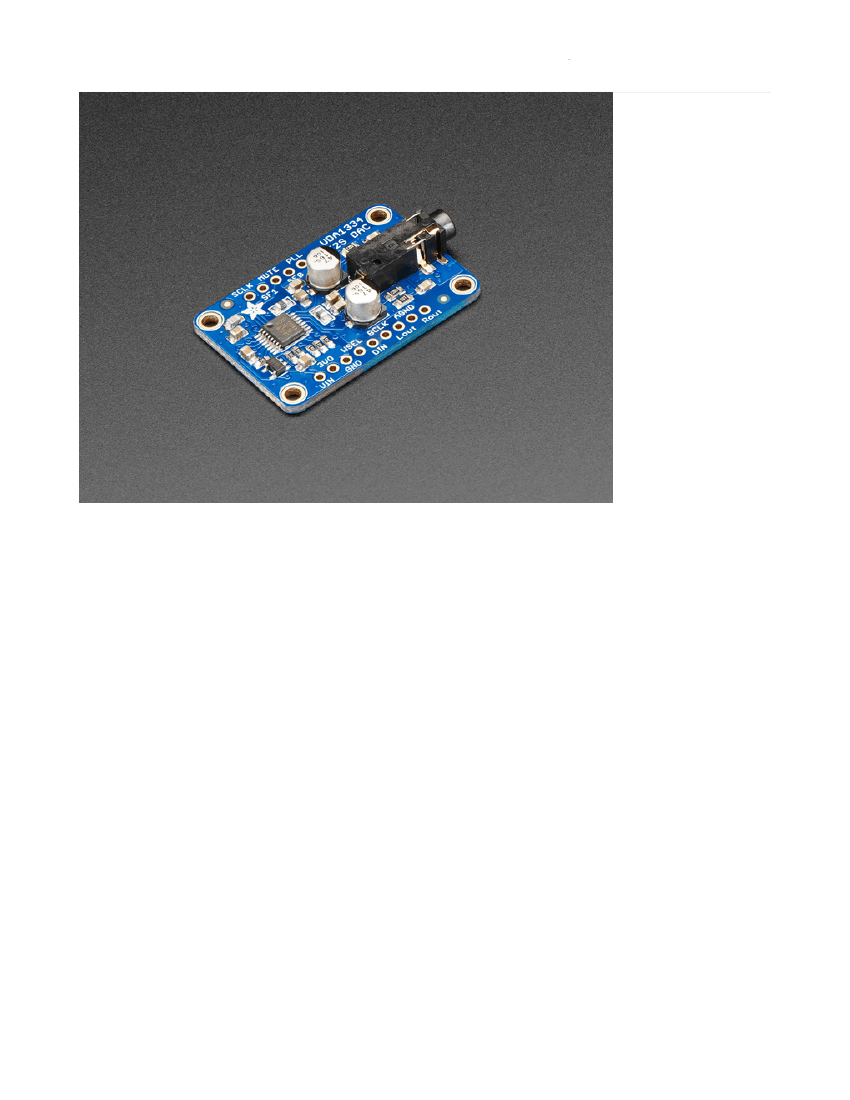

This fully-featured UDA1334A I2S Stereo DAC breakout is a perfect match for any I2S-output audio interface. It's
affordable but sounds great! The NXP UDA1334A is a jack-of-all-I2S-trades: you can use 3.3V - 5V logic levels (a rarity),
and can process multiple different formats by setting two pins to high or low. The DAC will process data immediately,
and give you a clear, analog, stereo line level output. It's even cool with MCLK-less I2S interfaces such as the
Raspberry Pi (which it's ideal for) - a built in PLL will generate the proper clock from the incoming signal.
© Adafruit Industries
https://learn.adafruit.com/adafruit-i2s-stereo-decoder-uda1334a
Page 3 of 42
For inputs, you can use classic I2S (the default) or 16-bit, 20-bit or 24-bit left justified data. You can set it up to take an
input system/master clock but we default-set it to just generate it for you, so you only need to connect Data In, Word
Select (Left/Right Clock) and Bit Clock lines. If you want, there's a mute pin and a de-emphasis filter you can turn on.
© Adafruit Industries
https://learn.adafruit.com/adafruit-i2s-stereo-decoder-uda1334a
Page 4 of 42

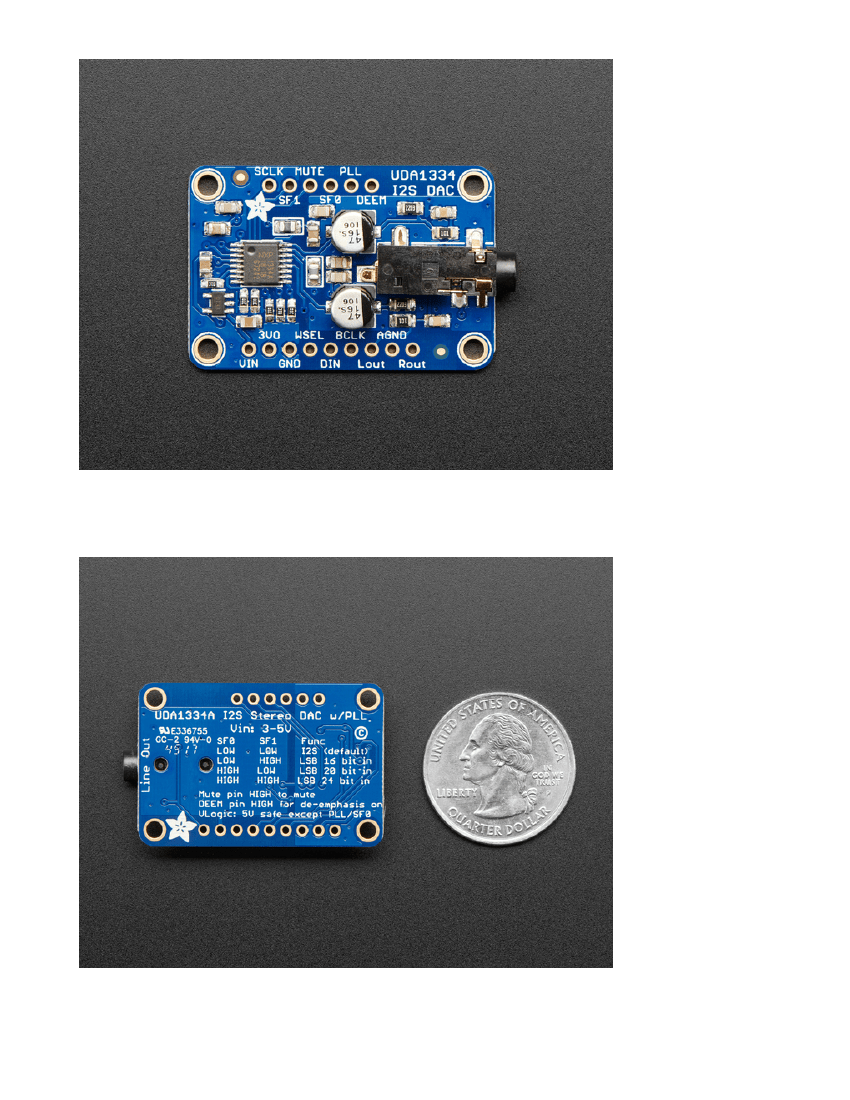

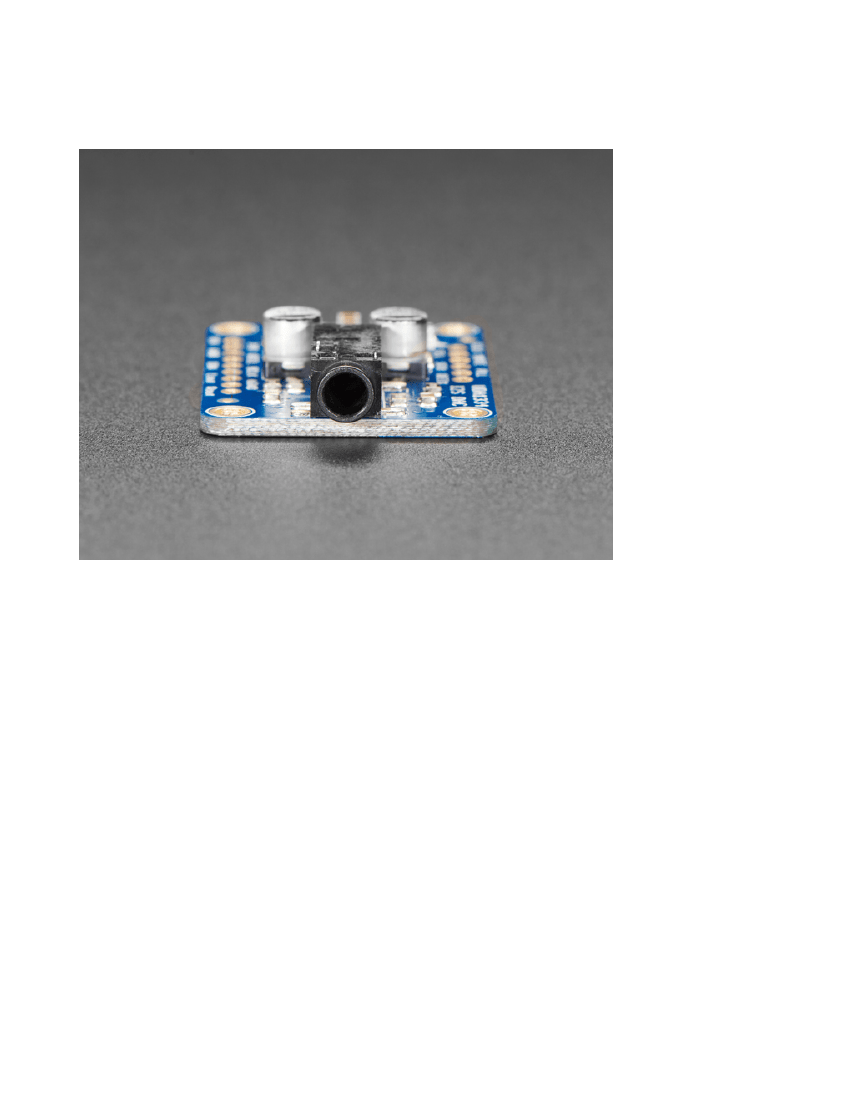

We put in plenty of ferrite beads, a low-dropout regulator, and the recommended band-pass filter so you get a very
nice clean output. With a sine-wave generator we swept through 20-20KHz and saw no attenuation or distortion. Plug
into either the 3.5mm stereo headphone jack or the breadboard-friendly pads. We think you'll be pleased with this
DAC!
Each order comes with one I2S Stereo DAC breakout and some header you can solder on.
