FX18-120S-0.8SV20 datasheet, PDF

Datasheet> All Categories > The connector> FX18-120S-0.8SV20

FX18-120S-0.8SV20: DescriptionCONN RCPT 120POS 0.8MM SMD VERT; CategoryThe connector; File Size798KB，16 Pages; ManufacturerHirose Electric; Environmental Compliance

Download Datasheet Parametric View All

FX18-120S-0.8SV20 Overview

CONN RCPT 120POS 0.8MM SMD VERT

FX18-120S-0.8SV20 Parametric

Parameter Name	Attribute value
Connector type	Socket with central contact
Number of pins	120
spacing	0.031"（0.80mm）
Number of rows	2
Installation type	surface mount
characteristic	board guide
Contact plating	gold
Contact plating thickness	3.90µin（0.099µm）
Joint stack height	20mm，30mm
board height	0.648"（16.46mm）

Preview

Download Datasheet

View All

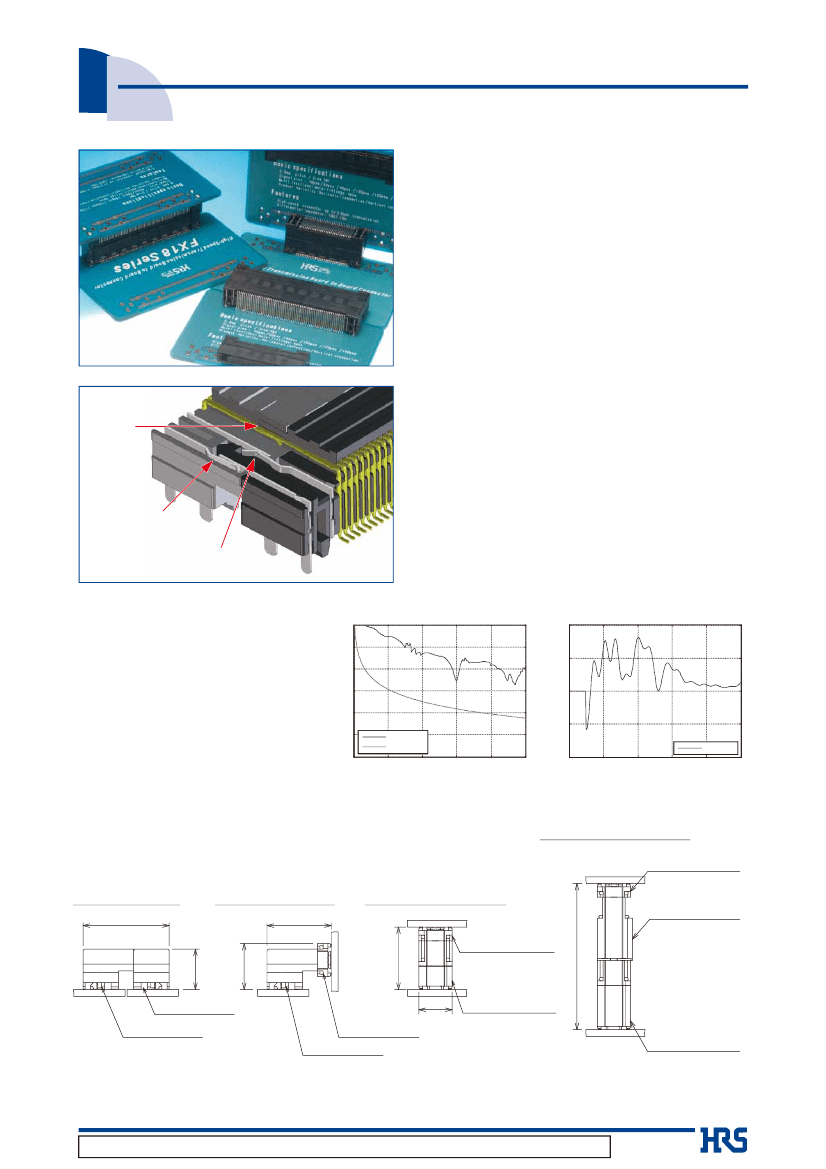

High Speed Transmission, 0.8 mm Pitch Connectors for PCB Connections

FX18 Series

■Features

●

0.8 mm pitch

●

Connection type: Coplanar /right angle /

parallel (height: 10 to 45 mm)

●

No of pos.: 40, 60, 80, 100, 120, 140

●

MF (multi-functional) contact

The FX18 series utilizes guideposts on both sides of the

connector. These guide posts double as multi-functional

contacts as well as an aligning structure.

1) Enhanced ground connections between PCB’s

2) Capable of being used as power source lines (3 A/line)

3) A sequenced 3-level structure that contains signal contacts

●

Effective mating length of 2 mm (Signal

contact)

This connector utilizes a 2.0 mm effective mating

length for its signal contacts and provides a

sufficient amount of margin for its mating sequence.

(MF contact A: 2.5 mm/ MF contact B: 1.5 mm)

●

Resistant to excess mating force

The structure is equipped with dip contacts that help

prevent damage caused by excessive mating forces

and provides stability to both sides of the connector.

●

Simplified mating with large guides

Generous lead-in shape simplifies the mating

operation. (lead in opening amount: ± 1 mm).

The guides also prevent inverse mating.

■

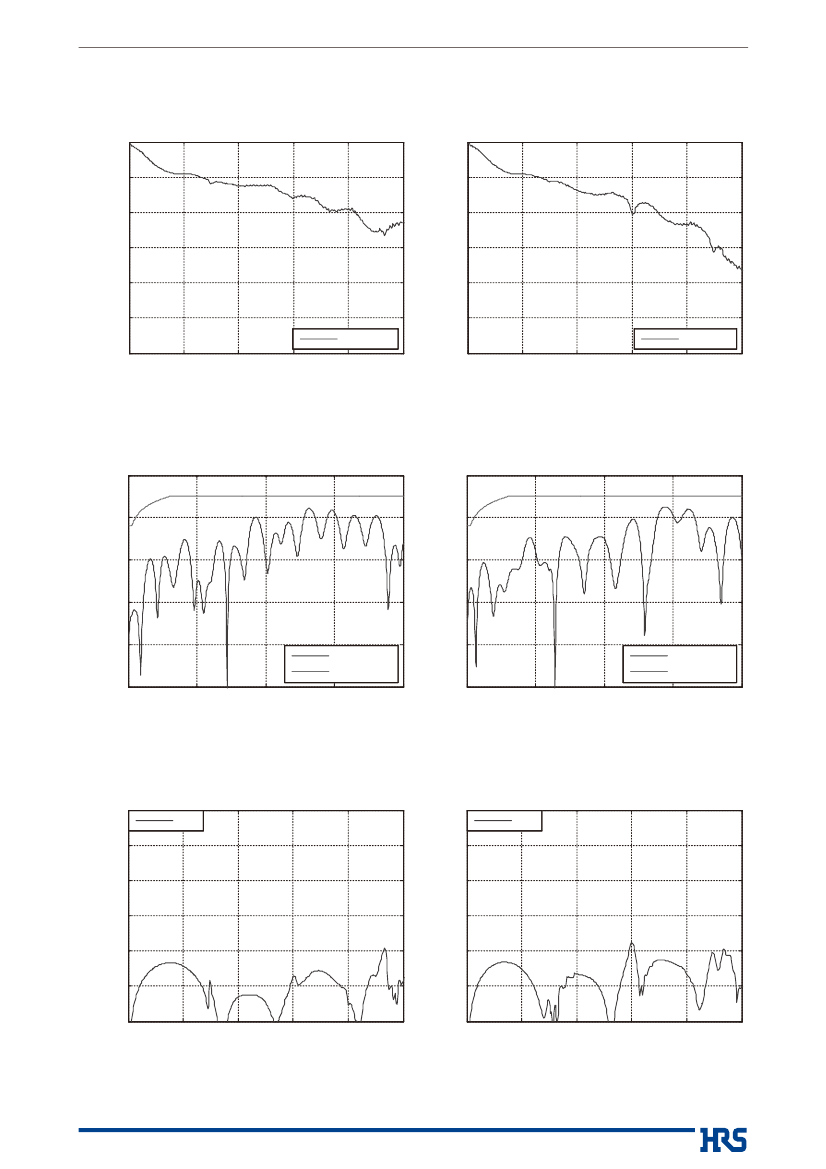

High speed transmission

characteristics

Enough margin with regulated ICR

data of IEEE802.3ap 10 Gbps

transmission standard.

ICR (dB)

ICR

105

ICR

IEEE spec

Frequency (GHz)

0.2

Z (Ohms)

100

110

Impedance

●

ICR

（Insertion-loss-to-Crosstalk-Ratio）

●

Differential impedance data

With a strict time of Tr = 35ps, its

contact structure matches 100 Ohm

±10% differential impedance.

Inner row

0.4

0.6

Time (ns)

0.8

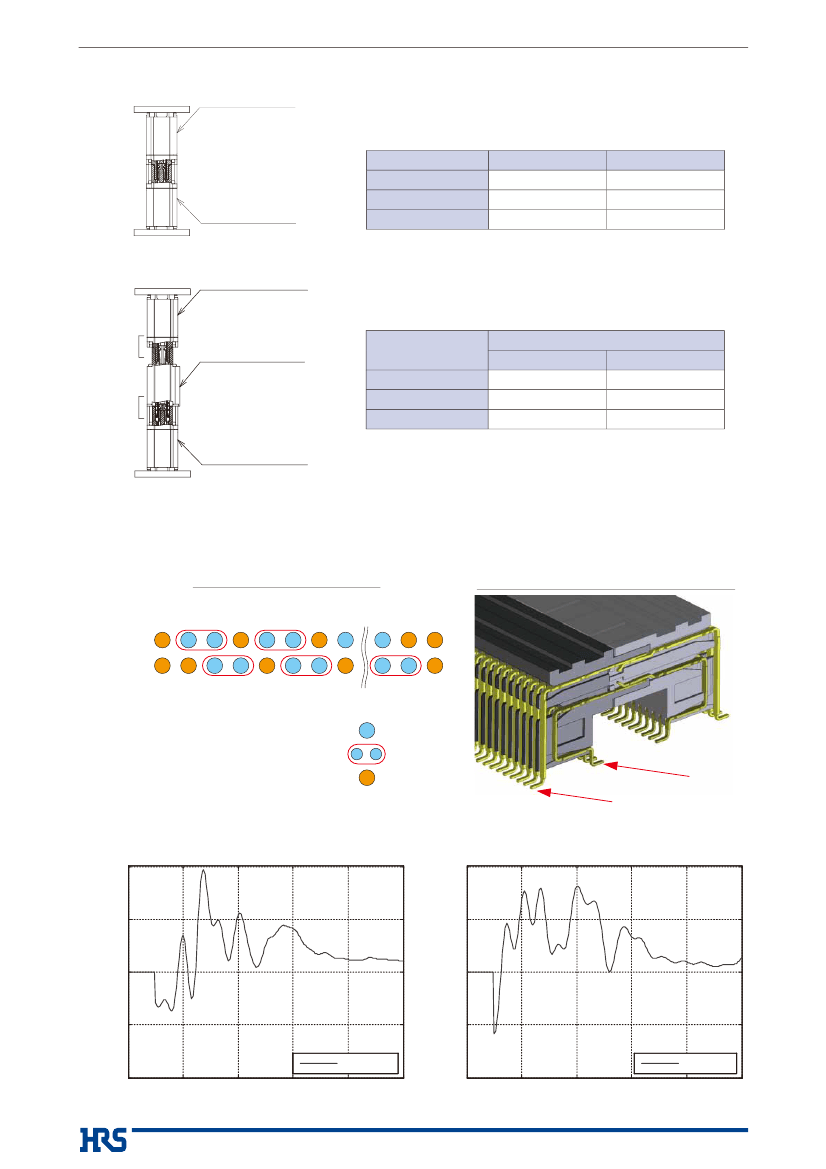

■Mating

variation diagram

Parallel connection type (3 piece)

FX18-**P-0.8SV**

Coplanar connection type

20.3

Right angle connection type

15.15

∼

FX18-**P-0.8SV**

Parallel connection type (2 piece)

FX18-**PS-0.8H15

10.85

9.5

FX18-**P-0.8SH

FX18-**S-0.8SH

FX18-**P-0.8SV

FX18-**S-0.8SH

7.8

FX18-**S-0.8SV**

In cases where the application will demand a high level of reliability, such as automotive,

please contact a company representative for further information.
