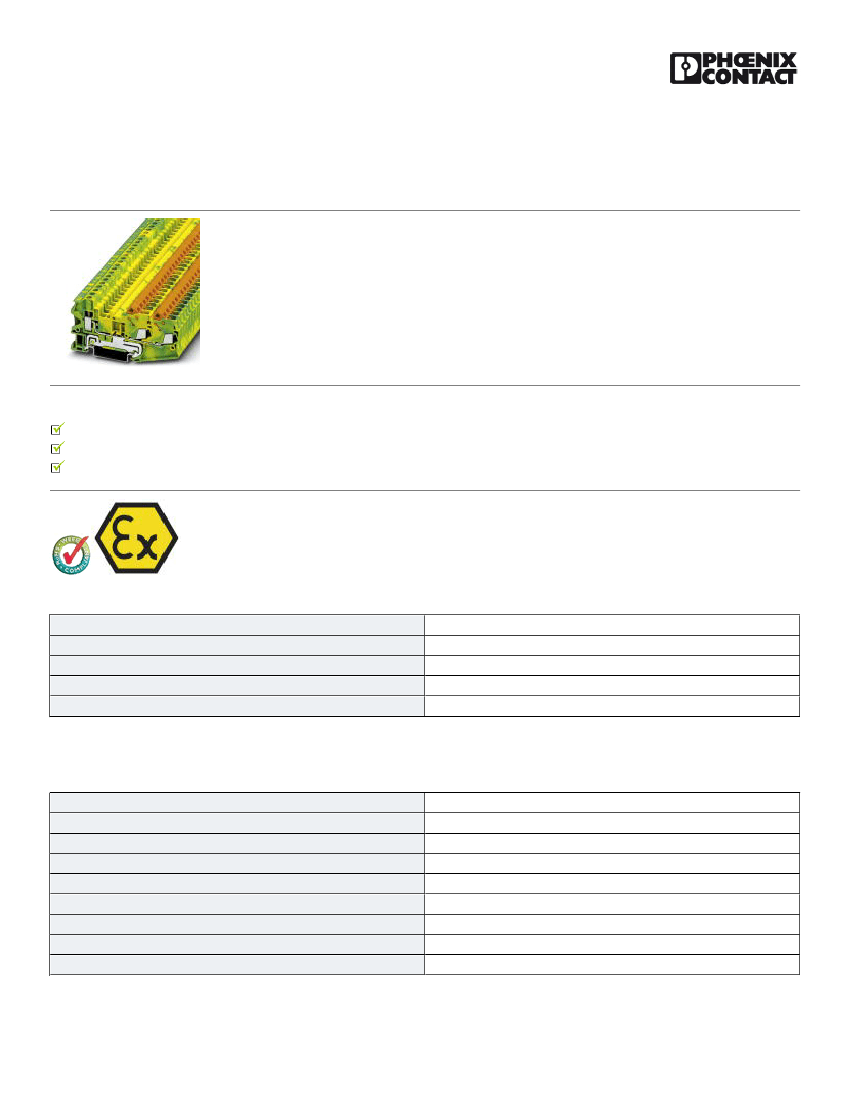

Feed-through terminal block - QTCU 2,5-TWIN-PE - 3050329
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Feed-through terminal block, Connection type: Quick connection, Screw connection, Cross section: 0.5 mm² - 2.5
mm², AWG :20- 14, Width: 6.2 mm, Color: green-yellow, Mounting: NS 35/7,5, NS 35/15
Product Features
Same shape and pitch as the feed-through terminal blocks
Contact is made free from mechanical and electrical errors by simply snapping onto the DIN rail
All the requirements of standard IEC 60947-7-2 are met
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
11
50 1
18.24 GRM
85369010
Germany
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
1
3
green-yellow
PA
V0
8 kV
3
III
I
20.11.2013 Page 1 / 16
https://www.phoenixcontact.com/us/products/3050329
Feed-through terminal block - QTCU 2,5-TWIN-PE - 3050329
Technical data
General
Connection in acc. with standard
Open side panel
IEC 60947-7-2
ja
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
End cover width
6.2 mm
82.5 mm
42.8 mm
50.3 mm
2.2 mm
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Material wire insulation
Quick connection
0.5 mm²
2.5 mm²
0.5 mm²
2.5 mm²
20
20
14
14
PVC / PE
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141130
27141130
27141130
27141130
27141120
27141120
27141120
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC000901
EC000901
20.11.2013 Page 2 / 16
https://www.phoenixcontact.com/us/products/3050329
Feed-through terminal block - QTCU 2,5-TWIN-PE - 3050329
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / GL / BV / DNV / ABS / NK / GOST / cULus Recognized
Ex Approvals
IECEx / ATEX
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
20-14
B
20-14
C
cUL Recognized
mm²/AWG/kcmil
20-14
B
20-14
C
GOST
20.11.2013 Page 3 / 16
https://www.phoenixcontact.com/us/products/3050329
Feed-through terminal block - QTCU 2,5-TWIN-PE - 3050329
Approvals
GL
BV
DNV
ABS
NK
GOST
cULus Recognized
Accessories
Accessories
Bridge
Plug-in bridge - FBS 2-6 - 3030336
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge - FBS 3-6 - 3030242
Plug-in bridge, Number of positions: 3, Color: red
20.11.2013 Page 4 / 16
https://www.phoenixcontact.com/us/products/3050329
Feed-through terminal block - QTCU 2,5-TWIN-PE - 3050329
Accessories
Plug-in bridge - FBS 4-6 - 3030255
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge - FBS 5-6 - 3030349
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge - FBS 10-6 - 3030271
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge - FBS 20-6 - 3030365
Plug-in bridge, Number of positions: 20, Color: red
Plug-in bridge - FBS 50-6 - 3032224
Plug-in bridge, Number of positions: 50, Color: red
Documentation
20.11.2013 Page 5 / 16
