PCI Express Solutions
Field-Proven, Interoperable, and Standards-Compliant Portfolio
PCI Express Solutions
PCI Express (PCIe) is a widely deployed bus interconnect
interface that is commonly used in server platforms.
Increasingly, it is also used as a storage and GPU interconnect
solution. PCIe Gen3 supports 8 GT/s of throughput per PCIe
lane, and Gen4 supports 16 GT/s. Typical implementations
utilize ×2, ×4, ×8, and ×16 lane width interconnect
configurations—directly from the host root complex or through
PCIe switches to endpoint PCIe devices.
Microsemi is a leader in PCIe, having introduced multiple
industry firsts. Highlights include:
• PCIe Gen3 SAS/SATA RAID controller
• The industry’s highest density and lowest power Gen3
PCIe Switches, Switchtec PSX and PFX
• PCIe Gen3 NVMe Flash controller (Flashtec
™
), followed by
a second-generation introduction of the industry’s fastest
PCIe Gen3 NVMe SSD controllers
• PCIe Gen3 redriver with EQNOX
™
adaptive equalization
• Flash-based FPGAs and SoCs used in CPLD functions
with integrated PCIe endpoint implementations
Microsemi offers a flexible product portfolio to intelligently
design your PCIe system for data center, communications,
defense, and industrial applications. Our industry-leading
PCIe solutions include storage and fanout switches, NVMe
controllers, NVRAM drives, redrivers, and timing solutions,
and flash-based FPGAs and SoCs.

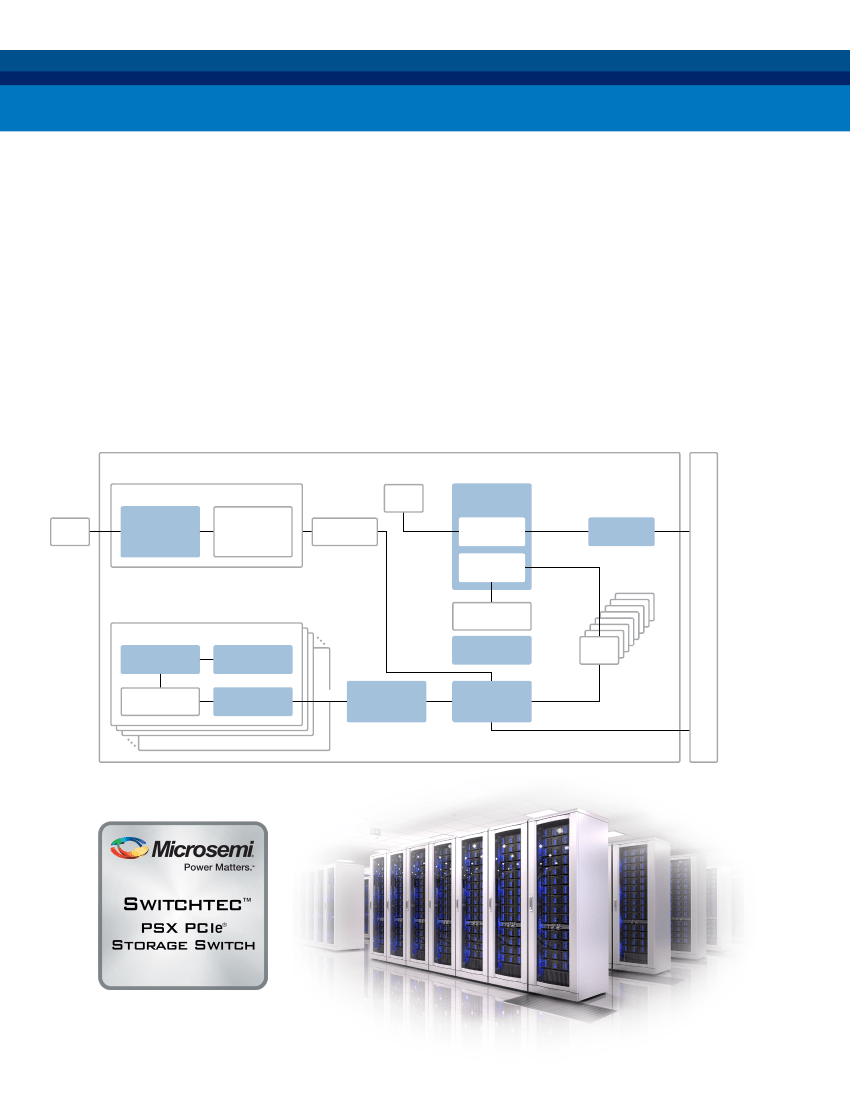

PCIe Storage Server
Network Interface Card
10G Ethernet
PHY w/ AES-256
MACSec and
IEEE 1588
Network
Processor
PCIe
Connector
Fans
Fan Control
SmartFusion
®
2
SoC FPGA
Fan/Power
Management
Secure
Boot
PCIe
SPI
EEPROM
Solid State Drive
Switching
Regulators
Flash
Memory
eFuse
VSC7112
PCIe Gen3
Redriver
Clock
Management
Sequencing
Switching
Regulators
12 V
QSFP+
SPI
Backplane
CPU
PCIe
PCIe
Flashtec
™
NVMe Controller
PCIe
PCIe
Switchtec
™
PCIe Gen3
Storage Switch
2
PCI Express Solutions

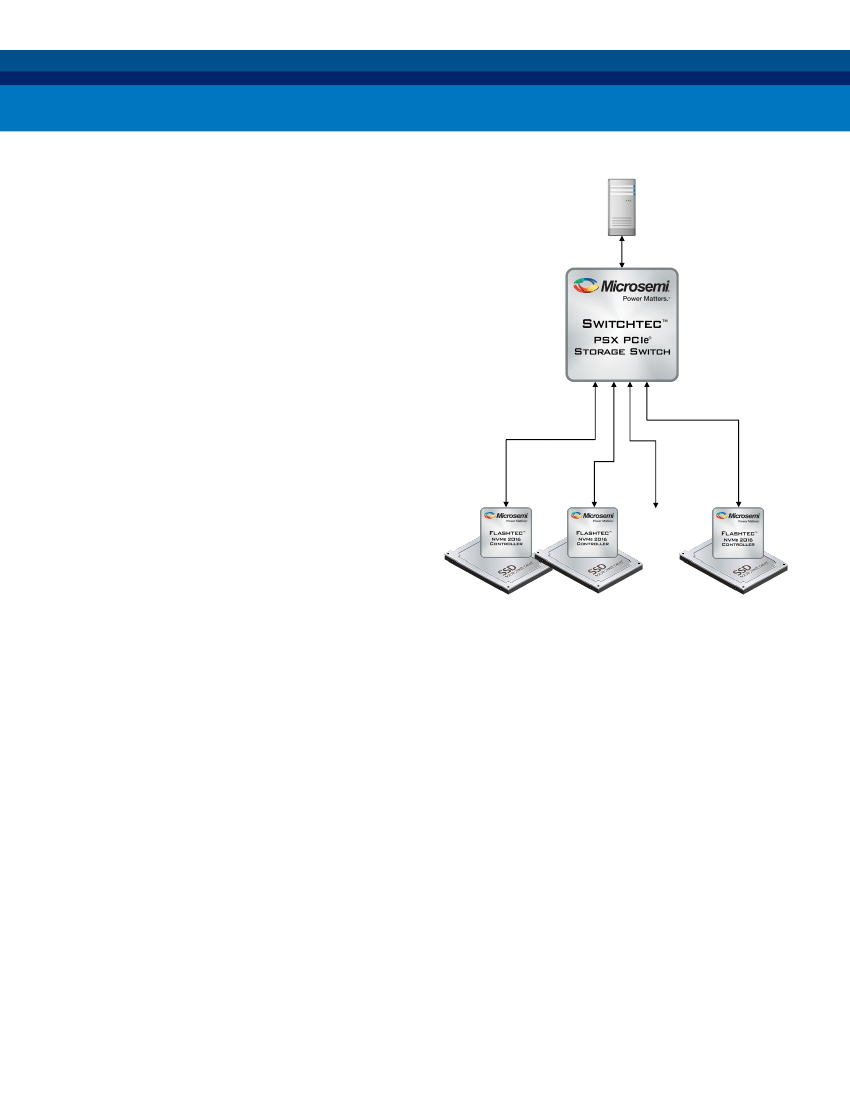

Microsemi Advantages
Switchtec
™
PCIe Switches
• Options from 24 to 96 lanes
• Industry’s most flexible port bifurcation, from ×2 to ×16
lanes per port
• Highest port and non-transparent bridge (NTB) density,
with up to 48 ports and 48 NTBs
• Highest switch partition density
• Industry’s first integrated programmable processor
• Industry’s first integrated enclosure management solution
• PFX-I supports industrial temperature ranges, –40 °C (T
A
)
to 105 °C (T
J
)
Flashtec
™
NVMe Controllers
• World’s first and fastest enterprise PCIe NVMe controller,
with up to 850K IOPS and up to 8 TB
• Software-defined flash: flexible, programmable architecture
optimized for cost, performance, and endurance
• Enterprise-class reliability, availability, and serviceability with
NVMe management features and industry’s only dual-port
controller
Flashtec NVRAM Drives
• Non-volatile DRAM with over 10 million IOPS,
sub-microsecond latency
• Industry-standard interfaces that are application-friendly
for ease of integration
• Zero-maintenance green backup
• Unlimited endurance NVRAM
• Small form factor for high-density rack solutions
Signal Integrity
• PCIe Gen 3.0 solutions supporting ×1 to ×8 lanes
• Adaptive EQ and de-emphasis with up to 30 dB loss
compensation
• BOM integration and smaller package sizes save board
cost and area
• Low-power modes scale with speed and drive strength
• High ease of use
Timing Solutions
• End-to-end offerings, including synthesis, rate conversion,
attenuation, and distribution
Company Proprietary
© 2016 Microsemi Corporation.
Power
• Ultra-low-jitter (160 fs) synthesizers and attenuators
• Ultra-low additive jitter, cost-efficient buffers
• Application specific with custom configuration—
MiClockDesigner
™
• Validated with the Agilent Time Domain PCI-SIG
Compliance Software Suite
40x2 SSDs
x16
…
3
PCIe Signal Integrity and Timing Solutions
PCIe Signal Integrity
Improve weak or degraded signals with Microsemi’s PCIe signal integrity solutions. With
industry-exclusive EQNOX
™
adaptive equalization, Microsemi’s PCIe redrivers and crosspoint
switches deliver excellent performance in a compact footprint with flexible lane configurations
for Gen1/2/3 applications, including passthrough buffer, non-blocking matrix switching,
replication of inputs to multiple outputs, and multiplexing.
Product
VSC3340-01
VSC3316
VSC3308
VSC7112
Ports
40 × 40
16 × 16
8×8
4, Dual 2 × 2
Max Rate
6.5G
11.5G
11.5G
8.5G
Part Type
Crosspoint Switch
Crosspoint Switch
Crosspoint Switch
Redriver with mux/demux
Receiver Type
CTLE
CTLE
CTLE
Adaptive CTLE
Max Link Width
PCIe 2.0 × 16
PCIe 3.0 × 8
PCIe 3.0 × 4
PCIe 3.0 × 2
Clock Synthesis
The miClockSynth
™
family of high-performance, any-rate multiplier and frequency synthesizer
devices simplifies board design by generating ultra-low-jitter clock signals from a single crystal
or crystal oscillator while generating additional independent frequency families.
Product
ZL3025x
ZL3026x
Frequency
Families
1
4
Outputs
Up to 3 diff/6SE
1 Hz–1035 MHz
Up to 10 diff/20SE
1 Hz–1035 MHz
Inputs
10 M–1250 MHz
10 M–1250 MHz
Jitter
Performance RMS
160 fs
170 fs
Package (mm)
5 × 5 QFN
8 × 8 QFN
Gen 1-4 PCIe Clock Generators
Product
ZL30281
ZL30282
Independent
Output Freq.
Families
1
2
Inputs
1 XTAL
2 XTAL
Crystal Input
Freq. Range
25 M
50 M
Xtal Oscillator
or CMOS Input
Freq. Range
25 M
50 M
Low-
Jitter
APLLs
1
1
Typical
Jitter
fs RMS
160
160
Default
Output
Output
Freq.
Configurations Range
4
8
25 M, 100 M
25 M, 75 M
100 M
Host
Bus
SPI/I2C
SPI/I2C
Supply
Voltage
3.3 + 1.8
See note
Pkg
Size
(mm)
5x5
8x8
2.5 V only, 3.3 V only, 1.8 V + 2.5 V, 1.8 V + 3.3 V
Clock Fanout Buffers
Microsemi’s high-performance buffers complement clock synthesis devices by providing
additional fanout capabilities and minimal jitter combined with the industry’s best power
supply noise rejection performance. This preserves signal integrity by adding ultra-low jitter
and filtering noise from power supplies, resulting in better performance while simplifying
engineering board design efforts.
Product
ZL40xxx
ZL4024x, ZL4023x
ZL3024x
Input
1, 2, and XO, any signal type
2 inputs, XTAL, XO,
any signal type
3 inputs, XTAL, XO,
any signal type
Outputs
2, 4, 6, 8 LVPECL or LVDS
4, 5, 10 LVPECL, LVDS, HCSL,
or LVCMOS
3, 6, or 10, any native signal diff or SE,
configurable by output
Output
Frequency
750 MHz
1.6 GHz
1 GHz
Additive
Jitter RMS
<100 fs
(as low as 39 fs)
<50 fs
(as low as 25 fs)
<170 fs
Package (mm)
3 × 3 and 5 × 5 QFN
5 × 5 QFN
8 × 8 QFN
PCIe Fanout and Storage Switches
PFX PCIe Fanout Switches
Microsemi Switchtec™ PFX fanout PCIe switches provide the industry’s highest-density, lowest-
power PCIe switch for data center, communications, workstation, and video production applications.
With simple hardware configuration and advanced diagnostics and debug capabilities, the PFX
enables PCIe solutions for a wide variety of systems, from just a bunch of flash (JBOF) to general
purpose applications requiring low-power and high-reliability PCIe switching.
Product
PM8531 PFX 24xG3
PM8532 PFX 32xG3
PM8533 PFX 48xG3
PM8534 PFX64xG3
PM8535 PFX 80xG3
PM8536 PFX 96xG3
Lanes Description
24
32
48
64
80
96
PFX 24xG3, 24-lane PCIe Gen3 Fanout Switch
PFX 32xG3, 32-lane PCIe Gen3 Fanout Switch
PFX 48xG3, 48-lane PCIe Gen3 Fanout Switch
PFX 64xG3, 64-lane PCIe Gen3 Fanout Switch
PFX 80xG3, 80-lane PCIe Gen3 Fanout Switch
PFX 96xG3, 96-lane PCIe Gen3 Fanout Switch
Package Type
650-pin, 27 mm × 27 mm FCBGA package, 1 mm ball pitch
650-pin, 27 mm × 27 mm FCBGA package, 1 mm ball pitch
650-pin, 27 mm × 27 mm FCBGA package, 1 mm ball pitch
1311-pin, 37.5 mm × 37.5 mm FCBGA package, 1 mm ball pitch
1311-pin, 37.5 mm × 37.5 mm FCBGA package, 1 mm ball pitch
1311-pin, 37.5 mm × 37.5 mm FCBGA package, 1 mm ball pitch
PFX-I Industrial Temperature Fanout Switches
Microsemi Switchtec™ PFX-I fanout PCIe switches support the full feature set of the PFX switch with
an extended industrial temperature operating* range of –40 °C to 105 °C (T
a
to T
j
). PFX-I switches
also provide the industry’s highest-density and lowest-power, with simple hardware configuration and
advanced diagnostics and debug capabilities. Typical applications include data center equipment,
defense, industrial servers, test equipment, cellular infrastructure, access networks, metro networks,
and core networking.
Product
PM8571 PFX-I 24xG3
PM8572 PFX-I 32xG3
PM8573 PFX-I 48xG3
PM8574 PFX-I 64xG3
PM8575 PFX-I 80xG3
PM8576 PFX-I 96xG3
Lanes Description
24
32
48
64
80
96
PFX 24xG3, 24-lane PCIe Gen3 Fanout Switch
PFX 32xG3, 32-lane PCIe Gen3 Fanout Switch
PFX 48xG3, 48-lane PCIe Gen3 Fanout Switch
PFX 64xG3, 64-lane PCIe Gen3 Fanout Switch
PFX 80xG3, 80-lane PCIe Gen3 Fanout Switch
PFX 96xG3, 96-lane PCIe Gen3 Fanout Switch
Package Type
650-pin, 27 mm × 27 mm FCBGA package, 1 mm ball pitch
650-pin, 27 mm × 27 mm FCBGA package, 1 mm ball pitch
650-pin, 27 mm × 27 mm FCBGA package, 1 mm ball pitch
1311-pin, 37.5 mm × 37.5 mm FCBGA package, 1 mm ball pitch
1311-pin, 37.5 mm × 37.5 mm FCBGA package, 1 mm ball pitch
1311-pin, 37.5 mm × 37.5 mm FCBGA package, 1 mm ball pitch
Note:
PFX TJunction: 0 °C to 105 °C. PFX-I T
Ambient
: 40 °C to T
Junction
: 105 °C. PFX-I doesn’t support Adaptive Voltage Scaling (AVS).
PFX-L Fanout-Lite PCIe Switches
Microsemi Switchtec PFX-L fanout-lite PCIe switches support up to 96 lanes, 24 ports,
x4/x8/x16 port bifurcation, two non-transparent bridges (NTBs), hot-plug controllers, advanced
diagnostics and debug, end-to-end data integrity, SRIS, and low power. The PFX-L switches
maintain footprint compatibility with the PFX switch family. Typical applications for the PFX-L
include data center equipment, defense, industrial servers, workstations, test equipment,
video production and broadcasting equipment, cellular infrastructure, access networks, metro
networks, and core networking.
Product
PM8561 PFX-L 24xG3
PM8562 PFX-L 32xG3
PM8563 PFX-L 48xG3
PM8564 PFX-L 64xG3
PM8565 PFX-L 80xG3
PM8566 PFX-L 96xG3
Lanes
24
32
48
64
80
96
Description
PFX-L 24xG3, 24-lane Fanout-Lite PCIe Gen3 Switch
PFX-L 32xG3, 32-lane Fanout-Lite PCIe Gen3 Switch
PFX-L 48xG3, 48-lane Fanout-Lite PCIe Gen3 Switch
PFX-L 64xG3, 64-lane Fanout-Lite PCIe Gen3 Switch
PFX-L 80xG3, 80-lane Fanout-Lite PCIe Gen3 Switch
PFX-L 96xG3, 96-lane Fanout-Lite PCIe Gen3 Switch
Package Type
650-pin, 27 mm × 27 mm FCBGA package, 1 mm ball pitch
650-pin, 27 mm × 27 mm FCBGA package, 1 mm ball pitch
650-pin, 27 mm × 27 mm FCBGA package, 1 mm ball pitch
1311-pin, 37.5 mm × 37.5 mm FCBGA package, 1 mm ball pitch
1311-pin, 37.5 mm × 37.5 mm FCBGA package, 1 mm ball pitch
1311-pin, 37.5 mm × 37.5 mm FCBGA package, 1 mm ball pitch
