0438796013 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0438796013

0438796013: DescriptionMINI-FIT CPI HDR ASSY MF/BL; CategoryThe connector; File Size355KB，4 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric View All

0438796013 Overview

MINI-FIT CPI HDR ASSY MF/BL

0438796013 Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.165"（4.20mm）
Number of pins	10
Number of rows	2
Line spacing - patching	0.165"（4.20mm）
Number of pins loaded	all
style	Board to Board or Cable
shield	Covered - 4 walls
Installation type	Through hole
Termination	crimping, welding
Fastening type	latch holder
Contact Length - Mating	-
Contact length - terminal	0.246"（6.25mm）
Overall contact length	-
Insulation height	0.587"（14.91mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	30.0µin（0.76µm）
Contact Surface Preparation - Column	tin
Contact material	Phosphor bronze
Insulation Materials	Polyamide (PA), nylon, glass fiber reinforced
characteristic	-
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	100.0µin（2.54µm）
application	General, industrial, medical, telecommunications

Preview

Download Datasheet

View All

0.50

.020

6.25

.246

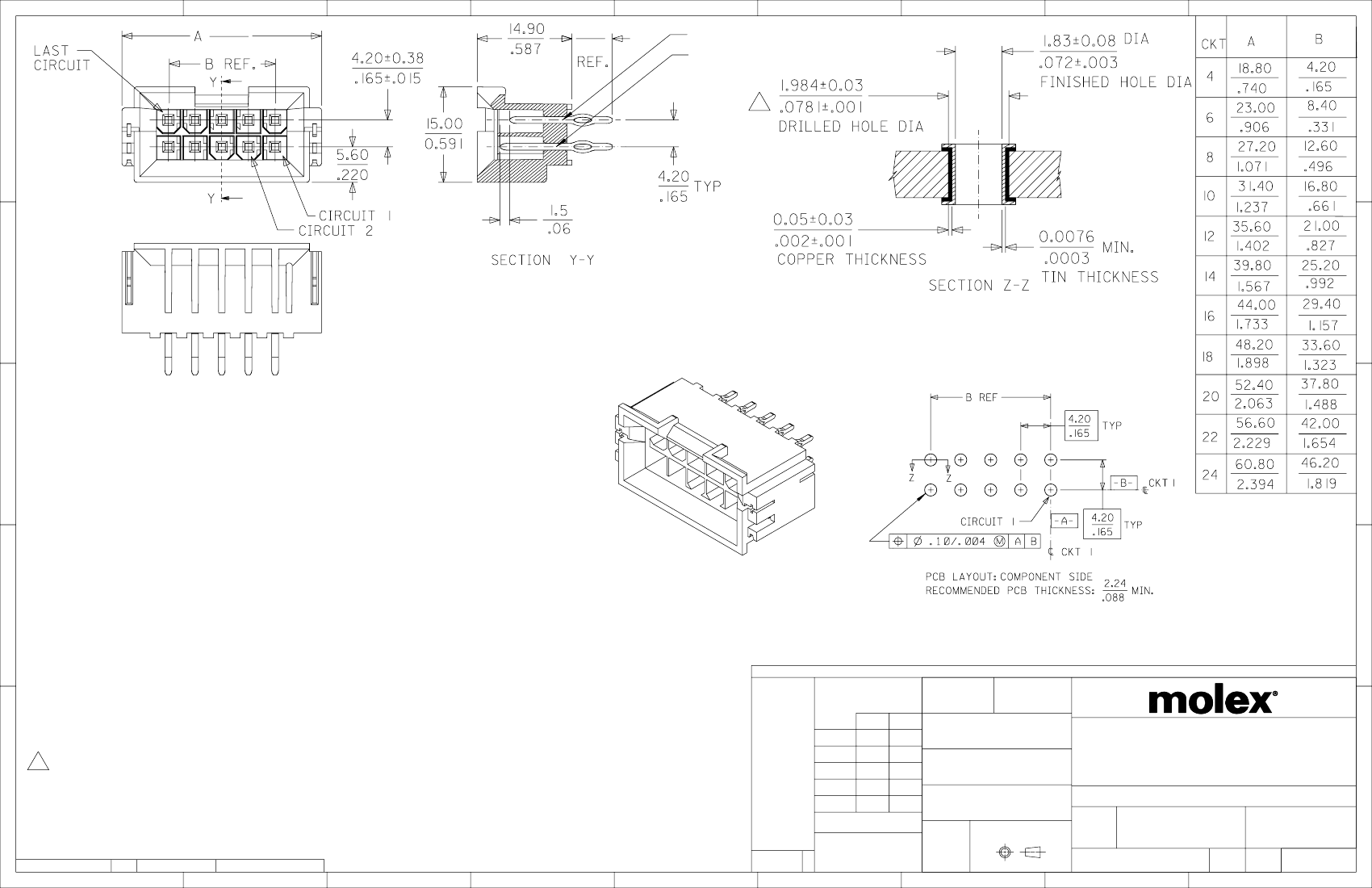

STANDARD PIN

MAKE FIRST/BREAK LAST PIN

SCALE 8:1

NOTES:

1. MATERIAL: HOUSING: GLASS FILLED NYLON, UL94 V-0, BLACK

TERMINAL: PHOSPHOR BRONZE

BOARD RETENTION CLIP: BRASS

2. TERMINAL FINISH:

1 = 0.00254/.000100 MIN. BRIGHT TIN OVER 0.00127/.000050 MIN.

NICKEL OVERALL

4 = 0.00076/.000030 MIN. GOLD IN CONTACT AREA,

0.00254/.000100 MIN. MATTE TIN IN TAIL AREA OVER

0.00127/.000050 MIN. NICKEL OVERALL

5 = 0.00254/.000100 MIN. MATTE TIN OVER 0.00127/.000050 MIN.

NICKEL OVERALL

3. PRODUCT SPECIFICATION: PS-43879-001

4. PARTS ARE TRAY PACKED PER PK-43879-001

5. THIS PART MATES WITH RECEPTACLE NUMBERS 5557, 42474, 44516

AND HEADER NUMBER 42385.

6. PART ALLOWS FOR 1.27/.050 MAX. MIS-ALIGNMENT WITH MATING

HOUSING IN ANY DIRECTION.

7. CONNECTOR ASSEMBLIES ARE NOT DESIGNED TO BE MATED

AND UNMATED WHILE CIRCUITS ARE LIVE.

8. PART IS NOT DESIGNED FOR CURRENT SHARING.

DRILLED HOLE DIAMETER IS EQUIVALENT TO 5/64 STANDARD

DRILL BIT.

10. PART CONFORMS TO CLASS "B" REQUIREMENTS OF COSMETIC

SPECIFICATION PS-45499-002.

11. THIS HEADER REQUIRES A MOLEX INSERTION TOOL

(62200-9400) TO PROPERLY INSTALL IT TO THE PCB.

RELEASE STATUS

FORMAT: Eng-lega-master-tb-prod-B

REVISION: C

DATE: 2016/04/04

SCALE 3:1

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

2016/04/08

2016/05/17

DIMENSION UNITS

SCALE

GENERAL TOLERANCES

(UNLESS SPECIFIED)

MM/IN

DRWN BY

DATE

2:1

2002/12/10

DATE

CHG DIM 5.82 TO 6.25

INCH

0.01

0.014

4 PLACES

3 PLACES

0.25

0.38

POLGAR

CHK'D BY

VERT. HDR. ASSY, BMI/CPI

MAKE-FIRST/BREAK-LAST MINI-FIT BMI SERIES

104170

CSLAFTER

FSMITH

2 PLACES

1 PLACES

0 PLACES

MARGULIS

APPR BY

DATE

2002/12/17

PRODUCT CUSTOMER DRAWING

2011/05/02

SERIES

MATERIAL NUMBER

CUSTOMER

FSMITH

DRAWING SIZE

EC NO:

DRWN:

CHK'D:

APPR:

ANGULAR TOL

2.0

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

THIRD ANGLE PROJECTION

43879

DOCUMENT NUMBER

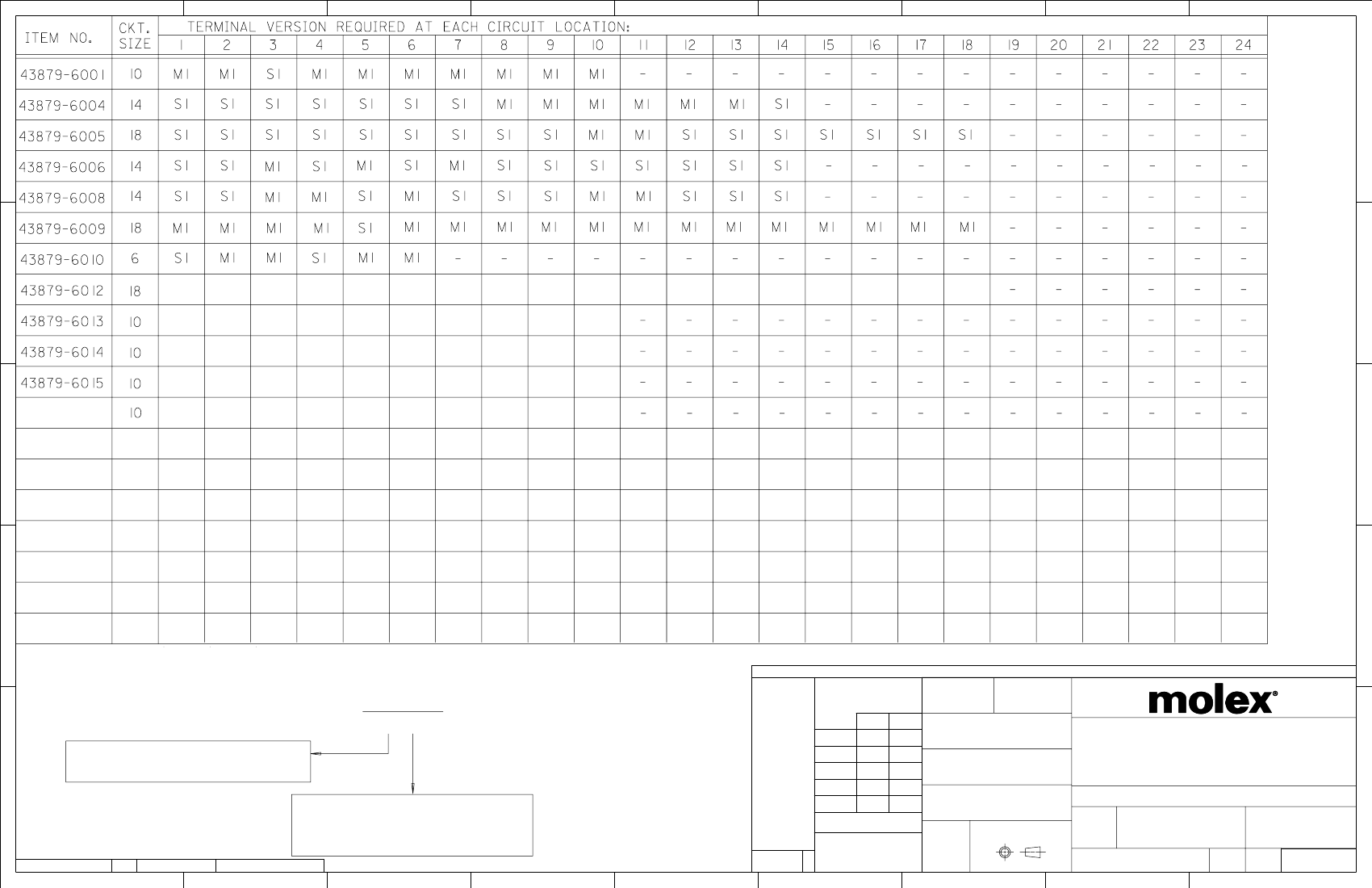

SEE CHART

GENERAL MARKET

DOC TYPE DOC PART

SHEET NUMBER

RELEASE DATE

2016/05/17

21:36:32

G15

REV

SD-43879-061

PSD

000

1 OF 4
