Part Number

Search

OSTTS23515D

Description
TERM BLOCK PLUG 23POS 5.08MM
CategoryThe connector
File Size78KB,1 Pages
ManufacturerOn Shore Technology Inc.
Environmental Compliance

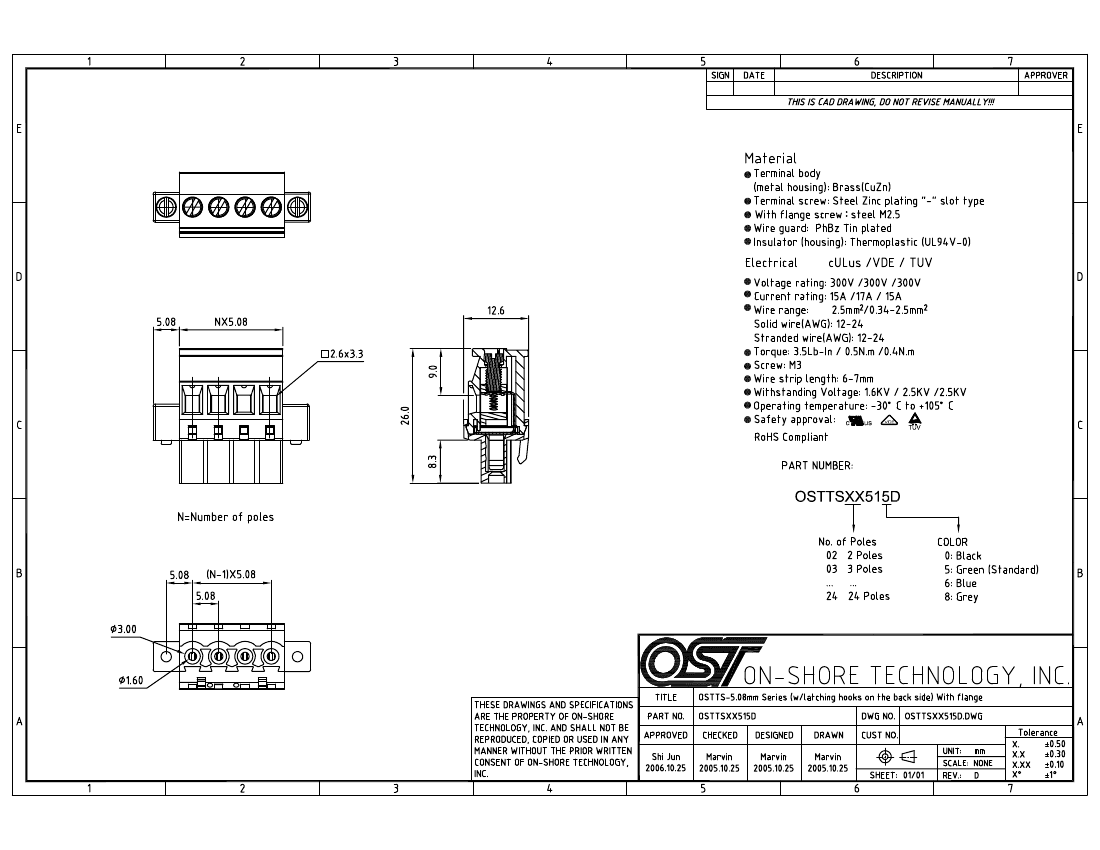

Download Datasheet Parametric View All

OSTTS23515D Overview

TERM BLOCK PLUG 23POS 5.08MM

OSTTS23515D Parametric

Parameter NameAttribute value
typeplug, female socket
Number of pins23
Number of pins per level23
Number of levels1
spacing0.200"(5.08mm)
Needle seat direction-
Plug entrance-
Terminal typescrews
Installation typefree hanging
Current - IEC-
Voltage - UL300V
Wire Gauge or Range - AWG12-24 AWG
Wire gauge or range - mm²0.34-2.5mm²
colorgreen
Operating temperature-30°C ~ 105°C
Contact mating surface treatment-
characteristic-
Material flammability ratingUL94 V-0
Intrusion protection-
Screw size-
Torque - Screws0.4 Nm(3.5 Lb-In)
Wire stripping length6-7mm
Contact materialbrass
Shell materialbrass
Contact tail length-
Insulation height-
