SFM210-LPSE-D36-SM-BK datasheet, PDF

Datasheet> All Categories > The connector> SFM210-LPSE-D36-SM-BK

SFM210-LPSE-D36-SM-BK: DescriptionCONN HEADER 1MM 72POS; CategoryThe connector; File Size338KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

SFM210-LPSE-D36-SM-BK Overview

CONN HEADER 1MM 72POS

SFM210-LPSE-D36-SM-BK Parametric

Parameter Name	Attribute value
Connector type	Header, top or bottom access
Contact type	female socket
style	board to board
Number of pins	72
Number of pins loaded	all
Spacing - Mating	0.039"（1.00mm）
Number of rows	2
Line spacing - patching	0.039"（1.00mm）
Installation type	surface mount
Termination	welding
Fastening type	push-pull
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	10.0µin（0.25µm）
Insulation color	black
Insulation height	0.087"（2.20mm）
Contact length - terminal	-
Operating temperature	-40°C ~ 125°C
Material flammability rating	UL94 V-0
Contact Surface Preparation - Column	gold
Joint stack height	-
Intrusion protection	-
characteristic	-
Rated current	1A
Rated voltage	-
application	-
Insulation Materials	Liquid Crystal Polymer (LCP)
Contact shape	Square
Contact material	Phosphor bronze
Contact Surface Treatment Thickness - Column	flash memory

Preview

Download Datasheet

View All

REVISIONS

REV.

ECO. NO

1910

DESCRIPTION

INITIAL RELEASE

DATE

2/5/2009

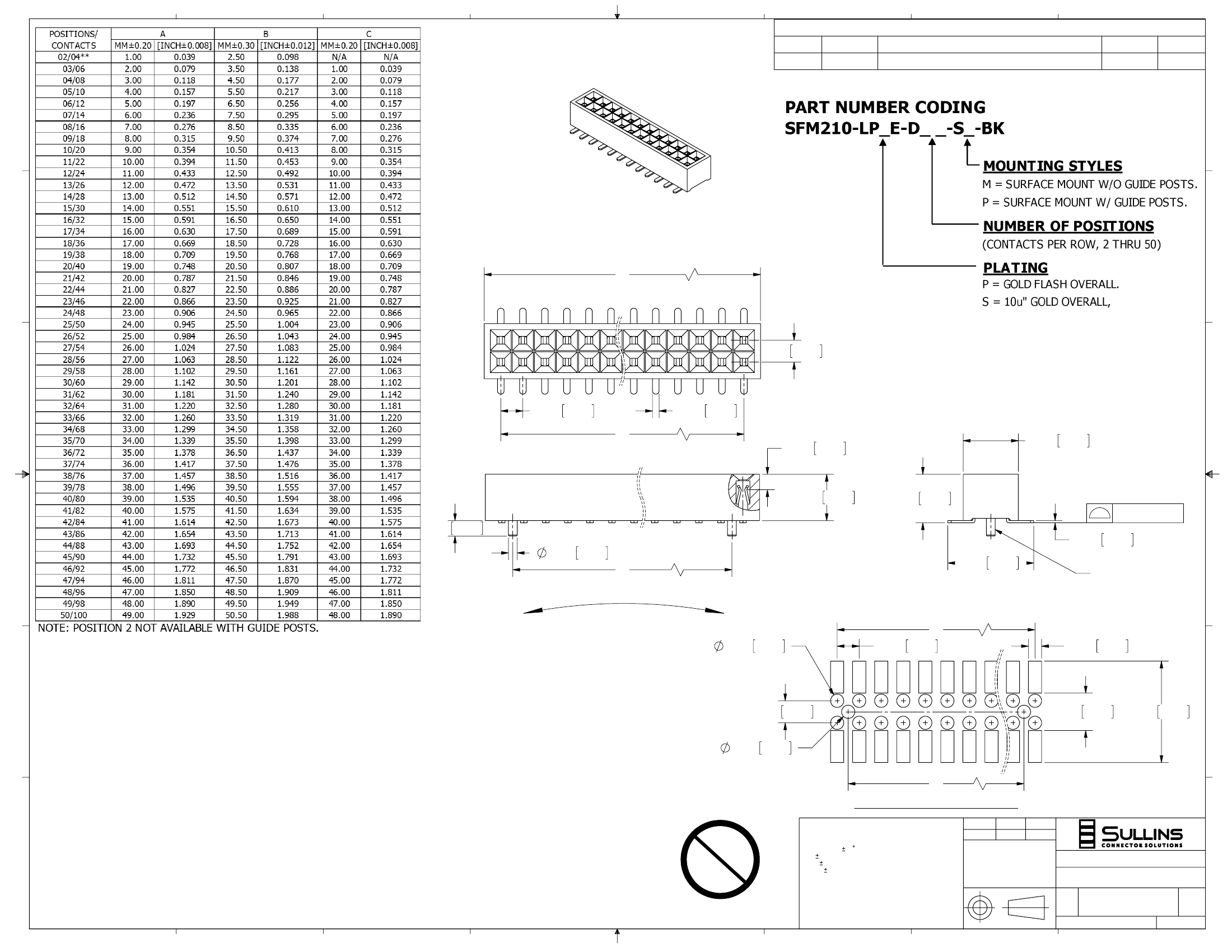

1.00 .039

0.30 .012

0.70 .028

2.50 .098

2.10 .083

0.70 .028

2.20 .087

0.12 [.005]

0.10 .004

3.90 .154

OPTIONAL

0.40 .016 , 2X

02-20, 0.20mm MAX.

21-50, 0.30mm MAX.

(NOT REQ'D FOR USE

AS TOP ENTRY)

0.60 .024

1.00 .039

0.60 .024

NOTES:

1. INSULATOR MATERIAL: L.C.P, UL 94V-0, BLACK COLOR.

2. CONTACT MATERIAL: PHOSPHOR BRONZE.

3. CONTACT PLATING: SEE PART NUMBER CODING.

4. CURRENT RATING: 1 AMP.

5. INSULATOR RESISTANCE: 1000 MEGA OHMS MIN.

6. CONTACT RESISTANCE: 20 MILLI OHMS MAX.

7. DIELECTRIC WITHSTANDING: AC 300V.

8. OPERATING TEMPERATURE: -40° C TO +125° C.

9. PROCESSING TEMP.: 260° C FOR 10 SECS MAX.

(INDICATED TEMPERATURE AND TIME IS FOR COMPONENT INSULATOR.

HIGHER PROCESSING TEMPERATURES MAY BE USED, PROVIDED HEAT IS

APPLIED FROM BACK SIDE OF PCB, AND INSULATOR DOES NOT EXCEED

INDICATED TEMPERATURE AND TIME.)

10. FOR TOP/BOTTOM ENTRY.

11. CONSULT FACTORY FOR THE MATE IF BEING USED AS BOTTOM ENTRY.

1.00 .039

0.60 .024

RECOMMENDED PCB LAYOUT

1.70 .067

4.60 .181

oHS COMPLIANT

DIMENSIONS ARE IN MM[INCHES]

TOLERANCES:

ANGULAR: 5

.X= .30 [.012]

.XX= .20 [.008]

.XXX= .10 [.004]

SURFACE FINISH: 63 Ra

UNLESS OTHERWISE SPECIFIED:

DRAWN

DATE

NAME

2/8/09

REMOVE ALL BURRS AND SHARP EDGES .010 MAX

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

DESCRIPTION

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

PART NUMBER

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

HEADER, FEMALE 1mm CC, 2 ROWS, SMT

SFM210-LP_E-D_ _-S_-BK

SIZE DWG. NO.

INTERPRET DIMENSIONS AND GEOMETRIC

TOLERANCING

PER: ANSI Y14.5M-1994

SCALE: 10:1

REV

11200

SHEET 1 OF 1

FILE NAME: C:\Documents and Settings\jhsieh\Desktop\JH PDM WIP\11200, SFM21-LP_E-D_ _-S_-BK PRINT: 3/6/2009
