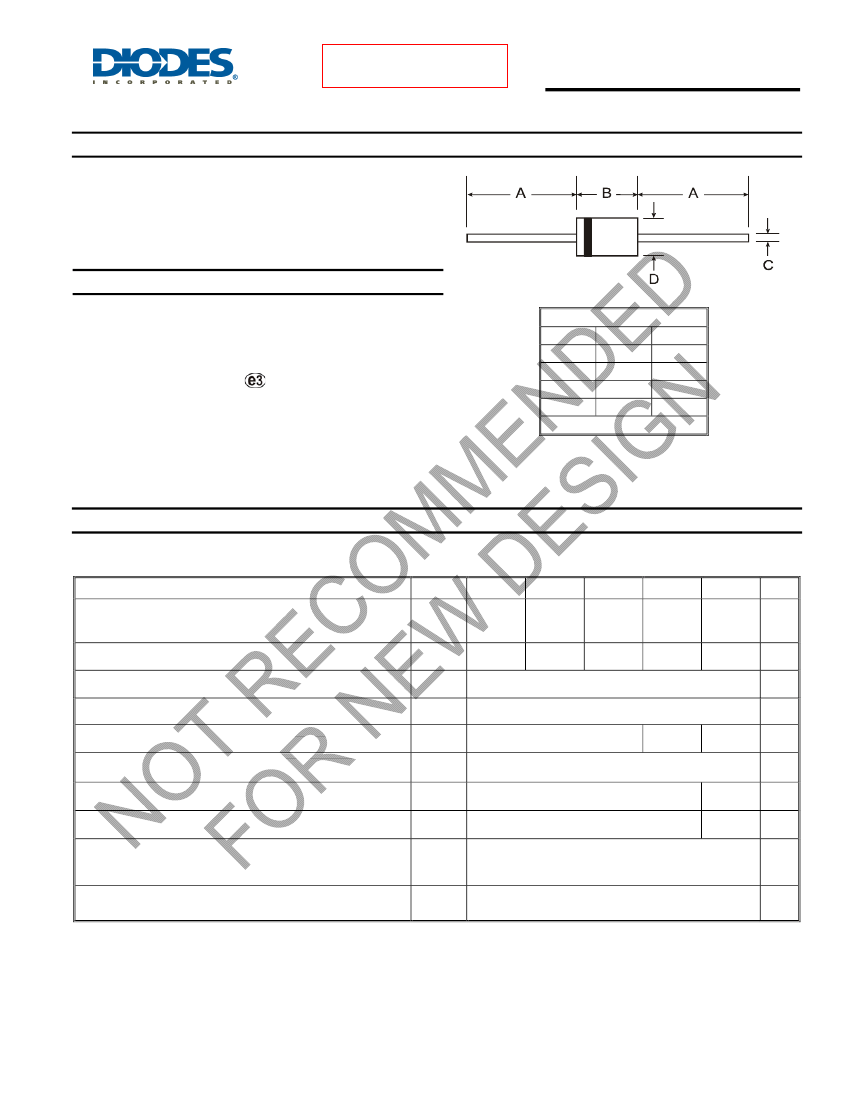

UG3001 - UG3005
3.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER
Features
•
•
•
•
•
Glass Passivated Die Construction
Ultra-Fast Switching for High Efficiency
Surge Overload Rating to 125A Peak
Low Reverse Leakage Current
Lead Free Finish, RoHS Compliant (Note 4)
Mechanical Data
•
•
•
•
•
•
•
•
Case: DO-201AD
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish
⎯
Tin. Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Marking: Type Number
Ordering Information: See Page 3
Weight: 1.1 grams (approximate)
DO-201AD
Dim
A
B
C
D
Min
25.40
7.20
1.20
4.80
Max
⎯
9.50
1.30
5.30
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage (Note 5)
RMS Reverse Voltage
Average Rectified Output Current
(Note 1)
@ T
A
= 55°C
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Forward Voltage
Peak Reverse Current
at Rated DC Blocking Voltage (Note 5)
Reverse Recovery Time (Note 3)
Typical Total Capacitance (Note 2)
Typical Thermal Resistance
@ I
F
= 3.0A
@ T
A
= 25°C
@ T
A
= 100°C
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
RM
t
rr
C
T
R
θ
JA
R
θ
JC
R
θ
JL
T
j,
T
STG
@T
A
= 25°C unless otherwise specified
UG3001
50
35
UG3002
100
70
UG3003
200
140
3.0
125
UG3004
400
280
UG3005
600
420
Unit
V
V
A
A
0.95
5.0
100
50
60
1.25
1.7
V
μA
75
30
60 (Note 1)
15
10
ns
pF
°C/W
°C
Operating and Storage Temperature Range
Notes:
1.
2.
3.
4.
5.
-65 to +150
Valid provided that leads are maintained at ambient temperature at a distance of 9.5mm from the case.
Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
Measured with I
F
= 0.5A, I
R
= 1.0A, I
rr
= 0.25A. See figure 5.
RοHS revision 13.2.2003. Glass and high temperature solder exemptions applied, see
EU Directive Annex Notes 5 and 7.
Short duration pulse test used to minimize self-heating effect.
DS27010 Rev. 6 - 3
1 of 3
www.diodes.com
UG3001 – UG3005
© Diodes Incorporated
NOT RECOMMENDED
FOR NEW DESIGN
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
10
3.0
I
(AV)
, AVERAGE FORWARD RECTIFIED
CURRENT (A)
2.4
UG3001 - UG3003
UG3004
1.0
1.8
1.2
UG3005
0.1
0.6
Single phase half-wave
60 Hz resistive or inductive load
T
j
= 25 C
o
0
25
50
75
100
125
150
175
200
0.01
0.6
0.8
1.0
1.2
1.4
T
A
, AMBIENT TEMPERATURE (
°
C)

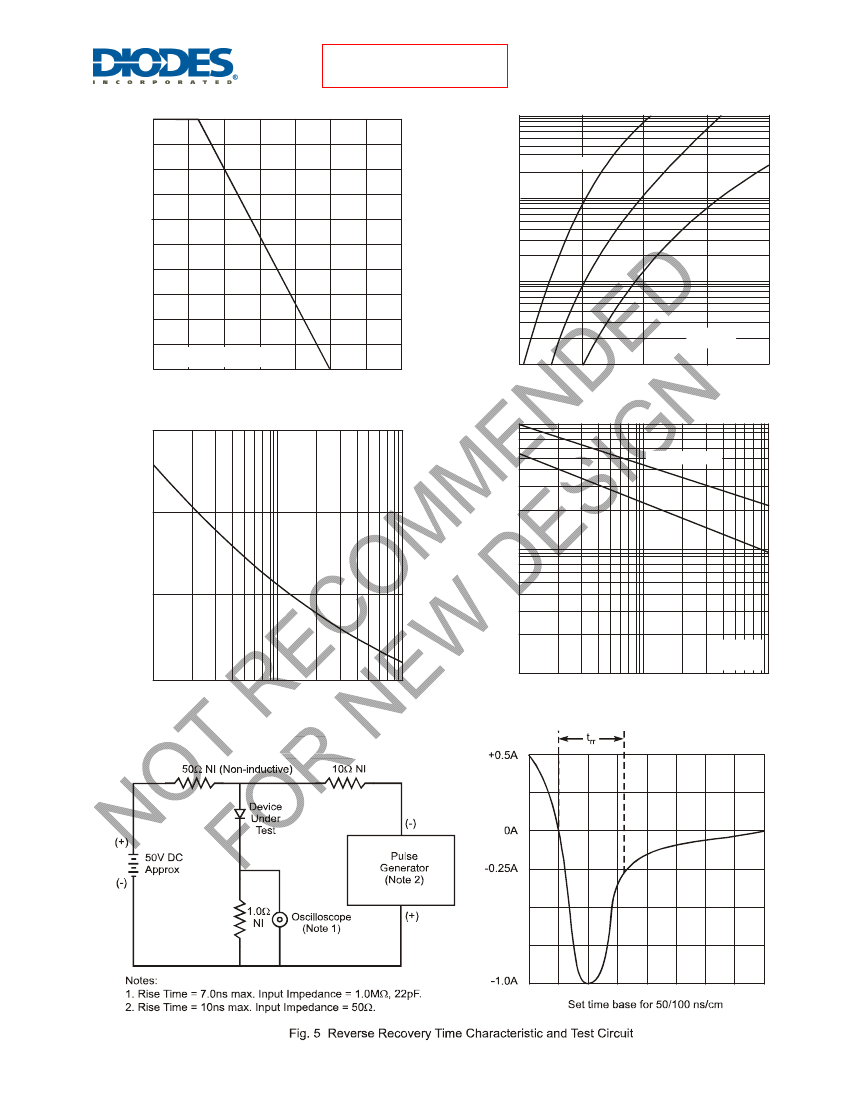

Fig. 1 Forward Current Derating Curve
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
100
UG3001 - UG3004
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
150
C
T
, TOTAL CAPACITANCE (pF)
UG3005
100
10
50
1
0
1
10
NUMBER OF CYCLES AT 60Hz
Fig. 3 Peak Forward Surge Current
100
1
10
T
j
= 25
°
C
f = 1.0MHz
100
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Total Capacitance
DS27010 Rev. 6 - 3
2 of 3
www.diodes.com
UG3001 – UG3005
© Diodes Incorporated
NOT RECOMMENDED
FOR NEW DESIGN
Ordering Information
(Note 6)
Device
UG3001-B
UG3001-T
UG3002-B
UG3002-T
UG3003-B
UG3003-T
UG3004-B
UG3004-T
UG3005-B
UG3005-T
Notes:
Packaging
DO-201AD
DO-201AD
DO-201AD
DO-201AD
DO-201AD
DO-201AD
DO-201AD
DO-201AD
DO-201AD
DO-201AD
Shipping
500/Bulk
1.2K/Tape & Reel, 13-inch
500/Bulk
1.2K/Tape & Reel, 13-inch
500/Bulk
1.2K/Tape & Reel, 13-inch
500/Bulk
1.2K/Tape & Reel, 13-inch
500/Bulk
1.2K/Tape & Reel, 13-inch
6. For packaging details, visit our website at http://www.diodes.com/datasheets/ap02008.pdf.
