UF5405 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> UF5405

UF5405: Description3 A, SILICON, RECTIFIER DIODE, DO-201AD; CategoryDiscrete semiconductor diode; File Size112KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

UF5405 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UF5405	-	-	View	Buy Now

UF5405 Overview

3 A, SILICON, RECTIFIER DIODE, DO-201AD

UF5405 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	DO-201
package instruction	PLASTIC PACKAGE-2
Contacts	2
Reach Compliance Code	unknow
application	ULTRA FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-201
JESD-30 code	O-PALF-W2
JESD-609 code	e2
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	500 V
Maximum reverse recovery time	0.075 µs
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

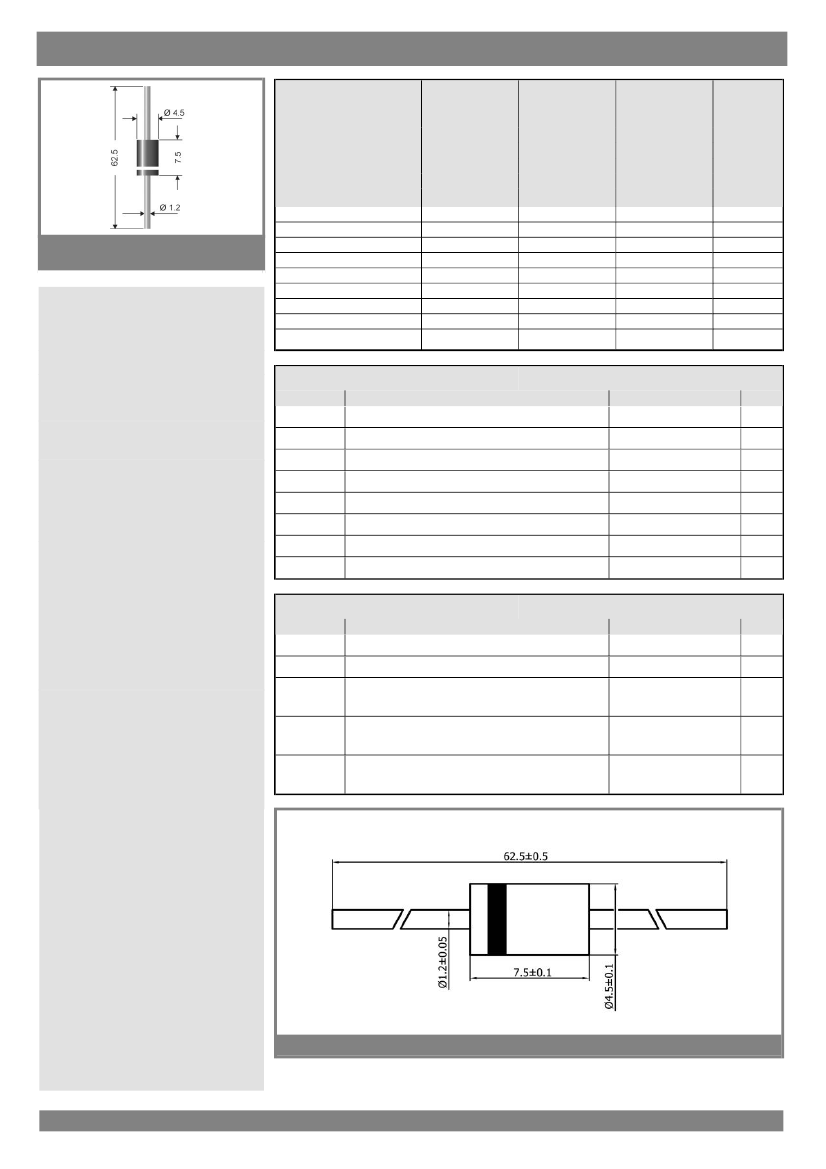

UF 5400...UF 5408

Axial lead diode

Ultrafast silicon rectifier

diodes

UF 5400...UF 5408

Forward Current: 3 A

Reverse Voltage: 50 to 1000 V

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Features

Mechanical Data

Characteristics

Symbol Conditions

Values

Units

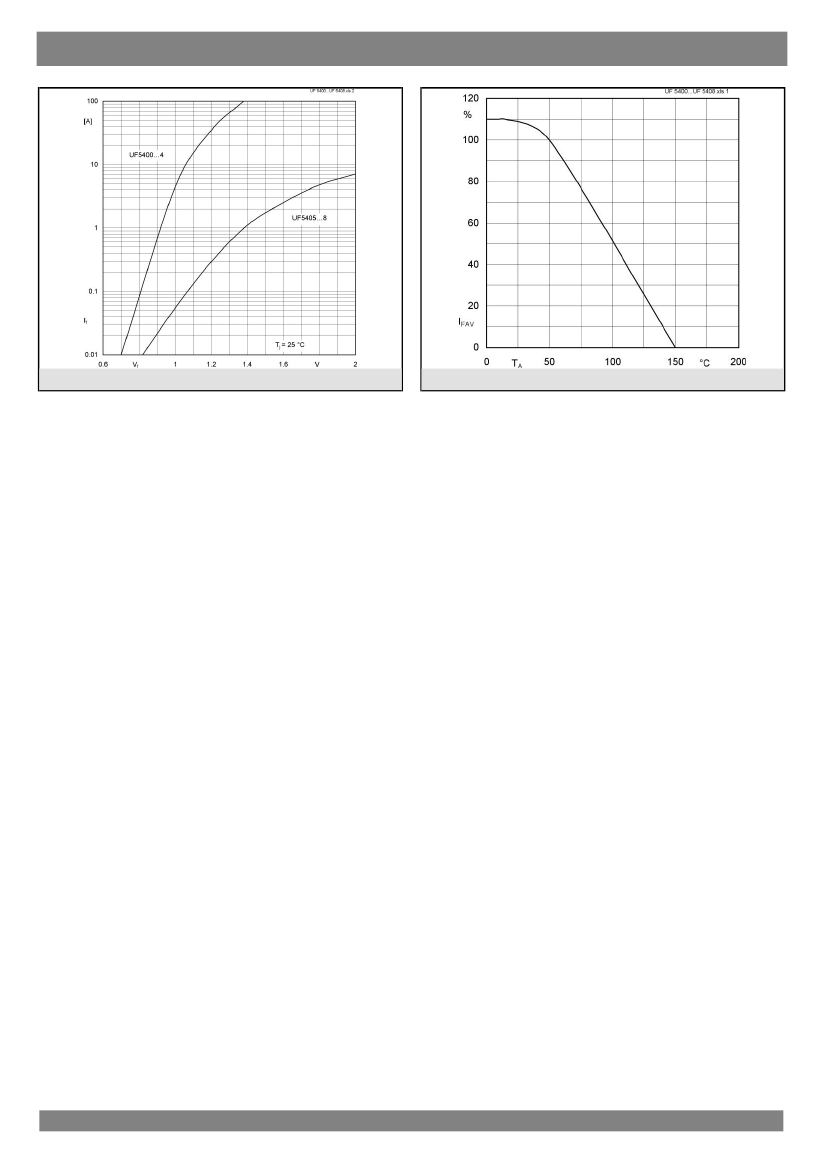

Dimensions in mm

10-04-2006 SCT

UF5405 Related Products

	UF5405	UF5400	UF5400_06	UF5401	UF5402	UF5408	UF5407	UF5406	UF5404	UF5403
Description	3 A, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 50 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 50 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 200 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 1000 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 800 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 600 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 400 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 300 V, SILICON, RECTIFIER DIODE, DO-201AD
Is it Rohs certified?	conform to	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	DO-201	DO-201	-	DO-201	DO-201	DO-201	DO-201	DO-201	DO-201	DO-201
package instruction	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	-	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	O-PALF-W2
Contacts	2	2	-	2	2	2	2	2	2	2
Reach Compliance Code	unknow	unknow	-	unknow	unknow	unknow	unknow	unknow	unknow	unknow
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	-	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	ISOLATED	ISOLATED	-	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	-	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-201	DO-201	-	DO-201	DO-201	DO-201	DO-201	DO-201	DO-201	DO-201
JESD-30 code	O-PALF-W2	O-PALF-W2	-	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
JESD-609 code	e2	e2	-	e2	e2	e2	e2	e2	e2	e2
Maximum non-repetitive peak forward current	100 A	100 A	-	100 A	100 A	100 A	100 A	100 A	100 A	100 A
Number of components	1	1	-	1	1	1	1	1	1	1
Phase	1	1	-	1	1	1	1	1	1	1
Number of terminals	2	2	-	2	2	2	2	2	2	2
Maximum output current	3 A	3 A	-	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	-	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	-	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	500 V	50 V	-	100 V	200 V	1000 V	800 V	600 V	400 V	300 V
Maximum reverse recovery time	0.075 µs	0.05 µs	-	0.05 µs	0.05 µs	0.075 µs	0.075 µs	0.075 µs	0.05 µs	0.05 µs
surface mount	NO	NO	-	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	-	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Terminal form	WIRE	WIRE	-	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	-	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	-	SEMIKRON	-	SEMIKRON	SEMIKRON	SEMIKRON	-	SEMIKRON	-	SEMIKRON
