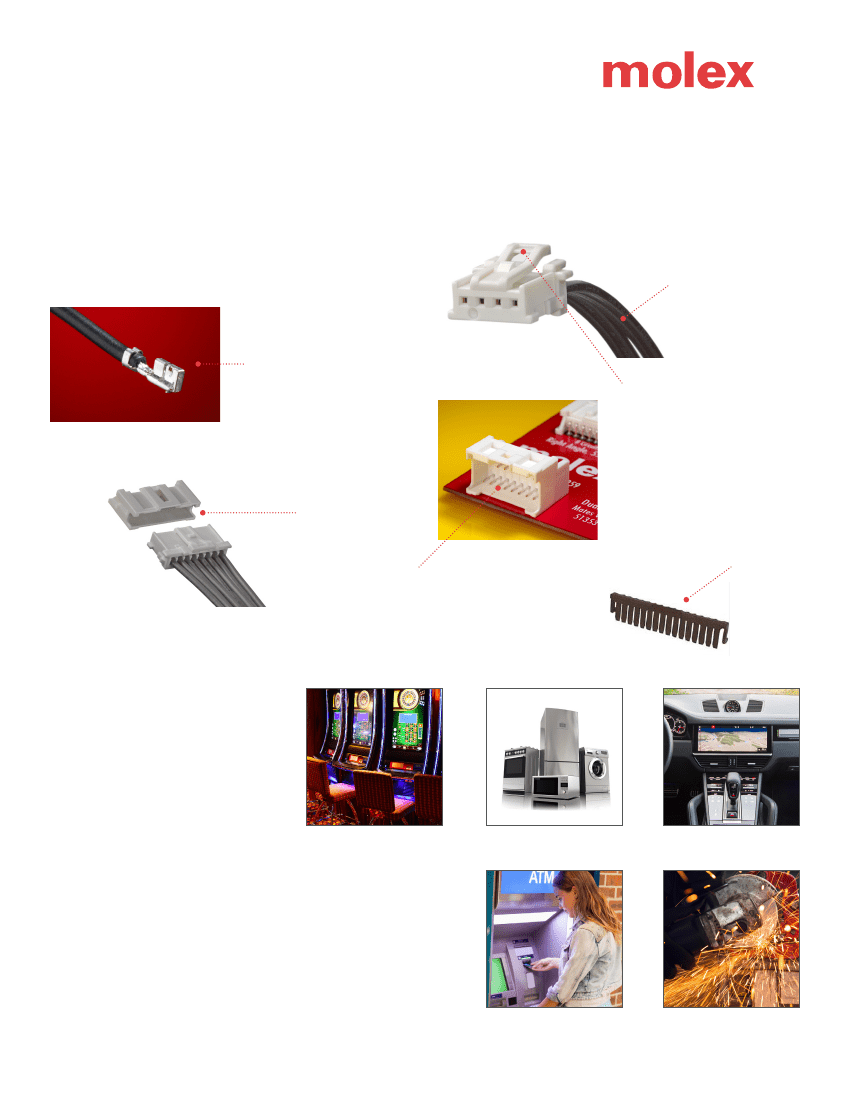

MicroClasp 2.00mm Pitch
Wire-to-Board Connector System
Ideal for compact applications, the MicroClasp 2.00mm Wire-to-Board single-row and
dual-row Connector System provides electrical and mechanical reliability that meets a
diverse range of industry applications up to 85°C
Features and Advantages
2.00mm-pitch connector
Delivers secure mating retention
without sacrificing compactness
High-power cable
Allows up to 3.0A current
Readily available tooling
The crimp applicators are
widely available in the
market
Inner positive lock
Provides latch protection, secure
terminal retention and an audible
mating click for better mating
retention of header and harness
Through-hole
single- and dual-
row headers in
vertical and right-
angle orientations
Provides design
flexibility
TPA Retainer
Ensures wires
are fully inserted
Markets and Applications
Consumer
White goods
Gaming machines
Air conditioners
Refrigerators
Vacuum cleaners
Power tools
ATMs
Vending machines
Automotive
Steering wheels, paddle shifts and
combination switches
Shifters
Headlights and rear- and side-
mirror lights
Internal connections with other units
ATM
Power tools
Gaming Machines
White Goods
Car Infotainment
MicroClasp 2.00mm Pitch
Wire-to-Board Connector System
Specifications / Single Row
REFERENCE INFORMATION
Packaging:
Reel (Terminal);
Tray (Header Assembly)
Bag (Receptacle Housing, TPA retainer)
Mates With:
MicroClasp single-row connectors (55932/55935)
Use with
51382 (Single-row Rec Housing)
500638 (TPA retainer)
56134-9000 (Crimp Terminal)
Designed In: Millimeters
RoHS: Yes
Low Halogen : No
ELECTRICAL
Voltage (max.): 250V
Current (max.): 3.0A (22 AWG)
Contact Resistance (max.): 20 milliohms
Dielectric Withstanding Voltage:1000V AC (1 minute)
Insulation Resistance (min.): 1000 Megohms
MECHANICAL
Crimp Terminal Insertion Force (max.): 9.8N
Crimp Terminal Retention Force (min.): 9.8N
Pin Retention Force (min.): 9.8N
Crimping Strength (min.): 39.2N (22 AWG)
Durability (max.): 30 Cycles
PHYSICAL
Housing:
Receptacle − PA66
TPA retainer − PBT
Header − PBT
Terminal / Pin (Plating)
Receptacle − Copper alloy (Pre-tin plated)
Header pin − Brass (Pre-tin plated)
Operating Temperature: -25 to +85˚C
Specifications / Dual Row
REFERENCE INFORMATION
Packaging: Reel (Terminal)
Tray (Header Assembly)
Bag (Receptacle Housing, TPA retainer)
Mates With:
MicroClasp dual-row connectors (55917/55959)
Use with
51353 (Dual-row Rec Housing)
500638(TPA retainer)
56134-9000 (Terminal)
Designed In: Millimeters
RoHS: Yes
Low Halogen : No
ELECTRICAL
Voltage (max.): 250V
Current (max.): 3.0A (22 AWG)
Contact Resistance (max.): 20 milliohms
Dielectric Withstanding Voltage:1000V AC (1 minute)
Insulation Resistance (min.): 1000 Megohms
MECHANICAL
Crimp Terminal Insertion Force (max.): 9.8N
Crimp Terminal Retention Force (min.): 9.8N
Pin Retention Force (min.): 9.8N
Crimping Strength (min.): 39.2N (22 AWG)
Durability (max.): 30 Cycles
PHYSICAL
Housing:
Receptacle − PA66
Header − PBT
Terminal / Pin (Plating)
Receptacle − Copper alloy (Pre-tin plated)
Header pin − Brass (Pre-tin plated)
Operating Temperature: -25 to +85˚C
Ordering Information
Series No.
56134
500638
51382
55932
55935
51353
55917
55959
2.00
Pitch (mm)
Component
Female Receptacle Terminal
TPA retainer
Receptacle Housing
Plug Vertical Header
Plug Right Angle Header
Receptacle Housing
Plug Vertical Header
Plug Right Angle Header
8 to 40
Dual
2 to 15
Single
-Natural
-Color variation available under A2
Circuits
22 to 28 AWG
4 to 20
Rows
-
Single
Color
-
Brown
www.molex.com/link/microclasp.html
Molex is a registered trademark of Molex, LLC in the United States of America and may be registered in other countries; all other trademarks listed herein belong to their respective owners.
Order No. 987651-6214 Rev. 1
USA/0k/GF/2018.10
©2018 Molex
