194905: DescriptionD Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size84KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

194905 Overview

D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal, ROHS COMPLIANT

194905 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	PRESS FIT
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

Verpackt in Tray

Verpackungseinheit 36 St.

5,8

tray packaging

packaging unit 36 pcs

+0,3

9

0,6

Leiterplatte

5 x 18 = 90

18

pcb

39,3

-0,4

25,1

+0,2

max. 138

3,2

3

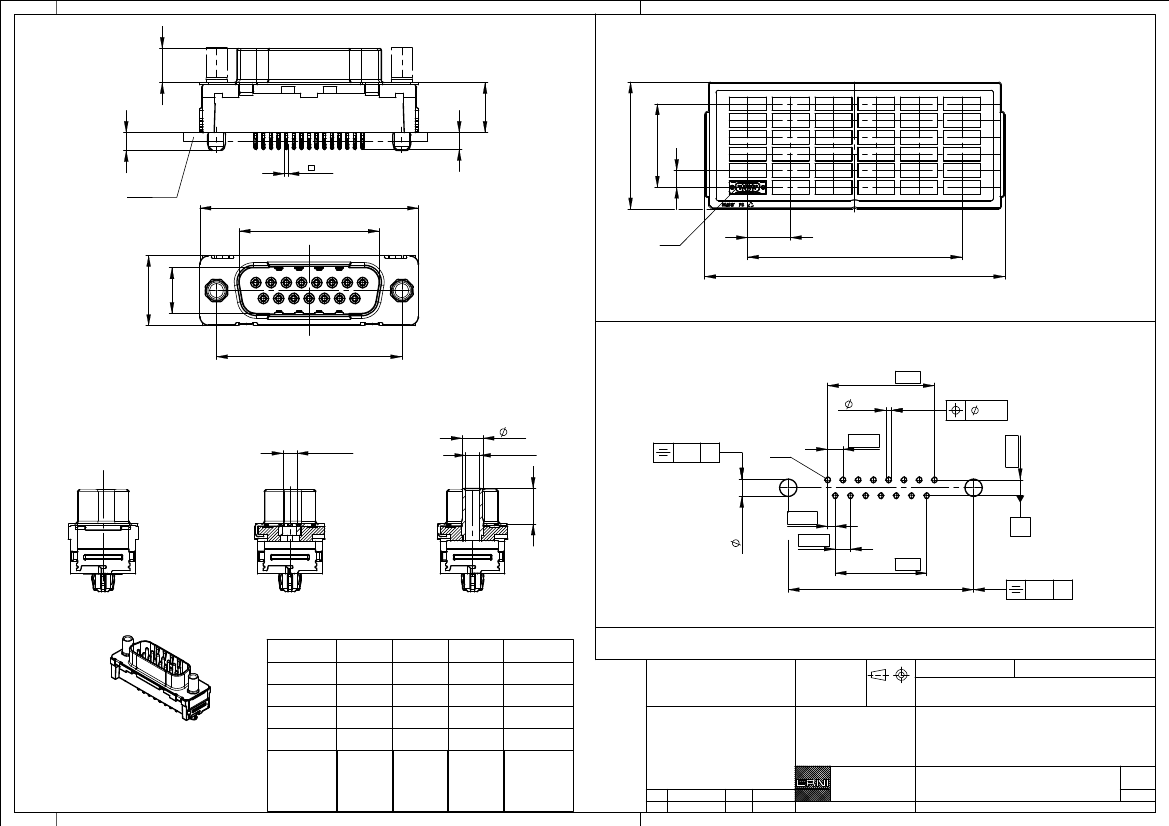

Pin 1

46,2

5 x 46,2 = 231

max. 325

12,6

±0,3

8,25

+0,2

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

33,3

±0,1

Layoutvorschlag:

recommended layout:

7 x 2,74 = 19,18

ohne /

without

max. Einschraubtiefe 6,4 mm

Mutter /

nut

Bolzen /

bolt

thread depth max. 6,4 mm

max. Einschraubtiefe 5,5 mm

1

-0,06

2,74

+0,09

thread depth max. 5,5 mm

3,7

0,05 (15x)

2,84

B

0,05

Gewinde

/ thread

M3

/ #4-40

Gewinde

/ thread

M3

/ #4-40

0,05

B

Pin 1

6,4

3,1

-0,06

+0,04

1,37

2,74

6 x 2,74 = 16,44

33,3

±0,05

A

Beschriftung nach Bedruckungsvorschrift 174538

Part marking according to specification 174538

M 1:1

Lochaufbau siehe ERNI-Spezifikation 164062 /

hole design according to ERNI-specification 164062

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to the production documentation

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

194902

194906

194905

X

#4-40

M3

#4-40

M3

ohne

Mutter

Bolzen

Bemerkung

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

Anschlussbereich verzinnt

terminal area tin plating

Anforderungsstufe: 2

194904

194903

Ident.-Nr.

class: 2

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

b

Index

01.04.2010

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-P 15-EE-3,0-9,0-BA8

TMC-P 15-EE-3,0-9,0-type 8

part-no.

without

thread

bolt

remark

www.ERNI.com

Class

144936

TMCP

I

A3

194905 Related Products

	194905	194906	194902	194904
Description	D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal, ROHS COMPLIANT	D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal, ROHS COMPLIANT	D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal, ROHS COMPLIANT	D Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, Press Fit Terminal, #4-40, Receptacle, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	compli	compli	compli
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)	Tin (Sn)	TIN	Tin (Sn)
Contact point gender	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL
Housing size	2/A	2/A	2/A	2/A
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	15	15	15	15
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1
