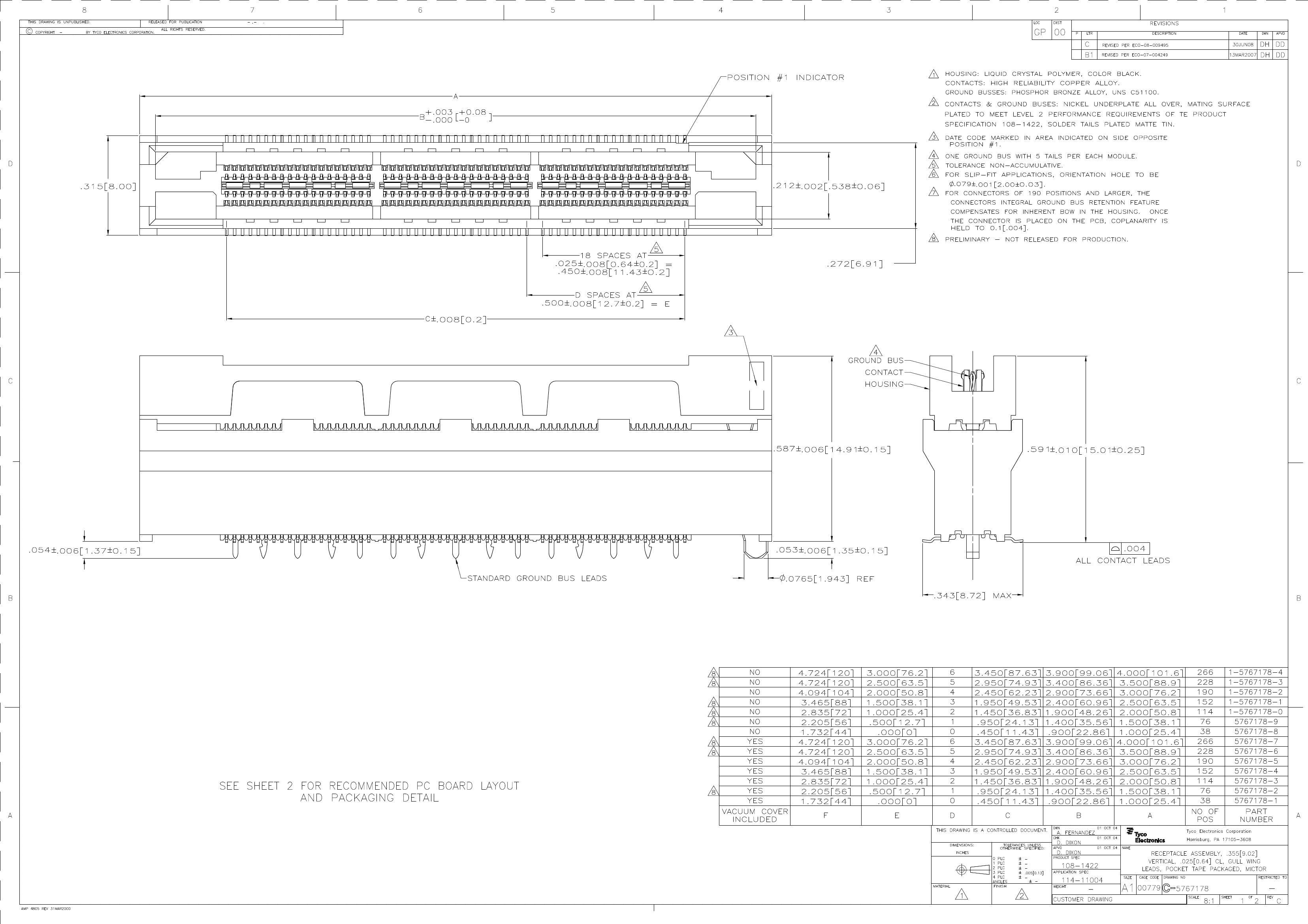

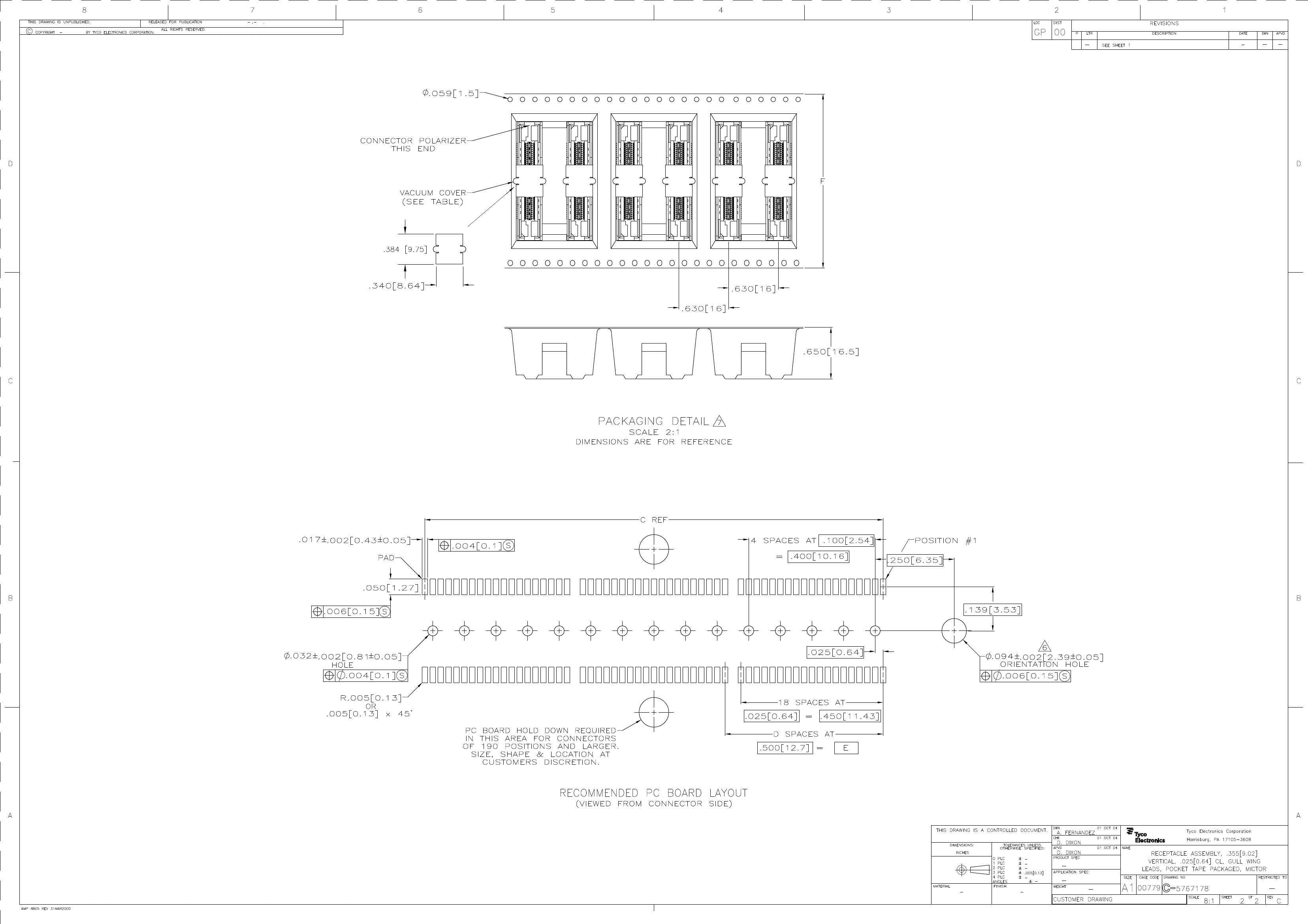

1-5767178-3: Description228 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE; File Size357KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-5767178-3 Overview

228 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE

1-5767178-3 Parametric

Parameter Name	Attribute value
Objectid	1673160500
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.64 mm
Termination type	SURFACE MOUNT
Total number of contacts	228

Preview

Download Datasheet

View All

1-5767178-3 Related Products

	1-5767178-3	1-5767178-0	1-5767178-1	1-5767178-4	5767178-4	5767178-9	5767178-3	5767178-6	5767178-7
Description	228 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	114 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	152 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	266 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	152 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	76 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	114 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	228 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	266 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE
Objectid	1673160500	1673160497	1673160498	1673160501	1673160594	1673160599	1673160593	1673160596	1673160597
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.64 mm	0.64 mm	0.64 mm	0.64 mm	0.64 mm	0.64 mm	0.64 mm	0.64 mm	0.64 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	228	114	152	266	152	76	114	228	266
Contact completed and terminated	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	NOT APPLICABLE	MATTE TIN OVER NICKEL	-	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL
JESD-609 code	e3	e3	e3	e3	-	e3	-	e3	e3
