Programmable - High Performance
SMD XO & VCXO (LVDS Output)
Moisture Sensitivity Level (MSL) – 1
• +2.5V or +3.3V operation
• -40°C to +85°C standard operating temperature range
• Miniature size 2.5 x 2.0 x 1.0 mm Ceramic SMT Package
• Short lead time
ASG2-D
ESD Sensitive
Pb
RoHS / RoHS II Compliant
2.5 x 2.0 x 1.0 mm
FEATURES:
STANDARD SPECIFICATIONS:
Parameters
Frequency
R
ange
Operating Temperature
Storage Temperature
Overall Frequency Stability
Initial Tolerance + Stability over
operating temperature
V
dd
=
3.3V
Supply Voltage (Vdd)
V
dd
=
2.5V
Input Current
Differential Output
Voltage Swing
LVDS Output
Duty Cycle
(OUT &
OUT
)
Rise Time
Fall Time
Enable/Disable Function
Control Voltage
R
ange
Ab
solute Pull
R
ange
Control Port
Bandwidth
Linearity
Slope
Phase jitter
RMS
(
12kHz to 20MHz offset
)
• Networking
• SONET/SDH
• WiMax / WLAN
• Computing
• Phase Locked Loops
• Direct Digital Synthesis (DDS)
• DSL/ADSL
• Base Terminal Stations
APPLICATIONS:
Minimum
8
-40
-55
-50
-35.00
3.135
2.375
Typical
Maximum
1500
+85
+125
+50
+35.00
Units
M Hz
°C
°C
ppm
ppm
V
V
m
A
mV
%
ps
ps
Notes
See Note # 1
3.300
2.500
350
3.465
2.625
40
Frequency dependent
V
OD
@1.25V
RL=100Ω/CL=10pF
RL=100Ω/CL=10pF
55
600
600
"1"
(V
IH
≥ 0.7*Vdd) or Open: Oscillation
"0"
(V
IL
< 0.3*Vdd) : High
Z
0
Vdd
±35
10
15
Positi
v
e
1.0
1.8
45
V
ppm
kHz
%
ps
For VC
X
O Only
For VC
X
O Only
For VCXO Only
For VC
X
O Only
For VCXO Only
See Note #2
Note #1:
Inclusive of initial tolerance at 25ºC±3ºC, operating temperature range, input
voltage variation,
load
variation
& 15 years
aging at 25ºC.
Note #2:
The rms
jitter
integrated over 12kHz to 20MHz Bandwidth is dependent on the carrier and
whether
or not the
final
frequency is achieved without engaging the Fractional Mode
ABRACON IS
ISO9001:2008
CE
RTIFIED
Revised: 07.01.14
30332
Esperanza, Rancho
Santa Margarita, Calif rnia
92688
o
tel
949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
Programmable - High Performance
SMD XO & VCXO (LVDS Output)
ASG2-D
ESD Sensitive
Pb
RoHS / RoHS II Compliant
2.5 x 2.0 x 1.0 mm
TEST CIRCUIT
OPTIONS & PART IDENTIFICATION:
ASG2 - D -
-
-
MHz -
Fixed or Pull-able
X =
Fixed Oscillator
V
=
VCXO
Operating Voltage
3.30V
= A
2.50V
= B
Frequency in MHz
Please specify the
Frequency in MHz
e.g. 100.000 MHz
Packaging
Blank =
Bulk
T = Tape & Reel
RECOMMENDED REFLOW PROFILE
ABRACON IS
ISO9001:2008
CE
RTIFIED
Revised: 07.01.14
30332
Esperanza, Rancho
Santa Margarita, Calif rnia
92688
o
tel
949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
Programmable - High Performance
SMD XO & VCXO (LVDS Output)
ASG2-D
ESD Sensitive
Pb
RoHS / RoHS II Compliant
2.5 x 2.0 x 1.0 mm
OUTLINE DIMENSION:
Pin #
1
2
3
4
5
6
Pin #
1
2
3
4
5
6
Pin Description
For VCXO configuration
Voltage Control for VCXO
Output Enable (OE)
or
No Connect (N/C)
GND
RF Output
Complimentary Output
Vdd
Pin Description
For XO configuration
Output Enable (OE)
No Connect (N/C) for XO
GND
RF Output
Complimentary Output
Vdd
Recommended Land Pattern
Top View
Bottom View
Side View
Dimensions: mm
ABRACON IS
ISO9001:2008
CE
RTIFIED
Revised: 07.01.14
30332
Esperanza, Rancho
Santa Margarita, Calif rnia
92688
o
tel
949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
Programmable - High Performance
SMD XO & VCXO (LVDS Output)
ASG2-D
ESD Sensitive
Pb
RoHS / RoHS II Compliant
2.5 x 2.0 x 1.0 mm

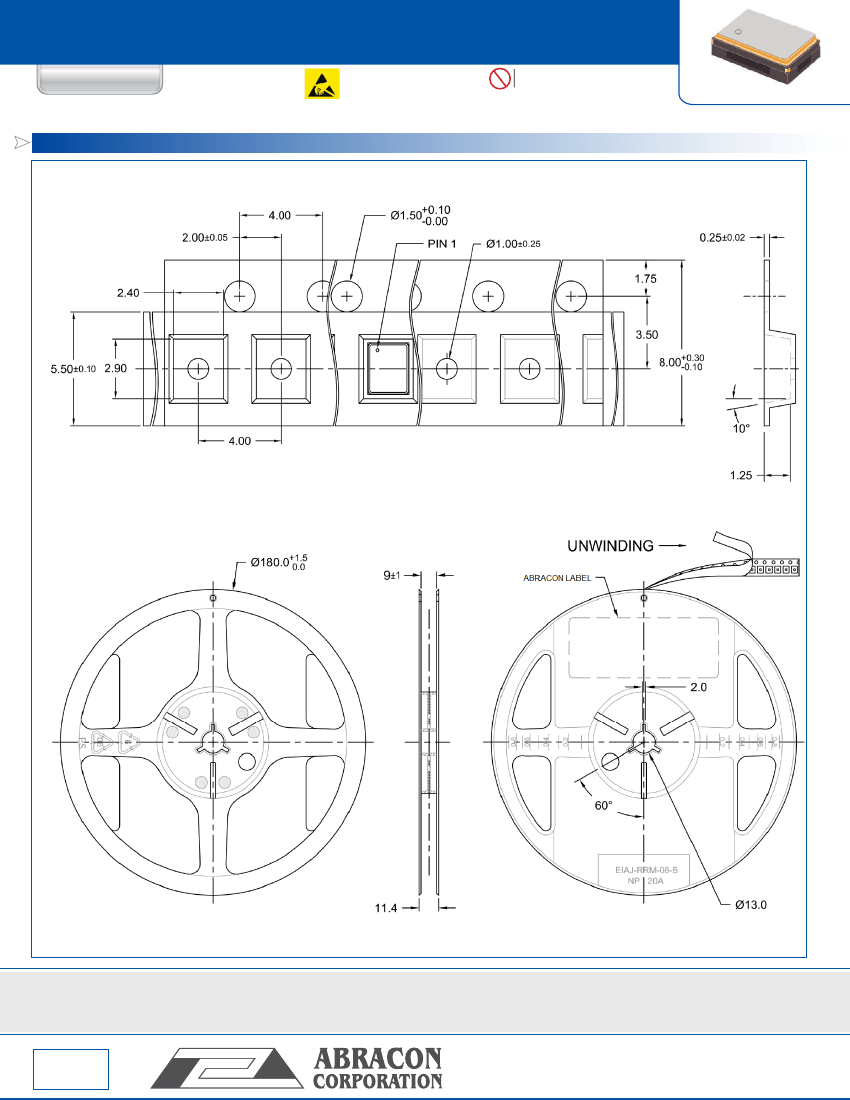

TAPE & REEL:
T= Tape and reel (3,000pcs/reel)
Dimensions: mm
Dimensions: mm
ATTENTION:
Abracon
Corporation’s products are COTS
–
Commercial-Off-The-Shelf products; suitable
for
Commercial, Industrial and,
where
designated,
Automotive
Applications. Abracon’s
products are not specifically designed
for
Military,
Aviation, Aerospace,
Life-dependant Medical applications or any application requiring high
reliability
where
component
failure
could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environ-
ment,
written
consent and authorization
from Abracon
Corporation is required. Please contact
Abracon
Corporation
for
more information.
