3-1658467-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-1658467-2

3-1658467-2: Description56 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT; CategoryThe connector The connector; File Size298KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1658467-2 Overview

56 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT

3-1658467-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1673160538
Reach Compliance Code	compliant
YTEOL	8.7
Board mount options	PEG
body width	0.265 inch
subject depth	0.718 inch
body length	1.575 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Dielectric withstand voltage	675VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	1658467
Plug contact pitch	0.032 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.9436 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	56

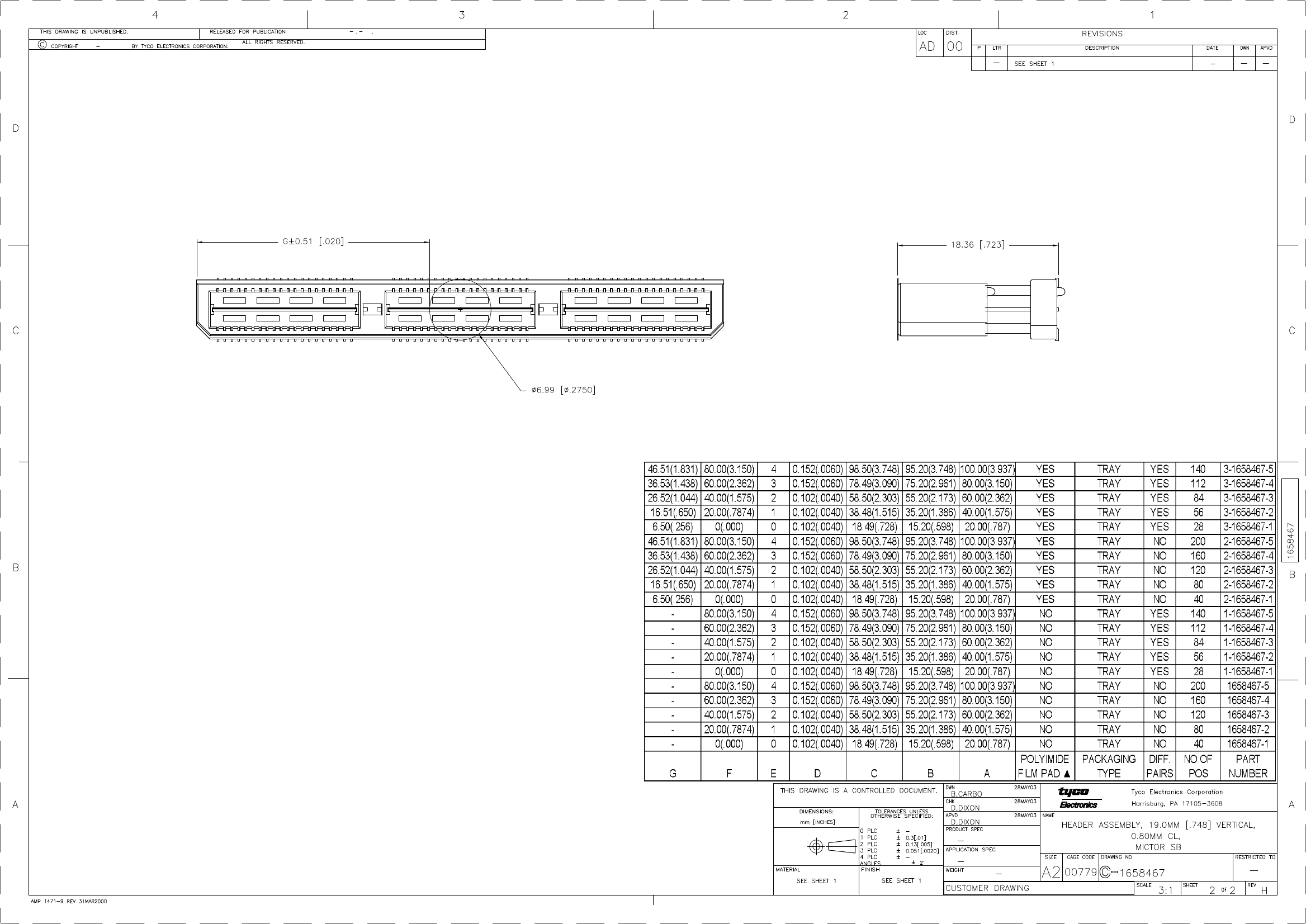

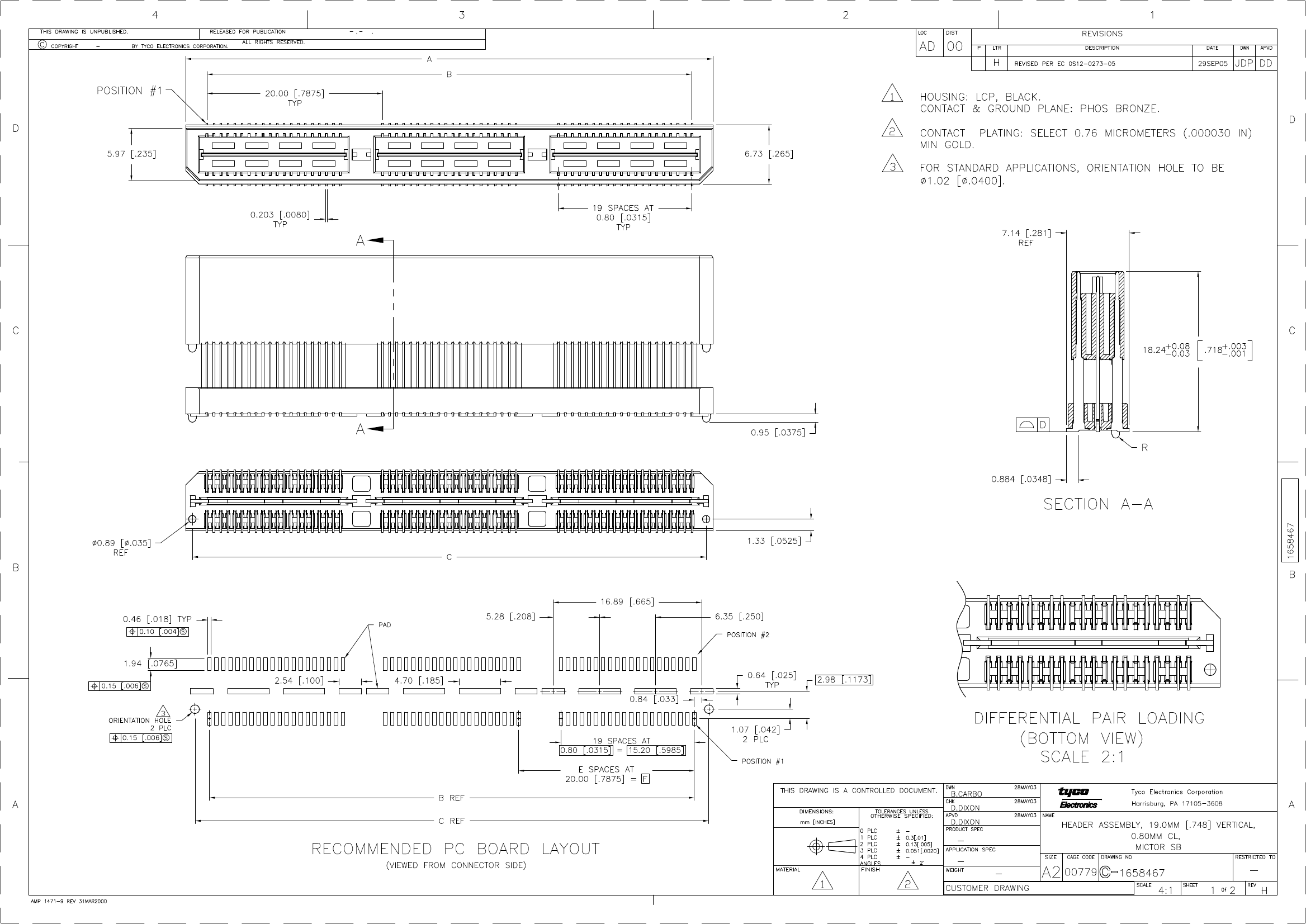

Preview

Download Datasheet

View All

3-1658467-2 Related Products

	3-1658467-2	ECS-320-8-47-J-M-TR	ECS-320-8-47-J-W-L-TR	ECS-320-8-47-R-H-N-TR	3-1658467-3	1-1658467-4	3-1658467-4	1-1658467-5	3-1658467-5
Description	56 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT	Parallel - Fundamental Quartz Crystal, 32MHz Nom, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 32MHz Nom, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 32MHz Nom, SMD, 4 PIN	84 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT	112 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT	112 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT	140 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT	140 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Objectid	1673160538	1268629328	1268629341	1268629383	1673160539	1673160479	1673160540	1673160480	1673160541
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
YTEOL	8.7	7.35	7.35	7.35	8.7	8.7	8.7	8.7	8.7
Maximum operating temperature	125 °C	70 °C	70 °C	85 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-20 °C	-10 °C	-40 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Is it lead-free?	Lead free	-	-	-	Lead free	Lead free	Lead free	Lead free	Lead free
Board mount options	PEG	-	-	-	PEG	PEG	PEG	PEG	PEG
body width	0.265 inch	-	-	-	0.265 inch	0.265 inch	0.265 inch	0.265 inch	0.265 inch
subject depth	0.718 inch	-	-	-	0.718 inch	0.718 inch	0.718 inch	0.718 inch	0.718 inch
body length	1.575 inch	-	-	-	2.362 inch	3.15 inch	3.15 inch	3.937 inch	3.937 inch
Body/casing type	PLUG	-	-	-	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD STACKING CONNECTOR	-	-	-	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	-	-	-	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	-	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	-	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
DIN compliance	NO	-	-	-	NO	NO	NO	NO	NO
Dielectric withstand voltage	675VAC V	-	-	-	675VAC V	675VAC V	675VAC V	675VAC V	675VAC V
Durability	100 Cycles	-	-	-	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles
Filter function	NO	-	-	-	NO	NO	NO	NO	NO
IEC compliance	NO	-	-	-	NO	NO	NO	NO	NO
Insulation resistance	5000000000 Ω	-	-	-	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	-	-	-	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	LIQUID CRYSTAL POLYMER	-	-	-	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
MIL compliance	NO	-	-	-	NO	NO	NO	NO	NO
Plug contact pitch	0.032 inch	-	-	-	0.032 inch	0.032 inch	0.032 inch	0.032 inch	0.032 inch
Mixed contacts	NO	-	-	-	NO	NO	NO	NO	NO
Installation option 1	LOCKING	-	-	-	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	-	-	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	-	-	-	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	-	-	-	ONE	ONE	ONE	ONE	ONE
PCB row number	2	-	-	-	2	2	2	2	2
Number of rows loaded	2	-	-	-	2	2	2	2	2
Options	GENERAL PURPOSE	-	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	-	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.9436 mm	-	-	-	5.9436 mm	5.9436 mm	5.9436 mm	5.9436 mm	5.9436 mm
Plating thickness	30u inch	-	-	-	30u inch	30u inch	30u inch	30u inch	30u inch
polarization key	POLARIZED HOUSING	-	-	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Terminal pitch	0.8 mm	-	-	-	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	-	-	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	56	-	-	-	84	112	112	140	140
