UC1818T-150: DescriptionPower Inductors; File Size62KB，5 Pages; ManufacturerECM [ECM Electronics Limited.]

Download Datasheet View All

UC1818T-150 Overview

Power Inductors

Preview

Download Datasheet

View All

SMD Power Inductors

ECM UC Series

This particular range of surface mount inductors, the

series now comes in seven package sizes each

with their own individual benefits. The range features

some of the smallest footprint sizes available for

product of its type, in addition the new

UC1606

package is only 1.80mm high while offering safe current

operation up to 2.5A (@ 1.0uH). While the

UC5022

available up to 1.0mH @ 1 Amp while maintaining a

total height less than 8.0mm.

Ferrite shielded versions of

UC1608, UC3316,

and

UC5022

are also available.

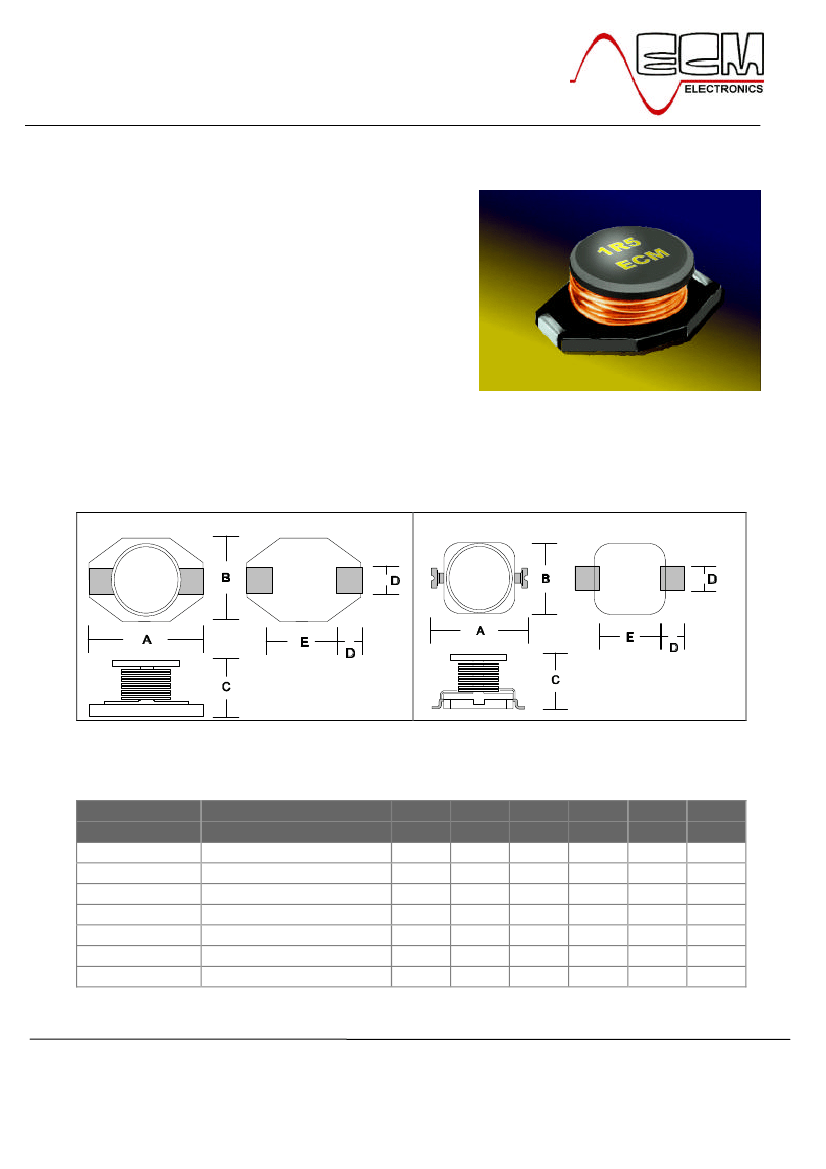

COMPONENT OUTLINE

Fig.1

Fig.2

DIMENSIONS

ECM Type

UC1606

UC1608

UC1818

UC3308

UC3316

UC3340

UC5022

Inductance Range

1.0uH~1.0mH

1.0uH~3.3mH

10uH~1.0mH

1.0uH~1.0mH

10uH~1.0mH

1.0uH~1.0mH

(Fig.)

(mm)

6.40

5.50

1.80

0.80

6.60

4.45

1.27

1.02

7.20

4.70

5.00

1.60

12.95 9.40

3.00

2.54

12.95 9.40

5.20

2.54

12.95 9.40 11.43 2.54

18.54 15.24 7.11

2.54

4.80

4.32

4.80

7.62

ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK

Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: ecm@ecmelectronics.co.uk

Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to

discontinue any product or make design changes we believe necessary.

Issue 3
