FCR Series
Trimmable Thick Film Chip Resistor
Features:
•
•
•
•
Stackpole Electronics, Inc.
Resistive Product Solutions
YAG laser user-trimmable in circuit
Available in a variety of pre-trim tolerance ranges
TCR of ±200ppm/ºC
RoHS compliant and halogen-free

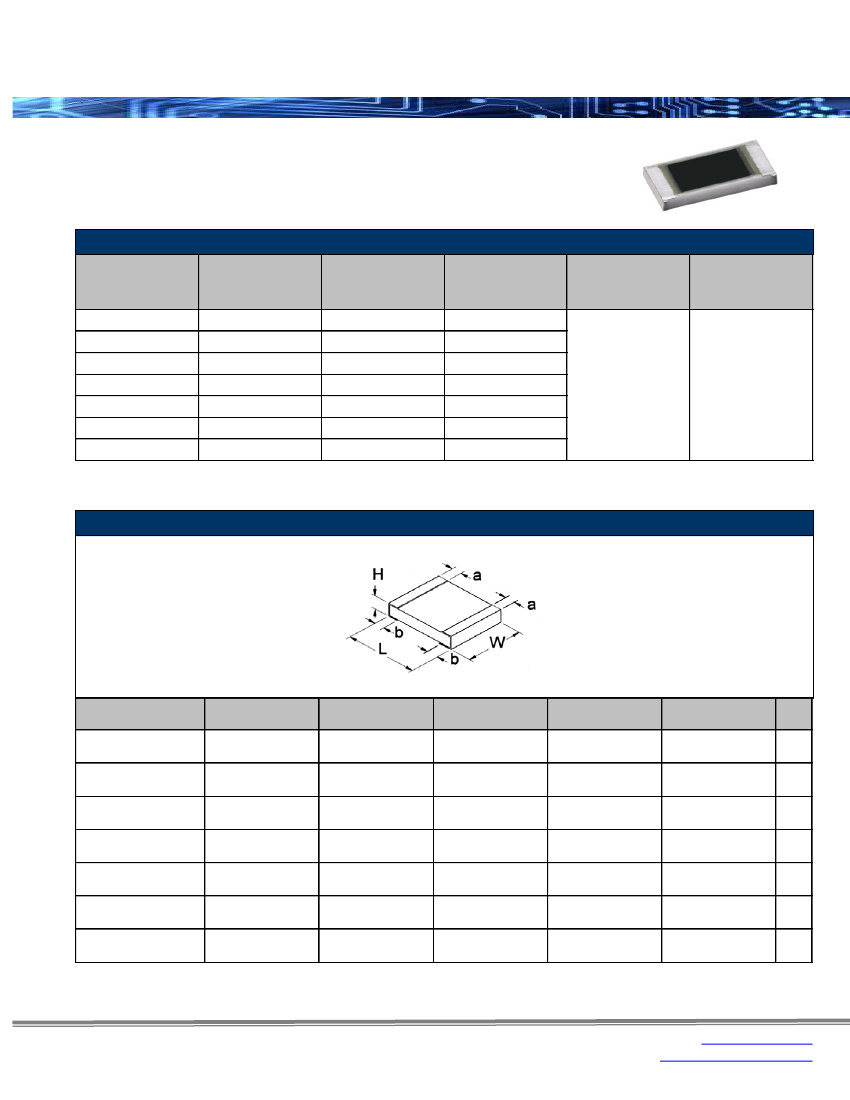

Electrical Specifications
Type / Code
Power Rating (Watts)
@ 70ºC
0.063W
0.1W
0.125W
0.25W
0.33W
0.75W
1W
Maximum Working
(1)
Voltage (V)
50V
50V
100V
200V
200V
200V
200V
Maximum Overload
Voltage (V)
100V
100V
200V
400V
400V
400V
400V
±200 ppm/ºC
10 - 1M
Resistance Temperature
Coefficient
Ohmic Range (Ω)
FCR0402
FCR0603
FCR0805
FCR1206
FCR1210
FCR2010
FCR2512
(1) Lesser of √P*R or maximum working voltage.
Mechanical Specifications
Type / Code
FCR0402
FCR0603
FCR0805
FCR1206
FCR1210
FCR2010
FCR2512
L
Body Length
0.039 ± 0.002
1.00 ± 0.05
0.063 ± 0.006
1.60 ± 0.15
0.079 ± 0.008
2.00 ± 0.20
0.126 ± 0.010
3.20 ± 0.20
0.126 ± 0.008
3.20 ± 0.20
0.197 ± 0.006
5.00 ± 0.15
0.248 ± 0.008
6.30 ± 0.20
W
Body Width
0.020 ± 0.002
0.50 ± 0.05
0.031 ± 0.006
0.80 ± 0.15
0.049 ± 0.004
1.25 ± 0.10
0.063 ± 0.010
1.60 ± 0.15
0.098 ± 0.008
2.50 ± 0.20
0.098 ± 0.006
2.50 ± 0.15
0.126 ± 0.008
3.20 ± 0.20
H
Body Height
0.014 ± 0.002
0.35 ± 0.05
0.018 ± 0.004
0.45 ± 0.10
0.020 ± 0.004
0.50 ± 0.10
0.024 ± 0.004
0.60 ± 0.10
0.024 ± 0.004
0.60 ± 0.10
0.024 ± 0.004
0.60 ± 0.10
0.024 ± 0.004
0.60 ± 0.10
a
Top Termination
0.008 ± 0.004
0.20 ± 0.10
0.012 ± 0.008
0.30 ± 0.20
0.016 ± 0.008
0.40 ± 0.20
0.020 ± 0.010
0.50 ± 0.25
0.020 ± 0.010
0.50 ± 0.25
0.024 ± 0.010
0.60 ± 0.25
0.028 ± 0.008
0.70 ± 0.20
b
Bottom Termination
0.010 ± 0.004
0.25 ± 0.10
0.012 ± 0.008
0.30 ± 0.20
0.016 ± 0.008
0.40 ± 0.20
0.020 ± 0.012
0.50 ± 0.30
0.020 ± 0.008
0.50 ± 0.20
0.024 ± 0.010
0.60 ± 0.25
0.028 ± 0.008
0.70 ± 0.20
Unit
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
Rev Date: 11/10/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
FCR Series
Trimmable Thick Film Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions
Performance Characteristics
Test
Load Life in Moisture
Temperature Cycle
Load Life
Resistance to Solder Heat
Terminal Adhesion
Short Time Overload
Operating Temperature Range: -55ºC to +125ºC
Test Results (JIS C 5202)
±3%
±1%
±3%
±1%
±1%
±2%

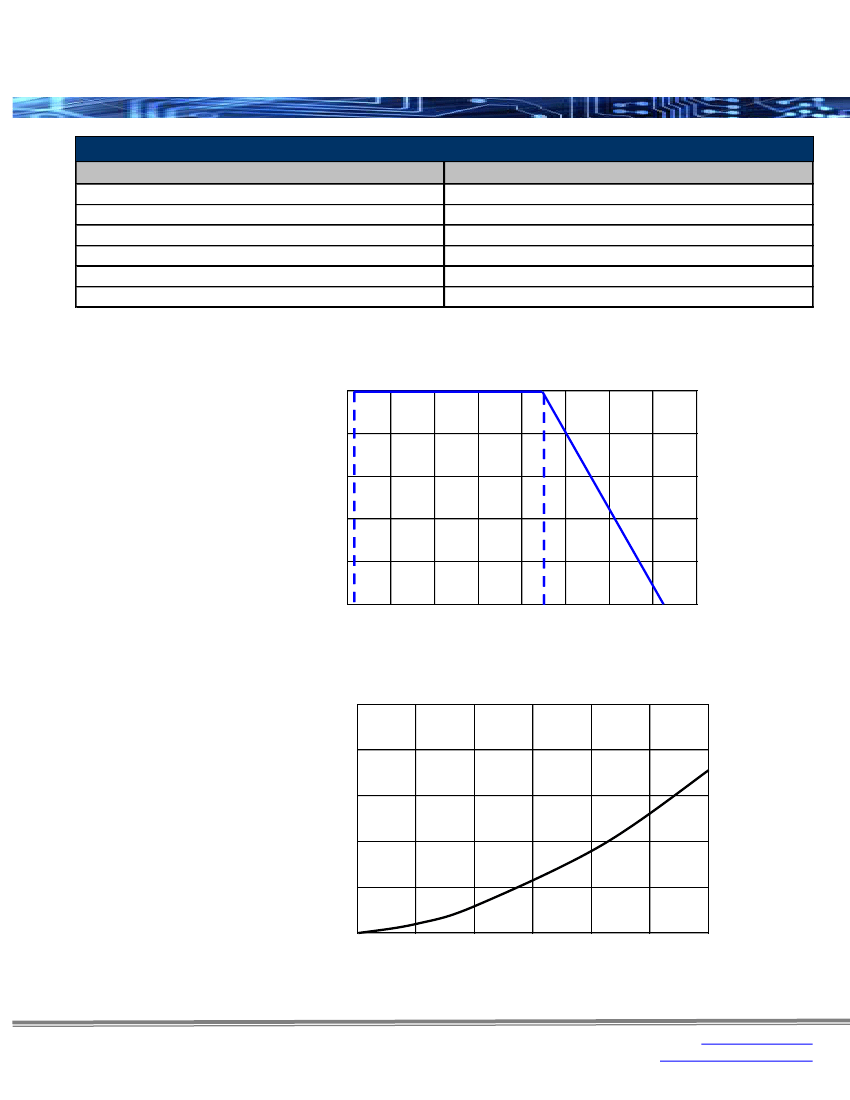

Power Derating Curve:
100
-55ºC
70ºC
Percent Rated Power (%)
80
60
40
20
0
-60
125°C
0
40
60
80
100
20
Ambient Temperature (ºC)
120
140
Trimming Ratio Curve:
50%
40%
(R/Ro-1) x 100
30%
20%
10%
0%
0%
10%
20%
30%
40%
50%
60%
(laser cut length/W-1) x 100
Rev Date: 11/10/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
FCR Series
Trimmable Thick Film Chip Resistor
RoHS Compliance
Stackpole Electronics, Inc.
Resistive Product Solutions
Stackpole Electronics has joined the worldwide effort to reduce the amount of lead in electronic components and to meet the various
regulatory requirements now prevalent, such as the European Union’s directive regarding “Restrictions on Hazardous Substances”
(RoHS 2). As part of this ongoing program, we periodically update this document with the status regarding the availability of our
compliant components. All our standard part numbers are compliant to EU Directive 2011/65/EU of the European Parliament.
RoHS Compliance Status
Standard
Product
Series
Description
Package /
Termination
Type
Standard
Series
RoHS
Compliant
YES(1)
Lead-Free Termination
Composition
Lead-Free
Mfg. Effective Date
(Std Product Series)
Lead-Free
Effective Date
Code
(YY/WW)
04/01
FCR
Trimmable Thick Film
Surface Mount Chip Resistor
SMD
100% Matte Sn over Ni
Jan-04
Note (1): RoHS Compliant by means of exemption 7c-I.
“Conflict Metals” Commitment
We at Stackpole Electronics, Inc. are joined with our industry in opposing the use of metals mined in the “conflict region” of the
Eastern Democratic Republic of the Congo (DRC) in our products. Recognizing that the supply chain for metals used in the
electronics industry is very complex, we work closely with our own suppliers to verify to the extent possible that the materials and
products we supply do not contain metals sourced from this conflict region. As such, we are in compliance with the requirements of
Dodd-Frank Act regarding Conflict Minerals.
Compliance to “REACH”
We certify that all passive components supplied by Stackpole Electronics, Inc. are SVHC (Substances of Very High Concern) free
and compliant with the requirements of EU Directive 1907/2006/EC, “The Registration, Evaluation, Authorization and Restriction of
Chemicals”, otherwise referred to as REACH. Contact us for complete list of REACH Substance Candidate List.
Environmental Policy
It is the policy of Stackpole Electronics, Inc. (SEI) to protect the environment in all localities in which we operate. We continually
strive to improve our effect on the environment. We observe all applicable laws and regulations regarding the protection of our
environment and all requests related to the environment to which we have agreed. We are committed to the prevention of all forms
of pollution.

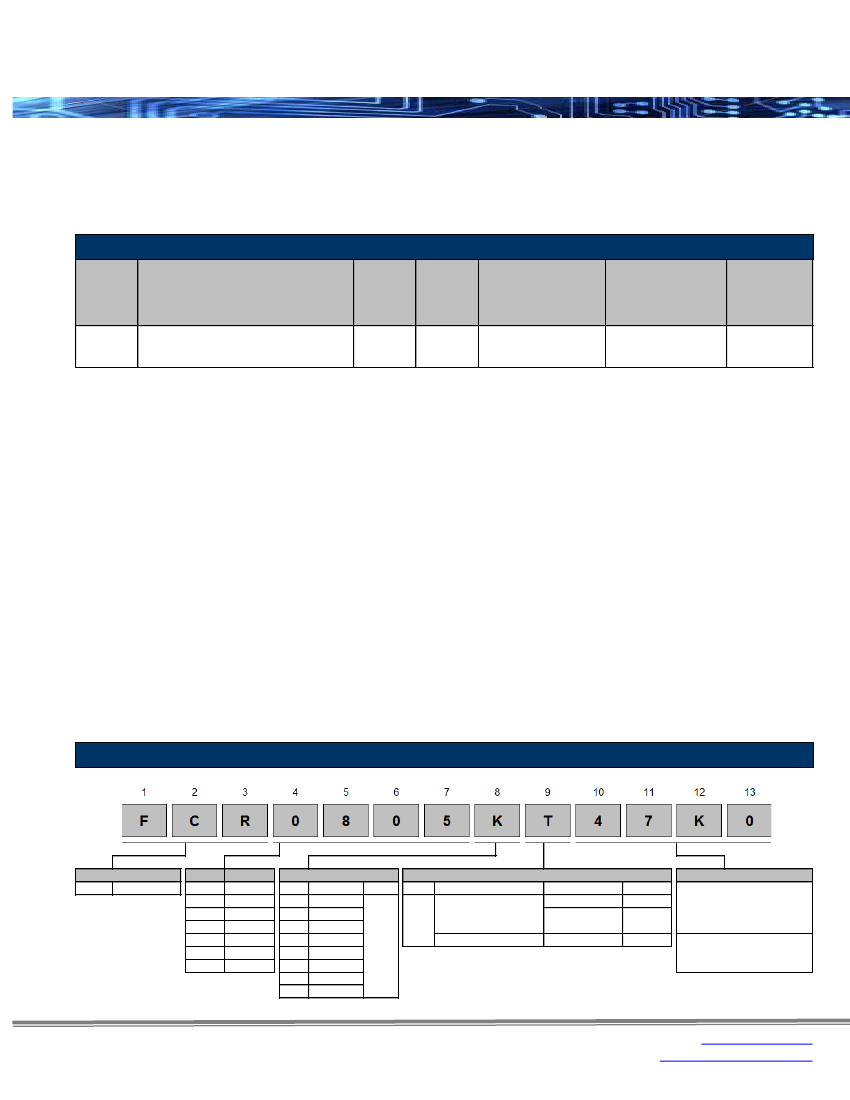

How to Order
Product Series
FCR
Trimmable
Size
0402
0603
0805
1206
1210
2010
2512
Power
0.063W
0.1W
0.125W
0.25W
0.33W
0.75W
1W
Tolerance
Tol
Value
Code
K
±10
L
±15
M
±20
N
±30
E24
S
0 ~ -5%
U
0 ~ -10%
V
0 ~ -20%
W
0 ~ -30%
Code
T
Packaging
Description
7" Reel - Paper Tape
7" Reel - Plastic Tape
Resistance Value
Quantity
10,000
5,000
4,000
Four characters with the
multiplier used as the
decimal holder.
10 ohm = 10R0
10 Kohm = 10K0
1 Mohm = 1M00
Size
0402
0603, 0805
1206, 1210
2010, 2512
Rev Date: 11/10/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
