124-60012-02: DescriptionBoard Euro Connector, 16 Contact(s), 3 Row(s), Female, Straight, Press Fit Terminal,; CategoryThe connector The connector; File Size167KB，2 Pages; Manufacturerept Connectors; Websitehttps://www.ept.de

Download Datasheet Parametric Compare View All

124-60012-02 Overview

Board Euro Connector, 16 Contact(s), 3 Row(s), Female, Straight, Press Fit Terminal,

124-60012-02 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	STANDARDS: DIN 41612; IEC 60603-2; TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	YES
MIL compliance	NO
Manufacturer's serial number	124
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

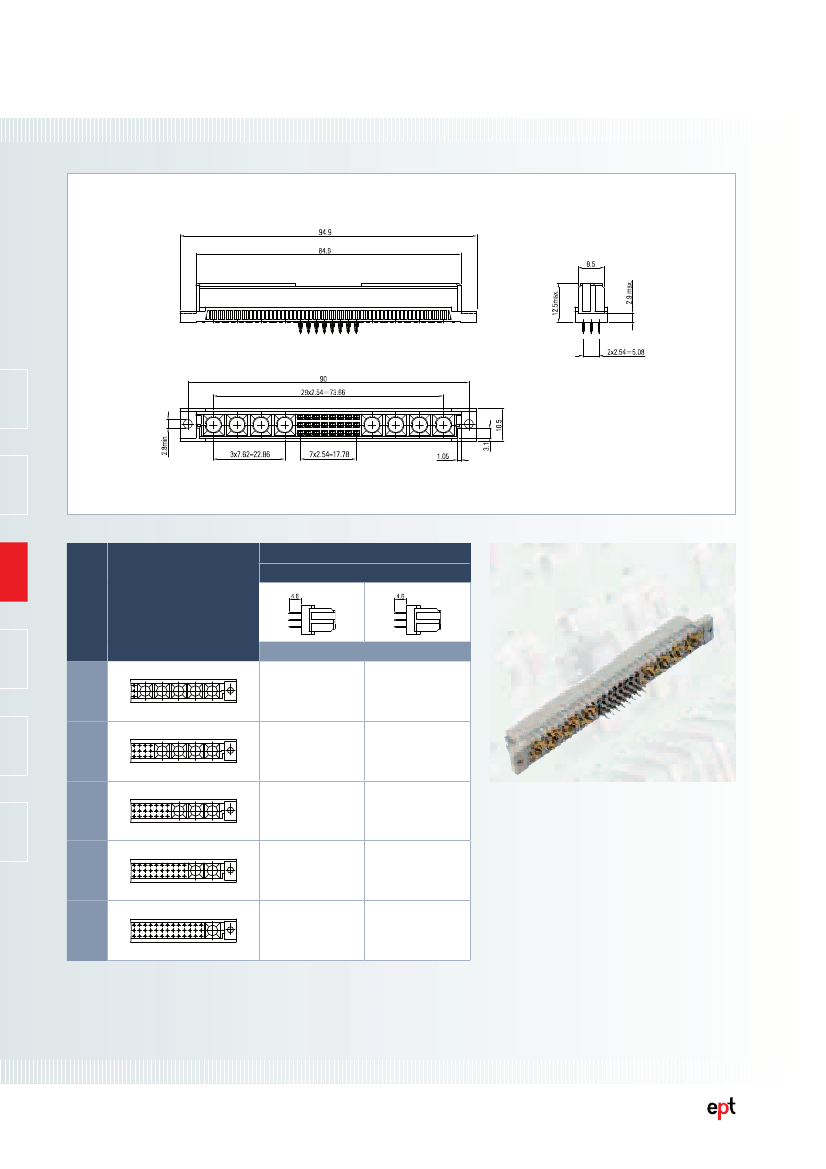

Connectors according to DIN 41612 / IEC 60603-2

Type M for special contacts in press-ﬁt technology

Female connector

Dimensions in mm

Press-ﬁt technology –

Performance level II

Termination length

Special contact is not pre-loaded

Special contact is pre-loaded

No. of

contacts

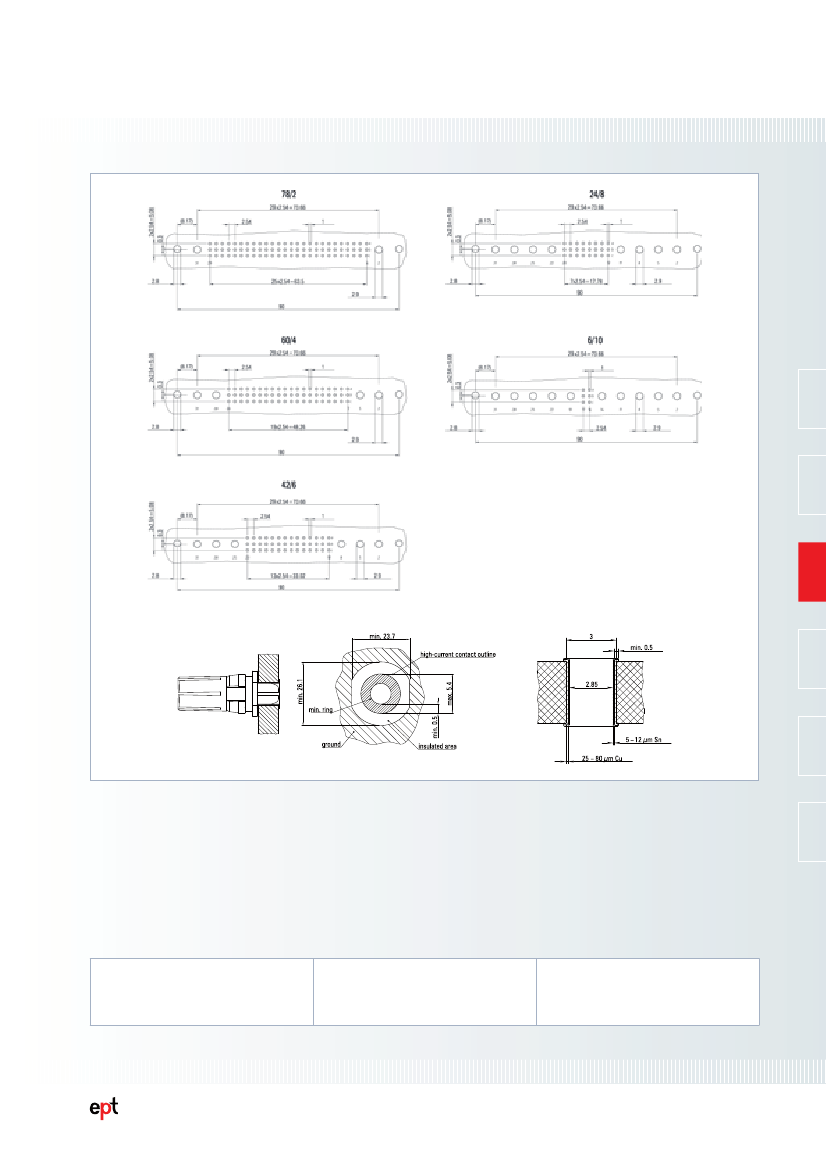

Contact arrangement

Part number

6/10

124-60012-00

124-60012-02

24/8

124-60082-00

124-60082-02

42/6

124-60062-00

124-60062-02

60/4

124-60042-00

124-60042-02

78/2

124-60022-00

124-60022-02

110

ept GmbH

Phone +49 (0) 88 61/25 01 0

Fax +49 (0) 88 61/55 07

E-mail sales@ept.de

www.ept.de
