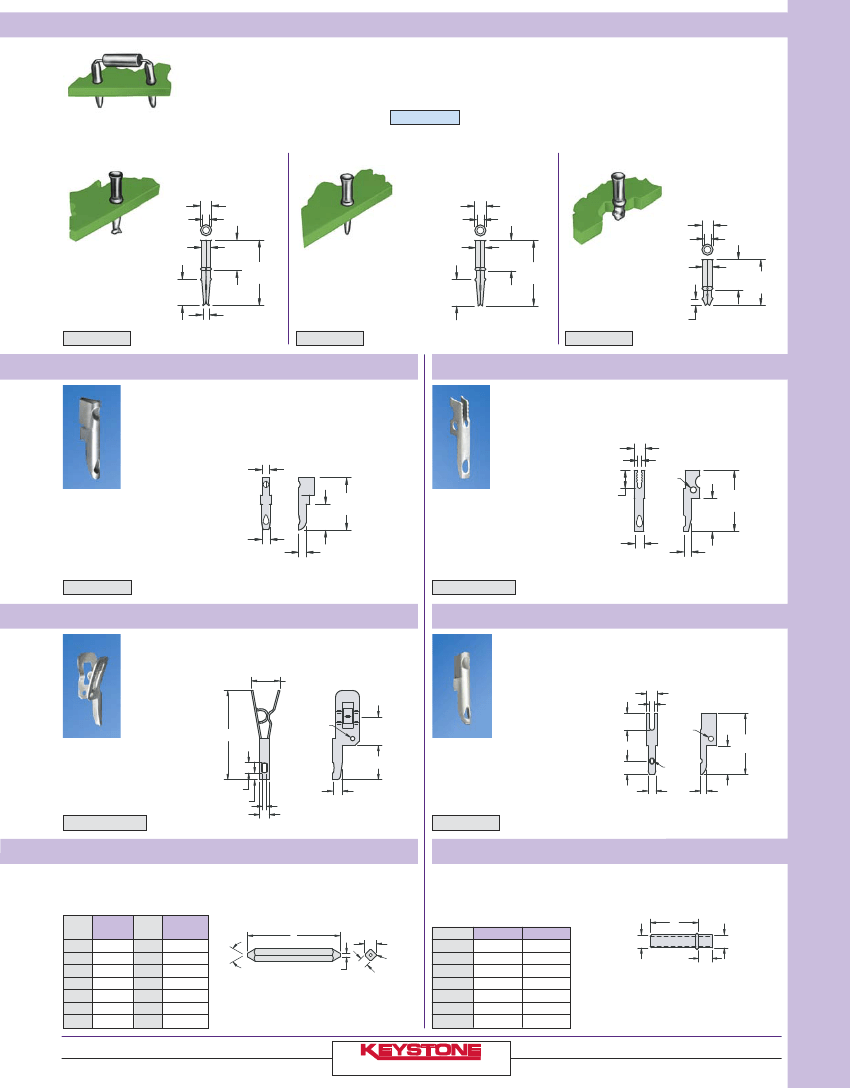

MINIATURE TUBULAR TERMINALS
•
Quick and Easy to Install
•
For Production or Prototype
•
Postive Locking In-Hole
•
No Staking Required
•
Holds .010 (.25) to .050 (1.27) Diameter Wire
These terminals are often used for transistor and Bi-Pin lamp sockets. Terminals
Terminals
1236
and
1237
have tapered socket spring forming that will
snap into place and are firmly held without the need of staking. Wire leads can
hold multiple leads in place. Terminals are pre-tinned for easy soldering.
be inserted from either end.
.062 (1.57) — .067 (1.70)
Mounting Holes
INSERTION TOOL
For Arbor Press:
CAT. NO. TL-11;
For Hand Tool:
CAT. NO. 1214
.080 [2.03]
DIA. FLANGE
.050 [1.27]
I. DIA.
.065 [1.65]
DIA.
.219
[5.6]
.469
[11.9]
.050 [1.27]
I. DIA.
.065 [1.65]
DIA.
.080 [2.03]
DIA. FLANGE
.080 [2.03]
DIA. FLANGE
.219
[5.6]
.469
[11.9]
.050 [1.27]
I. DIA.
.065 [1.65]
DIA.
.219
[5.6] .328
[8.4]
MATERIAL:
.006 (.15) Matte Tin, Brass.
Pre-Tinned
.188
[4.8]
.046 [1.17]
DIA. FLARE
MATERIAL:
.006 (.15) Matte Tin, Brass.
Pre-Tinned
.188
[4.8]
MATERIAL:
.006 (.15) Matte Tin, Brass.
Pre-Tinned
.047 [1.19]
PUSH-IN TERMINALS & PINS
CAT. NO. 1236
CAT. NO. 1237
CAT. NO. 1238
“FLEA” CLIP
For subminiature applications where conventional terminals are too large or too
costly. Ideal for quick repairs of printed circuitry. Simply insert wire through hole
and it is held firmly by spring action assuring continued postive contact.
“IMP” TERMINAL
Excellent for point to point or feed thru wiring. Slot is serrated to grip
component leads. Multiple connections are made quick and easy.
.053
[1.35]
REF.
.078 [1.98] REF.
.030 [.76]
.045
[1.14]
DIA.
Mtg. Hole .062 (1.57)
Insertion Tool:
CAT. NO. 1322
.375
.187 [9.6]
[4.8]
.058
[1.48]
Mtg. Hole .062 (1.57)
Insertion Tool:
CAT. NO. 1322
.130
[3.3]
.437
[11.1]
.237
[6.0]
MATERIAL:
.008 (.20) Matte Tin, Beryllium
Copper, Tin Plate
MATERIAL:
.053 [1.34]
.008 (.20) Matte Tin, Beryllium
Copper, Tin Plate
.064
[1.7]
.052 [1.32]
CAT. NO. 1500
CAT. NO. 1499FT
CLAMP TERMINAL
Terminal for production or prototype use. Holds as many as 7 leads without
soldering, by spring action.
.234 [6.0]
REF.
“MICRO” TERMINAL
Easily press-fit into a .042 (1.07) diameter hole may be flared for permanent
installation. Ideally designed for use in circuitry to support components when
space is at a premium.
.063 [1.6] REF.
.030 [.76]
.100 [2.6]
.812 [20.6]
.040
[1.02]
DIA.
.260 [6.6]
.031 [.79]
DIA.
.167
[4.3]
Mtg. Hole .093 (2.36)
Insertion Tool:
CAT. NO. 1323
.312 [7.9]
.359
[9.1]
Insertion Tool:
CAT. NO. 1322
.078 [1.98]
.046 [1.17]
MATERIAL:
.015 (.38) Matte Tin, Spring Steel,
Tin Plate
.094 [2.39]
.062 [1.57]
.085 [2.16]
.032 [0.81]
.085 [2.16]
MATERIAL:
.008 (.20) Matte Tin,
Beryllium Copper,
Tin Plate
.018 [.46]
DIA.
.034 [.86]
CAT. NO. 1498CP
CAT. NO. 1495
.025 SQUARE WIRE WRAP PINS
Completely burr free straight to within .003 (.08) per inch. Conical ends of square-wire with
smooth blend-in radius on corners assures ease of insertion with minimum damage to
pre-plated PCB holes.
CONTACT PINS (SEAMLESS)
Pins can be staked to .062 (1.57) and .093 (2.36) thick boards.
CAT.
NO.
5070
5071
5072
5073
5074
5075
5076
L
Length
.400 (10.2)
.440 (11.2)
.515 (13.1)
.535 (13.6)
.600 (15.2)
.615 (15.6)
.625 (15.9)
CAT.
NO.
5077
5078
5079
5080
5081
5082
5083
L
Length
.642 (16.3)
.675 (17.1)
.720 (18.3)
.850 (21.6)
.916 (23.3)
.995 (25.3)
1.13 (28.7)
L
60°
.010 [.25]
.034
[.86]
.003 R.
[.08 R]
.025
[.64]
MATERIAL:
Phosphor Bronze, Tin Plate
CAT. NO.
1223
1224
1226
1200
1210
1230
1231
A
.093 (2.36)
.093 (2.36)
.093 (2.36)
.125 (3.18)
.125 (3.18)
.156 (3.96)
.156 (3.96)
®
B
.293 (7.4)
.357 (9.1)
.437 (11.1)
.379 (9.6)
.566 (14.4)
.379 (9.6)
.566 (14.4)
B
A
.125 [3.2]
A
MATERIAL:
Brass, Nickel Plate
Tel (718) 956-8900
•
Fax (718) 956-9040
(800) 221-5510
•
kec@keyelco.com
RoHS COMPLIANT
~
ISO 9001 CERTIFIED
www.keyelco.com
31-07 20th Road – Astoria, NY 11105-2017
123
