10054652-10120TLF: DescriptionCONN PCI EXP FEMALE 200POS 0.100; CategoryThe connector The connector; File Size263KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

10054652-10120TLF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	10054652-10120TLF	-	-	View	Buy Now

10054652-10120TLF Overview

CONN PCI EXP FEMALE 200POS 0.100

10054652-10120TLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
Factory Lead Time	9 weeks
Board mount options	SPLIT BOARD LOCK
body width	0.295 inch
subject depth	0.443 inch
body length	4.213 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Durability	50 Cycles
maximum insertion force	1.1398 N
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	10054652
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
PCB contact pattern	STAGGERED
Plating thickness	15u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	200
Base Number Matches	1

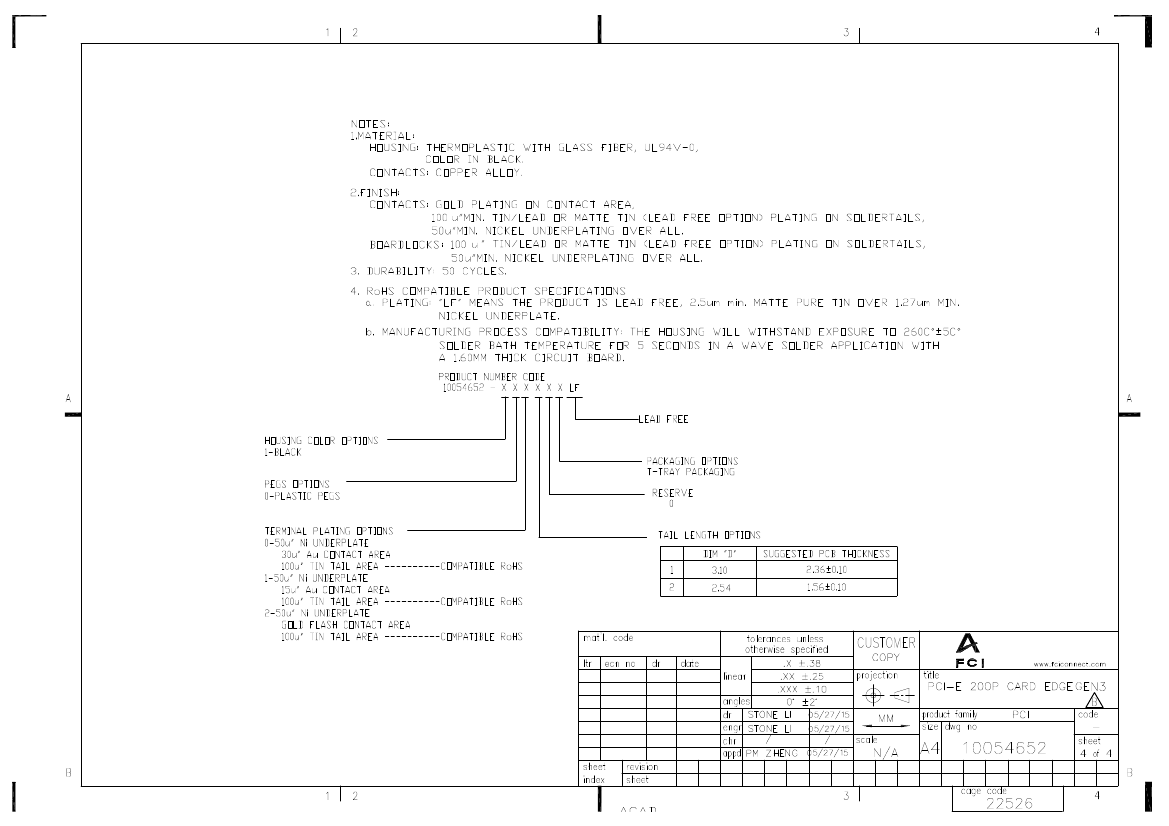

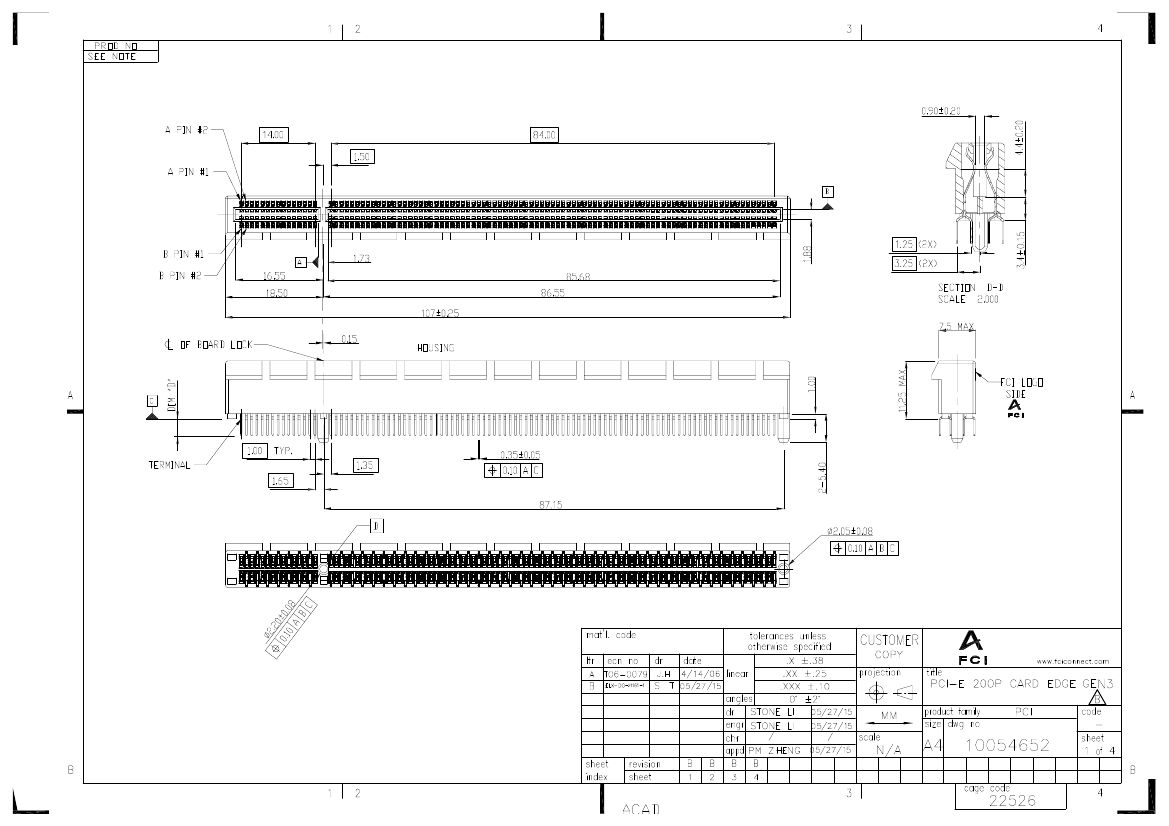

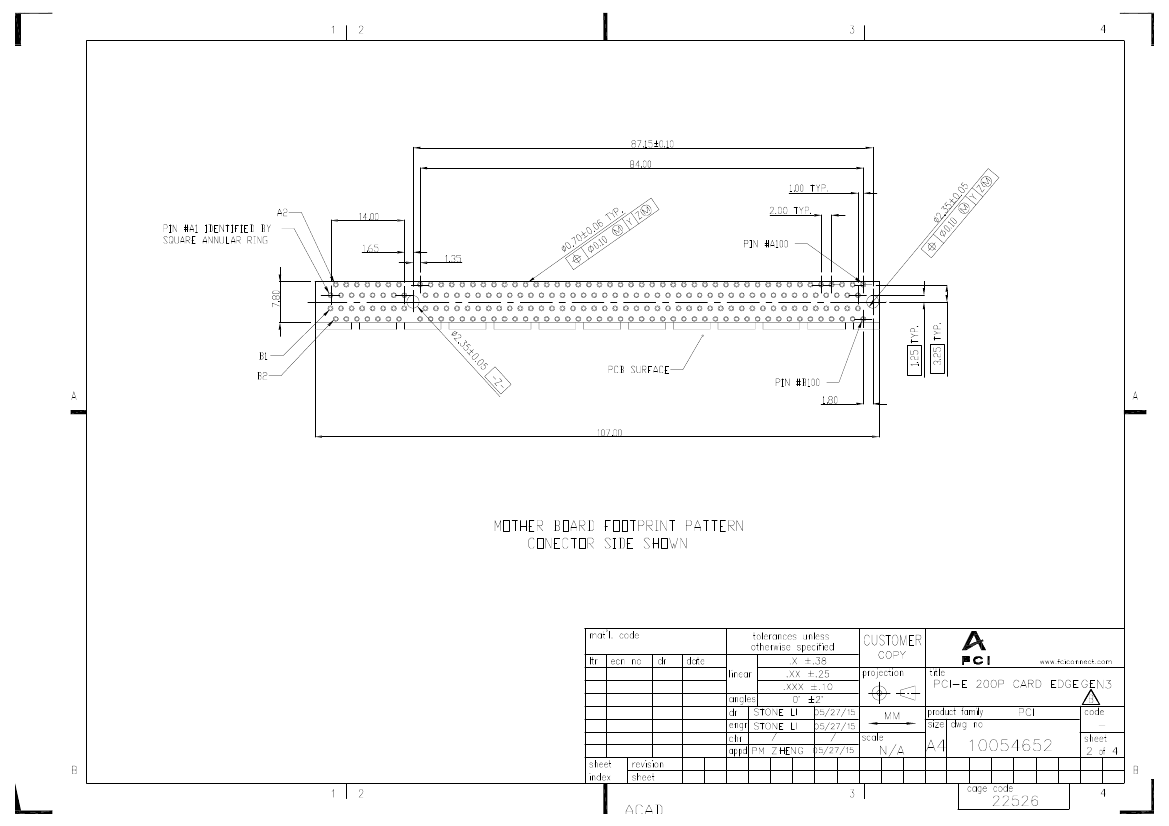

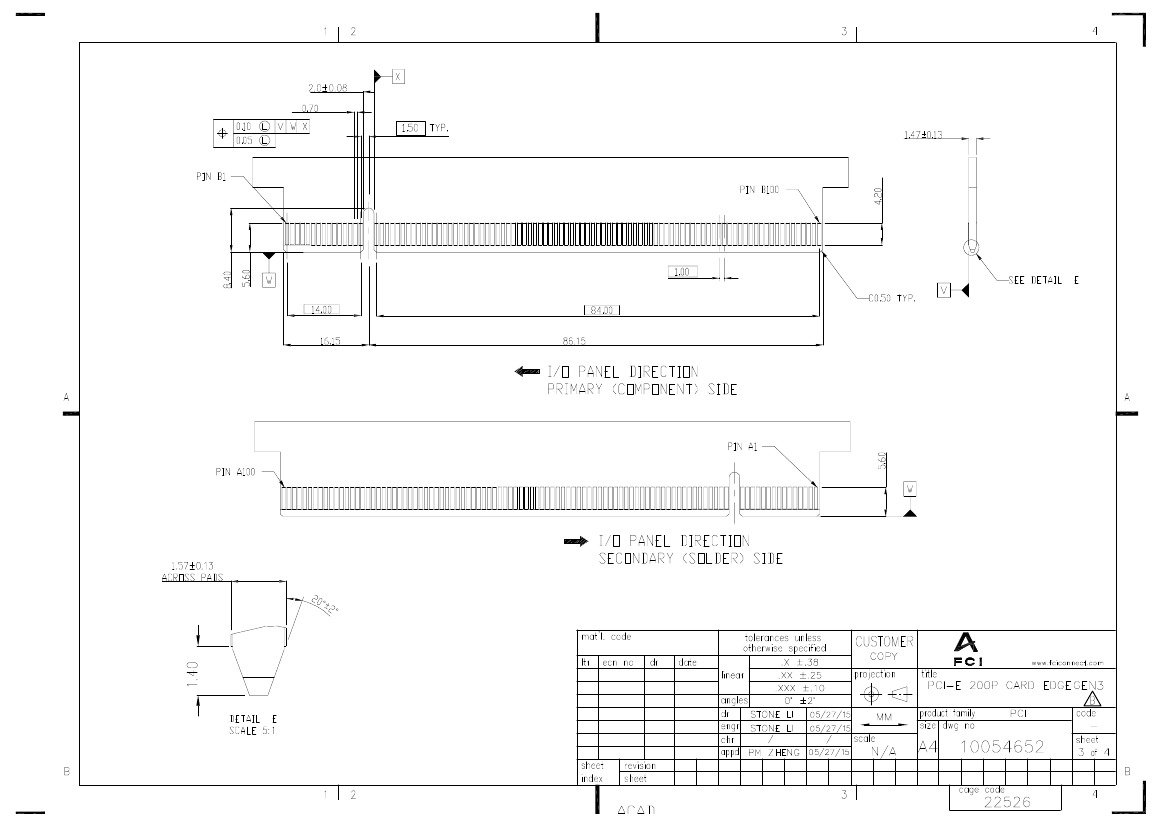

Preview

Download Datasheet

View All

PDS: Rev :B

STATUS:Released

Printed: Jul 09, 2015

10054652-10120TLF Related Products

	10054652-10120TLF	10054652-10210TLF	10054652-10220TLF	10054652-10010TLF	10054652-10110TLF	10054652-10020TLF
Description	CONN PCI EXP FEMALE 200POS 0.100	CONN PCI EXP FEMALE 200POS 0.100	CONN PCI EXP FEMALE 200POS 0.100	CONN PCI EXP FEMALE 200POS 0.100	CONN PCI EXP FEMALE 200POS 0.100	CONN PCI EXP FEMALE 200POS 0.100
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Factory Lead Time	9 weeks	9 weeks	9 weeks	9 weeks	9 weeks	8 weeks
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.295 inch	0.295 inch	0.295 inch	0.295 inch	0.295 inch	0.295 inch
subject depth	0.443 inch	0.443 inch	0.443 inch	0.443 inch	0.443 inch	0.443 inch
body length	4.213 inch	4.213 inch	4.213 inch	4.213 inch	4.213 inch	4.213 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Durability	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles
maximum insertion force	1.1398 N	1.1398 N	1.1398 N	1.1398 N	1.1398 N	1.1398 N
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	10054652	10054652	10054652	10054652	10054652	10054652
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	4	4	4	4	4	4
Number of rows loaded	2	2	2	2	2	2
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	15u inch	FLASH inch	FLASH inch	30u inch	15u inch	30u inch
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.1 inch	0.122 inch	0.1 inch	0.122 inch	0.122 inch	0.1 inch
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	200	200	200	200	200	200
Base Number Matches	1	1	1	1	1	1
