U635H16
PowerStore
2K x 8 nvSRAM
Features
Description
The U635H16 has two separate
modes of operation: SRAM mode
and nonvolatile mode. In SRAM
mode, the memory operates as an
ordinary static RAM. In nonvolatile
operation, data is transferred in
parallel from SRAM to EEPROM or
from EEPROM to SRAM. In this
mode SRAM functions are disab-
led.
The U635H16 is a fast static RAM
(25, 35, 45 ns), with a nonvolatile
electrically
erasable
PROM
(EEPROM) element incorporated
in each static memory cell. The
SRAM can be read and written an
unlimited number of times, while
independent nonvolatile data resi-
des in EEPROM. Data transfers
from the SRAM to the EEPROM
(the STORE operation) take place
automatically upon power down
using charge stored in system
capacitance.
Transfers from the EEPROM to the
SRAM (the RECALL operation)
take place automatically on power
up. The U635H16 combines the
high performance and ease of use
of a fast SRAM with nonvolatile
data integrity.
STORE cycles also may be initia-
ted under user control via a soft-
ware sequence.
Once a STORE cycle is initiated,
further input or output are disabled
until the cycle is completed.
Because a sequence of addresses
is used for STORE initiation, it is
important that no other read or
write accesses intervene in the
sequence or the sequence will be
aborted.
RECALL cycles may also be initia-
ted by a software sequence.
Internally, RECALL is a two step
procedure. First, the SRAM data is
cleared and second, the nonvola-
tile information is transferred into
the SRAM cells.
The RECALL operation in no way
alters the data in the EEPROM
cells. The nonvolatile data can be
recalled an unlimited number of
times.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
High-performance CMOS non-
volatile static RAM 2048 x 8 bits
25, 35 and 45 ns Access Times
12, 20 and 25 ns Output Enable
Access Times
I
CC
= 15 mA at 200 ns Cycle Time
Automatic STORE to EEPROM
on Power Down using system
capacitance
Software initiated STORE
(STORE Cycle Time < 10 ms)
Automatic STORE Timing
10
6
STORE cycles to EEPROM
100 years data retention in
EEPROM
Automatic RECALL on Power Up
Software RECALL Initiation
(RECALL Cycle Time < 20
μs)
Unlimited RECALL cycles from
EEPROM
Single 5 V
±
10 % Operation
Operating temperature ranges:
0 to 70
°C
-40 to 85
°C
QS 9000 Quality Standard
ESD protection > 2000 V
(MIL STD 883C M3015.7-HBM)
RoHS compliance and Pb- free
Packages: PDIP24 (600 mil)
SOP24 (300 mil)

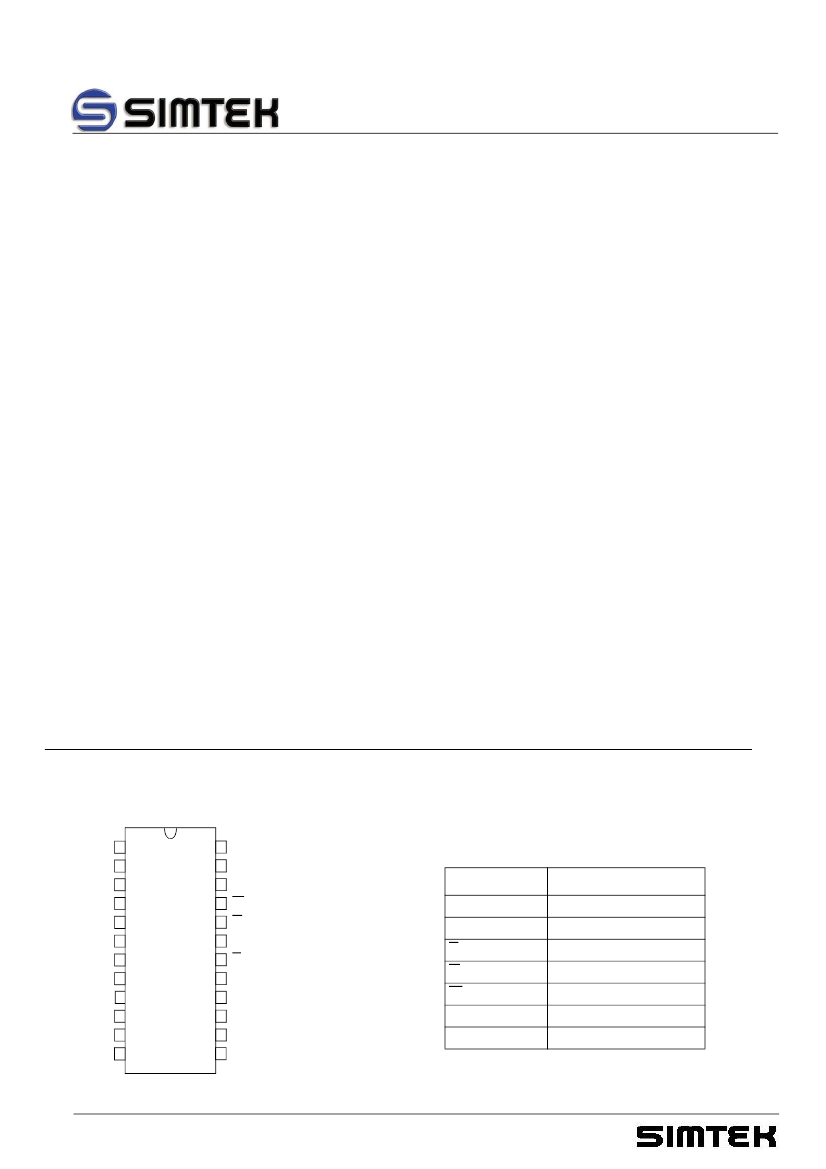

Pin Configuration
Pin Description
A7
A6
A5
A4
A3
A2
A1
A0
DQ0
DQ1
DQ2
VSS
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
VCC
A8
A9
W
G
A10
E
DQ7
DQ6
DQ5
DQ4
DQ3
Signal Name
A0 - A10
DQ0 - DQ7
E
G
W
VCC
VSS
Signal Description
Address Inputs
Data In/Out
Chip Enable
Output Enable
Write Enable
Power Supply Voltage
Ground
PDIP
19
SOP
18
24
17
16
15
14
13
Top View
March 31, 2006
STK Control #ML0050
1
Rev 1.0
U635H16

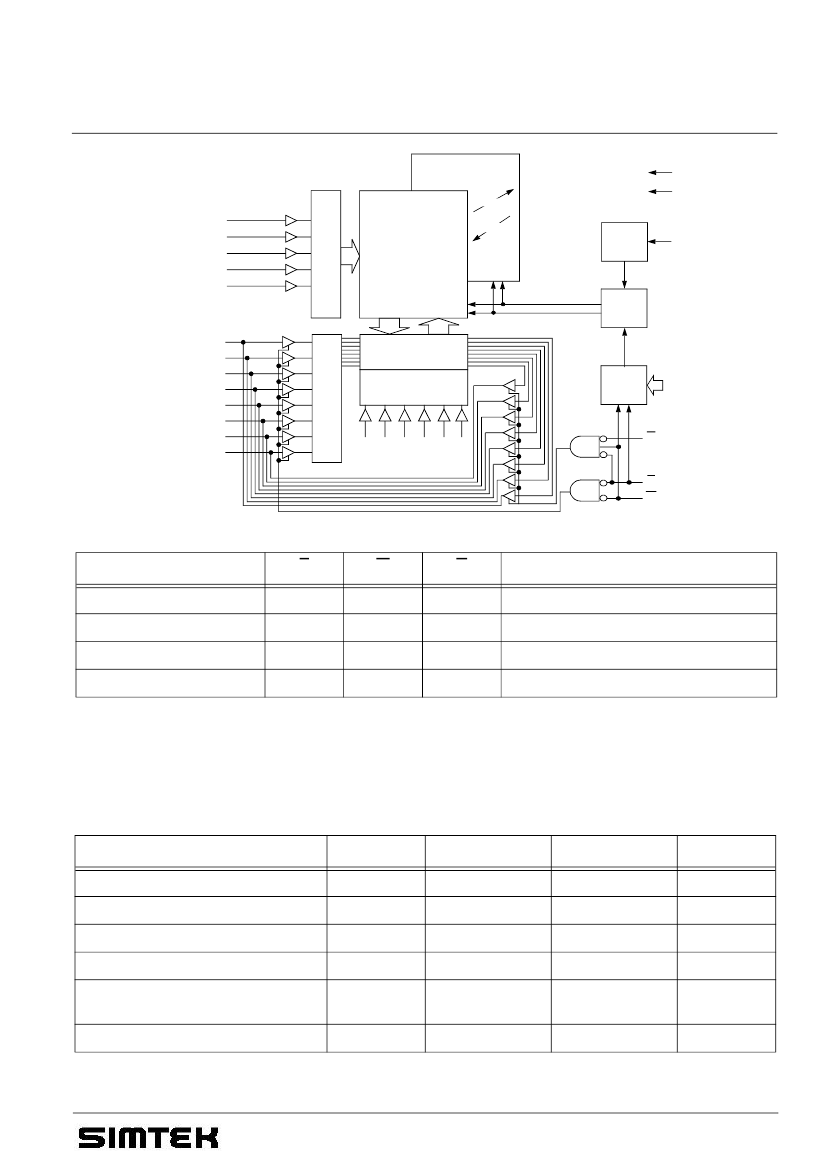

Block Diagram
EEPROM Array
32 x (64 x 8)
STORE
Row Decoder
A5
A6
A7
A8
A9
SRAM
Array
32 Rows x
64 x 8 Columns
Store/
Recall
Control
V
CC
V
SS
RECALL
Power
Control
V
CC
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
Input Buffers
Column I/O
Column Decoder
Software
Detect
A0 - A10
A0 A1 A2 A3 A4 A10
G
E
W
Truth Table for SRAM Operations
Operating Mode
Standby/not selected
Internal Read
Read
Write
* H or L
E
H
L
L
L
W
*
G
*
DQ0 - DQ7
High-Z
High-Z
Data Outputs Low-Z
Data Inputs High-Z
H
H
L
H
L
*
Characteristics
All voltages are referenced to V
SS
= 0 V (ground).
All characteristics are valid in the power supply voltage range and in the operating temperature range specified.
Dynamic measurements are based on a rise and fall time of
≤
5 ns, measured between 10 % and 90 % of V
I
, as well as input levels of
V
IL
= 0 V and V
IH
= 3 V. The timing reference level of all input and output signals is 1.5 V,
with the exception of the t
dis
-times and t
en
-times, in which cases transition is measured
±
200 mV from steady-state voltage.
Absolute Maximum Ratings
a
Power Supply Voltage
Input Voltage
Output Voltage
Power Dissipation
Operating Temperature
Storage Temperature
a:
Symbol
V
CC
V
I
V
O
P
D
Min.
-0.5
-0.3
-0.3
Max.
7
V
CC
+0.5
V
CC
+0.5
1
Unit
V
V
V
W
°C
°C
°C
C-Type
K-Type
T
a
T
stg
0
-40
-65
70
85
150
Stresses greater than those listed under „Absolute Maximum Ratings“ may cause permanent damage to the device. This is a stress
rating only, and functional operation of the device at condition above those indicated in the operational sections of this specification is
not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
STK Control #ML0050
2
Rev 1.0
March 31, 2006
U635H16
C-Type
DC Characteristics
Symbol
V
CC
I
OH
I
OL
V
CC
V
OH
V
OL
V
CC
High
Low
Output Leakage Current
High at Three-State- Output
Low at Three-State- Output
I
OHZ
I
OLZ
I
IH
I
IL
V
IH
V
IL
V
CC
V
OH
V
OL
Conditions
Min.
Output High Voltage
Output Low Voltage
Output High Current
Output Low Current
Input Leakage Current
V
OH
V
OL
I
OH
I
OL
= 4.5 V
=-4 mA
= 8 mA
= 4.5 V
= 2.4 V
= 0.4 V
= 5.5 V
= 5.5 V
= 0V
= 5.5 V
= 5.5 V
= 0V
1
-1
-1
1
μA
μA
1
-1
-1
1
μA
μA
2.4
0.4
-4
8
8
Max.
Min.
2.4
0.4
-4
Max.
V
V
mA
mA
K-Type
Unit
SRAM Memory Operations
Symbol
Alt.
t
AVAV
t
AVQV
t
ELQV
t
GLQV
t
EHQZ
t
GHQZ
t
ELQX
t
GLQX
t
AXQX
t
ELICCH
t
EHICCL
IEC
t
cR
t
a(A)
t
a(E)
t
a(G)
t
dis(E)
t
dis(G)
t
en(E)
t
en(G)
t
v(A)
t
PU
t
PD
5
0
3
0
25
25
35
45
Unit
Min. Max. Min. Max. Min. Max.
25
25
25
12
13
13
5
0
3
0
35
35
35
35
20
17
17
5
0
3
0
45
45
45
45
25
20
20
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
Switching Characteristics
No.
Read Cycle
1
2
3
4
5
6
7
8
9
Read Cycle Time
f
Address Access Time to Data Valid
g
Chip Enable Access Time to Data Valid
Output Enable Access Time to Data Valid
E HIGH to Output in High-Z
h
G HIGH to Output in High-Z
h
E LOW to Output in Low-Z
G LOW to Output in Low-Z
Output Hold Time after Address Change
10 Chip Enable to Power Active
e
11 Chip Disable to Power Standby
d, e
e:
f:
g:
h:
Parameter guaranteed but not tested.
Device is continuously selected with E and G both LOW.
Address valid prior to or coincident with E transition LOW.
Measured
±
200 mV from steady state output voltage.
STK Control #ML0050
4
Rev 1.0
March 31, 2006
U635H16
Read Cycle 1: Ai-controlled (during Read cycle: E = G = V
IL
, W = V
IH
)
f
t
cR
(1)
Ai
DQi
Output
Previous Data Valid
t
v(A)
(9)
Address Valid
t
a(A)
(2)
Output Data Valid
Read Cycle 2: G-, E-controlled (during Read cycle: W = V
IH
)
g
t
cR
(1)
Ai
E
G
DQi
Output
High Impedance
t
PU
(10)
ACTIVE
STANDBY
Address Valid
t
a(A)
(2)
t
a(E)
(3)
t
en(E)
(7)
t
a(G)
(4)
t
en(G)
(8)
t
PD
(11)
t
dis(E)
(5)
t
dis(G)
(6)
Output Data Valid
I
CC
Switching Characteristics
No.
Write Cycle
12 Write Cycle Time
13 Write Pulse Width
14 Write Pulse Width Setup Time
15 Address Setup Time
16 Address Valid to End of Write
17 Chip Enable Setup Time
18 Chip Enable to End of Write
19 Data Setup Time to End of Write
20 Data Hold Time after End of Write
21 Address Hold after End of Write
22 W LOW to Output in High-Z
h, i
23 W HIGH to Output in Low-Z
Symbol
Alt. #1 Alt. #2
t
AVAV
t
WLWH
t
WLEH
t
AVWL
t
AVWH
t
ELWH
t
ELEH
t
DVWH
t
WHDX
t
WHAX
t
WLQZ
t
WHQX
t
DVEH
t
EHDX
t
EHAX
t
AVEL
t
AVEH
t
AVAV
IEC
t
cW
t
w(W)
t
su(W)
t
su(A)
t
su(A-WH)
t
su(E)
t
w(E)
t
su(D)
t
h(D)
t
h(A)
t
dis(W)
t
en(W)
5
25
35
45
Unit
Min. Max. Min. Max. Min. Max.
25
20
20
0
20
20
20
12
0
0
10
5
35
30
30
0
30
30
30
18
0
0
13
5
45
35
35
0
35
35
35
20
0
0
15
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
March 31, 2006
STK Control #ML0050
5
Rev 1.0
