B-435-V2325 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> B-435-V2325

B-435-V2325: DescriptionB-435-V2325 BUSHING 1=200PCS; Categoryaccessories; File Size57KB，1 Pages; ManufacturerAearo Technologies; Environmental Compliance

Download Datasheet Parametric Compare View All

B-435-V2325 Overview

B-435-V2325 BUSHING 1=200PCS

B-435-V2325 Parametric

Parameter Name	Attribute value
Screw size	-
Head diameter	1.000"（25.40mm） 1"
Mounting hole diameter	0.500"（12.70mm） 1/2"
head height	0.516" (13.11mm)
Material	thermoplastic
color	-

Preview

Download Datasheet

View All

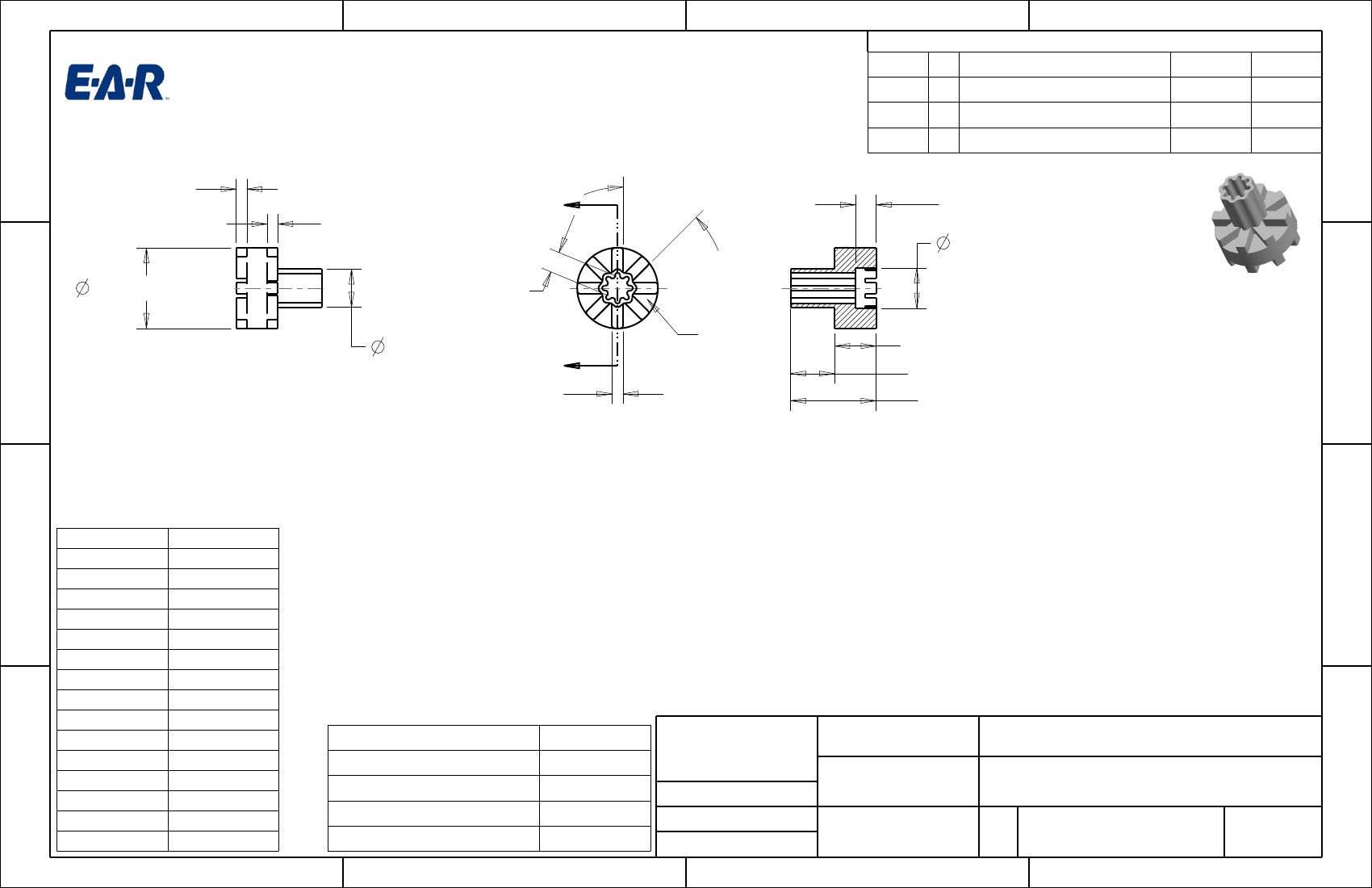

3.35[.132]

REVISIONS

DRAWN REV

DESCRIPTION

DATE

APPROVED

ORIGINAL

UPDATED FORMAT, ADDED WEIGHT, RIB HEIGHT DIMS,

CHANGED DIM 26.92 TO REFERENCE, ADDED -X TO NAMING

CONVENTION, CAVITY LOCATION AND UPDATED TOLERANCES.

11-30-98

9-8-11

KP/TC 01

45°

6.48[.255]

12.7[.500]

25.4[1.000]

*6.6

[.260 ]

CAVITY #

12.01[.473]

3.43[.135]

13.11[.516]

13.82[.544]

REF 26.92

SECTION A-A

[1.060 ]

B-435-2775

B-435-2750

B-435-2725

B-435-2599

B-435-2590

B-435-2575

B-435-2550

B-435-2525

B-435-2375

B-435-2350

B-435-2325

B-435-8

B-435-3

B-435-2

B-435-1

PART NUMBER

V-2775

V-2750

V-2725

V-2599

V-2590

V-2575

V-2550

V-2525

V-2375

V-2350

V-2325

C-8002

C-1100

C-1105

C-1002

MATERIAL

RANGE

0<DIM<=2 [.078]

2 [.078]<DIM<=25 [.98]

25 [.98]<DIM<=50 [1.969]

50 [1.969]<DIM

TOL

0.15 [.006]

0.25 [.010]

ALLOWABLE FLASH:

.12 MM [.005]

GATE:

±.25 MM [.010]

3. MAX DRAFT: 2°

2. CRITICAL DIMENSIONS SHALL HAVE Cpk VALUE >= 1.33 WITH ONGOING SPC DATA REQUIRED.

1. CRITICAL DIMENSIONS ARE MARKED WITH "*".

NOTES:

UNLESS OTHERWISE SPECIFIED

UNITS ARE: MM [IN]

TOLERANCE FOR ANGLES: ± °

1.0

MATERIAL:

SEE TABLE ON LEFT

QUALITY CONTROL:

MUST COMPLY WITH E-A-R

SPECIALTY COMPOSITES

SUPPLIER QUALITY MANUAL

REQUIREMENTS

AEARO TECHNOLOGIES LLC * a 3M company

TITLE

GROMMET - RIBBED

SIZE

DRAWING NO.

PAGE NO.

1 OF 1

± 0.4 [.016]

± 0.6 [.024]

NOTES:

ANY FEATURE NOT DIMENSIONED

IN PRINT MUST BE VISIBLY PRESENT,

UTILIZE 3D CAD FOR CREATION

6.02 GRAM REF

B-435-X

B-435-V2325 Related Products

	B-435-V2325	B-435-V2590
Description	B-435-V2325 BUSHING 1=200PCS	B-435-V2590 BUSHING
Head diameter	1.000"（25.40mm） 1"	1.000"（25.40mm） 1"
Mounting hole diameter	0.500"（12.70mm） 1/2"	0.500"（12.70mm） 1/2"
head height	0.516" (13.11mm)	0.516" (13.11mm)
Material	thermoplastic	thermoplastic
