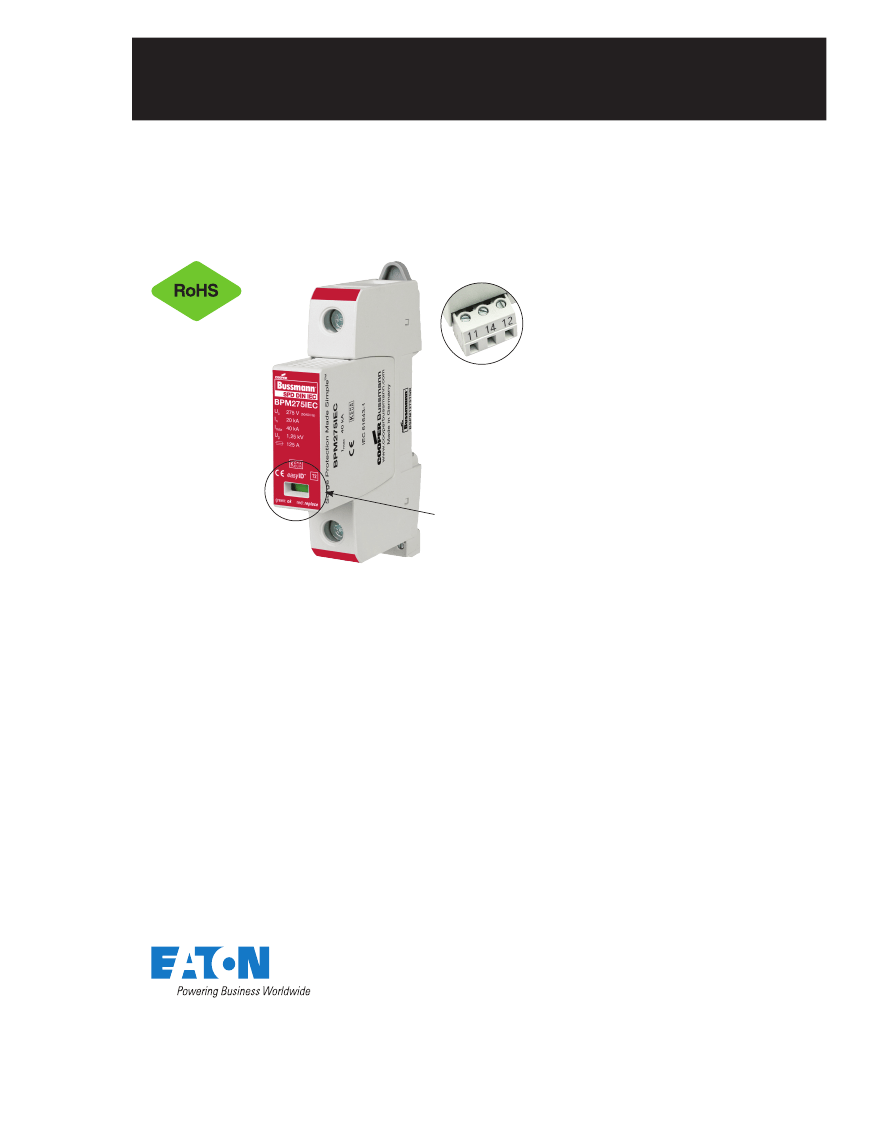

One-pole IEC Class II surge arresters for TN and TT systems
TT System Arrester
Provides a current arresting means between
neutral conductor and protective conductor in
TT systems, this device helps ensure fulfilling
the requirements for protection of personnel and
equipment in “3+1” and “1+1” circuits.
Remote contact
signaling available
Optional remote contact signaling
The three-pole terminal remote contact signaling
option has a floating changeover contact for use
as a break or make contact, according to circuit
concept.
Specifications:
System volts
easyID™
local
visual status
indication
•
•
•
•
275
320
385
440
600
Catalog symbols:
•
•
•
•
•
BSPM_TN
BSPM_TNR
BSPG_NPE
BSPG_NPER
Systems types
•
•
TN
TT
Agency information
•
•
•
•
Description:
Eaton’s Bussmann™ series one-pole IEC Class II
modular surge arresters for TN and TT systems
feature local
easyID™
visual status indication and
optional remote contact signaling. The unique
module locking system fixes the protection
module to the base. Modules can be easily
replaced without tools by simply depressing the
release buttons. Integrated mechanical coding
between the base and protection module ensures
against installing an incorrect replacement module.
CE
CSA (420V, 500V TT/TN and 585V TN systems)
KEMA
RoHS compliant
Mounting
•
35mm DIN-Rail
Warranty
•
Five years
TN system arresters
The features of these single-pole devices are for
use as a single device or in combination with other
devices.
Technical Data 1166
Effective December 2015
1-Pole IEC Class II surge arresters for 230-600 volt TN and TT systems

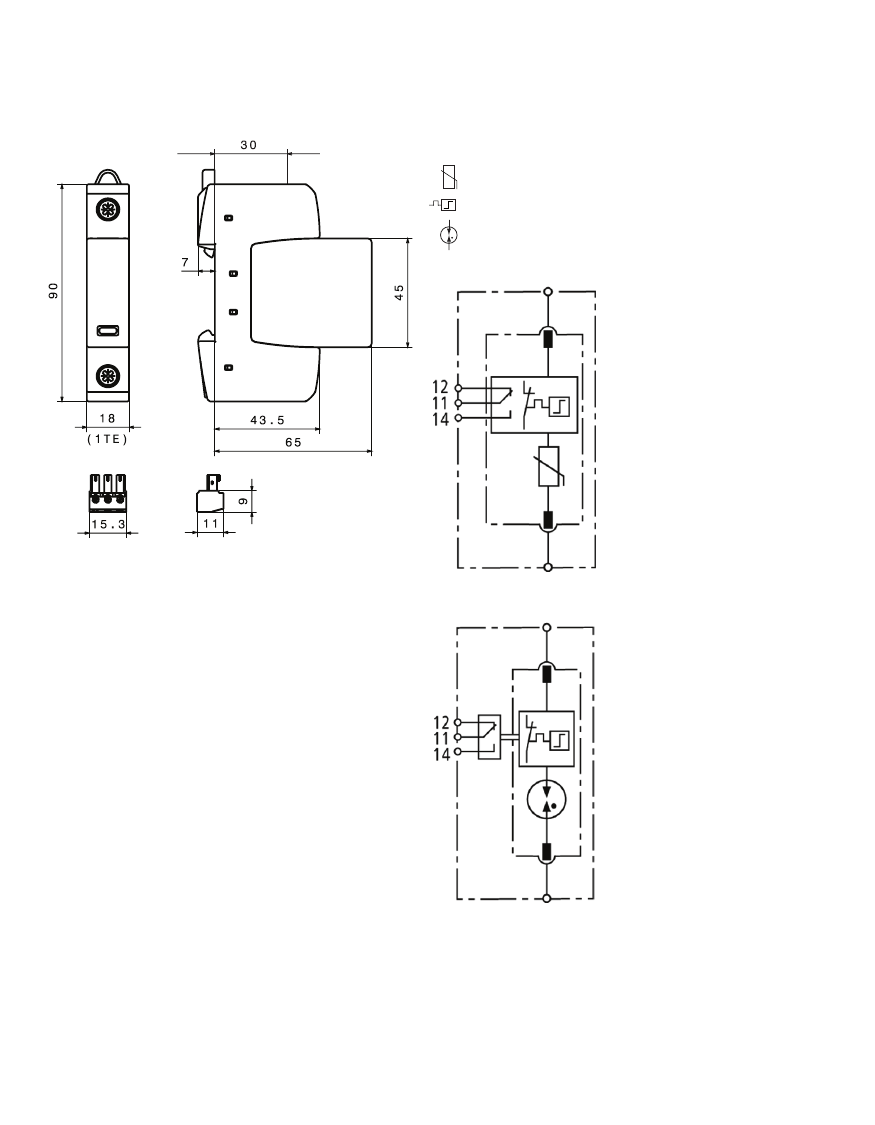

Dimensions - mm:
Module circuit diagrams:
Shown with optional remote contact signaling
MOV
Thermal disconnector
Gas discharge tube (single)
BSPM1275TN(R)
BSPM1320TN(R)
BSPM1385TN(R)
BSPM1440TN(R)
BSPM1600TN(R)
Shown with optional remote contact signaling.
BSPG1255NPE(R)
2
Eaton.com/bussmannseries
1-Pole IEC Class II surge arresters for 230-600 volt TN and TT systems
Technical Data 1166
Effective December 2015
Ordering information:
System voltage (50-60Hz) / poles
Max. Continuous Operating Voltage (MCOV) [U
C
] AC
230V/1
275V
BSPM1275TN
BSPM1275TNR
BPM275IEC
TN / TT
350V
≤
1.5kV
at 5kA
≤
1kV
125A gG
50kA
rms
335V / 5 sec.
440V / 120 min.
≤
25 ns
—
—
20kA
40kA
KEMA
230V/1
320V
BSPM1320TN
230V/1
385V
BSPM1385TN
400V/1
440V
BSPM1440TN
480V/1
600V
BSPM1600TN
230V/1*
255V
BSPG1255NPE
(50-60Hz)
Catalog numbers (base + modules)
Replacement modules
W/O remote
signaling
W/ remote
signaling
BSPM1320TNR BSPM1385TNR
BPM320IEC
TN / TT
420V
≤
1.5kV
≤
1.2kV
125A gG
25kA
rms
335V / 5 sec.
≤
25 ns
—
—
20kA
40kA
KEMA, CSA
BPM385IEC
TN / TT
500V
≤
1.75kV
≤
1.35kV
125A gG
25kA
rms
BSPM1440TNR BSPM1600TNR BSPG1255NPER
BPM440IEC
TN
585V
≤
2kV
≤
1.7kV
125A gG
25kA
rms
BPM600IEC
TN
600V
≤
2.5kV
≤
2kV
100A gG
25kA
rms
700V / 5 sec.
≤
25 ns
—
—
15kA
30kA
KEMA, CSA
BPG255NPE
TT
—
≤
1.5kV
—
—
—
1200V / 200 ms
≤
100 ns
100A
rms
12kA
20kA
40kA
KEMA
Specifications
Line system type
Max. continuous operating DC voltage [U
C
]
Voltage protection level [U
P
]
Max. mains-side overcurrent protection
Short-circuit withstand capability for max. mains-side
overcurrent protection (I
SCCR
)
Temporary Overvoltage (TOV) [U
T
]
Response time [t
A
]
Follow current extinguishing capability [I
fi
]
Lightning impulse current (10/350µs) [I
imp
]
Nominal discharge current (8/20µs) [I
n
]
Max. Discharge current (8/20µs) [I
max
]
Agency information
Capacity
SPD according to
Operating environment [T
U
]
Operating state/fault indication
Number of ports
Cross-sectional area
Mounting
Enclosure material
Location category
Degree of protection
Product warranty
Min.
Max.
Withstand
Safe failure
440V / 120 min. 580V / 5 sec.
≤
25 ns
—
—
20kA
40kA
KEMA, CSA
≤
25 ns
—
—
20kA
40kA
KEMA, CSA
440V / 120 min. —
765V / 120 min. 915V / 120 min. —
1 mod., DIN 43880
EN 61643-11 Type 2, IEC 61643-11 Class II
-40°C to +80°C, 5% to 95% RH
Green (good) / Red (replace)
1
1.5mm
2
/14AWG solid/flexible
35mm
2
/2AWG stranded — 25mm
2
/4AWG flexible
35mm DIN-Rail per EN 60715
Thermoplastic, UL 94V0
Indoor
IP20
Five years**
Changeover contact
AC
DC
250V/0.5A
250V/0.1A; 125V/0.2A; 75V/0.5A
60/75°C max. 1.5mm
2
/14AWG solid/flexible
Order from catalog numbers above
Remote contact signaling
Contact signaling type
Switching capacity (volts/amps)
Conductor ratings and cross-sectional area
Ordering information
* N-PE surge arrester for location between neutral conductor and protective conductor in TT systems.
** See Eaton Bussmann series SPD limited warranty statement (3A1502) for details at www.cooperbussmann.com/surge.
Recommended Bussmann series back up fuses
TT / TN system NH fuse catalog numbers
DIN fuse size
00
0
01
1
02
275, 320, 385, 440V
125NHG00B
125NHG0B
125NHG01B
125NHG1B
125NHG02B
600V
100NHG00B-690
—
—
100NHG1B-690
—
Eaton.com/bussmannseries
Technical Data 1166
Effective December 2015
1-Pole IEC Class II surge arresters for 230-600 volt TN and TT systems
The only controlled copy of this data sheet is the electronic read-only version located on the Eaton network drive. All other copies of this document are
by definition uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the
end user with design applications. Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit
distribution of any products. Eaton also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once
a product has been selected, it should be tested by the user in all possible applications.
