Part Number

Search

5149031-2

Description
HEADER CONNECTOR,PCB MNT,RECEPT,240 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL,GUIDE PIN,NATURAL
CategoryThe connector    The connector
File Size111KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

5149031-2 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,240 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL,GUIDE PIN,NATURAL

5149031-2 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
Board mount optionsHOLE .120- .126
body width0.315 inch
subject depth0.52 inch
body length6.9 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Durability50 Cycles
Insulation resistance5000000000 Ω
Insulator colorNATURAL
insulator materialTHERMOPLASTIC
Manufacturer's serial number5149031
Plug contact pitch0.05 inch
Match contact row spacing0.1 inch
Installation option 1GUIDE PIN
Installation option 2LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number5
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
PCB contact patternSTAGGERED
PCB contact row spacing1.27 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
reliabilityCOMMERCIAL
Terminal length0.125 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts240
Base Number Matches1
My Account
Tyco Electronics
(C hange)
Se a rch by Ke yword or Pa rt #
Products
Documentation
Resources
My Account
Customer Support
Home
>
Products
>
By Type
>
Backplane/Midplane
>
Product Feature Selector
> Product Details

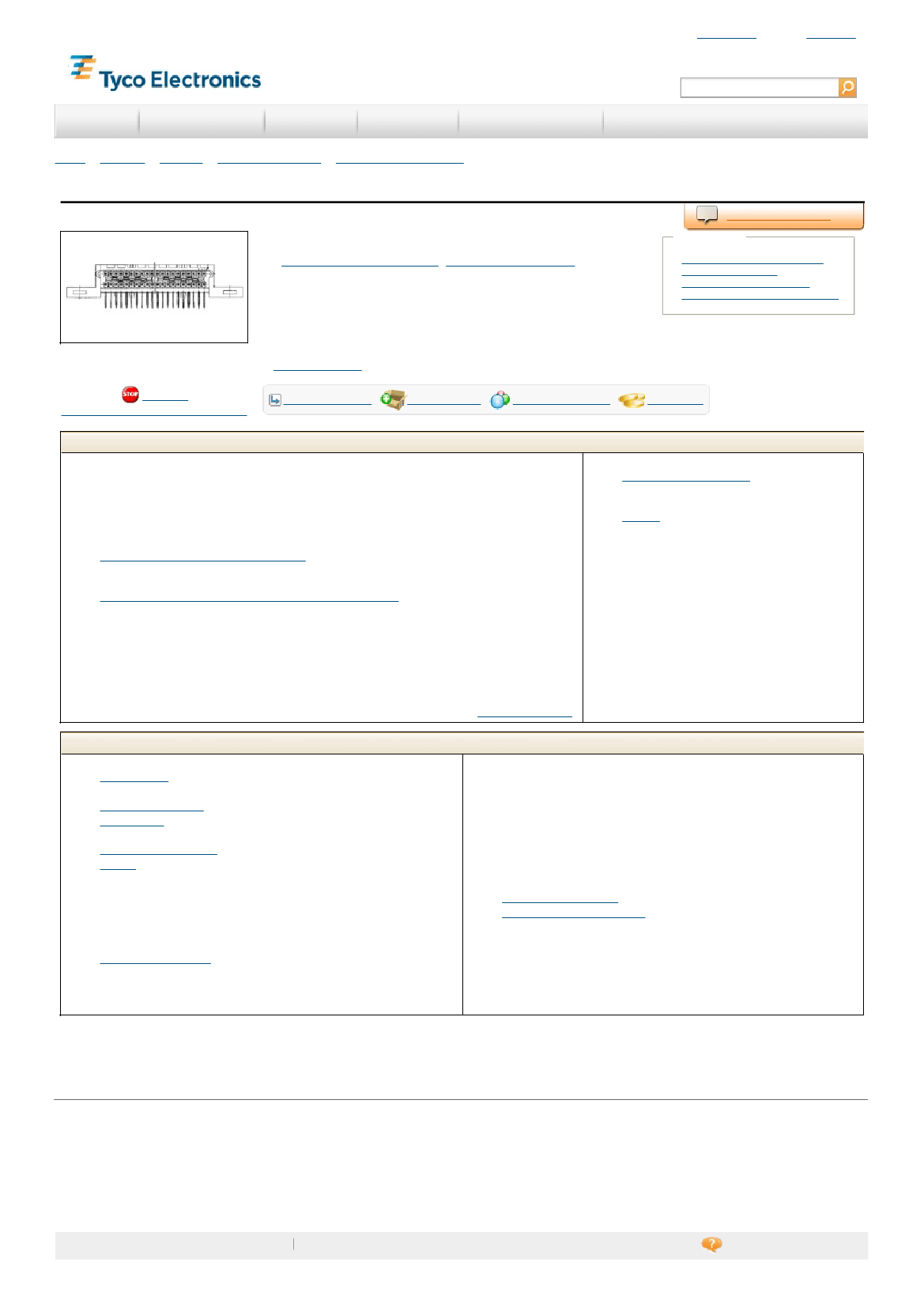

5149031-2 Product Details
Live Product Chat
.050 Centerline Micro-Strip Connectors
Always EU R oHS/ELV C om plia nt
(
Sta te m e nt of C om plia nce
)
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
5149031-2
T E I nternal N umber: 5 1 4 9 0 3 1 - 2
Product Highlights:
l
C onnector
l
C onnector Type = Receptacle
l
160 Positions
l
Right Angle Mount Angle
l
PC B Termination Type = Soldertail
View all Features
Obsolete
C ontact Product Information C enter
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
C onnector, Micro-Strip, Board To Board
(PDF, English)
Application Specifications:
l
Micro-Strip Board-To-Board Plug and Receptacle C onne...
(PDF, English)
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Product Type
= C onnector
l
C onnector Type = Receptacle
l
Number of Positions
= 160
l
Mount Angle
= Right Angle
l
PC B Termination Type = Soldertail
l
PC B Retention Feature
= No
l
Guides
= With
l
Flame Retardant = Yes
Mechanical Attachment:
l
Bus Bar Material = Phosphor Bronze
Contact Related Features:
l
Signal C ontact Material = Phosphor Bronze
l
Signal C ontact Mating Area Plating = Gold (30)
l
Signal C ontact Termination Area Plating = Matte Tin with Nickel
underplated
Housing Related Features:
l
Housing Material = High Temperature Thermoplastic
Industry Standards:
l
RoHS/ELV C ompliance
= RoHS compliant, ELV compliant
l
Lead Free Solder Processes
= Wave solder capable to 240?C , Wave
solder capable to 260?C , Wave solder capable to 265?C
l
RoHS/ELV C ompliance History = Always was RoHS compliant
Additional Information:
l
Product Line Information
Related Products:
l
Tooling
Termination Related Features:
l
Tail Length (mm [in])
= 3.18 [0.125]
Other:
l
Bus Bar Mating Area Plating = Gold (30)
l
Brand = AMP
l
Bus Bar Termination Area Plating = Matte Tin with Nickel underplated
