TX5e

™

Category 5e U/UTP Copper Cable

specifications

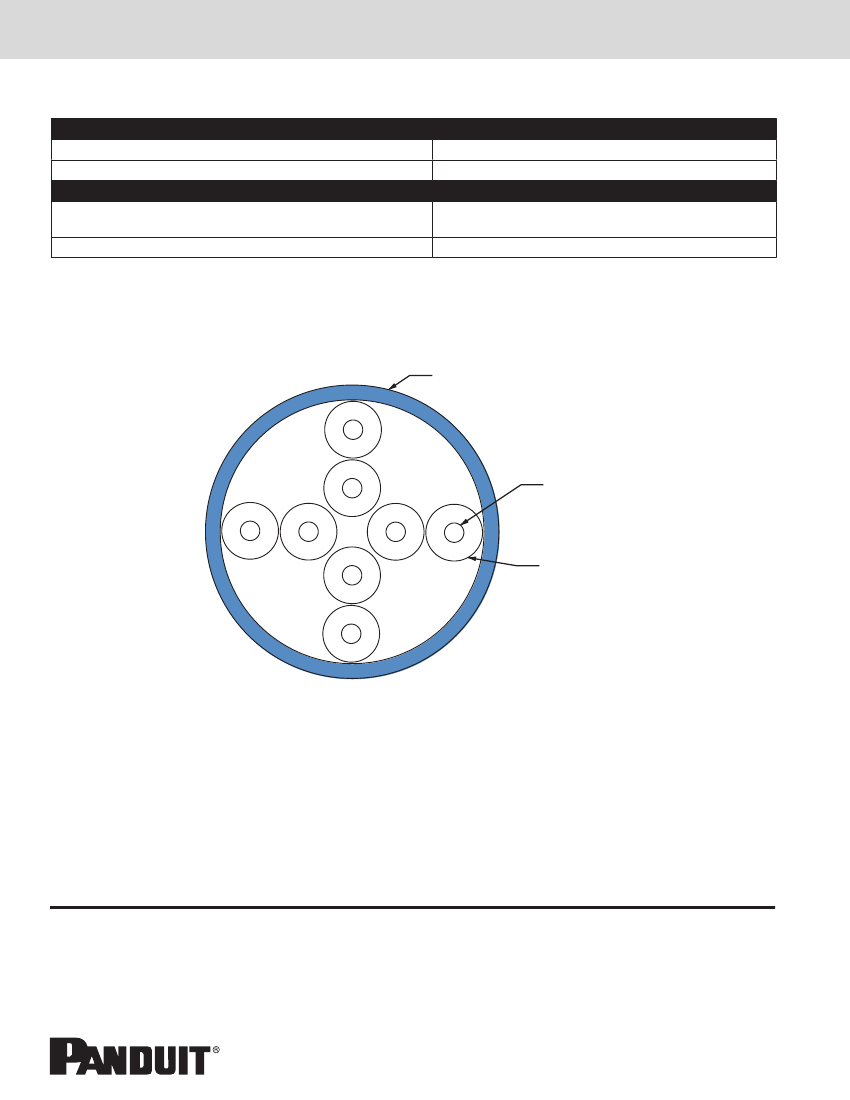

Category 5e cable shall meet ANSI/TIA-568-C.2 Category

5e component standard. The conductors shall be 24 AWG

construction with FEP/polyolefin (CMP) or polyolefin (CMR)

insulation. The copper conductors shall be twisted in pairs

covered by a low smoke, flame retardant (CMP) PVC jacket

or a flame retardant (CMR) PVC jacket.

SPECIFICATION SHEET

Category 5e U/UTP Copper Cable

Plenum:

Riser:

Cable Prep Tools

Wire snipping

tool:

Wire stripping

tool:

CWST

CJAST

PUP5C04*-U

PUR5C04*-U

technical information

Electrical performance:

Certified channel performance in a 4-connector configuration up

to 100 meters and meets ANSI/TIA-568-C.2 Category 5e standard

at swept frequencies up to 100 MHz

Certified component performance up to 100 meters and meets the

component requirements of ANSI/TIA-568-C.2 Category 5e component

standard at swept frequencies up to 100 MHz

Conductors/insulators:

Flame rating:

PoE compliance:

Installation tension:

Temperature rating:

Plenum – 24 AWG bare copper wire covered by FEP/polyolefin insulation

Riser – 24 AWG bare copper wire covered by polyolefin insulation

Plenum – NFPA 262

Riser – UL1666

Meets IEEE 802.3af and IEEE 802.3at for PoE applications

25 lbf (110N) maximum

32°F to 122°F (0°C to 50°C) during installation

Plenum – -4°F to 167°F (-20°C to 75°C) during operation

Riser – -4°F to 167°F (-20°C to 75°C) during operation

Plenum – low smoke, flame-retardant PVC

Riser – flame-retardant PVC

Plenum – 0.210 in. (5.3 mm) nominal

Riser – 0.187 in. (4.7 mm) nominal

Plenum – 25 lbs./1000 ft. (11 kg/305m)

Riser – 18 lbs./1000 ft. (8 kg/305m)

1000 ft. (305m) in an easy payout carton

Package tested to ISTA Procedure1A

*For standard cable colors, add suffix

BU (Blue), WH (White), RD (Red),

OR (Orange), YL (Yellow), GR (Green),

VL (Violet), IG (International Gray), or

BL (Black).

Visit www.panduit.com for connectivity

components.

Cable jacket:

Cable diameter:

Cable weight:

Packaging:

key features and benefits

Third party tested

Cable has been tested as part of the Category 5e UTP

Copper Cabling System by an independent laboratory and

complies with the electrical channel requirements of the

following standard: ANSI/TIA-568-C.2 Category 5e

Easy identification of remaining cable reduces installation

time and cable scrap

Cable has been characterized to 350 MHz, 250 MHz above

the standard

Ensures proper performance and provides quick installation

Descending length

cable markings

Tested beyond the standards

Easy payout carton

applications

The Panduit

TX5e

™

Cabling System provides Gigabit Ethernet performance with usable bandwidth

beyond 100 MHz. With certified performance to the ANSI/TIA-568-C.2 Category 5e and ISO 11801

Class D standards, this system will support the following applications:

• Ethernet 10BASE-T, 100 BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet)

• 155 Mb/s ATM, 622 Mb/s ATM

• Token Ring 4/16

w w w .pan duit.com
