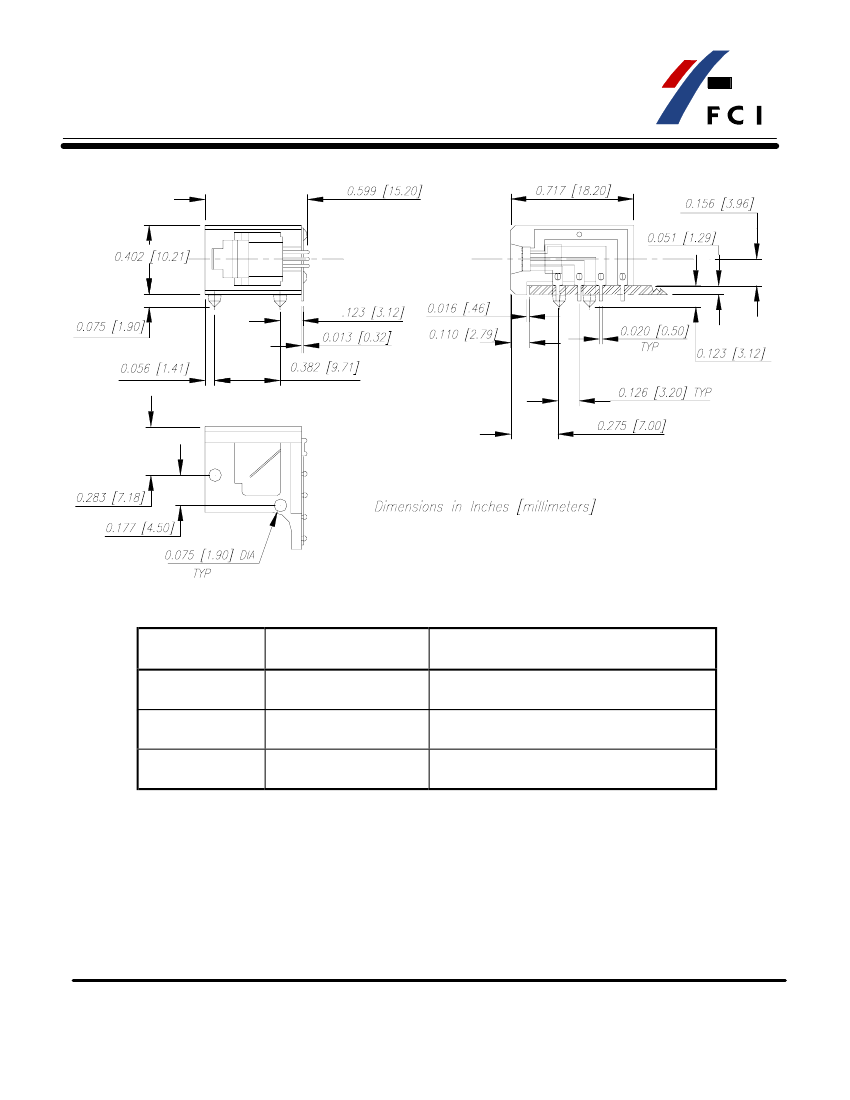

Telecom Jacks
4 position - side entry (handset)
Features:
•
•
•
•
•
•
•
•
•
mates with standard 4 position plugs
4 positions / 4 contacts - side entry
inline solder tails .126" (3.20 mm) pitch
press fit retention pegs
selectively plated gold contact, Ni underplate
SnPb plated contact leads for solderability
plastic housing - UL 94V-0 rated
different colors available
intended for use on .050" - .062" thick PCB
Packaging:
•
bulk
Options:
•
different plating thicknesses in contact area
Specifications:
Mechanical
•
•
•
•
Materials & Finishes
200 cycles min
-55°C to +85°C
5 lbs max
20 lbs min
•
•
•
•
•
•
durability:
operating temperature:
insertion force:
retention force:
Electrical
•
•
•
•
current rating (continuous): 1.3 amp/contact max
contact resistance:
20 milliohms max
insulation resistance:
5000 megohms min
dielectric withstand voltage:
1000V RMS
body:
terminal:
alloy
contact finish :
contact underplate:
solder tail finish:
overall underplate:
polycarbonate
phosphor bronze
50µin Au
100µin Ni
75µin SnPb
20µin Ni
FCI ELECTRONICS
Document number 54379
Rev. A
PDM: Rev:A
STATUS:
Released
Page 1 of 2
Ref # K10001
Printed: Sep 02, 2004
Telecom Jacks
4 position - side entry (handset)
part #
(C.P.C.)
A0640149
A0640150
A0640151
Same as
Ref. part #
P0647991
P0706452
P0746434
Description
4 position / 4 contact jack
black plastic body
4 position / 4 contact jack
grey plastic body
4 position / 4 contact jack
clear plastic body
FCI ELECTRONICS
Document number 54379
Rev. A
PDM: Rev:A
STATUS:
Released
Page 2 of 2
Ref # K10001
Printed: Sep 02, 2004
