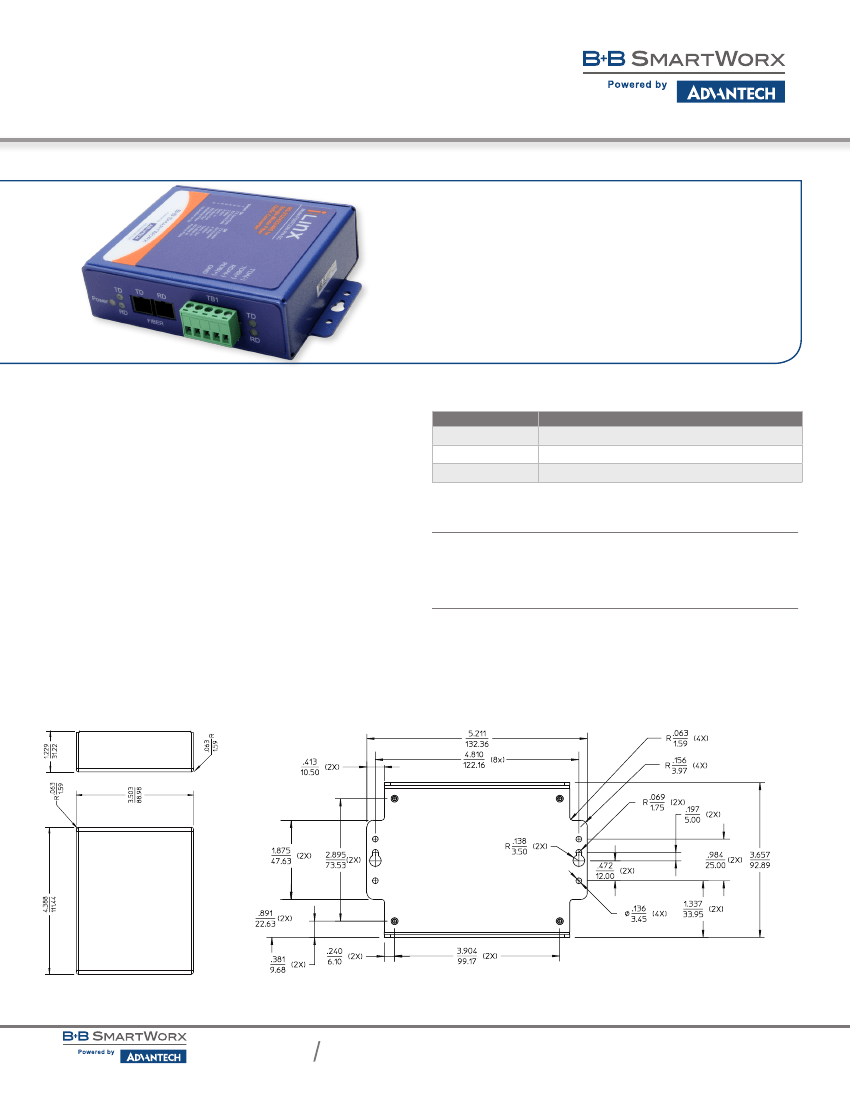

Heavy Industrial Serial
to Fiber Optic Converters
Models FOSTCDRI-PH-MC, FOSTCDRI-PH-MT, FOSTCDRI-PH-SC
www.advantech-bb.com
PRODUCT FEATURES
•
•
•
•
•
•
•
•
IEEE-61850-3
IEEE 1613
NEMA TS2 (FOSTCDRI-PH-MT)
Multi- or Single-Mode, ST or SC Versions
-40 to 85°C Wide Operating Temperature
Rugged, IP30 Metal Panel Mount Case
50G Shock, 4G Vibration
2kV Triple Isolation
The FOSTCDRI-PH-xx series are premium heavy industrial serial to fiber optic
converters. Designed for rugged industrial environments, they have been put
through most exacting compliance testing in the industry. Meeting IEC 61850-
3 and IEEE 1613 requirements, they are suitable for installation in electrical
substations. These specifications are more stringent than the NEMA TS1/
TS2 requirements for transportation applications. Powerful isolation protects
equipment and data from damaging ground loops and surges. Additional isolation
on the power supply circuits adds a third degree of protection.
Packaged in a rugged IP30 metal case, these converters convert serial signals
to multi-mode or single-mode fiber optic. Bit-wise enabled circuitry automatically
detects the data rate without setting a DIP switch.
In addition to direct point-to-point connectivity, operation in multi-drop mode is
possible. This enables serial devices to communicate with up to 31 others in a
fiber ring. Supporting mixed standards, you can replace other converters and add
the EMI / RFI protection inherent to fiber optic communications.
ORDERING INFORMATION
MODEL NUMBER
FOSTCDRI-PH-MC
FOSTCDRI-PH-MT
FOSTCDRI-PH-SC
DESCRIPTION
Serial to Multi-mode SC Converter
Serial to Multi-mode ST Converter
Serial to Single-mode SC Converter
ACCESSORIES
MDR-20-24
- DIN Rail Mount Power Supply 24VDC, 1.0 A output power
DRAD35
- DIN Rail Mounting Kit 35mm
MECHANICAL
All product specifications are subject to change without notice.
FOSTCDRI-PH-MC, FOSTCDRI-PH-MT, FOSTCDRI-PH-SC_3017ds
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Heavy Industrial Serial
to Fiber Optic Converters
Models FOSTCDRI-PH-MC, FOSTCDRI-PH-MT, FOSTCDRI-PH-SC
SPECIFICATIONS
SERIAL TECHNOLOGY
RS-232
RS-422
RS-485 4-Wire
RS-485 2-Wire
Serial Connector
Data Rate
Isolation
TD, RD, GND
TDA(-), TDB(+), RDA(-), RDB(+)
TDA(-), TDB(+), RDA(-), RDB(+)
Data A(-), Data B(+)
5-position, removable terminal block
9.6 to 115.2 Kbps
2 KV RMS, 1 minute
600 W peak power dissipation
Surge Protection
Clamping time < 1 pico-second
Industrial Bus
Modbus ASCII / RTU
Bias
Built-in, switchable 1.2KΩ XMT/RCV
Termination
Built-in, switchable 120Ω
FIBER OPTIC TECHNOLOGY
Type / Wavelength
Multi-mode or Single-mode 1310 nM
Output Power (MM)
-19 (min), -14 (max) dBm
Output Power (SM)
-15 (min), -8 (max) dBm
RCV Sensitivity
≤ -32 dBm
Cable
62.5 / 125 µM (MM), 9 / 125µM (SM)
Data Rate
9.6 to 115.2 kbps
Multi-mode: 2 kM (1.25 mi)
Distance
Single-mode: 15 kM (9.3 mi)
Fiber Light
Modulated
POWER
Source
External
Power Connector
2-position, removable terminal block
Input Voltage
10 to 48 VDC (56 VDC maximum)
Power Consumption
0.9 W typical (2.6W with termination)
IEC 61850-3 ELECTRO MAGNETIC INTERFERENCE SPECIFICATIONS
Test
Description
Enclosure Contact
61000-4-2
ESD
Enclosure Air
61000-4-3
Radiated RFI
Enclosure Ports
Signal Ports
61000-4-4
Burst (Fast Transient)
DC Power Ports
DRAWING/ARTWORK?
Signal Ports
61000-4-5
Surge
DC Power Ports
Signal Ports
61000-4-6
Induced (Conductive) RFI
DC Power Ports
Signal Ports
61000-4-12
Damped Oscillatory
DC Power Ports
Signal Ports
61000-4-16
Mains Frequency Voltage
DC Power Ports
61000-4-17
Ripple on DC Power Supply
DC Power Ports
IEEE 1613 C37.90 ELECTROMAGNETIC INTERFERENCE SPECIFICATIONS
Enclosure Contact
C37.90.3
ESD
Enclosure Air
C37.90.2
Radiated RFI
Enclosure Ports
Signal Ports
C37.90.1
Fast Transient
DC Power Ports
ENVIRONMENTAL SPECIFICATIONS
60068-2-1
Cold Temperature
Test Ad
60068-2-2
Dry Heat
Test Bd
60068-2-30
Humidity (damp heat cycle)
Test Dd
IEC 600068-2-6
Vibration
Test Fc
IEC 600068-2-27
Shock
Test Ea
IEC 60068-2-32
Drop
-
TERMINAL BLOCKS
Wire Size Accepted
Pitch
Insulation Resistance
Maximum Torque
INDICATORS
Power
TD / RD (Each Port)
MECHANICAL
Dimensions
Enclosure
Weight
MTBF
MTBF Calc. Method
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Operating Humidity
REGULATORY
Approvals
28 to 12 AWG, copper wire only
5.08 mm
≥500 MΩ @ 500 VDC
5 Kg / cm
Red LED
Green LED
13.24 x 9.29 x 3.0 cm (5.2 x 3.7 x 1.3 in)
IP30 metal, panel mount
0.46 lbs (208.65 grams)
127,103 hours
Parts Count Reliability Prediction
-40 to 85 °C (-40 to 176 °F)
-40 to 85 °C (-40 to 176 °F)
0 to 95% Non-condensing
FCC, CE, IEC 61850-3, IEEE 1613
UL C1 D2, File: E245458
NEMA TS2 (Model FOSTCDRI-PH-MT)
Test Level
8 kV
15 kV
10 V/m
4 kV @ 2.5 Khz
4 kV
2 kV line to earth, 1 kV line to line
2 kV line to earth, 1 kV line to line
10 V RMS
10 V RMS
2.5 kV common, 1 kV diff mode @ 1MHz
2.5 kV common, 1 kV diff mode @ 1MHz
30 V Continuous, 300 V for 1 s
30 V Continuous, 300 V for 1 s
10%
8 kV
15 kV
10 v/m
4 kV @ 2.5 kHz
4 kV
-40
°C,
16 Hours
+85
°C,
16 Hours
90% (non-condensing) +55
°C,
6 Cycles
4g
50g
6 faces, 3 edges, 1 corner, total 10 drops at 1 m
Level
4
4
3
-
4
4
3
3
3
3
3
4
4
3
-
-
-
-
-
-
Class 2
Class 2
-
