TX
n
AUTOMOTIVE RELAY
Features
Single coil type (TX1) and twin coil type (TX2) for
bi -directional control of automobile motors
High power, miniature design
30A, 16VDC switching current capacity
Sealed for immersion cleaning
UL E1555
n
Coil Rating
(All Coil Voltages 12VDC only) @ 20°C
Coil Resistance
(W ± 10%)
200
250
320
200
250
320
Rated
Power (W)
0.72
0.58
0 .45
0.72
0.58
0.45
Pick-Up
Voltage (VDC)
6.0
6.75
7.5
6.0
6.75
7.5
Drop-Out
Voltage (VDC)
0.8
0.9
1.0
0.8
0.9
1.0
Part Number
TX1-8
TX1-9
TX1-10
T X2-8
TX2-9
TX2-10
n
Specifications
DPDT (1 Form C)
AgSnO
2
25A Motor Load 14 VDC
30A
30A @ 20
0
C within 5 minutes
60W (DC) ; 125VA (AC)
Max. 50m
Ohm (@ 6VDC 1A voltage drop method)
Min. 100M
Ohm
(@ 500VDC)
1000VAC for 1 minute between open contacts
1000VAC for 1 minute between coil & contacts
Max. 10ms (@ rated voltage)
Max. 10ms (@ rated voltage)
-40°C ~ +85°C
85% RH
10 to 400 Hz 4.4G
Min. 10G ( Shock wave 11ms)
10 x 10 operations (@ 300 ops/min)
0.1 x 10
6
ops (ON: 5 sec / OFF: 25 sec) 14VDC 25A motor load
6
TX1:
Approx. 8g
Contact Arrangement
Contact Material
Rated Load
Max. Switching Current
Max. Carrrying Current
Max. Switching Power
Contact Resistance
Insulation Resistance
Dielectric Strength
Operate Time
Release Time
Operating Ambient Temp.
Ambient Humidity
Vibration Resistance
Shock Resistance
Mechanical
Life
Electrical
Weight
TX2:
Approx. 15g
65 SHARK RIVER ROAD, NEPTUNE, NEW JERSEY 07753-7423
PH (732) 922-6333
FX (732) 922-6363 E-mail: globalcomponents@msn.com
n

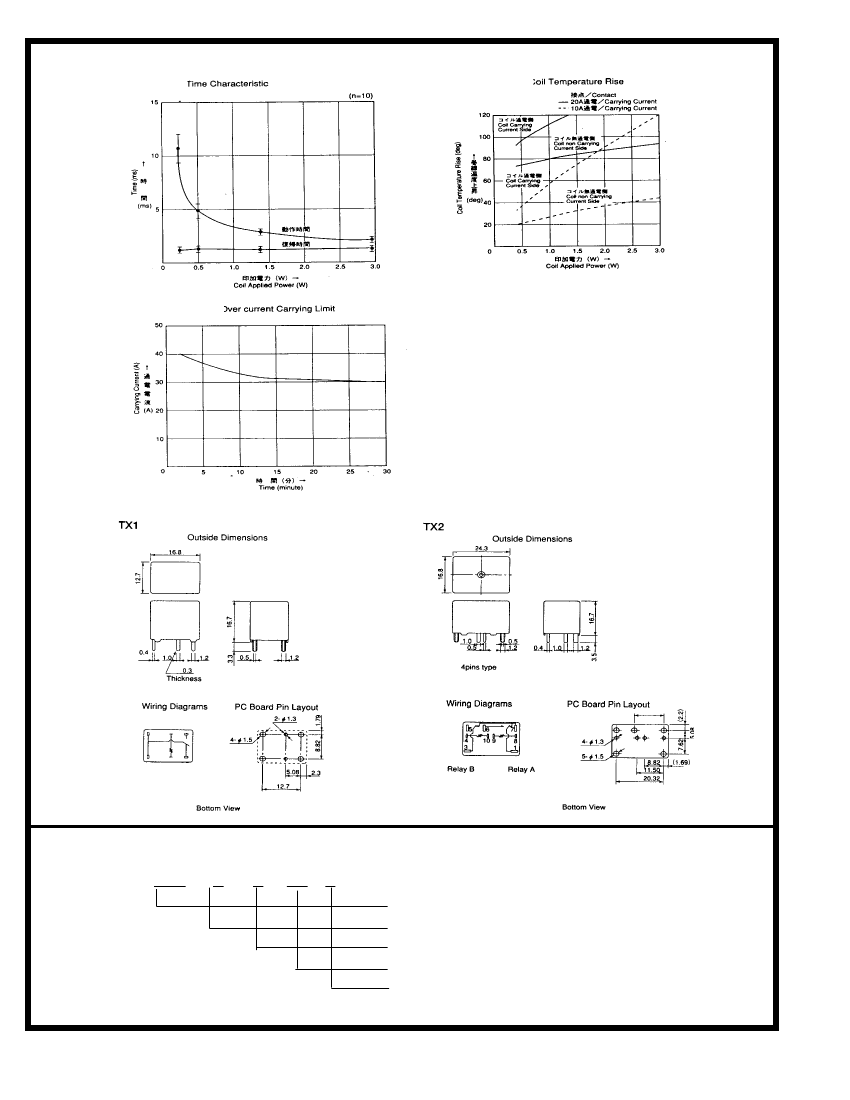

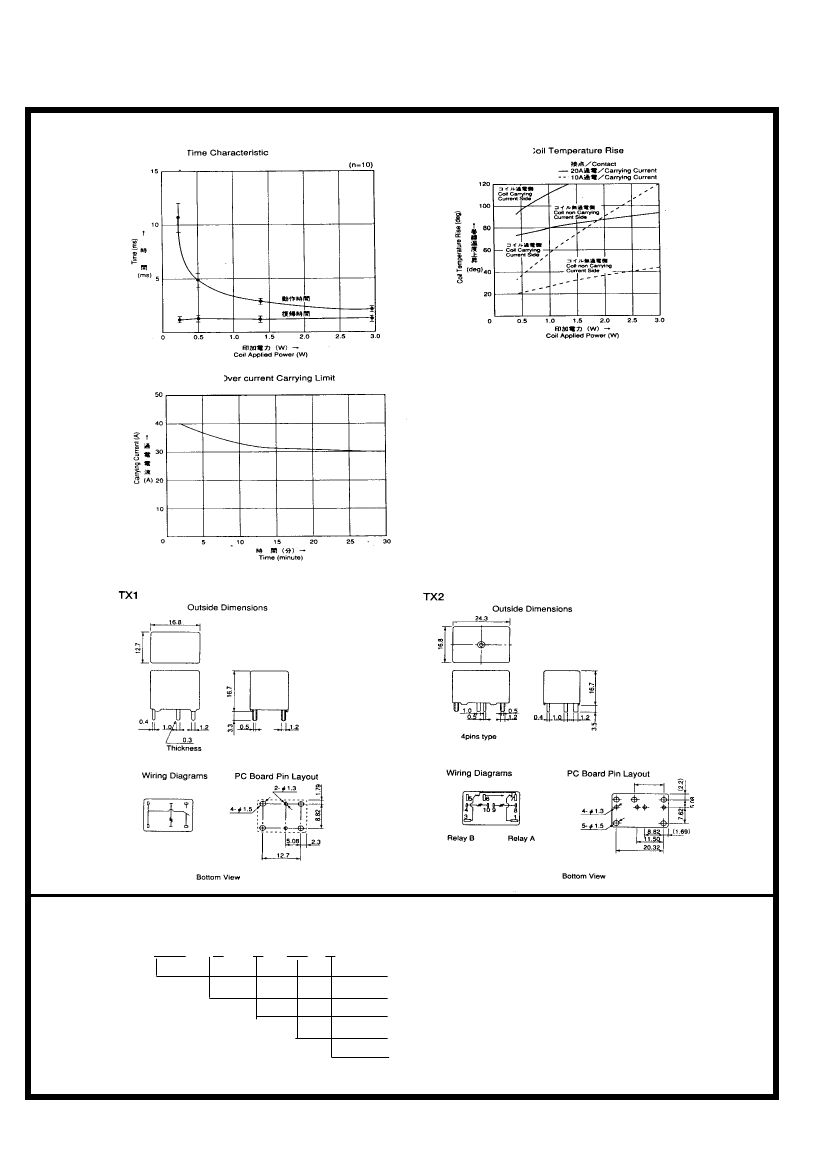

Characteristics
n
Dimensions
n
How to order
TX2 - 8
X
F
Z
TX1: 1 Form C ; TX2: 2x1 Form C
Coil: 8=200ohm; 9=250ohm ; 10=320ohm
Contact Material: Blank=Standard ; X=Special
Coil Terminal: Blank= 3 pins ; F= 4 pins
Contact Terminals: Blank=Std (Common NC)
Z= NC contact is independent
65 SHARK RIVER ROAD, NEPTUNE, NEW JERSEY 07753-7423
PH (732) 922-6333 FX (732) 922-6363 E-mail: globalcomponents@msn.com
