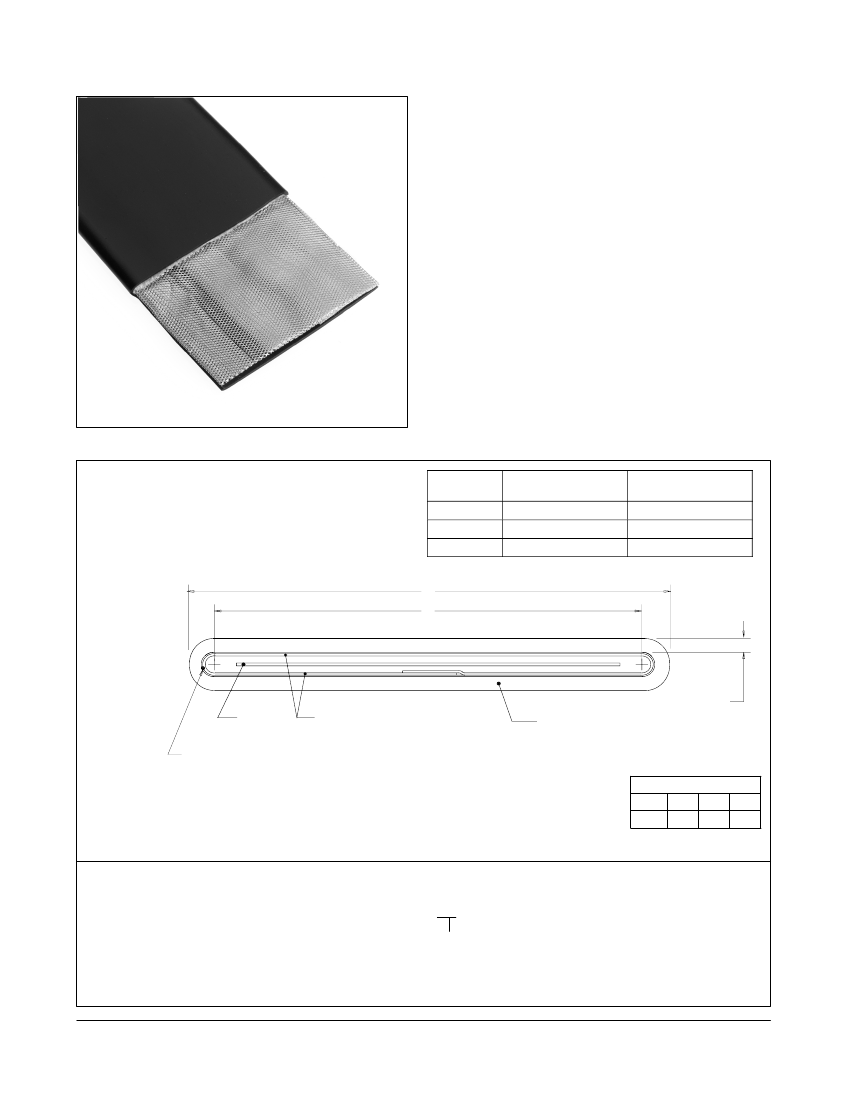

3M
Cable Accessory
Shielded Jacket, PVC
3617 Series
S
PVC insulation provides excellent protection for
external wiring applications
S
Polyester leader for easy pull-through of cable,
expanded copper shield for flexibility and easy
termination
S
20 db average shielding effectiveness
Date Modified:May 30, 2003
TS-0061-11
Sheet 1 of 1
3M Part
Number
3617-1500
3617-2500
3617-3500
Dimension A
±
.050
1.80 [ 45.7 ]
2.68 [ 68.1 ]
3.71 [ 94.2 ]
Dimension B
1.5 [ 38 ]
2.4 [ 61 ]
3.5 [ 89 ]
A
B
Leader
.005 ( 0.13 ) Expanded
Copper Shield
Paper
(Mfgr. Option)
80
o
C
PVC Black Jacket
Flame Retardant
.035
±
.005
[ 0.89 ]
Inch
[mm]
.0
Inch
±.1
Tolerance Unless Noted
.00
±.05
.000
±.010
[ ] Dimensions for
Reference only
Ordering Information
3617-XX00
Cable Width
15 = 1.5 [ 38 ]
25 = 2.4 [ 61 ]
35 = 3.5 [ 88 ]
Notes:
1. Standard length is 100 ft/roll.
2. For a non-shielded design see product 3616.
TS-0061-11
Sheet 1 of 1
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
