MFS-11P20CC5

Description
SENSOR REED SWITCH NC M12
CategoryThe sensor
File Size546KB,5 Pages
ManufacturerOMRON
Websitehttps://www.omron.com
Download Datasheet Parametric View All

MFS-11P20CC5 Overview

SENSOR REED SWITCH NC M12

MFS-11P20CC5 Parametric

Parameter NameAttribute value
Output typeNC
typereed switch
Actuator materialmagnet
Terminal typeM12
Voltage - Power230VAC
must work-
must be released-
Operating temperature-10°C ~ 55°C(TA)
Package/casingbox

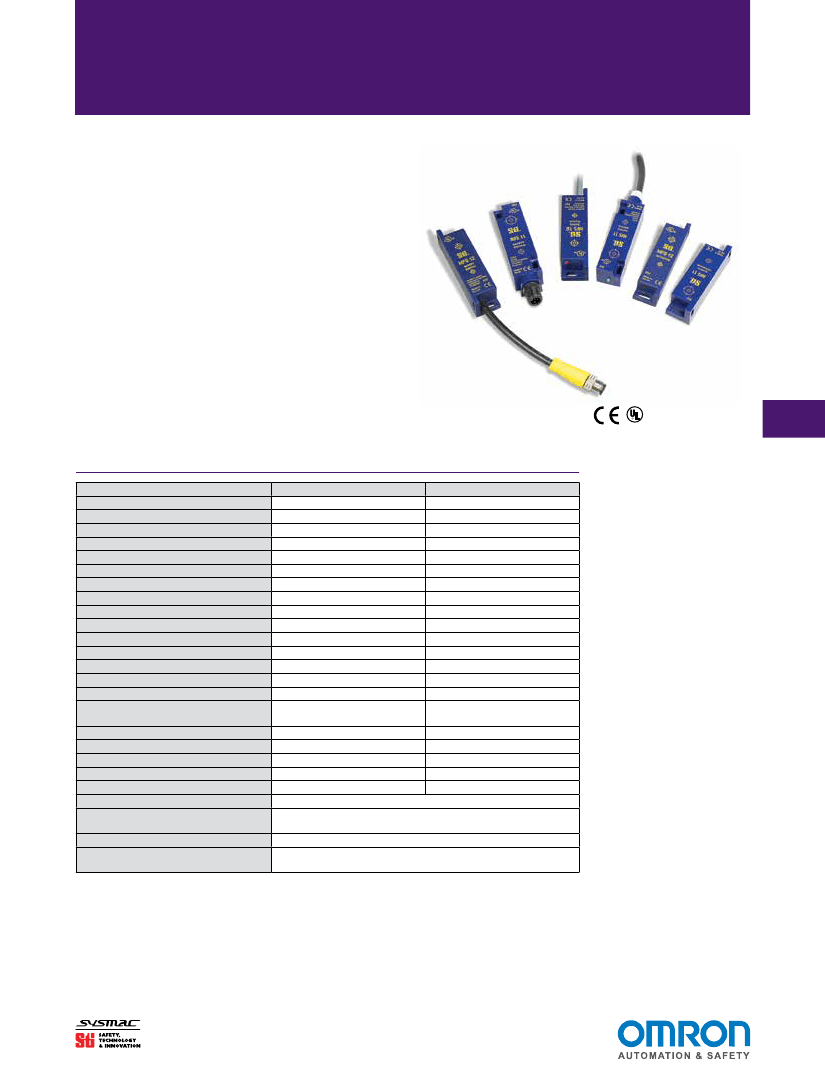

Safety Interlock Switches
MFS
For full product information, visit www.sti.com. Use the SpeedSPEC Code for quick access to the specifc web page.
Magnetic Ferroresonant Stand-
Alone Safety Interlock Switch
• Tamper resistant—the combination of magnetic and ferroresonant
signals required to close the safety contacts makes the MFS very
tamper resistant
• Stand-alone—use for lower risk applications as a stand-alone
safety switch allowing direct switching of relays and contactors up
to 2 A at 230 VAC
• MFS-11 provides a visible LED which illuminates green when the
actuator is in range and contacts are closed
• MFS-12 provides a dual color LED indicator. The LED illuminates
green when the actuator is in range and the contacts are closed.
The LED illuminates Red when the actuator is out of range and
contacts are open.
• Compact size—mounts easily on 1-in. square tubing
• Use with safety monitoring relays in applications requiring a higher
level of safety reliability
• NEMA 4 enclosure enables water washdown cleaning
• A Rapid Delivery Product: Select models are available for shipment today or
within 3 to 5 days
R
C
US
Specifications
Electrical
Power Supply:
Power Consumption:
Max Cable Length:
Safety Outputs:
Auxiliary Contact:
Operating Distance:
Minimum Gap:
Safety Max Switched Current/Voltage:
Aux. Max. Switched Current/Voltage:
Max. Output Fuse:
Mechanical
Mounting:
Case Material:
Weight:
Color:
Indication:
Mechanical Life:
Environmental
Protection:
Operating Temperature:
Vibration/Shock:
Compliance
Standards:
MFS-11
24 VDC
2 VA
100 m
1 N/C or 2 N/C
ON = 6-9 mm; OFF = 10-12 mm
2 mm
2 A / 230 VAC; 2 A / 30 VDC
2 A / 230 VAC; 2 A / 30 VDC
2 A quick acting
2 x M4 screws, supplied
ABS
198 g (7 oz.)
Blue
Green = Guard Closed
10 x 10
6
IP67
-10 to 55°C (-14 to 131°F)
50-100 Hz / 10 g
MFS-12
Conforms to EN1088, EN292,
EN60204-1, EN954-1, EN947-5-3,
EN60947-5-1, EN50081, EN50082,
EN61000-6-2
UL and C-UL listed
G
2 N/C
1 N/O
Green = Guard Closed
Red = Guard Open
EN1088, EN292, EN60204-1, EN954-1, EN947-5-3, EN60947-5-1,
EN50081, EN50082, EN61000-6-2
Approvals/Listings:
CE marked for all applicable directives, UL and C-UL
Safety Category:
Cat. 3 per EN954-1 when used with an appropriate safety
monitoring relay
Specifications are subject to change without notice.
Note: The safety contacts of the STI switches are described as normally closed (N/C)—
i.e., with the guard closed, actuator in place, and the machine able to be started.
www.omron247.com
G-111
