380976-K-NIST datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Test and measurement> 380976-K-NIST

380976-K-NIST: DescriptionCLAMP METER, HVAC WITH NIST; CategoryTopical application Test and measurement; File Size903KB，20 Pages; ManufacturerFLIR

Download Datasheet Parametric Compare View All

380976-K-NIST Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	380976-K-NIST	-	-	View	Buy Now

380976-K-NIST Overview

CLAMP METER, HVAC WITH NIST

380976-K-NIST Parametric

Parameter Name	Attribute value
type	Galvanometer, clip/probe
Specification	DMM functions including voltage, resistance, capacitance, humidity, frequency and current up to 1000A
grade	CAT III 600V

Preview

Download Datasheet

View All

User Guide

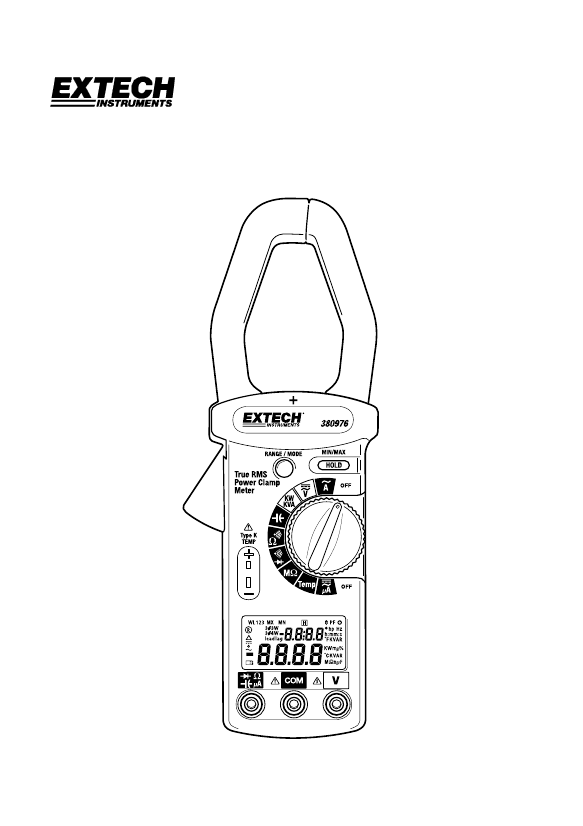

1Φ/3Φ 1000 Amp True RMS Power Clamp-On

Model 380976

Introduction

Congratulations on your purchase of the Extech 380976 Power Clamp-On Meter. This device

measures 1Φ/3Φ Power (True, Apparent, and Reactive), Horsepower, Phase Angle, True RMS

Current/Voltage, Resistance, Capacitance, Frequency, & Temperature. Power measurements can

be achieved on 3- or 4-wire configurations. Please read the entire manual to get the most from the

meter’s wide array of capabilities. This meter is shipped fully tested and calibrated and, with

proper use, will provide years of reliable service.

Table of Contents

Warranty

.................................................................................................................................. 3

Safety Information

.................................................................................................................. 3

Meter Description

................................................................................................................... 4

AC + DC Voltage Measurements

........................................................................................... 5

AC Current Measurements

.................................................................................................... 5

1Φ KW, KVA, KVAR, Power Factor & Phase Angle Measurement

..................................... 6

3Φ 3-Wire KW, HP, KVA, KVAR, Power Factor & Phase Angle Measurement

.................. 7

3Φ 4-Wire KW, HP, KVA, KVAR, Power Factor & Phase Angle Measurement

................ 10

Resistance and Audible Continuity Measurements

.......................................................... 13

Capacitance Measurements

................................................................................................ 14

Diode Tests

........................................................................................................................... 14

Temperature Measurements

................................................................................................ 14

AC and DC µA Current Measurements

............................................................................... 14

Meter Control Keys

............................................................................................................... 15

Automatic Sleep Mode and Battery Replacement

............................................................. 16

Specifications

....................................................................................................................... 17

Calibration, Repair, and Technical Support Services

.........

Error! Bookmark not defined.

380976-EU-EN-V3.2 6/12

Warranty

EXTECH INSTRUMENTS CORPORATION

warrants this instrument to be free of defects in parts

and workmanship for

one year

from date of shipment (a six month limited warranty applies to

sensors and cables). If it should become necessary to return the instrument for service during or

beyond the warranty period, contact the Customer Service Department at (781) 890-7440 ext. 210

for authorization or visit our website www.extech.com for contact information. A Return

Authorization (RA) number must be issued before any product is returned to Extech. The sender is

responsible for shipping charges, freight, insurance and proper packaging to prevent damage in

transit. This warranty does not apply to defects resulting from action of the user such as misuse,

improper wiring, operation outside of specification, improper maintenance or repair, or unauthorized

modification. Extech specifically disclaims any implied warranties or merchantability or fitness for a

specific purpose and will not be liable for any direct, indirect, incidental or consequential damages.

Extech's total liability is limited to repair or replacement of the product. The warranty set forth above

is inclusive and no other warranty, whether written or oral, is expressed or implied.

Safety Information



Read the following safety information carefully before attempting to operate or service the

meter.

To avoid damage to the instrument do not exceed the maximum input limits shown in the

technical specifications.

Do not use the meter or test leads if they appear damaged.

Use extreme caution when working around bare conductors or bus bars. Accidental contact

with the conductor could result in electric shock.

Use the meter only as specified in this manual; otherwise, the protection provided by the

meter may be impaired.

Read the operating instructions before use and follow all safety information.

Use caution when working with voltages above 60VDC or 30VAC RMS. Such voltages

represent a shock hazard.

Before taking resistance measurements or testing continuity, disconnect the circuit under test

from the main power supply and remove all loads from the circuit.

Safety symbols

Caution! Refer to this manual before using the meter.

Dangerous voltages.

Meter is protected throughout by double insulation or

reinforced insulation.

When servicing, use only specified replacement parts.

Complies with EN-61010-1, IEC 1010-2-32

380976-EU-EN-V3.2 6/12
