DM74LS573 Octal D-Type Latch with 3-STATE Outputs
October 1988
Revised March 2000
DM74LS573
Octal D-Type Latch with 3-STATE Outputs
General Description
The DM74LS573 is a high speed octal latch with buffered
common Latch Enable (LE) and buffered common Output
Enable (OE) inputs.
This device is functionally identical to the DM74LS373, but
has different pinouts.
Features
s
Inputs and outputs on opposite sides of package allow-
ing easy interface with microprocessors
s
Useful as input or output port for microprocessors
s
Functionally identical to DM74LS373
s
Input clamp diodes limit high speed termination effects
s
Fully TTL and CMOS compatible
Ordering Code:
Order Number
DM74LS573WM
DM74LS573N
Package Number
M20B
N20A
Package Description
20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Logic Symbol
Connection Diagram
V
CC
=
Pin 20
GND
=
Pin 10
Pin Descriptions
Pin Names
D0–D7
LE
OE
O0–O7
Data Inputs
Latch Enable Input (Active HIGH)
3-STATE Output Enable Input (Active LOW)
3-STATE Latch Outputs
Description
Function Tables
Output
Enable
L
L
L
H
Latch
Enable
H
H
L
X
D
H
L
X
X
Output
O
H
L
Q
O
Z
L
=
LOW State
H
=
HIGH State
X
=
Don't Care
Z
=
High Impedance State
Q
O
=
Previous Condition of O
© 2000 Fairchild Semiconductor Corporation
DS009814
www.fairchildsemi.com
DM74LS573
Absolute Maximum Ratings
(Note 1)
Supply Voltage
Input Voltage
Operating Free Air Temperature Range
Storage Temperature Range
7V
7V
0°C to
+70°C
−65°C
to
+150°C
Note 1:
The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Recommended Operating Conditions
Symbol
V
CC
V
IH
V
IL
I
OH
I
OL
T
A
Supply Voltage
HIGH Level Input Voltage
LOW Level Input Voltage
HIGH Level Input Current
LOW Level Output Current
Free Air Operating Temperature
0
Parameter
Min
4.75
2
0.8
−2.6
24
70
Nom
5
Max
5.25
Units
V
V
V
mA
mA
°C
Electrical Characteristics
Over recommended operating free air temperature range (unless otherwise noted)
Symbol
V
I
V
OH
V
OL
Parameter
Input Clamp Voltage
HIGH Level
Output Voltage
LOW Level
Output Voltage
I
I
I
IH
I
IL
I
OS
I
CC
I
OZH
I
OZL
Input Current @ Max Input Voltage
HIGH Level Input Current
LOW Level Input Current
Short Circuit
Output Current
Supply Current
3-STATE Output
OFF Current HIGH
3-STATE Output
OFF Current LOW
Note 2:
All typicals are at V
CC
=
5V, T
A
=
25°C.
Note 3:
Not more than one output should be shorted at a time, and the duration should not exceed one second.
Conditions
V
CC
=
Min, I
I
= −18
mA
V
CC
=
Min, I
OH
=
Max,
V
IL
=
Max
V
CC
=
Min, I
OL
=
Max,
V
IH
=
Min
I
OL
=
4 mA, V
CC
=
Min
V
CC
=
Max, V
I
=
7V
V
CC
=
Max, V
I
=
2.7V
V
CC
=
Max, V
I
=
0.4V
V
CC
=
Max
(Note 3)
V
CC
=
Max
V
CC
=
V
CCH
V
OZH
=
2.7V
V
CC
=
V
CCH
V
OZL
=
0.4V
Min
Typ
(Note 2)
Max
−1.5
Units
V
V
2.7
3.4
0.35
0.25
0.5
0.4
1
20
−0.4
V
mA
µA
mA
mA
mA
µA
µA
−30
−130
50
20
−20
www.fairchildsemi.com
2
DM74LS573
Switching Characteristics
at V
CC
=
5V and T
A
=
25°C
R
L
=
2 kΩ,
Symbol
t
PLH
t
PHL
t
PLH
t
PHL
t
PZH
t
PZL
t
PHZ
t
PLZ
t
S
(H)
t
S
(L)
t
H
(H)
t
H
(L)
t
W
(H)
Propagation Delay
Data to Q
Propagation Delay
LE to Q
3-STATE Enable Time
OE to Q
3-STATE Enable Time
OE to Q
Setup Time (HIGH/LOW)
Data to LE
Hold Time (HIGH/LOW)
Data to LE
Pulse Width (HIGH)
Data to LE
3
7
10
10
15
Parameter
Min
C
L
=
50 pF
Max
27
18
36
25
20
25
20
25
ns
ns
ns
ns
ns
ns
ns
Units
3
www.fairchildsemi.com
DM74LS573
Physical Dimensions
inches (millimeters) unless otherwise noted

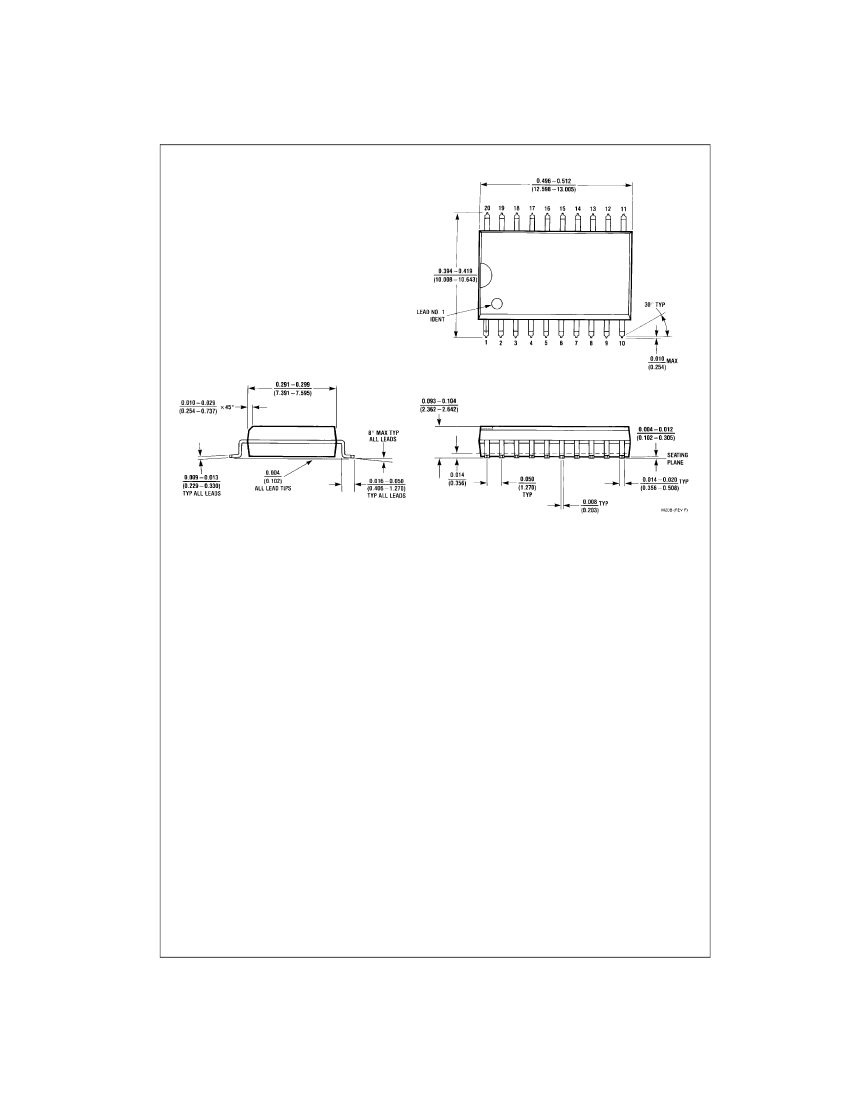

20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
Package Number M20B
www.fairchildsemi.com
4
DM74LS573 Octal D-Type Latch with 3-STATE Outputs
Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)

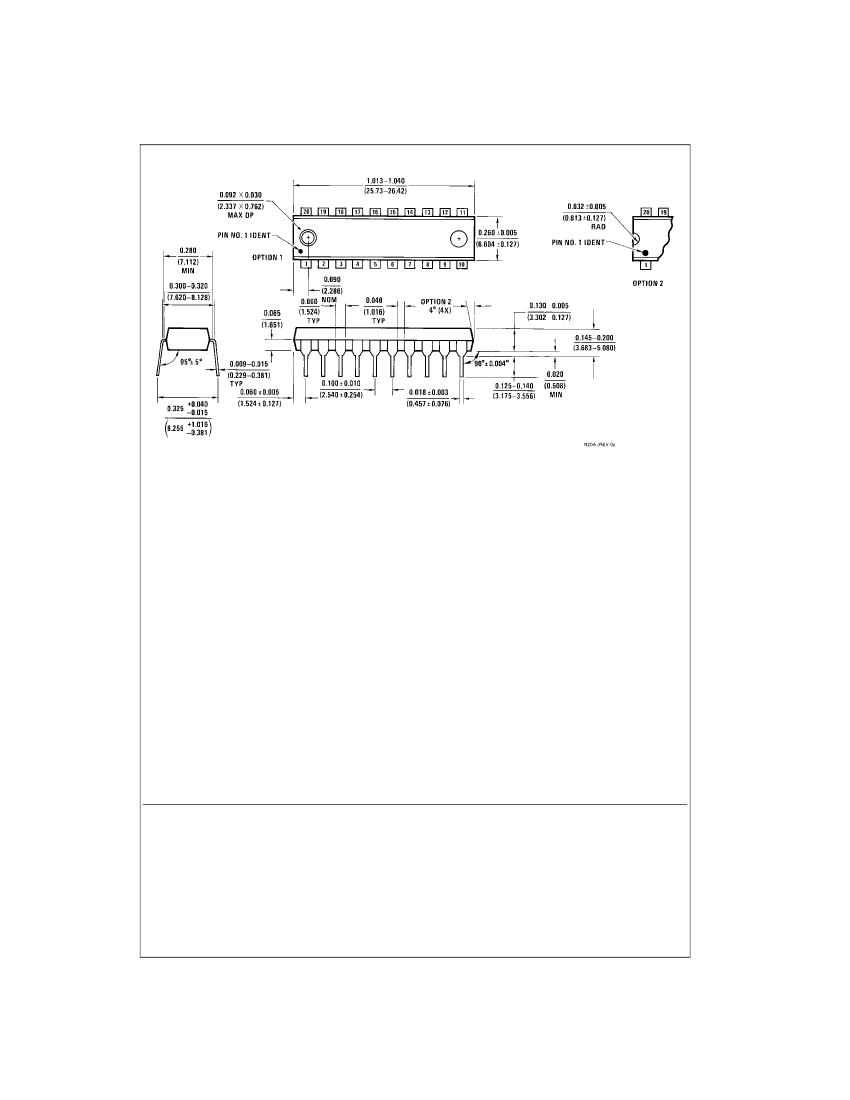

20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Package Number N20A
