D472K33Y5PH63L6

Description
CAP CER 4700PF 100V Y5P RADIAL
CategoryPassive components
File Size99KB,5 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

D472K33Y5PH63L6 Overview

CAP CER 4700PF 100V Y5P RADIAL

D472K33Y5PH63L6 Parametric

Parameter NameAttribute value
capacitance4700pF
Tolerance±10%
Voltage - Rated100V
Temperature CoefficientY5P(B)
Operating temperature-30°C ~ 125°C
characteristic-
grade-
applicationUniversal
failure rate-
Installation typeThrough hole
Package/casingRadial, disc type
size/dimensions0.348" diameter (8.83mm)
Height - Installation (maximum)0.236"(6.00mm)
Thickness (maximum)-
lead spacing0.250"(6.35mm)
Lead formStraight

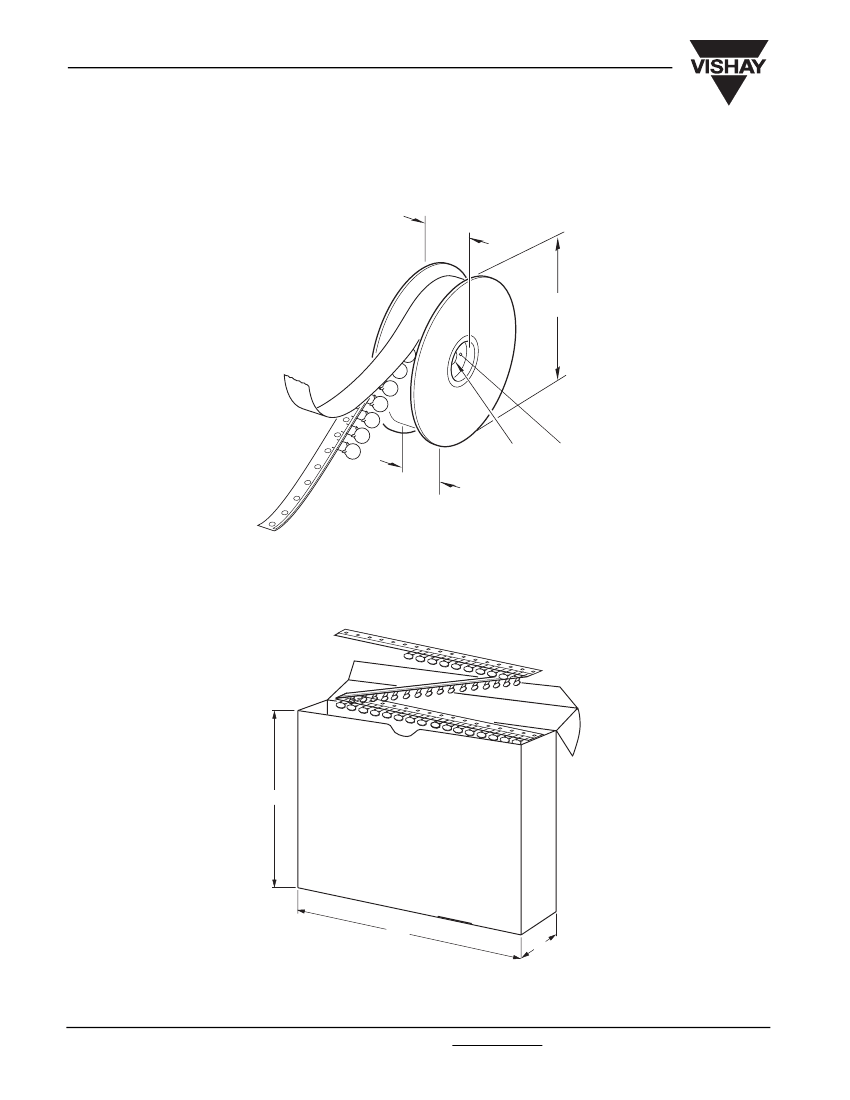

LV 100 V
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1 and 2, 100 V (DC) General Purpose
FEATURES
Low losses
High stability
High capacitance in small size
Kinked (preferred) or straight leads.
Lead (Pb)-free available.
tangent
line
SH
D
APPLICATIONS
Bypassing
Coupling
Resonant circuit.
DESIGN
The capacitors consist of a ceramic disc both sides of which
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.6 mm.
The capacitors have inward kinked leads with a spacing of
5 mm (0.200") and a lead length from 4 to 30 mm.
Encapsulation is made of phenolic resin.
F
Capacitors with 5 mm (0.20") lead spacing.
TEMPERATURE COEFFICIENTS:
CAPACITANCE RANGE:
Class 1, at 1 MHz, 1.2 V (RMS); 1.0 to 100 pF
1 kHz, 1 ± 0.2V (RMS) for capacitance values higher than 1000 pF.
Class 2, at 1 kHz, 1 ± 0.2 V (RMS); 150 to 47000 pF
Class 1 NP0; SL0
Class 2 Y5P; Z5U; Y5V; Z5V
SECTIONAL SPECIFICATIONS:
Class 1 IEC 60 384-8,
Class 2 IEC 60 384-9,
EIA 198
RATED DC VOLTAGE:
100 V
DIELECTRIC STRENGTH:
250 % of rated voltage
CLIMATIC CATEGORY:
Class 1 55/125/21
Class 2 10/85/21 and 30/85/21
INSULATION RESISTANCE AT 100V (DC):
10000 MΩ
OPERATING TEMPERATURE RANGE:
Class 1 - 55 to + 125 °C
Class 2 - 30 to + 85 °C
TOLERANCE ON CAPACITANCE:
± 0.25 pF; ± 0.5 pF; ± 5 % ; ± 10 %; ± 20 %; + 80 /- 20 %
DISSIPATION FACTOR:
Class 1, C
30 pF;
20 x (10/C + 0.7) x 10
-4
maximum
Class 1, C > 30 pF;
20 x 10
-4
Class 2,
3.0 %
MARKING
Marking indicates capacitance value and tolerance in
accordance with
“EIA 198”.
The capacitors meet the essential requirements of “EIA 198”. Unless stated otherwise all electrical values apply at an ambient
temperature of 25 ± 3 °C, at normal atmospheric conditions
www.vishay.com
24
For technical questions contact: CDC@vishay.com
Document Number: 28511
Revision: 23-Feb-05
