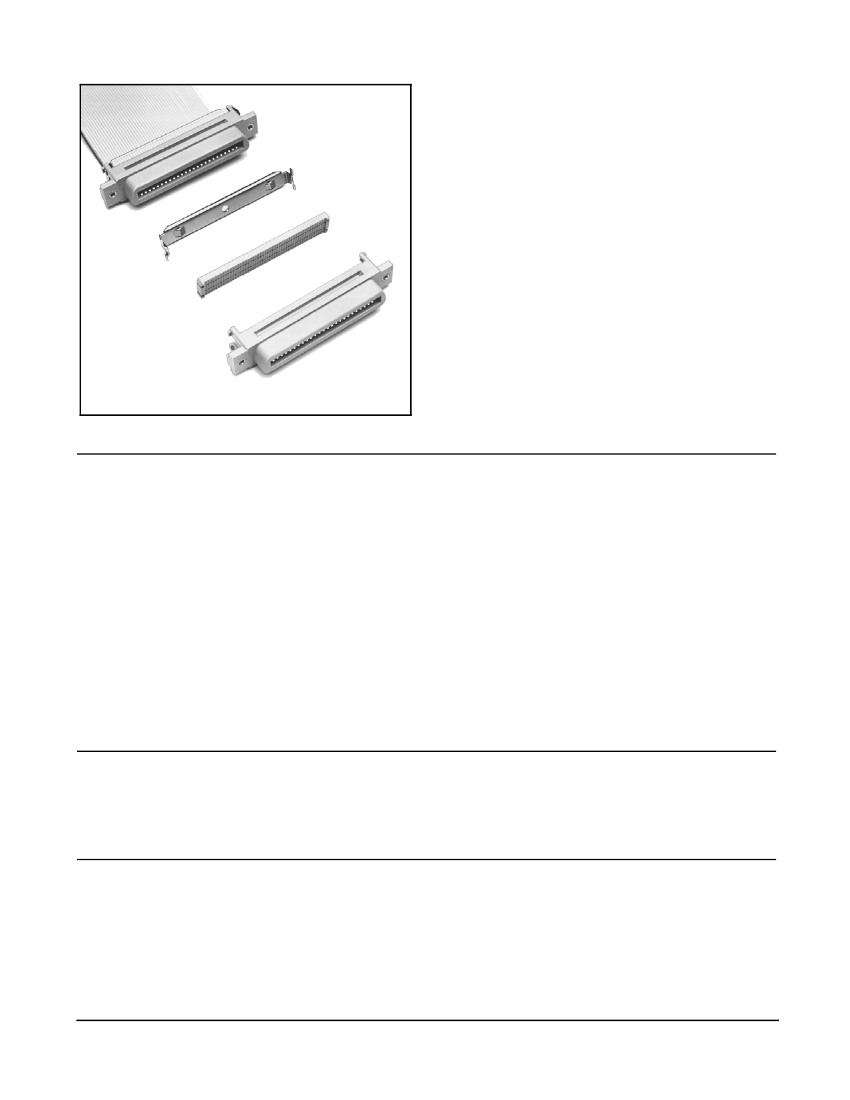

3M
™
D Ribbon Wiremount Socket
Molded Shell
•
•
•
•
3000 Series
Accepts 26-28 AWG wire
Accepts .050 inch round, flat or jacketed cable
Low profile
Flexible design offers various mounting
applications
• Contact design efficiency enables
multiple insertion/withdrawals
• Optional bail mount kit available
• RoHS* compliant
Date Modified: January 9, 2007
TS-0820-10
Sheet 1 of 3
Physical
Insulation
Material:
Glass Filled Polyester (PBT)
Flammability:
Color:
Contact
Material:
Plating:
Underplating:
Wiping Area:
Strain Relief
Material:
Wire Accommodation:
UL 94V-0
Gray
Copper Alloy
100
μ″
[ 2.54
μm
] Nickel
30
μ″
[ 0.76
μm
] Gold
Stainless Steel - 0.012 [ 0.30 ] Thick
26 and 28 AWG Solid or Stranded
Marking:
3M Logo, Part Number Identification, Position 1
Electrical
Current Rating:
1 A
Insulation Resistance:
> 1
×
10
9
Ω
at 500 V
DC
Withstanding Voltage:
1000 Vrms at Sea Level
Environmental
Temperature Rating:
-55°C to +105°C
"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration values
in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing,
this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M.
UL File No.: E68080
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
D Ribbon Wiremount Socket
Molded Shell
Contact
Quantity
14
24
36
50
3M Part
Number
3573
3549
3367
3565

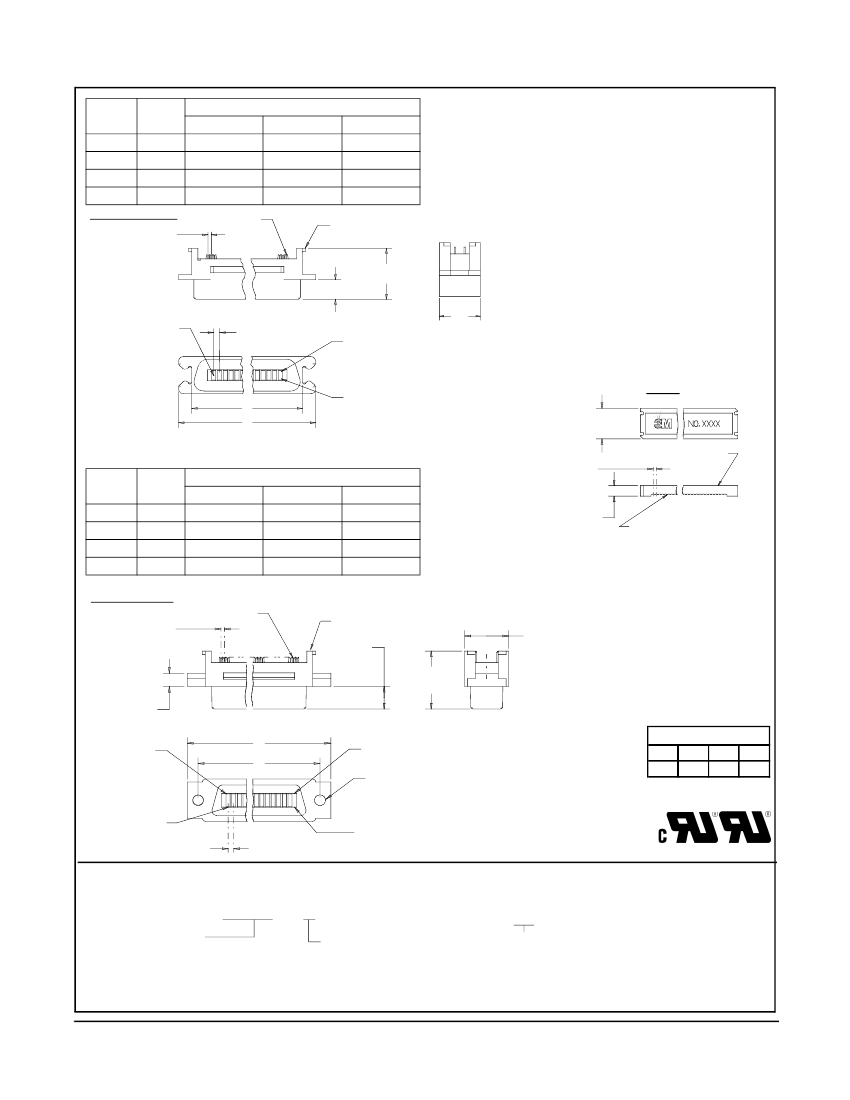

Dimension
A
1.58 [ 40.1 ]
2.01 [ 51.1 ]
2.52 [ 64.0 ]
3.11 [ 79.0 ]
“U” Contact
Strain Relief
Flange
.82
[ 20.8 ]
B
1.20 [ 30.5 ]
1.63 [ 41.4 ]
2.14 [ 54.4 ]
2.73 [ 69.3 ]
C
1.28 [ 32.5 ]
1.70 [ 43.2 ]
2.21 [ 56.1 ]
2.81 [ 71.4 ]
3000 Series
Bailmount Body
.050 Ref
[ 1.27 ]
Contact Position
8, 13, 19, or 26
.085 Ref
[ 2.16 ]
.32
[ 8.1 ]
Contact Position
14, 24, 36, or 50
.60
[ 15.2 ]
1
B
A
Contact Position
7, 12, 18, or 25
Cover
.46
[ 11.7 ]
Identification
Contact
Quantity
14
24
36
50
3M Part
Number
3573
3549
3367
3565
Dimension
A
1.75 [ 44.5 ]
2.17 [ 55.1 ]
2.68 [ 68.1 ]
3.27 [ 83.1 ]
B
1.42 [ 36.0 ]
1.84 [ 46.8 ]
2.35 [ 59.7 ]
2.95 [ 74.8 ]
C
1.28 [ 32.5 ]
1.70 [ 43.2 ]
2.21 [ 56.1 ]
2.81 [ 71.4 ]
.050 Typ
[ 1.27 ]
.16
[ 4.1 ]
Nonconductive Adhesive
Transfer with Liner
Standard Body
“U” Contact
Strain Relief Flange
.050 Typ
[ 1.27 ]
.32
[ 8.1 ]
.187
[ 4.75 ]
Contact Position
8, 13, 19, or 26
.82
[ 20.8 ]
.60
[ 15.2 ]
In c h
[m m ]
A
B
See Ordering Information
Contact Position
14, 24, 36, or 50
T o le ra n c e U n le s s N o te d
.0
in c h
± .1
.0 0
.0 0 0
± .0 1 ± .0 0 5
[ ] D im e n s io n s fo r R e fe re n c e
O n ly
Contact
Position 1
.085 Ref [ 2.16 ]
Contact Position
7, 12, 18, or 25
Ordering Information
Connector
XXXX-100X
Series
See Table
0 = .158 [ 4.01 ] Dia Hole
1 = with Bailmount
2 = #4-40 UNC Insert
6 = M3 Insert
Strain Relief
(Order Separately)
3448-XX
60 = 14 Position
61 = 24 Position
62 = 36 Position
63 = 50 Position
Optional 3475-X
Bail Mount Kit
(Order Separately)
See TS-0142
TS-0820-10
Sheet 2 of 3
For recommended 3M™
Mating Connectors
refer to TS-2203.
Assembly tools: 3M™ Press, 3640 (or equivalent) ; 3M™ Locator Plate, 3443-58; 3M™ Platen, 3442-9
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
D Ribbon Wiremount Socket
Molded Shell
3000 Series
E
Notes:
For rear mounting of connector with IEEE-488 Type 3M Jack Socket 3341-3, use .098
″
[ 2.49 mm ] R.
Contact
Quantity
14
24
36
50
14
24
36
50
3M Part
Number
3573
3549
3367
3565
3573
3549
3367
3565
Mounting
Method
Front
Front
Front
Front
Rear
Rear
Rear
Rear
Dimension
E
1.315 [ 33.41 ]
1.740 [ 44.20 ]
2.250 [ 57.15 ]
2.845 [ 72.26 ]
1.160 [ 29.46 ]
1.585 [ 40.26 ]
2.095 [ 53.21 ]
2.690 [ 68.33 ]
.075
±
.015
[ 1.9 ]
.50
±
.02
[ 12.7 ]
C Ref
3448-XX Strain Relief
Material: Stainless Steel
(Order Separately)
TS-0820-10
Sheet 3 of 3
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations
related to 3M’s products are based on information believed to be
reliable, but the accuracy or completeness is not guaranteed.
Before using this product, you must evaluate it and determine if it
is suitable for your intended application. You assume all risks and
liability associated with such use. Any statements related to the
product which are not contained in 3M’s current publications, or
any contrary statements contained on your purchase order shall
have no force or effect unless expressly agreed upon, in writing,
by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and
manufacture for a period of one (1) year from the time of
purchase.
3M MAKES NO OTHER WARRANTIES INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
If this product is defective within the warranty period
stated above, your exclusive remedy shall be, at 3M’s option, to
replace or repair the 3M product or refund the purchase price of
the 3M product.
Except where prohibited by law, 3M will not
be liable for any indirect, special, incidental or consequential
loss or damage arising from this 3M product, regardless of
the legal theory asserted.
3M
Electronics
6801 River Place Blvd.
Austin, TX 78726-9000
800/225-5373
www.3M.com/electronics
3
Minimum 10%
Post-Consumer Fiber
Printed in USA.
© 3M 2007
