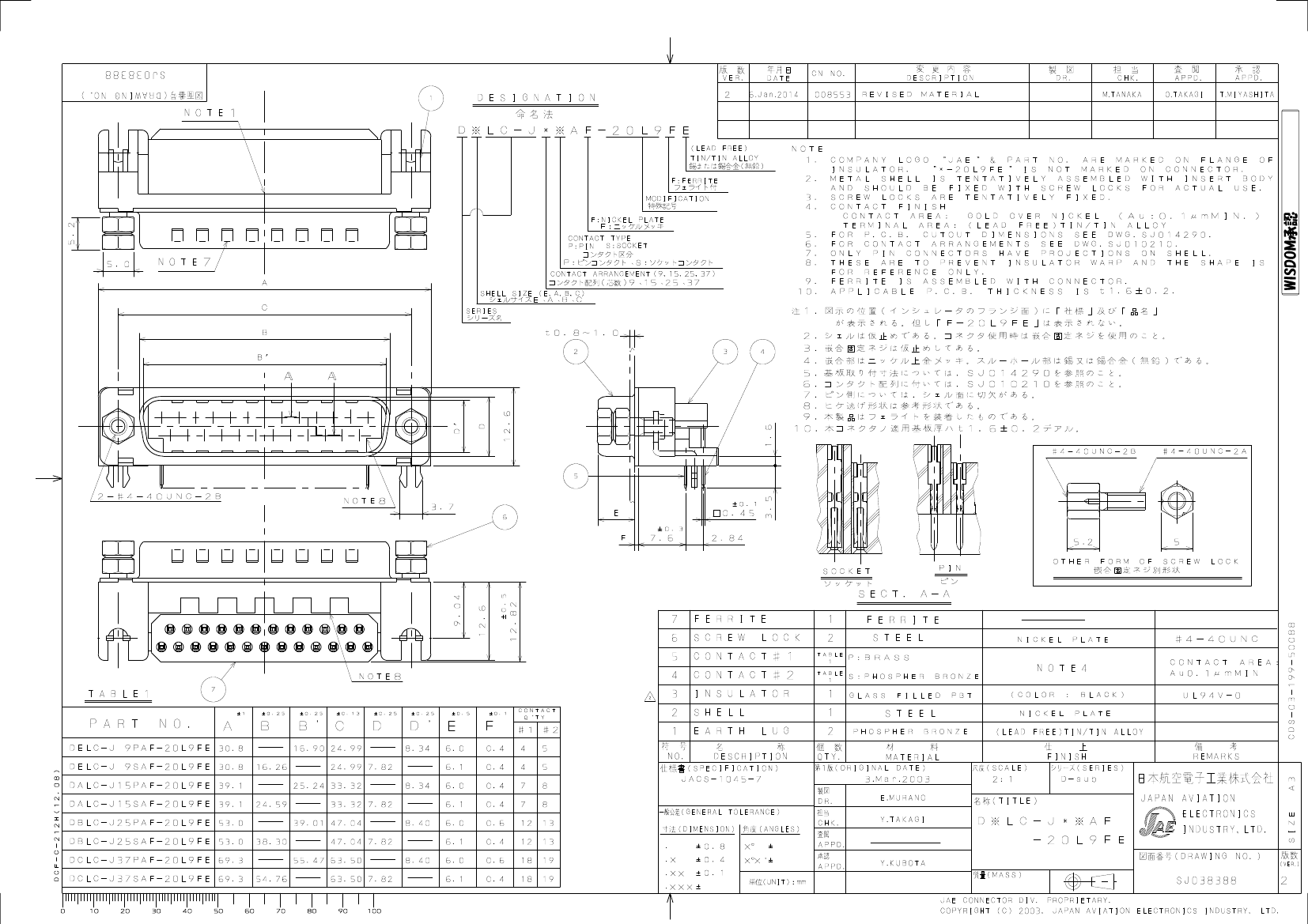

DALC-J15SAF-20L9FE datasheet, PDF

DALC-J15SAF-20L9FE: DescriptionCONN D-SUB RCPT 15POS R/A SOLDER; CategoryThe connector; File Size300KB，1 Pages; ManufacturerJAE Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

DALC-J15SAF-20L9FE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DALC-J15SAF-20L9FE	-	-	View	Buy Now

CONN D-SUB RCPT 15POS R/A SOLDER

Parameter Name	Attribute value
Connector style	D-Sub
Connector type	socket, female socket
Number of pins	15
Number of rows	2
Housing size, connector layout	2（DA，A）
Contact type	Signal
Installation type	Through hole, right angle
Flange characteristics	Mating side, female anti-falling screw (4-40)
Termination	welding
characteristic	plate lock
Housing material, plating	Steel, nickel plated
Contact plating	gold
Contact plating thickness	10.0µin（0.25µm）
Intrusion protection	-
Material flammability rating	UL94 V-0
Rated current	5A
Operating temperature	-55°C ~ 105°C
Rated voltage	-
color	black
Contact shape	-
Shell material	Polybutylene terephthalate (PBT), glass fiber reinforced
Wire gauge	-
Contact material	Phosphor bronze
Braking device interval	0.299"（7.60mm）

JAE-CONNECTOR.COM

Reference Only

2014/01/20

	DALC-J15SAF-20L9FE	DELC-J9PAF-20L9FE
Description	CONN D-SUB RCPT 15POS R/A SOLDER	CONN D-SUB PLUG 9POS R/A SOLDER
Connector style	D-Sub	D-Sub
Connector type	socket, female socket	Plug, male pin
Number of pins	15	9
Number of rows	2	2
Housing size, connector layout	2（DA，A）	1（DE，E）
Contact type	Signal	Signal
Installation type	Through hole, right angle	Through hole, right angle
Flange characteristics	Mating side, female anti-falling screw (4-40)	Mating side, female anti-falling screw (4-40)
Termination	welding	welding
characteristic	plate lock	Plate lock, ground dent
Housing material, plating	Steel, nickel plated	Steel, nickel plated
Contact plating	gold	gold
Contact plating thickness	10.0µin（0.25µm）	10.0µin（0.25µm）
Material flammability rating	UL94 V-0	UL94 V-0
Rated current	5A	5A
Operating temperature	-55°C ~ 105°C	-55°C ~ 105°C
color	black	black
Shell material	Polybutylene terephthalate (PBT), glass fiber reinforced	Polybutylene terephthalate (PBT), glass fiber reinforced
Contact material	Phosphor bronze	brass
Braking device interval	0.299"（7.60mm）	0.299"（7.60mm）
