TV30C220K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> TV30C220K

TV30C220K: DescriptionSMD Transient Voltage Suppressor; CategoryDiscrete semiconductor diode; File Size74KB，4 Pages; ManufacturerComchip Technology; Websitehttp://www.comchiptech.com/

Download Datasheet Parametric View All

TV30C220K Overview

SMD Transient Voltage Suppressor

TV30C220K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Comchip Technology
Reach Compliance Code	compli
ECCN code	EAR99

Preview

Download Datasheet

View All

SMD Transient Voltage Suppressor

COMCHIP

www.comchip.com.tw

TV30C5V0 Thru TV30C171

Working Peak Reverse Voltage: 5.0 - 170 Volts

Power Dissipation: 3000 Watts

Features

Ideal for surface mount applications

Easy pick and place

Plastic package has Underwriters Lab.

flammability classification 94V-0

Typical IR less than 1uA above 10V

Fast reponse time: typically less 1nS for

uni-direction, less than 5nS for bi-

directiona, from 0 V to BV min.

SMC/DO-214AB

0.124(3.15)

0.108(2.75)

0.280(7.11)

0.260(6.60)

0.245(6.22)

0.220(5.59)

0.012(0.31)

0.006(0.15)

Mechanical data

Case: JEDEC DO-214AB molded plastic

Terminals: solderable per MIL-STD-750,

method 2026

Polarity: Cathode band denoted

Mounting position: Any

Approx. Weight:0.21 gram

0.103(2.62)

0.079(2.00)

0.050(1.27)

0.030(0.76)

0.008(0.20)

0.0203(0.10)

0.320(8.13)

0.305(7.75)

Dimensions in inches and (millimeter)

Maximum Ratings and Electrical Characterics

Rating at 25 C ambient temperature unless otherwise specified.

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%

Characteristics

Peak Power Dissipation on 10/1000uS

Waveform (Note 1, Fig. 1)

Peak Pulse Current of on 10/1000uS

Waveform (Note 1, Fig. 3)

Steady State Power Dissipation at

=75 C (Note 2)

Peak Forfard Surge Current, 8.3mS Single

Half Sine-Wave Superimposed on Rated

Load, Uni-Directional Only (Note 3)

Maxinum Instantaneous Forward Voltage

at 100A for Uni-Directional only

(Note 3 & 4)

Operation Junction Temperature Range

Storage Temperature Range

Symbol

PPM

Value

3000

See Table 1

5.0

Units

Watts

PPM

M(AV)

FSM

250

STG

3.5/5.0

-55 to +150

Volts

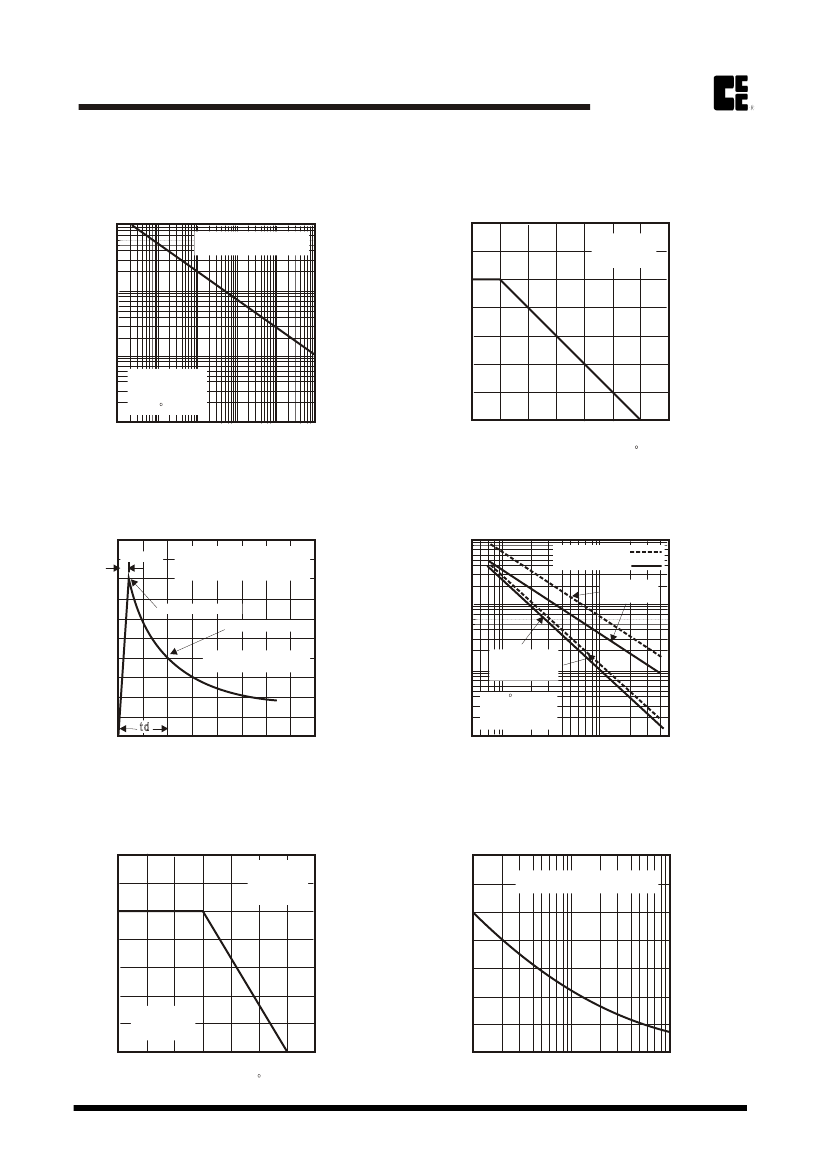

Note: 1. Non-Repetitive Current Pulse, per Fig. 3 and Derated above TA=25 C, per Fig. 2.

2. Mounted on 8.0x8.0 mm . Copper Pads to Each Terminal.

3. Measured on 8.3 mS Single Half Sine-Wave or Equivalent Square Wave, Duty Cycle=4 Pulse per Minute Maximum.

4. VF=3.5V on TV30C5V0 thru TV30C900 Devices and VF=5.0V on TV30C101 thru TV30C171.

MDS0211017A

Page 1
