SMD Transient Voltage Suppressor
COMCHIP
www.comchip.com.tw
TV15C5V0 Thru TV15C171
Working Peak Reverse Voltage: 5.0 - 170 Volts
Power Dissipation: 1500 Watts
Features
Ideal for surface mount applications
Easy pick and place
Plastic package has Underwriters Lab.
flammability classification 94V-0
Typical IR less than 1uA above 10V
Fast reponse time: typically less 1nS for
uni-direction, less than 5nS for bi-
directiona, from 0 V to BV min.
SMC/DO-214AB
0.124(3.15)
0.108(2.75)
0.280(7.11)
0.260(6.60)
0.245(6.22)
0.220(5.59)
0.012(0.31)
0.006(0.15)
Mechanical data
Case: JEDEC DO-214AB molded plastic
Terminals: solderable per MIL-STD-750,
method 2026
Polarity: Cathode band denoted
Mounting position: Any
Approx. Weight:0.21 gram
0.103(2.62)
0.079(2.00)
0.050(1.27)
0.030(0.76)
0.008(0.20)
0.0203(0.10)
0.320(8.13)
0.305(7.75)
Dimensions in inches and (millimeter)
Maximum Ratings and Electrical Characterics
Rating at 25 C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Characteristics
Peak Power Dissipation on 10/1000uS
Waveform (Note 1, Fig. 1)
Peak Pulse Current of on 10/1000uS
Waveform (Note 1, Fig. 3)
Steady State Power Dissipation at
T
L
=75 C (Note 2)
Peak Forfard Surge Current, 8.3mS Single
Half Sine-Wave Superimposed on Rated
Load, Uni-Directional Only (Note 3)
Maxinum Instantaneous Forward Voltage
at 100A for Uni-Directional only
(Note 3 & 4)
Operation Junction Temperature Range
Storage Temperature Range
Symbol
P
PPM
Value
1500
See Table 1
5.0
Units
Watts
A
Watts
I
PPM
P
M(AV)
I
FSM
200
A
VF
Tj
T
STG
3.5/5.0
-55 to +150
-55 to +150
Volts
C
C
Note: 1. Non-Repetitive Current Pulse, per Fig. 3 and Derated above TA=25 C, per Fig. 2.
2. Mounted on 8.0x8.0 mm . Copper Pads to Each Terminal.
3. Measured on 8.3 mS Single Half Sine-Wave or Equivalent Square Wave, Duty Cycle=4 Pulse per Minute Maximum.
4. VF=3.5V on TV15C5V0 thru TV15C900 Devices and VF=5.0V on TV15C101 thru TV15C171.
MDS0211016A
Page 1
SMD Transient Voltage Suppressor
COMCHIP
www.comchip.com.tw

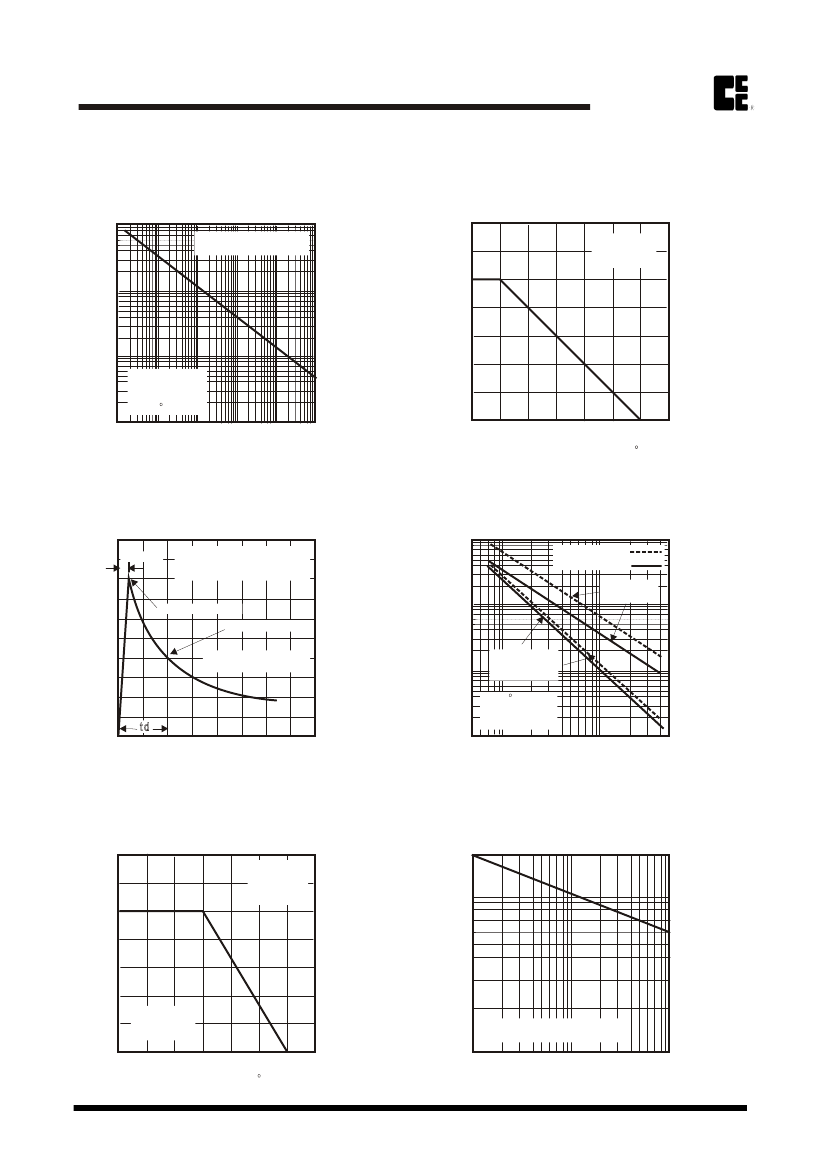

Rating and Characteristic Curves (TV15C5V0 Thru TV15C171)
Fig. 1 - Reverse Characteristics
100
Peak Pulse Power, P
PPM
(KW)
Mounted on 8mmx8mm
Copper Pads
140
Fig. 2 - Pulse Derating Curve
Peak pulse Power (Ppp) or Current (Ipp)
Derating in Percent (%)
120
100
80
60
40
20
0
Mounted on
5mmx5mm
Copper pads
10
1.0
Non-Repetitive
Pulse Waveform
Shown in Fig. 3
T
A
=25 C
0.1
0.1
1.0
10
100
1000
10000
Pulse Width, t
d
(uS)
0
25
50
75
100
125
150
175
Ambient Temperature,T
A
( C)
Fig. 3 - Pulse Waveform
125
Fig. 4 - Typical Junction Capacitance
for Uni-Directional Devices
10,000
Uni-Directional
Bi-Directional
Junction Capacitance, Cj (pF)
Measure at
Zero Bias
tr =10uS
Peak Pulse Current, I
PPM
( %)
100
Pulse Width (td) is Defined
as the Point Where the peak
Current Decay to 50% of Ipp
75
Peak Value I
PPM
Half Value Ipp/2
1,000
50
10/1000 uS Waveform
as Defined by R.E.A.
100
Measure at
Standard-off
Voltage, Vwm
Tj=25 C
f=1.0MHz
Vsig=50mVp-p
25
0
0
0
1.0
2.0
3.0
4.0
5.0
10
100
500
Time, t (mS)
Breakdown Voltage,V
BR
(Volts)
Fig. 5 - Steady State Power Derating Curve
7.0
Fig. 6 - Maxinum Non-Repetitive Peak
Forward Surge Current (Uni-
Directional Only)
Peak Forward Surge Current, I
FSM
(A)
200
Steady State Power Dissipation,
PM(
AV
), Watts
6.0
5.0
4.0
3.0
2.0
1.0
0
60Hz
Resistive or
Inductive
Load
100
50
Mounted on
8mmx8mm
Copper pads
0
25
50
75
100
125
150
175
20
8.3mS Single Half Sine-Wave
(JEDEC Method) Tj=Tjmax
10
1
10
Number of Cycle at 60Hz
100
Leadt Temperature,T
L
( C)
MDS0211016A
Page 2
SMD Transient Voltage Suppressor
A b so l u t e M a x i m u m R a t i n g ( T a = 2 5 C )
COMCHIP
www.comchip.com.tw
E le c tr ic a l C h a ra c te r ist ic s ( Ta = 2 5 C )
P a rt N o .
T V1 5 C 4 8 0 K ( B )
T V1 5 C 4 8 0 J ( B )
T V1 5 C 5 1 0 K ( B )
T V1 5 C 5 1 0 J ( B )
T V1 5 C 5 4 0 K ( B )
T V1 5 C 5 4 0 J ( B )
T V1 5 C 5 8 0 K ( B )
T V1 5 C 5 8 0 J ( B )
T V1 5 C 6 0 0 K ( B )
T V1 5 C 6 0 0 J ( B )
T V1 5 C 6 4 0 K ( B )
T V1 5 C 6 4 0 J ( B )
T V1 5 C 7 0 0 K ( B )
T V1 5 C 7 0 0 J ( B )
T V1 5 C 7 5 0 K ( B )
T V1 5 C 7 5 0 J ( B )
T V1 5 C 7 8 0 K ( B )
T V1 5 C 7 8 0 J ( B )
T V1 5 C 8 5 0 K ( B )
T V1 5 C 8 5 0 J ( B )
T V1 5 C 9 0 0 K ( B )
T V1 5 C 9 0 0 J ( B )
T V1 5 C 1 0 1 K ( B )
T V1 5 C 1 0 1 J ( B )
T V1 5 C 1 1 1 K ( B )
T V1 5 C 1 1 1 J ( B )
T V1 5 C 1 2 1 K ( B )
T V1 5 C 1 2 1 J ( B )
T V1 5 C 1 3 1 K ( B )
T V1 5 C 1 3 1 J ( B )
T V1 5 C 1 5 1 K ( B )
T V1 5 C 1 5 1 J ( B )
T V1 5 C 1 6 1 K ( B )
T V1 5 C 1 6 1 J ( B )
T V1 5 C 1 7 1 K ( B )
T V1 5 C 1 7 1 J ( B )
V
RWM
(V)
48.00
48.00
51.00
51.00
54.00
54.00
58.00
58.00
60.00
60.00
64.00
64.00
70.00
70.00
75.00
75.00
78.00
78.00
85.00
85.00
90.00
90.00
100.00
100.00
110.00
110.00
120.00
120.00
130.00
130.00
150.00
150.00
160.00
160.00
170.00
170.00
V
BR Min
V
BR Max
(V)
53.30
53.30
56.70
56.70
60.00
60.00
64.40
64.40
66.70
66.70
71.10
71.10
77.80
77.80
83.30
83.30
86.70
86.70
94.40
94.40
100.00
100.00
111.00
111.00
122.00
122.00
133.00
133.00
144.00
144.00
167.00
167.00
178.00
178.00
189.00
189.00
I
T
( mA )
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
I
F S M
(A) @ 8.3 m S
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Max Vc
(V)
85.5
77.4
91.1
82.4
96.3
87.1
103.0
93.6
107.0
96.8
114.0
103.0
125.0
113.0
134.0
121.0
139.0
126.0
151.0
137.0
160.0
146.0
179.0
162.0
196.0
177.0
214.0
193.0
231.0
209.0
268.0
243.0
287.0
259.0
304.0
275.0
I
R @
V
RWM
( uA )
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Marking Code
(V)
67.5
61.3
71.8
65.2
76.0
69.0
81.6
74.1
84.5
76.7
90.1
81.8
98.6
89.5
105.7
95.8
109.8
99.7
119.2
108.2
126.5
115.5
141.0
128.0
154.5
140.5
169.0
153.0
182.5
165.5
211.5
192.5
226.0
205.0
239.5
217.5
I p p (A )
17.5
19.4
16.5
18.2
15.6
17.2
14.6
16.0
14.0
15.5
13.2
14.6
12.0
13.3
11.2
12.4
10.8
11.4
9.9
10.4
9.4
10.3
8.4
9.3
7.7
8.4
7.0
7.9
6.5
7.2
5.6
6.2
5.2
5.8
4.9
5.5
UNI
GFW
GFX
GFY
GFZ
GGD
GGE
GGF
GGG
GGH
GGK
GGL
GGM
GGN
GGP
GGQ
GGR
GGS
GGT
GGU
GGV
GGW
GGX
GGY
GGZ
GHD
GHE
GHF
GHG
GHH
GHK
GHL
GHM
GHN
GHP
GHQ
GHR
BI
BFW
BFX
BFY
BFZ
BGD
BGE
BGF
BGG
BGH
BGK
BGL
BGM
BGN
BGP
BGQ
BGR
BGS
BGT
BGU
BGV
BGW
BGX
BGY
BGZ
BHD
BHE
BHF
BHG
BHH
BHK
BHL
BHM
BHN
BHP
BHQ
BHR
Note:
1) Suffix K denotes 10% tolerance devices, suffix J denotes 5% tolerance devices.
2) Suffix B after part number to specify bi-directional devices.
3) For bi-directional devices having VR of 10 volts and under, the IR limit is double.
MDS0211016A
Page 4
