TLE5009A16(D)
GMR Angle Sensor
Features
•
•
•
•
•
•
•
•
Available as single die and dual die with separate supplies for each die
Low current consumption and quick start up
360° contactless angle measurement
Output amplitude optimized for circuits with 3.3 V or 5 V supply voltage
Pre-amplified output signals for differential or single-ended applications
Immune to airgap variations due to GMR based sensing principle
Operating temperature range: -40°C to 125°C (ambient temperature)
Green product (RoHS compliant)
Product Validation
Developed for automotive applications. Product qualification according to AEC-Q100.
Potential Applications
The TLE5009A16(D) angle sensor is designed for angular position sensing in automotive and non-automotive
applications. Its high accuracy and 360° measurement range combined with short propagation delay makes it
suitable for systems with high speeds and high accuracy demands such as brush-less DC (BLDC) motors for
actuators and electric power steering systems (EPS). At the same time its fast power-up time and low overall
power consumption enables the device to be employed for low-power turn counting. Extremely low power
consumption can be achieved with power cycling, where the advantage of fast power on time reduces the
average power consumption.

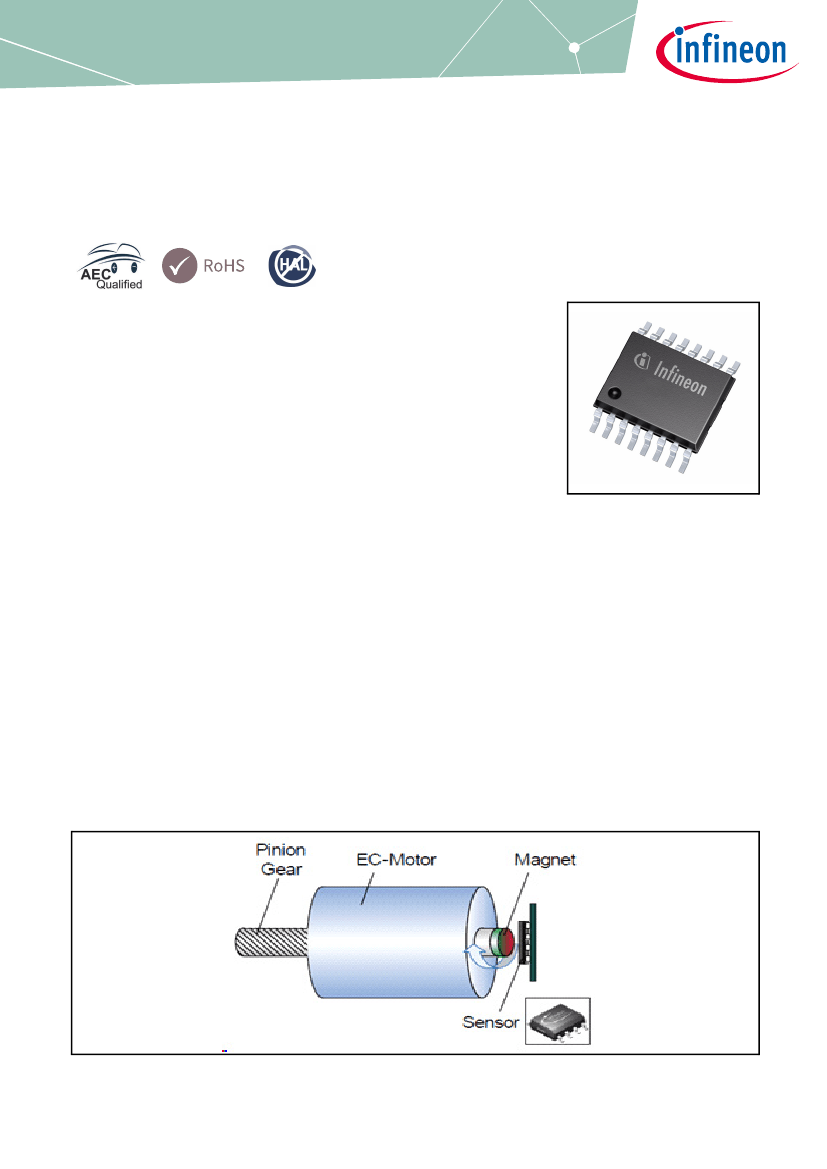

Figure 1
A usual application for TLE5009A16(D) is the electrically commutated motor
Data Sheet
www.infineon.com
1
Version 1.2
2017-10
TLE5009A16(D)
GMR Angle Sensor
Description
The TLE5009A16(D) is an angle sensor with analog outputs. It detects the orientation of a magnetic field by
measuring sine and cosine components with Giant Magneto Resistive (GMR) elements. It provides analog sine
and cosine output voltages that describe the magnet angle in a range of 0° to 360°.
The differential MR bridge signals are independent of the magnetic field strength, and the output voltages are
designed to use the dynamic range of an A/D-converter using the same supply as the sensor as voltage
reference.
The sensor is available as single die version (TLE5009A16) and dual die version (TLE5009A16D) for safety
applications that require redundancy. The two versions are pin-compatible for easy scalability. In the dual die
TLE5009A16D, both sensor dice are supplied independently by separate supply and ground pins.
Table 1
Derivate Ordering codes
Marking
09A11200
09A11210
09A12200
09A12210
09A21200
09A21210
09A22200
09A22210
Ordering Code
SP001285624
SP001296110
SP001296118
SP001296114
SP001285628
SP001296122
SP001296126
SP001296130
Package
PG-TDSO-16
PG-TDSO-16
PG-TDSO-16
PG-TDSO-16
PG-TDSO-16
PG-TDSO-16
PG-TDSO-16
PG-TDSO-16
Description
3.3 V, single die, without TCO
1)
3.3 V, single die, with TCO
1)
5.0 V, single die, without TCO
1)
5.0 V, single die, with TCO
1)
3.3 V, dual die, without TCO
1)
3.3 V, dual die, with TCO
1)
5.0 V, dual die, without TCO
1)
5.0 V, dual die, with TCO
1)
Product Type
TLE5009A16 E1200
TLE5009A16 E1210
TLE5009A16 E2200
TLE5009A16 E2210
TLE5009A16D E1200
TLE5009A16D E1210
TLE5009A16D E2200
TLE5009A16D E2210
1) Temperature Compensation Offset.
Data Sheet
2
Version 1.2
2017-10
TLE5009A16(D)
GMR Angle Sensor
Table of Contents
1
1.1
1.2
1.3
1.4
1.5
2
2.1
2.2
2.3
2.3.1
2.3.2
2.3.3
2.4
2.5
2.6
2.7
3
3.1
3.2
3.3
3.4
3.5
4
Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dual Die Angle Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
4
6
7
7
8
Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Application Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Sensor Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operating Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Electrical Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Output Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Error diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Angle Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Electrostatic discharge protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Electro Magnetic Compatibility (EMC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Package Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Package Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Package Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Packing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Data Sheet
3
Version 1.2
2017-10
TLE5009A16(D)
GMR Angle Sensor
Functional Description
1
1.1
Functional Description
General
The Giant Magneto Resistive (GMR) sensors are implemented using vertical integration. This means that the
MR sensitive areas are integrated above the analog portion of the ICs. These MR elements change their
resistance depending on the direction of the magnetic field.
On each sensor, four individual MR elements are connected in a Wheatstone bridge arrangement. Each MR
element senses one of two components of the applied magnetic field:
•
•
X component, V
x
(cosine) or the
Y component, V
y
(sine)
The advantage of a full-bridge structure is that the amplitude of the MR signal is doubled and temperature
effects cancel out. The output signal of a GMR bridge is unambiguous in a range of 180°. Therefore two bridges
are oriented orthogonally to each other to measure 360°.
GMR Resistors
S
0°
V
X
V
Y
N
ADC
X
+
ADC
X
-
GND
ADC
Y
+
ADC
Y
-
V
DD
90°
Figure 2
Attention:
Sensitive bridges of the GMR sensor (one die, not to scale)
Due to the rotational placement inaccuracy of the sensor IC in the package, the sensors 0° position
may deviate by up to 3° from the package edge direction indicated in
Figure 2.
In
Figure 2,
the arrows in the resistors represent the magnetic direction which is fixed in the Reference Layer.
On top of the Reference Layer, and separated by a non magnetic layer, there is a Free Layer. When applying an
external magnetic field the Free Layer moves in the same direction as the external magnetic field, while the
Reference Layer remains fix. The resistance of the GMR elements depends on the magnetic direction
difference between the Reference Layer and the Free Layer.
When the external magnetic field is parallel to the direction of the Reference Layer, the resistance is minimal
(Reference Layer and Free Layer are parallel). When the external magnetic field and the Reference Layer are
anti-parallel (Reference Layer and Free Layer are anti-parallel), resistance is maximal.
The output signal of each bridge is only unambiguous over 180° between two maxima. Therefore two bridges
are oriented orthogonally to each other to measure 360°.
Data Sheet
4
Version 1.2
2017-10
TLE5009A16(D)
GMR Angle Sensor
Functional Description
With the trigonometric function ARCTAN2, the true 360° angle value is calculated out of the raw X and Y signals
from the sensor bridges. The ARCTAN2 function is a microcontroller library function which resolves an angle
within 360° using the x and y coordinates on a unit circle.
90° Y Component (SIN)
V
Y
V
X
0°
X Component (COS)
V
V
X
(COS_N)
V
X
(COS_P)
0°
90°
180°
270°
360°
Angle
α
V
Y
(SIN_N)

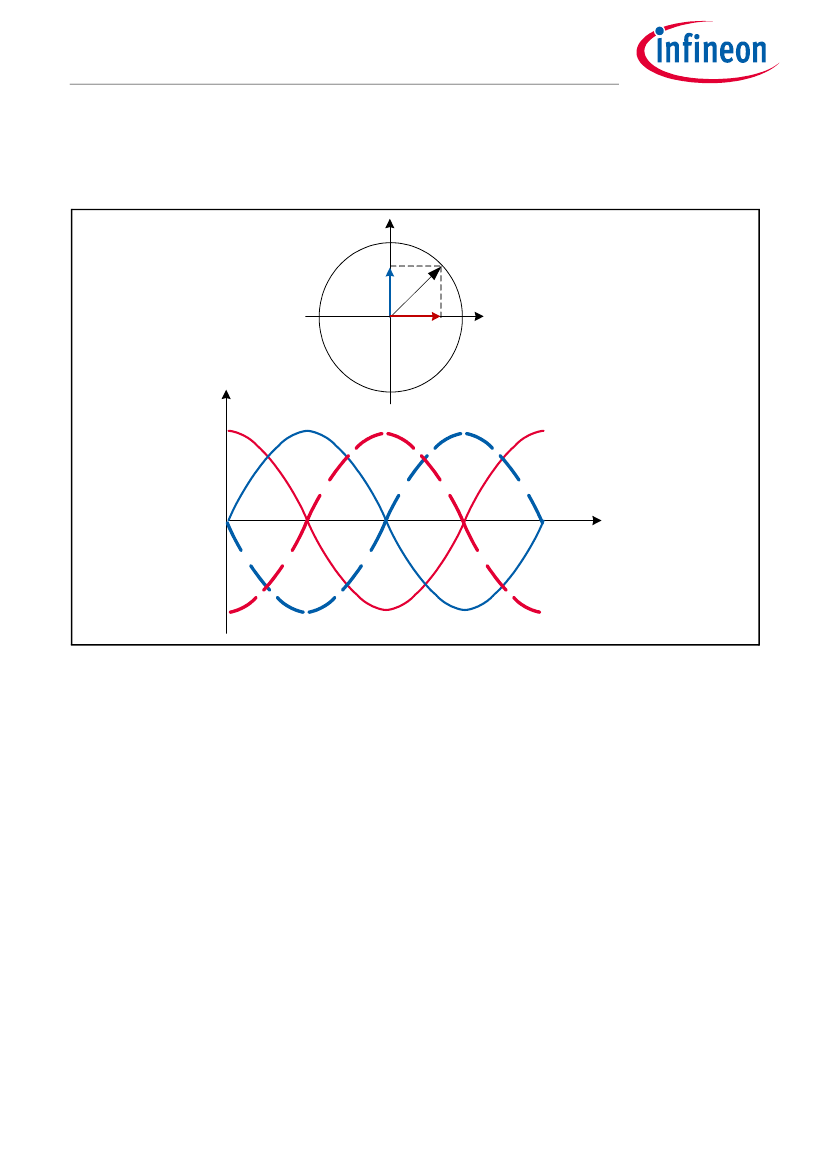

Figure 3
Ideal output of the GMR sensor bridges
V
Y
(SIN_P)
Data Sheet
5
Version 1.2
2017-10
