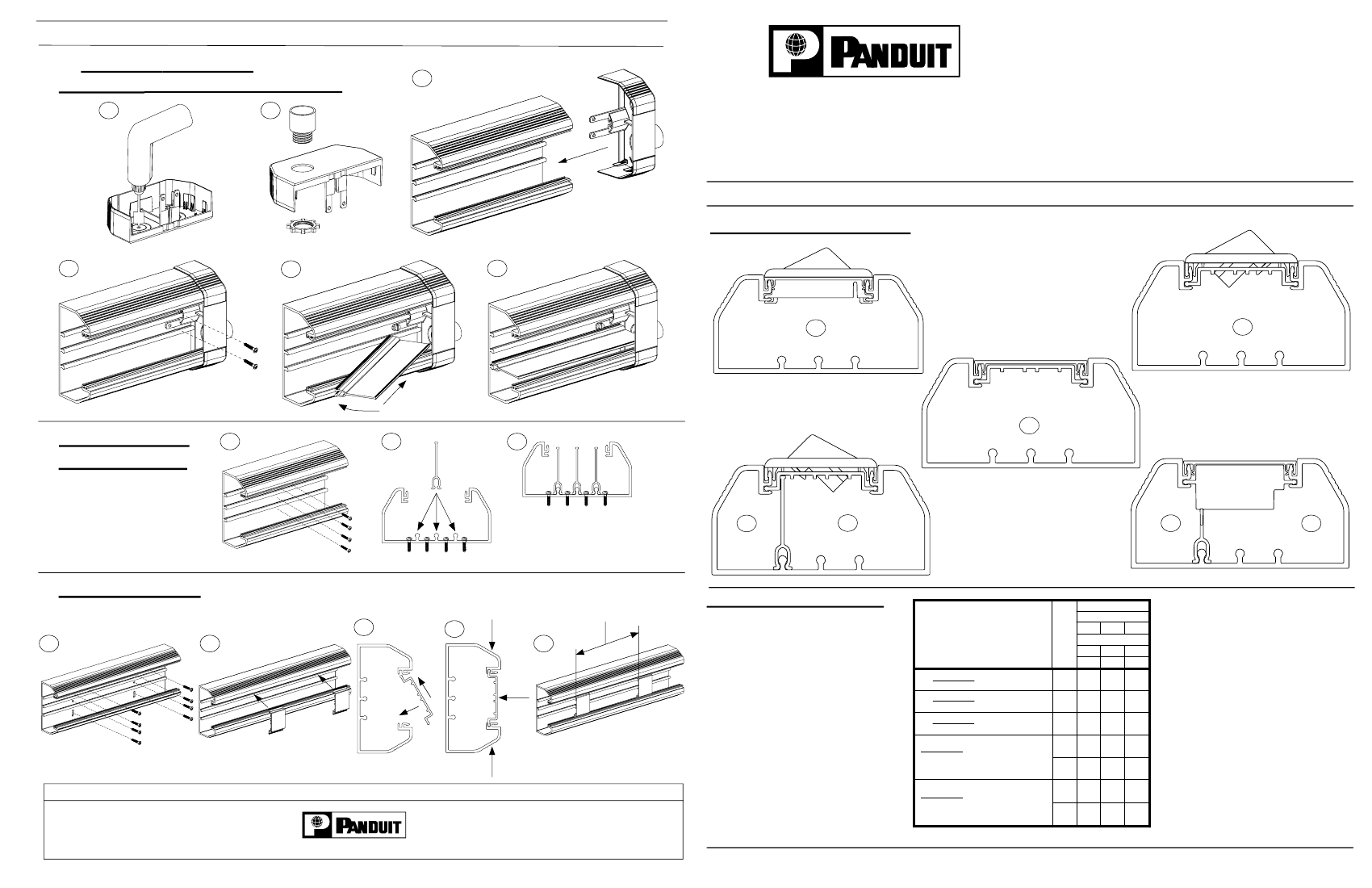

TG RACEWAY SYSTEM INSTALLATION INSTRUCTIONS
FITTINGS
continued
END CAP
(WITH CONDUIT DRILL GUIDE)
1
2
3
TG RACEWAY SYSTEM
FOR USE WITH
PANDUIT
SURFACE RACEWAY
ROUTING SYSTEM
Part Numbers: TG70B, T70C, TG70BC, T70CC, TG70WR
TG80B, TEC80, TG80BC, TECFC80, TG80WR
TG86B, TG86C, TG86BC, TCFC105, TG86WR
TGRA, TGEC, TGDW
INSTALLATION INSTRUCTIONS
©Panduit Corp. 2000
Printed in U.S.A.
TG70 WIREFILL PROFILES
4
5
6
1
2
3
ACCESSORIES
DIVIDER WALL
1
2
3
Must use wire retainers with divider
wall to ensure channel separation for
power applications.
4a
4b
5a
5b
WIRE RETAINER
18”(457.2mm)-24”(609.6mm)
TG70 WIREFILL CHART
2a
2b
3
2
Raceway Channel
Wirefill Configurations
See
Fill #
1
AWG
14
10
12
THHN/T90
0.105 0.122 0.153
MAX MAX MAX
**
**
40
28
**
28
**
**
**
40
28
**
28
**
**
**
38
26
**
26
**
*
Elecrical Cables
Wirefill #1: Data only using
Screw-On Faceplates
Wirefill #2: Data only using
Snap-On Bezels
Wirefill #3: TG-70 Raceway
with no Devices
Wirefill #4: Power and Data using
Snap-On Bezels and
3-Sided Power Box
Wirefill #5: Power and Data using
Snap-On Bezels
and 3-Sided Power Box
1
2
3
4A
4B
5A
5B
Instruction Sheet RW97
WORLDWIDE SUBSIDIARIES AND SALES OFFICES
17301 Ridgeland Avenue
Tinley Park, Il. 60477-3091
Web Site: www.panduit.com
Technical Support: 866-405-6656
Fax: 866-449-1702
Email: netconnsupport@panduit.com
* WIRES NOT BUNDLED
RACEWAY SYSTEMS DIVISION
For Technical Assistance call:
866-405-6656

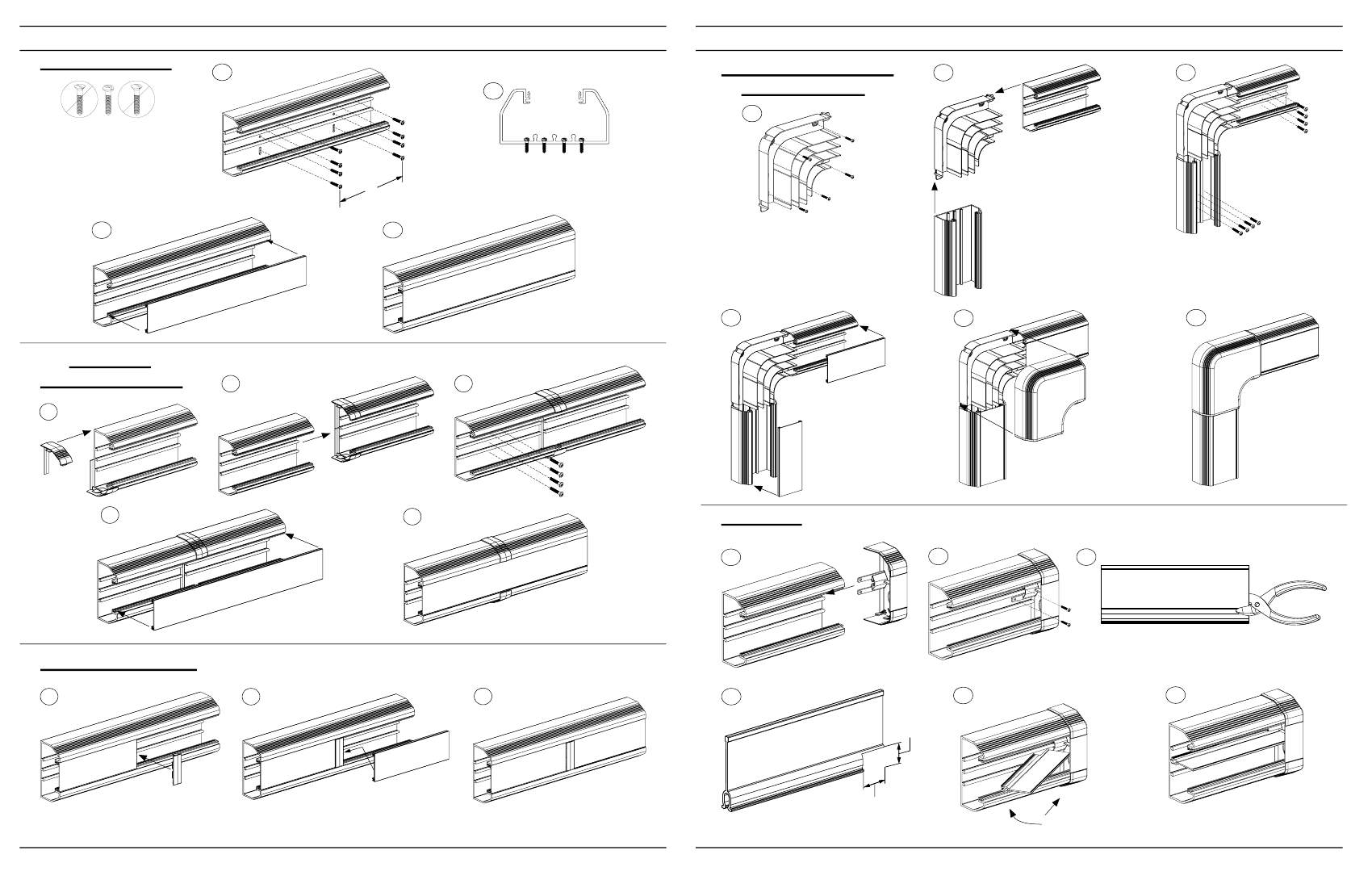

TG RACEWAY SYSTEM INSTALLATION INSTRUCTIONS
BASE &COVER
1
1a
The mounting hardware used to
secure the raceway shall be
appropriate for the mounting
TG RACEWAY SYSTEM INSTALLATION INSTRUCTIONS
FITTINGS
continued
RIGHT ANGLE
1
2
3
8”(203.2mm)
2
3
4
5
6
FITTINGS
BASE COUPLER
1
2
3
4
5
END CAP
1
2
3
COVER COUPLER
1
2
3
3a
0.625”(15.9mm)
3b
4
0.800”(20.3mm)
For Technical Assistance call:
866-405-6656
For Technical Assistance call:
866-405-6656
