51939-703LF datasheet, PDF - EEWORLD Datasheet

51939-703LF: DescriptionR/A HDR POWERBLADE; CategoryThe connector The connector; File Size302KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51939-703LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51939-703LF	-	-	View	Buy Now

R/A HDR POWERBLADE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
Factory Lead Time	6 weeks
Board mount options	HOLE .138-.163
body width	0.574 inch
subject depth	0.93 inch
body length	3.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P14
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Termination type	SOLDER
Total number of contacts	14

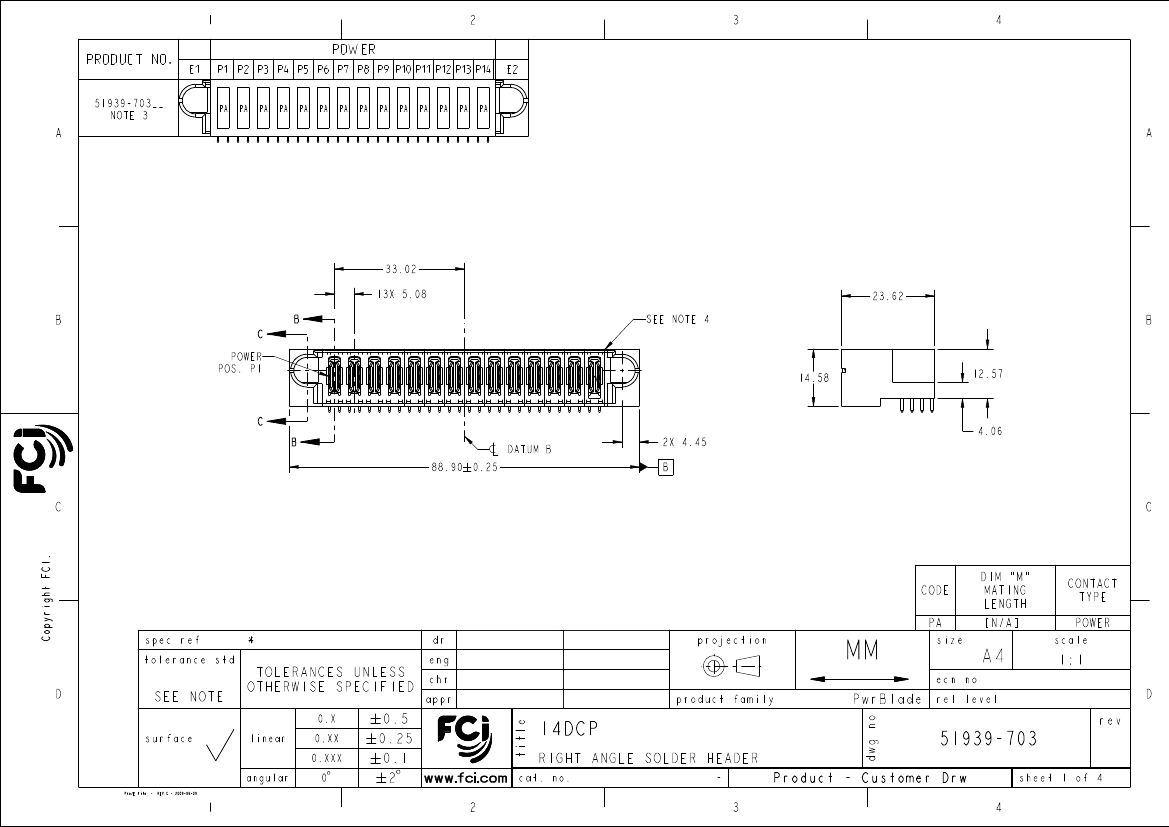

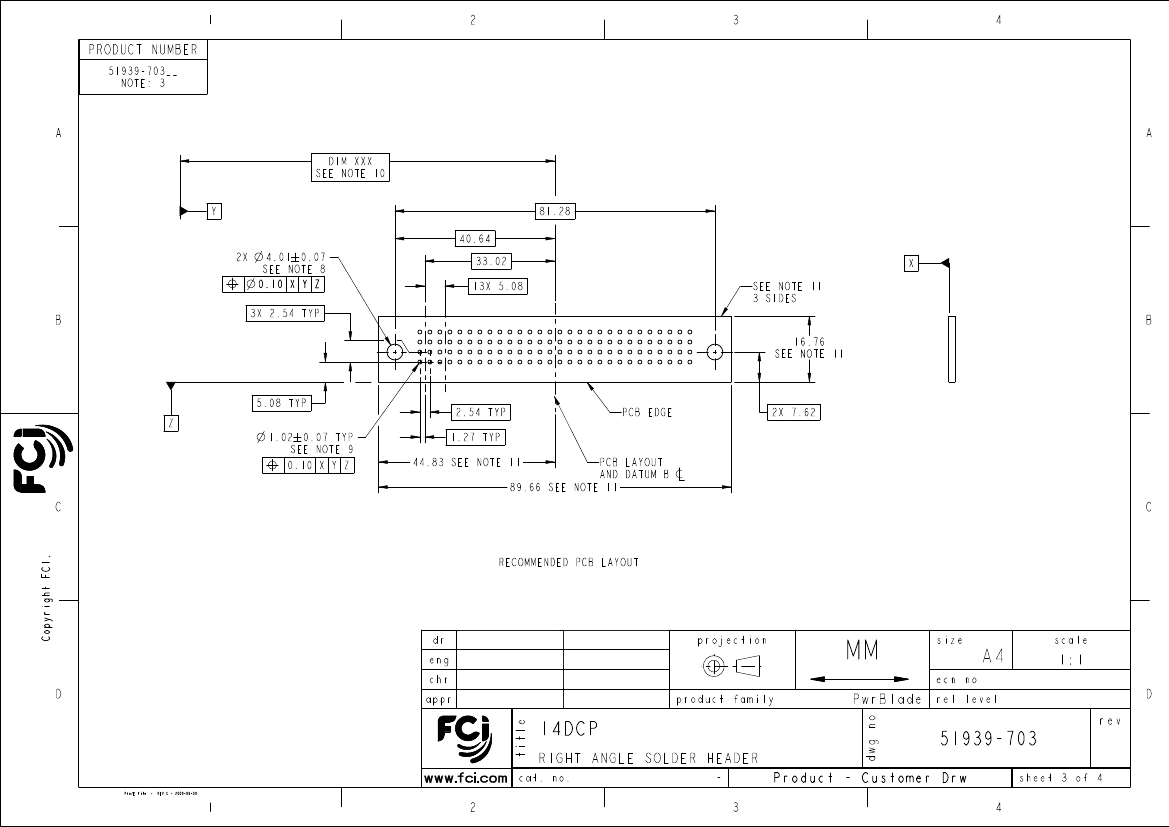

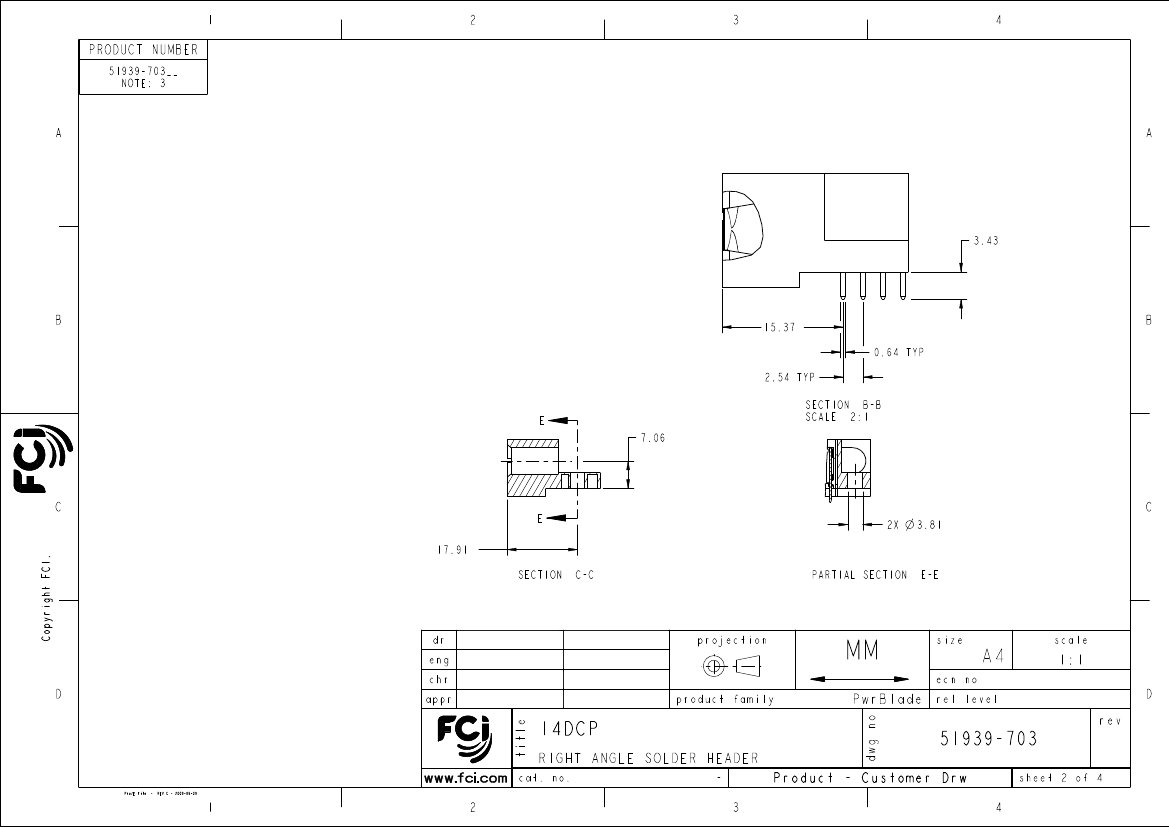

Luo Weller

-

Pei-Ming Zheng

2012/09/04

2012/09/18

-

2012/09/18

-

Released

A

PDS: Rev :A

STATUS:Released

Printed: Sep 18, 2012

	51939-703LF	51939-703
Description	R/A HDR POWERBLADE	Board Connector, 14 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Is it Rohs certified?	conform to	incompatible
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compli
Board mount options	HOLE .138-.163	HOLE .138-.163
body width	0.574 inch	0.574 inch
subject depth	0.93 inch	0.93 inch
body length	3.5 inch	3.5 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S0P14	S0P14
Contact completed and terminated	NOT APPLICABLE	TIN/LEAD OVER NICKEL
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ
Dielectric withstand voltage	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Mixed contacts	YES	YES
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch
Termination type	SOLDER	SOLDER
Total number of contacts	14	14
